Name: Gigabyte B760M G P WIFI DDR4 Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel®
Brand: Gigabyte
SKU: 3364344

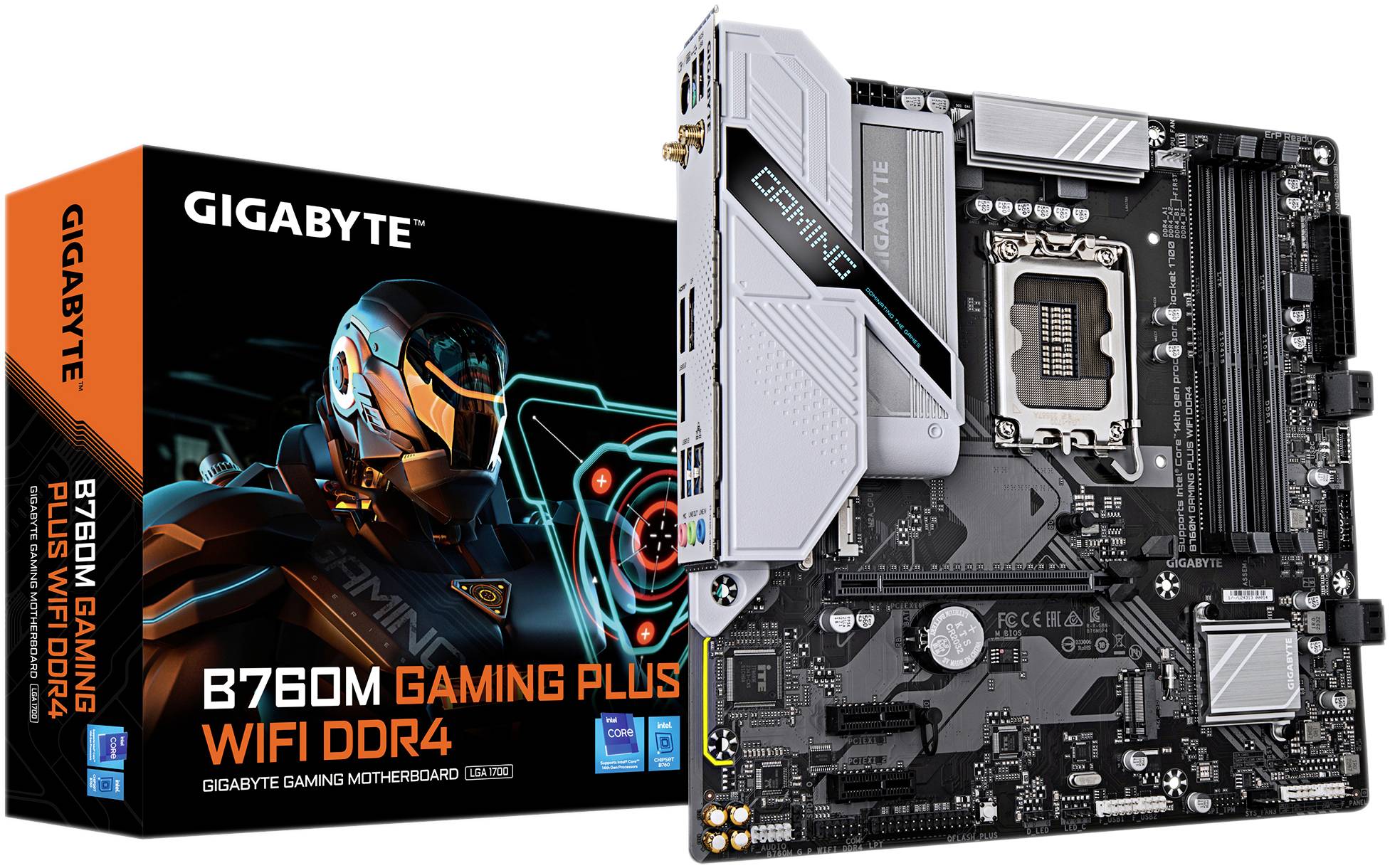

'Gigabyte B760M Gaming Plus WiFi DDR4' motherboard with packaging; offers modern gaming features and WiFi support.

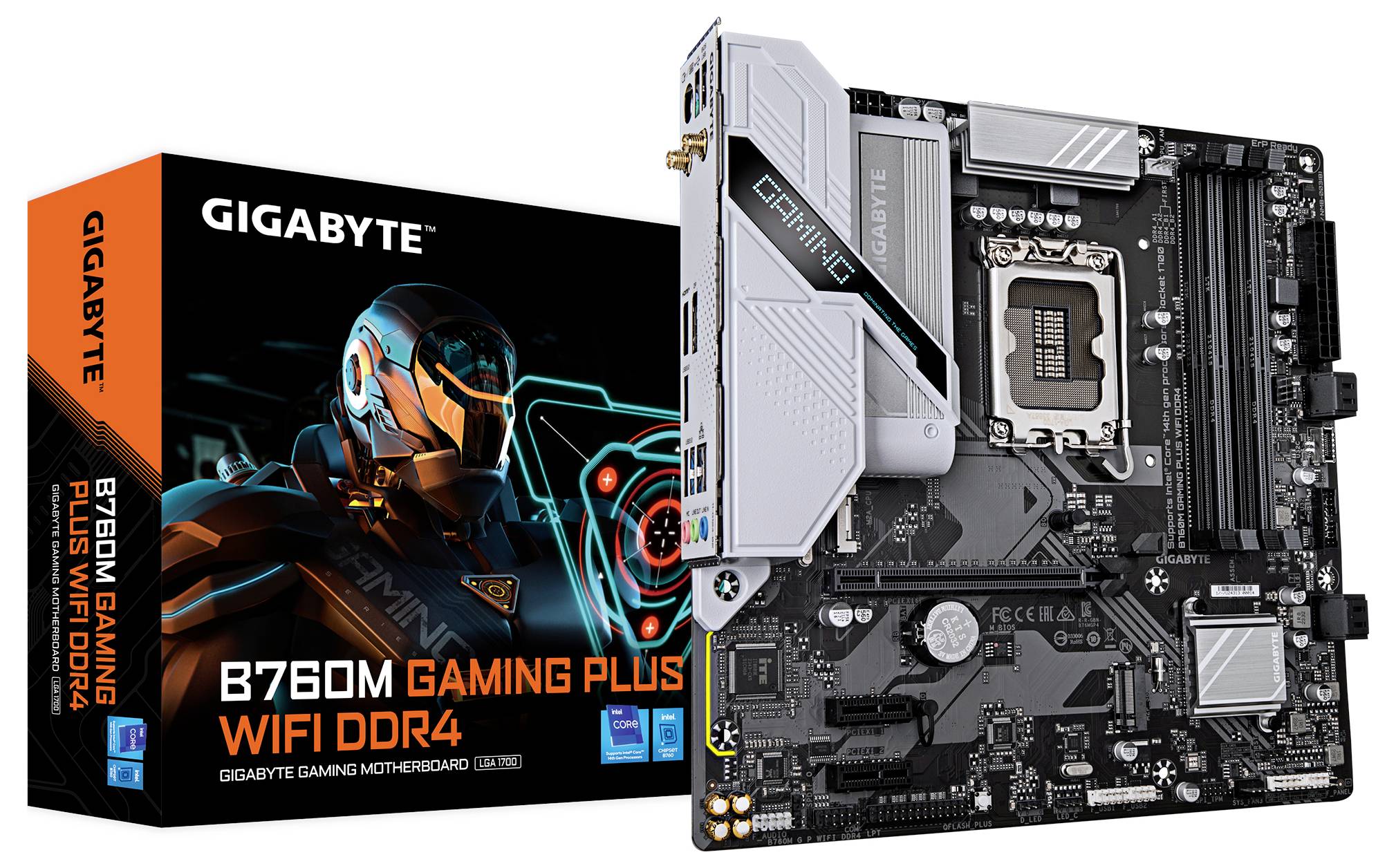

Gigabyte B760M Gaming Plus Motherboard and Packaging. The motherboard shows multiple expansion slots, heatsinks, and connectors.

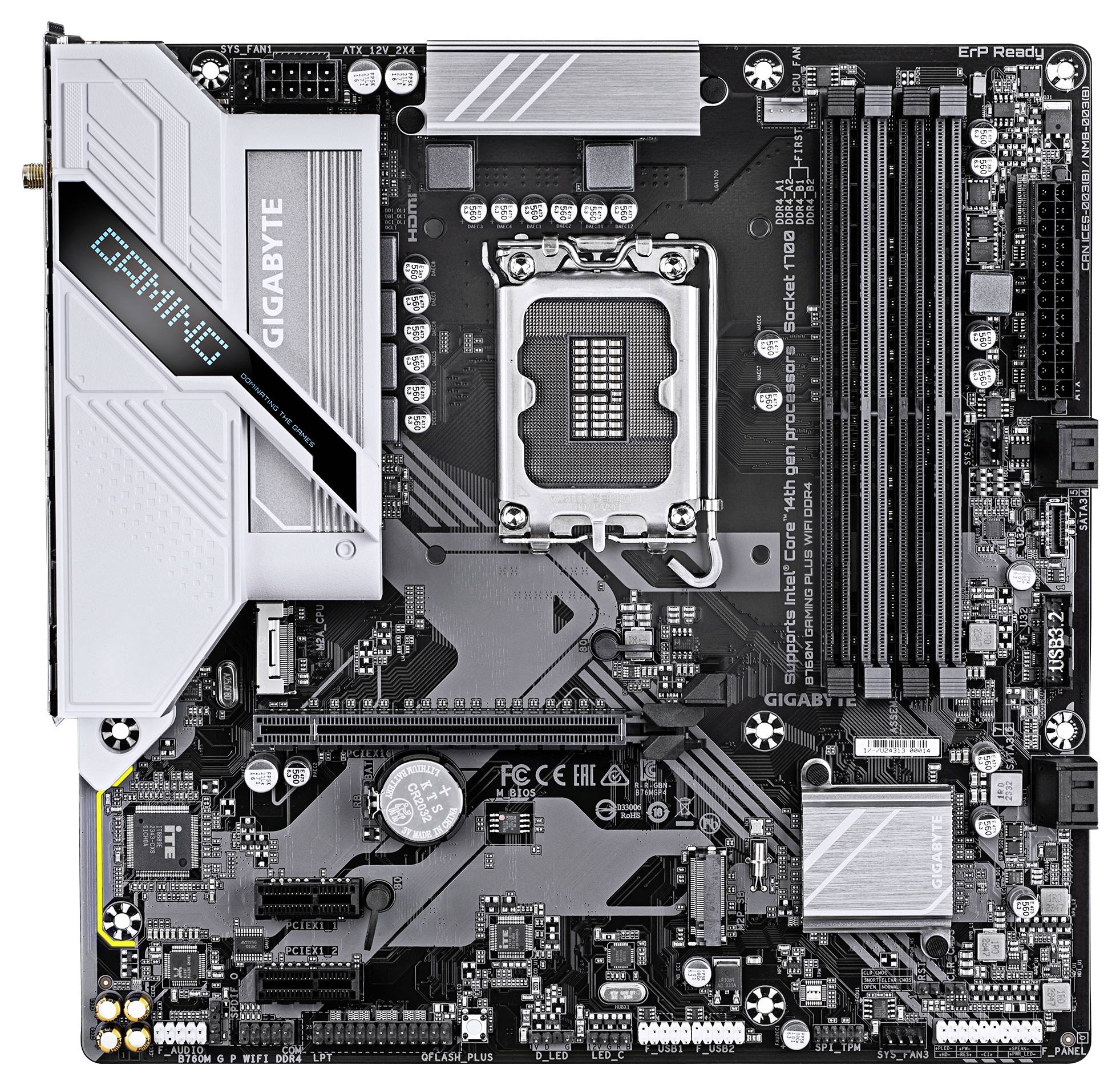

The image shows a Gigabyte motherboard circuit board with labels, multiple RAM slots, a CPU socket, and various connectors.

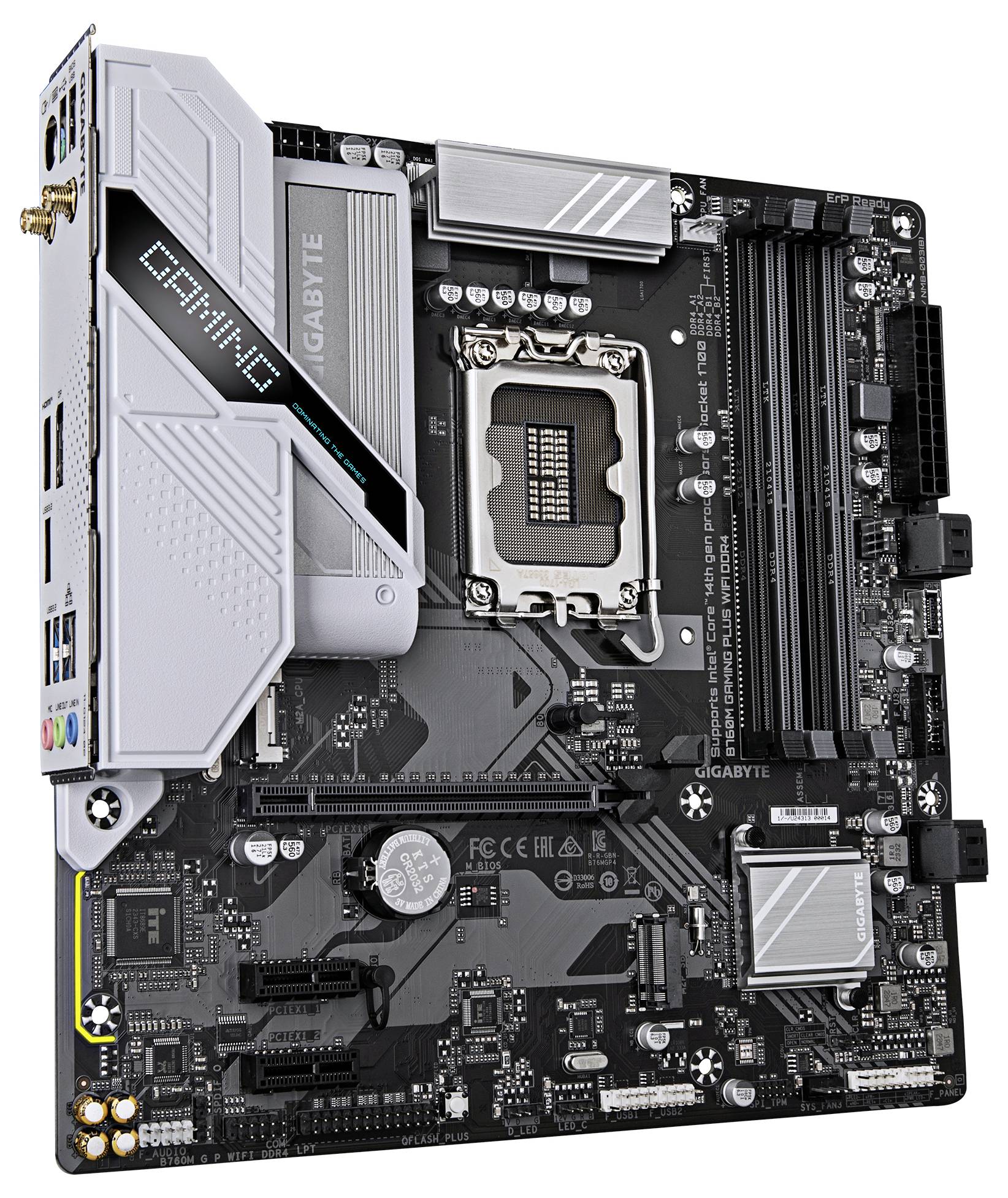

Motherboard in ATX format with a black PCB; featuring CPU socket, RAM slots, and extended heatsinks. Suitable for gaming PCs.

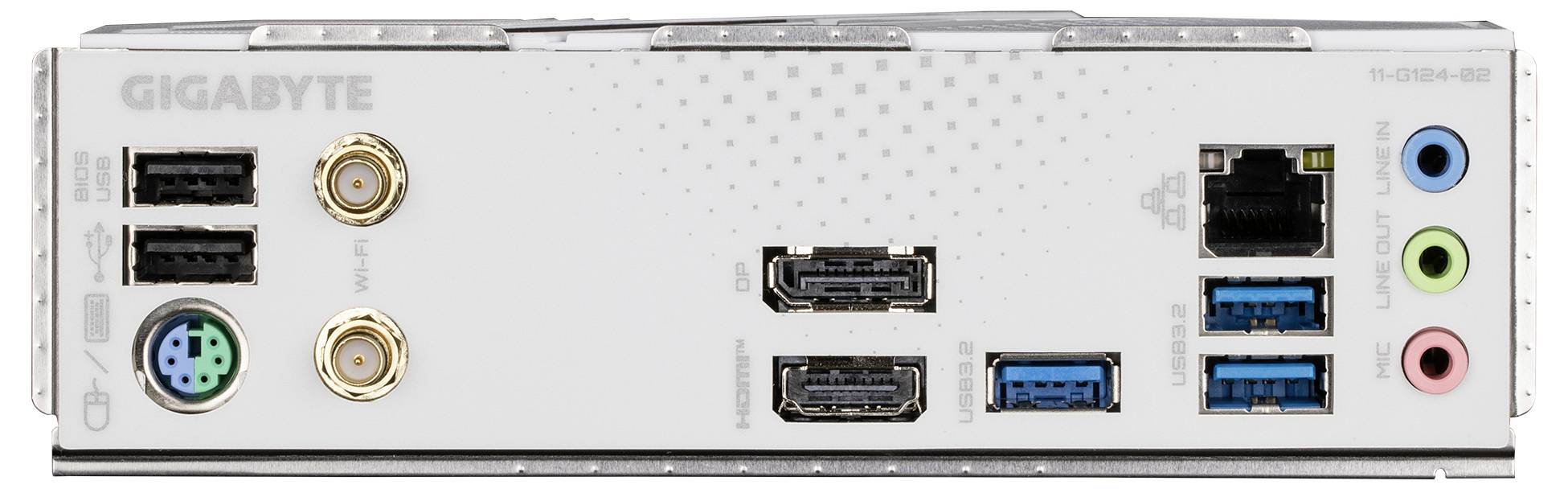

Back of a motherboard with various ports: USB, HDMI, network and audio connections. 'GIGABYTE' text visible.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte B760M G P WIFI DDR4 Motherboard

Intel LGA 1700 Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel core i9 14th Gen, Intel® Pentium®
PC micro ATX Intel B760 Realtek ALC897 7.1 channels
DDR4 SDRAM 4 DIMM RAM maximum: 128 GB
HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 6
BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
Gigabit Ethernet WLAN Wi-Fi 6 (802.11ax) Bluetooth 5.3

Technical specifications

LGA 1700 processor socket
Compatible processors: Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i7 12th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel® Pentium
Supported processor slots: LGA 1700
C-Ko compatibility: ECC and non-ECC
Maximum internal memory per slot: 32 GB
Number of CPU fan ports: 1
Number of EPS power connections (4-pin): 1
Number of GB LED pin strips: 2
HDMI version 2.1
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Intel B760 motherboard chipset
Motherboard form factor: Micro ATX
1. M.2 Largest key size: 2280
1. M.2 highest PCI Express generation: 4.0
2. M.2 Largest key size: 2280
2. M.2 highest PCI Express generation: 4.0
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

Chipset: Intel® B760

: Intel® 1700

Form factor: Micro-ATX

RAM type: DDR4 SDRAM

RAM / Max. upgrade: 128 GB

Interfaces: USB C®
DisplayPort
HDMI™
USB A (USB 2.0)

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of SATA III ports: 4 x

No. of PS/2 ports: 1 x

Bluetooth: 5.3

Bluetooth: Yes

Factory colour: Grey

Depth: 244 mm

Height: 35 mm

Width: 244 mm

Display resolution: 4096 x 2304 Pixel

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

Christmas lighting features: 12.0

10/100/1000 Mbps ports: 1 x

Range of use: PC

Weight: 1.1 kg

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 128 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

Antenna included: yes

PCI Express x1 (Gen 3.x) slots: 2

Number of memory slots: 4

Number of M.2 (M) slots: 2

Maximum internal memory supported by processor: 128 GB

Products per shipping (inner) case: 1 Stück(e)

USB 2.0 ports quantity: 2

Headphone outputs: 1

Front panel connector: yes

S/PDIF out connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

WiFi-AP antenna jack: 2

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 5333 MHz

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Batteries included: yes

HDCP: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 1.2 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Parallel connector: yes

Unbuffered memory: yes

Serial port headers: 1

Clear CMOS jumper: yes

Number of storage drives supported: 6

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3364344 Gigabyte B760M G P WIFI DDR4 Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel®

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and GIGABYTE. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.

This text is machine translated.

Features

Supports Intel® Core™ 14, 13, and 12 processors. Generation
Unmatched performance: Hybrid 4+1+1 Phase Digital VRM solution
Dual channel DDR4: 4 DIMMs XMP memory module support
Next generation memory: 2 PCIe 4.0 x4 M.2 slots
Fast network connection: Wi-Fi 6 802.11ax, GbE LAN
Advanced connectivity: Front USB-C 5GB/s, DP, HDMI
Smart fan 6: Has multiple temperature sensors, hybrid fan connections with fan stop
Q-Flash Plus: BIOS update without installing the CPU, memory or graphics card

Description

Features

Supports Intel® Core™ 14, 13, and 12 processors. Generation
Unmatched performance: Hybrid 4+1+1 Phase Digital VRM solution
Dual channel DDR4: 4 DIMMs XMP memory module support
Next generation memory: 2 PCIe 4.0 x4 M.2 slots
Fast network connection: Wi-Fi 6 802.11ax, GbE LAN
Advanced connectivity: Front USB-C 5GB/s, DP, HDMI
Smart fan 6: Has multiple temperature sensors, hybrid fan connections with fan stop
Q-Flash Plus: BIOS update without installing the CPU, memory or graphics card
