Name: Gigabyte B760M G X DDR4 GEN5 Motherboard PC base #####Intel® 1700 Form factor (details) ATX
Brand: Gigabyte
SKU: 3756299

Gigabyte B760M G X DDR4 GEN5 Motherboard PC base #####Intel® 1700 Form factor (details) ATX-0

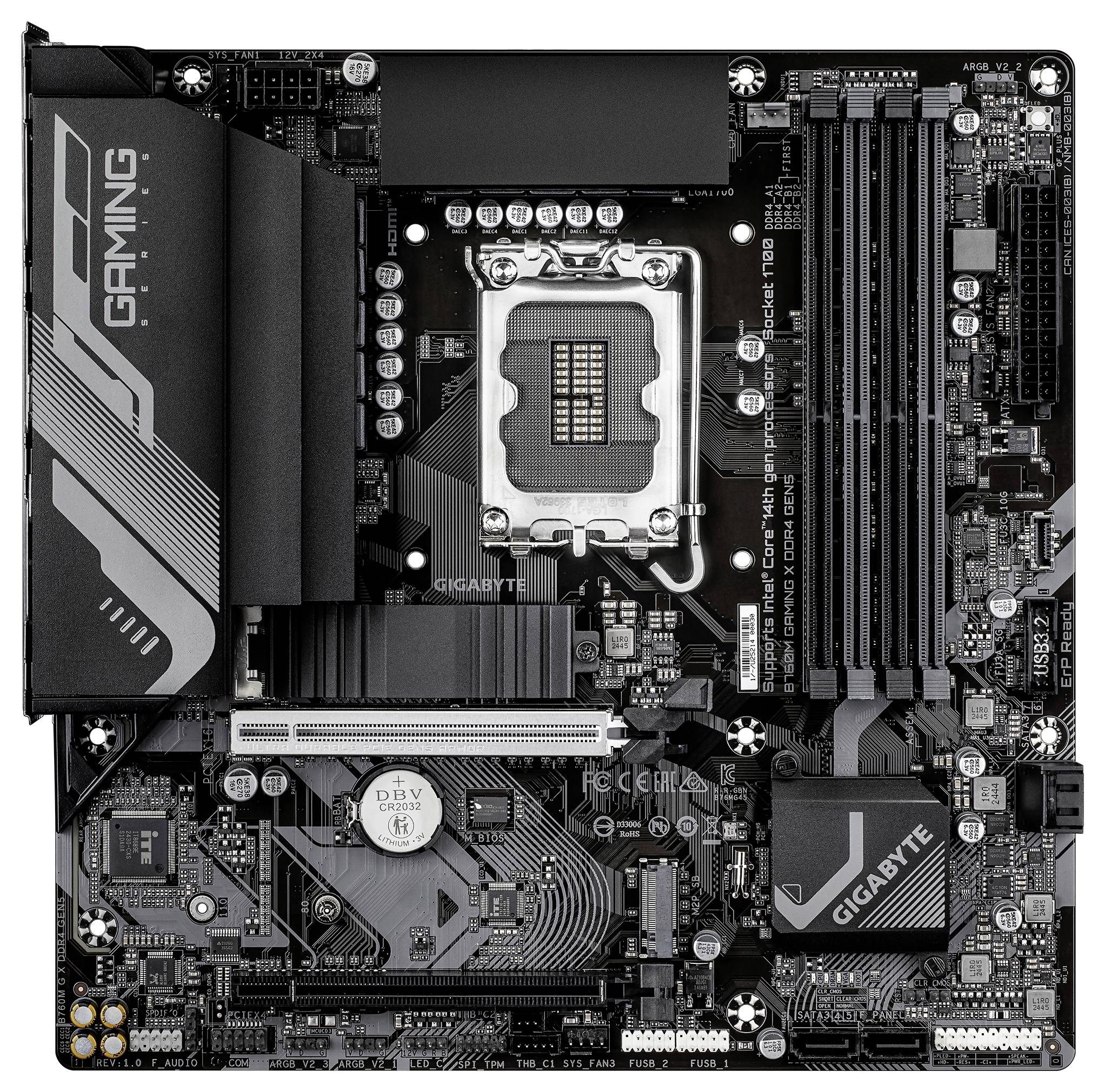

GIGABYTE gaming motherboard shown front-on, with CPU socket, RAM slots, PCIe slots, heatsinks, and power connectors visible.

Gigabyte B760M G X DDR4 GEN5 Motherboard PC base #####Intel® 1700 Form factor (details) ATX-2

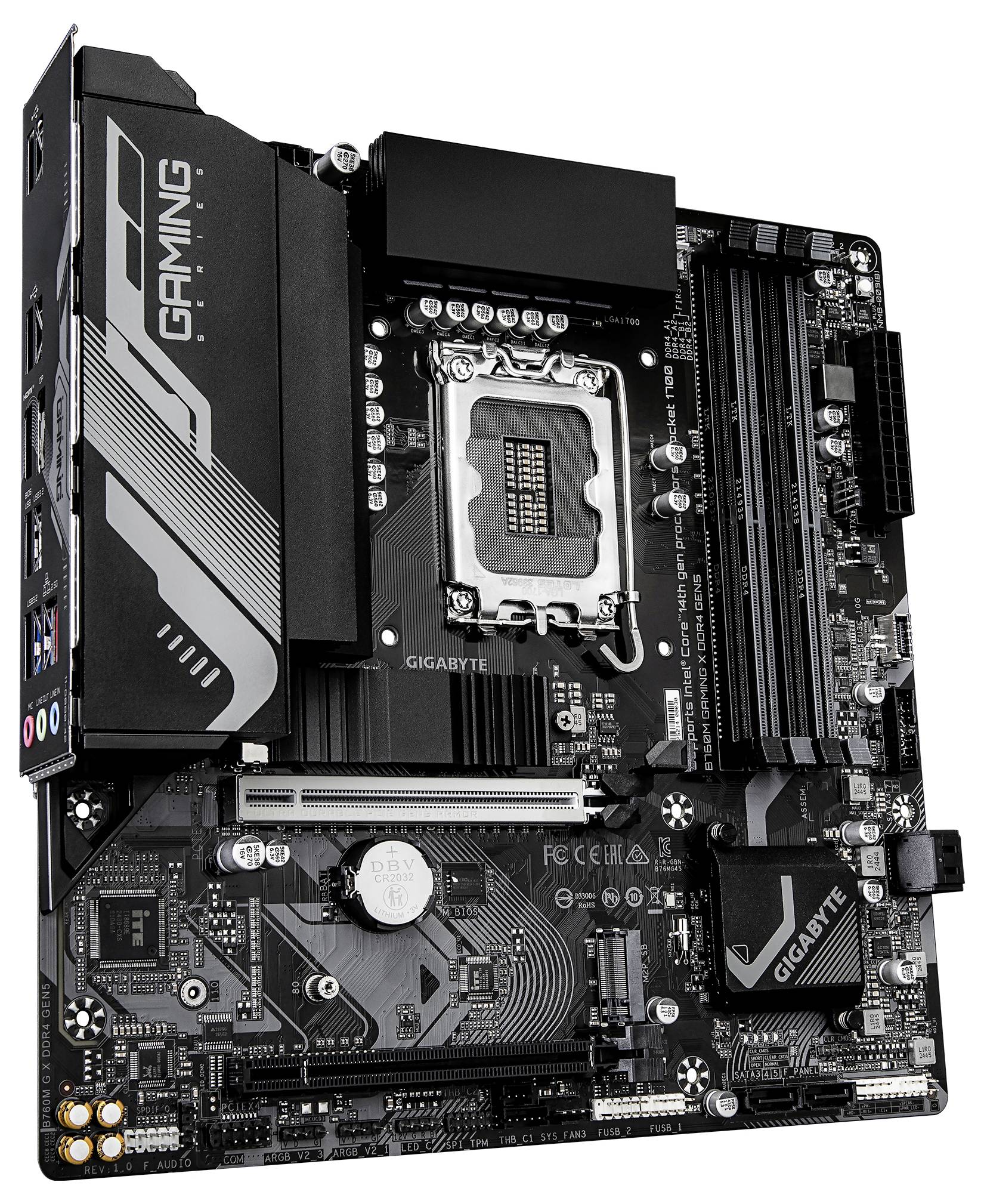

Gigabyte gaming motherboard with Intel CPU socket, RAM slots, PCIe slots, and rear I/O ports shown on a white background.

Gigabyte B760M G X DDR4 GEN5 Motherboard PC base #####Intel® 1700 Form factor (details) ATX-4

Rear panel of a gaming graphics card, showing multiple video outputs: HDMI, DisplayPort, and a DVI port, plus USB, Ethernet, and audio ports.

Gigabyte B760M G X DDR4 GEN5 Motherboard PC base #####Intel® 1700 Form factor (details) ATX-6

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte B760M G X DDR4 GEN5 Motherboard

Intel LGA 1700 Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel core i9 14th Gen, Intel® Pentium®
PC micro ATX Intel B760 Realtek ALC897 7.1 channels
DDR4 SDRAM 4 DIMM RAM maximum: 128 GB
HDD & SSD M.2, PCI Express 4.0, SATA III RAID-support Number of supported storage drives: 6
BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
2.5 Gigabit Ethernet

Technical specifications

LGA 1700 processor socket
Compatible processors: Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i7 12th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel® Pentium
Supported processor slots: LGA 1700
HDMI version 2.1
Intel B760 motherboard chipset
Product color: Dark brown
Motherboard form factor: Micro ATX
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

: #####Intel® 1700

Form factor: ATX

RAM type: DIMM

RAM / Max. upgrade: 128 GB

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of SATA III ports: 4 x

Depth: 244 mm

Height: 35 mm

Width: 244 mm

Display resolution: 4096 x 2304 Pixel

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 5 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

Christmas lighting features: 12.0

Cooling: Passive

HDCP: Yes

10/100/1000 Mbps ports: 1 x

Software included: Norton® Internet Security (OEM version)
LAN bandwidth management software

Range of use: PC

Weight: 1.19 kg

Wi-Fi: No

UKCA: yes

BIOS memory size: 256 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

Number of memory slots: 4

Number of M.2 (M) slots: 2

Thunderbolt headers: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

Microphone in: yes

Front panel connector: yes

12V power connector: yes

S/PDIF out connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 3200 MHz

Lithium weight per battery: 0.07 g

: 4

: 1

: 1

: 32 GB

Battery weight: 3 g

Batteries included: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 1.6 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Unbuffered memory: yes

Serial port headers: 1

Clear CMOS jumper: yes

Number of storage drives supported: 6

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3756299 Gigabyte B760M G X DDR4 GEN5 Motherboard PC base #####Intel® 1700 Form factor (details) ATX

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With thoughtful design and advanced features, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.

This text is machine translated.

Features

PCIe Gen5 performance: Fast data transfer for responsive gaming
Supports Intel core processors of 14. / 13. / 12. Generation
Efficient thermal design: VRM Thermal Armor Advanced & M.2 Thermal Guard
EZ-Latch: PCIe 5.0 x16 slot with quick release fastener
PCIe UD slot: SMD PCIe 5.0 Armor for improved graphics card support
Powerful VRM design: Hybrid 8+1+1 phase solution
Dual channel DDR4: 4 DIMMs supporting XMP memory modules
Fast network connection: 2.5GBE LAN
Versatile connectivity options: Front USB-C port with 10 GB/s, DisplayPort, HDMI
Next generation memory connectivity: 2 M.2 slots with PCIe 4.0 x4
