Gigabyte B850 A STEALTH ICE Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B850
EAN:
Part number:
Item no:

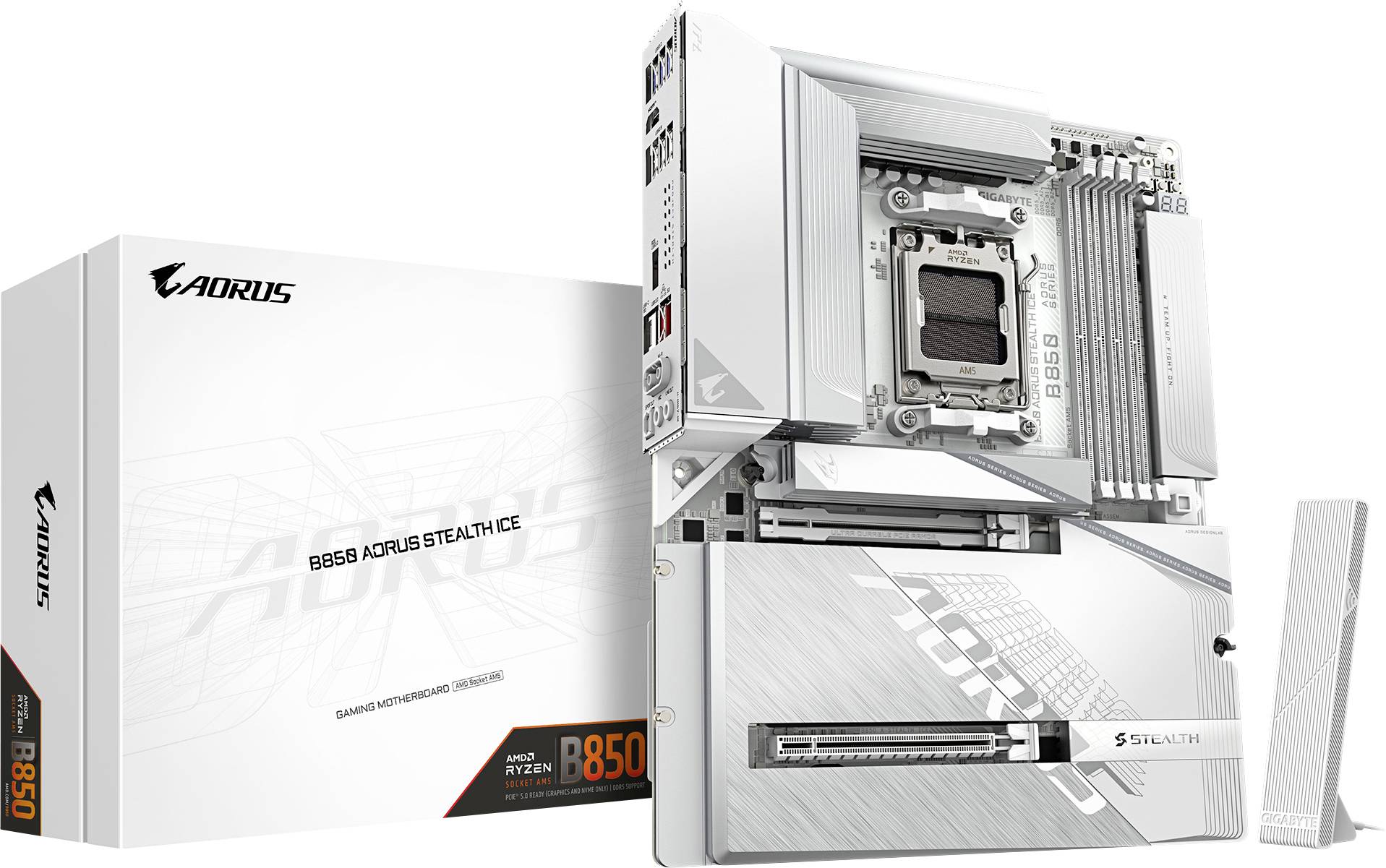

Gigabyte B850 A STEALTH ICE Motherboard
Highlights & Details
- X3D Turbo Mode: Optimized performance for a smooth gaming experience
- DDR5 over-clocking up to 8200 MT/s, Dual-channel DDR5
- AMD socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 series processors
- Digital VRM solution with 14+2+2 phases
- M.2 EZ-Flex: Efficient heat dissipation and flexible base plate for M.2-SSDs (exclusive, patented design)
- Wi-Fi EZ-Plug: Convenient design for a quick installation of the WLAN-antenna
- EZ-Latch Plus: PCIe and M.2 slots with quick release fastener and screwless design
- M.2 cooler with screwless design
- Fast memory connectivity: 4 M.2 slots, including PCIe 5.0 x4
- Efficient cooling: VRM Thermal Armor Advanced, M.2 Thermal Guard L & M.2 Thermal Guard Ext.
- Reliable network connection: 5GBE LAN & Wi-Fi 7 with high performance high-gain antenna
- This text is machine translated.
Technical specifications
- Product Colour: White
- Weighs 3.63 kg.
- Supports Windows operating systems: Windows 11 x64
- Width 305 mm
- Depth: 244 mm
- Height: 35 mm
- Supported memory speed: 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
- Battery technology: Lithium-manganese dioxide (LiMnO2)
- Number of battery cells: 1
- Battery/battery type CR2032
- Number of HDMI connections: 1
- HDMI version 2.1
- Number of Molex Connections 4-pin: 1
- Optical audio digital output: 1
- WiFi-AP antenna socket 2
- Energy source: ATX
- Number of M.2 (M) slots: 4
- 1. M.2 Largest key size: 25110
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 22110
- 2. M.2 highest PCI Express generation: 5.0
- 3. M.2 Largest key size: 22110
- 3. M.2 highest PCI Express generation: 4.0
- 4. M.2 Largest key size: 22110
- 4. M.2 highest PCI Express generation: 4.0
- Front Panel audio connector: Yes
- Front panel connector: Yes
- ATX power plug (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan ports: 2
- Number of water pump connections: 3
- RGB LED pin strip: Yes
- Number of RGB LED pin strips: 4
- TPM connector: Yes
- Number of chassis fan connectors: 6
- 12 V power connection: Yes
- EPS Power Connector (8-pin): Yes
- Number of EPS power connections (4-pin): 1
- Number of temperature sensors: 2
- Number of noise detection: 1
- DirectX version: 12.0
- HDCP: Yes
- Audio chip: Realtek ALC897
- Batteries/rechargeable batteries included: Yes
- Antenna included: Yes
- Cooling: Passive
- Memory channels: Two-channel
- Motherboard Chipset family: AMD
- PC health monitoring: Fan, temperature, voltage, water cooling
- Bluetooth version: 5.4
- Ethernet interface type 5 Gigabit Ethernet
- LAN-Controller: Realtek RTL8126
- Realtek RTL8922AE wireless controller model
- Maximum resolution 4096 x 2160 pixel
- RAM type DIMM
- ECC compatibility: Non-ECC
- Supported memory clock rate (max.): 8200 MHz
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
- Supported drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III.
- Number of supported storage drives: 6
- RAID support: Yes
- Supported drives: HDD & SSD
- Maximum number of HDD supported: 2
- Product type
Motherboard
- Chipset
AMD® B850
#####AMD AM5
- Form factor
ATX
- Processor/type
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- RAM type
DDR5 RAM
- Clock speed
4400 MHz
- RAM / Max. upgrade
256 GB
- Interfaces
HDMI™
USB C®
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
RJ45
Wi-Fi
Headphone input
Audio line in
S/PDIF
Show more
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
6 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- No. of USB 3.2
5 x
- No. of USB 3.0 ports
2 x
- No. of SATA III ports
2 x
- Onboard audio
7.1
- UKCA
yes
