Gigabyte B850 EAGLE WF7 ICE Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B850
EAN:
Part number:
Item no:

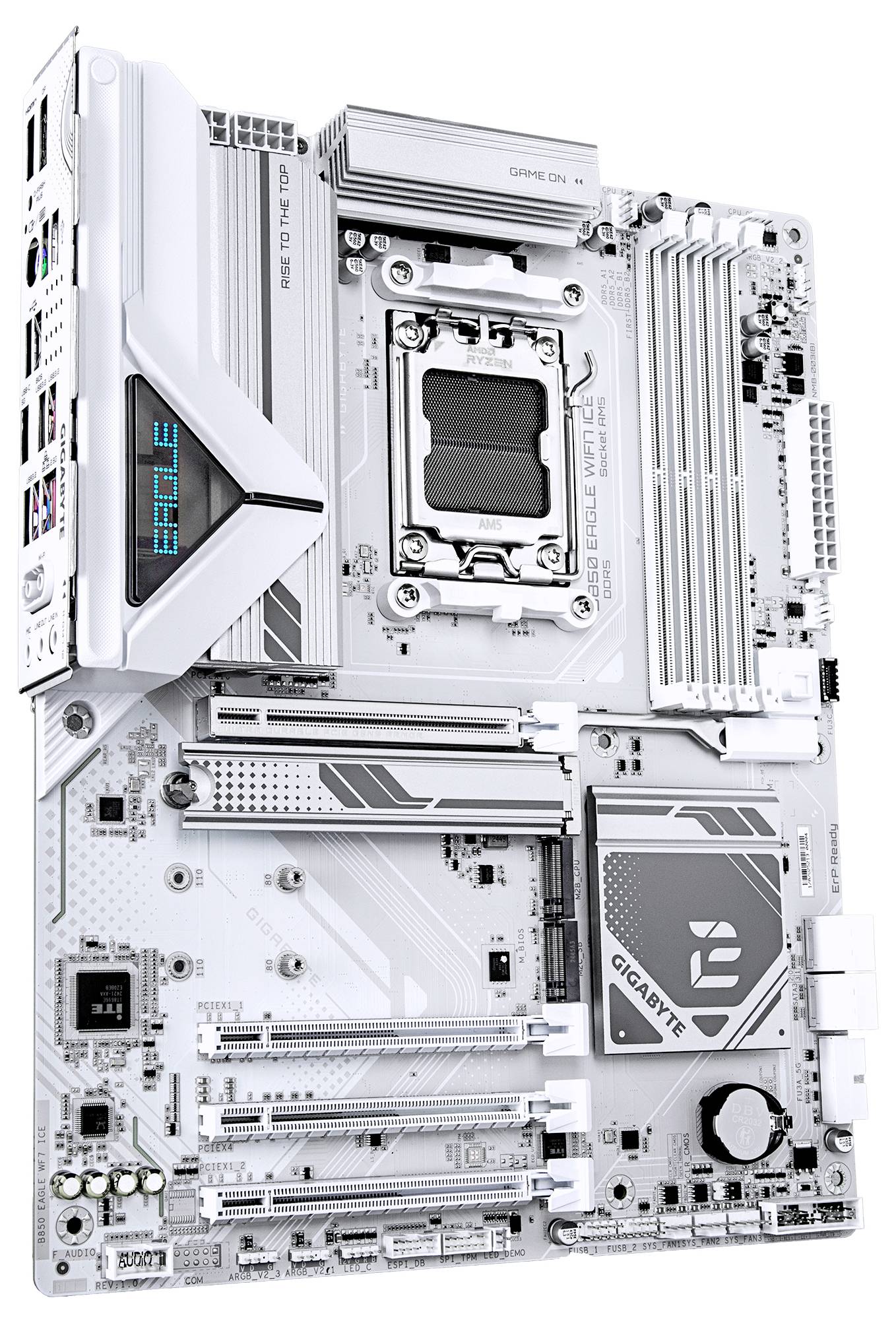

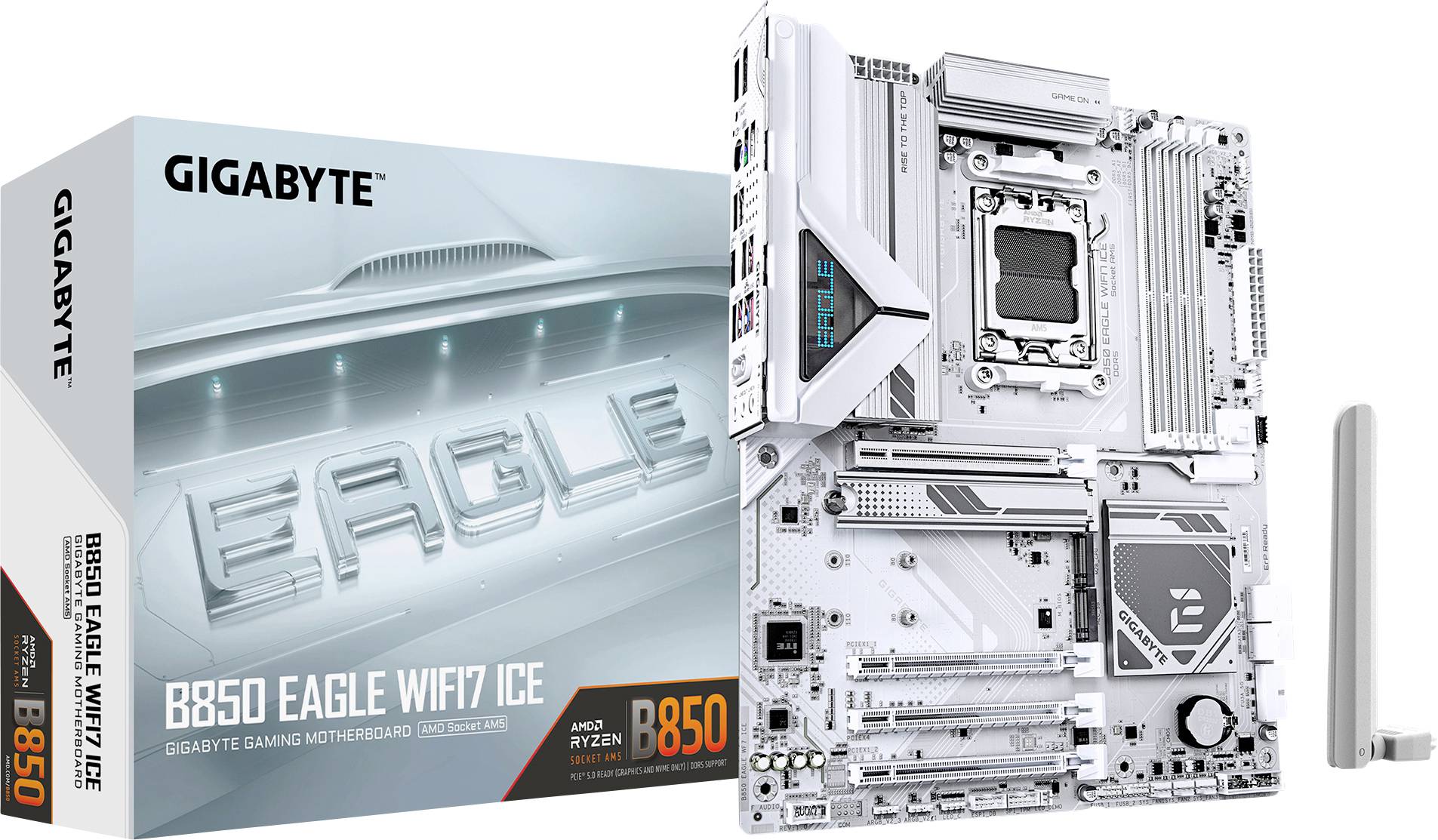

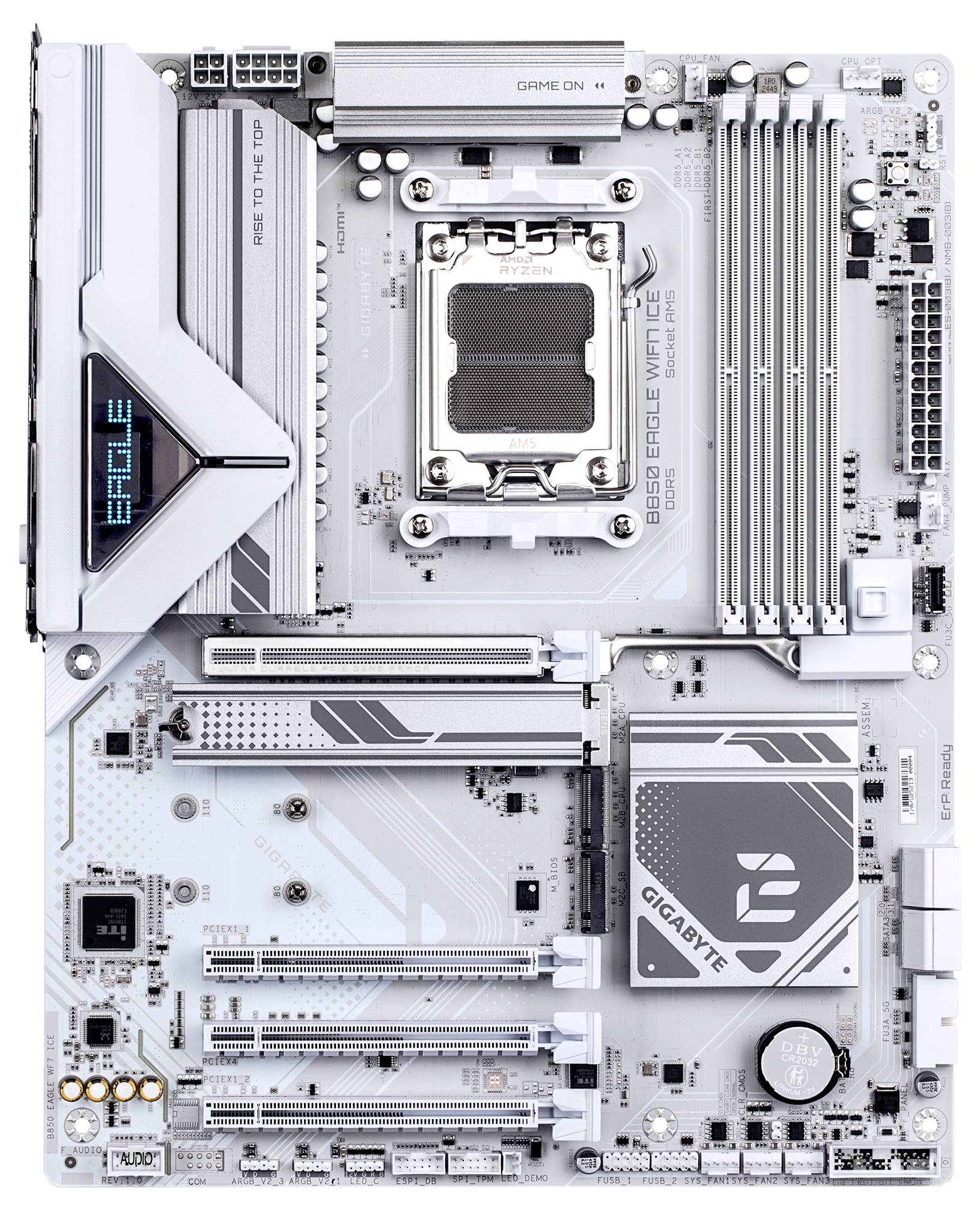

Gigabyte B850 EAGLE WF7 ICE Motherboard
Highlights & Details
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC ATX AMD B850 Realtek ALC897 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID-support Number of supported storage drives: 7
- BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
- 2.5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- ECC compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Number of CPU fan ports: 2
- Number of EPS power connections (4-pin): 1
- Number of water pump connections: 2
- Number of RGB LED pin strips: 4
- HDMI version 1.4
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- AMD B850 motherboard chipset
- 1. M.2 Largest key size: 22110
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 22110
- 2. M.2 highest PCI Express generation: 4.0
- 3. M.2 Largest key size: 22110
- 3. M.2 highest PCI Express generation: 4.0
- Battery technology: Lithium-manganese dioxide (LiMnO2)
- Product type
Motherboard
- Chipset
AMD® B850
#####AMD AM5
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
256 GB

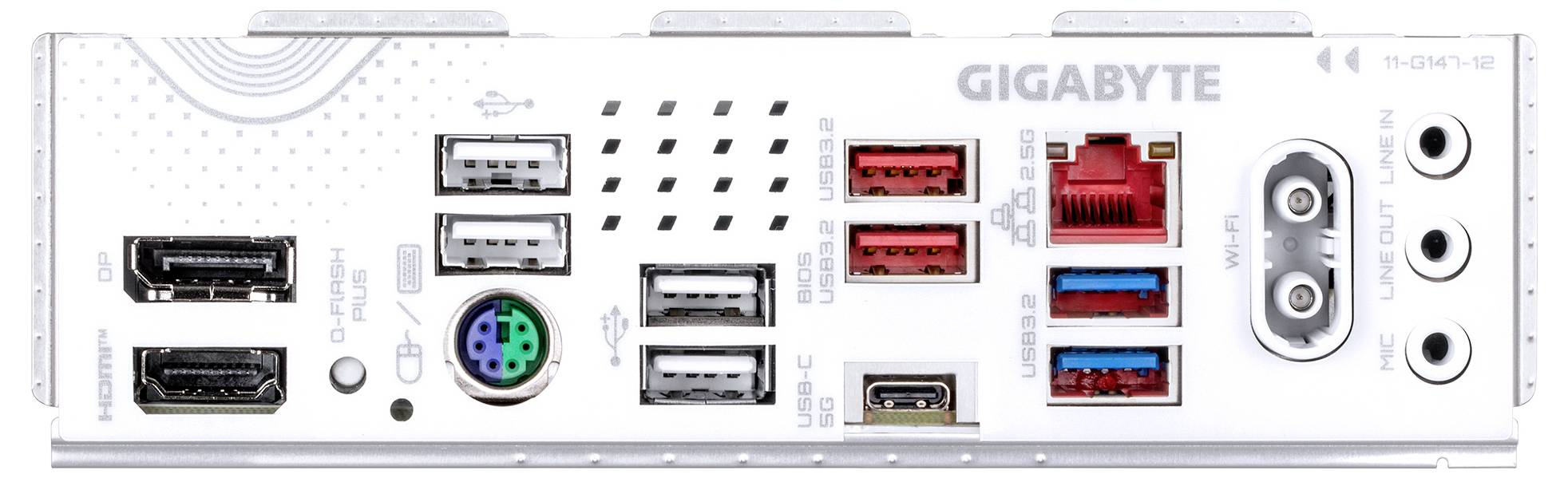

- Interfaces
DisplayPort
HDMI™
PCIe 3.0 x16
PCIe 4.0 x16
PCIe 5.0 x16
PS/2
SATA III
USB A (USB 2.0)
- No. of PCIe 3.0 x16
2 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
2 x
- No. of SATA III ports
4 x
- No. of PS/2 ports
1 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
White
- Depth
244 mm
- Height
35 mm
- Width
305 mm
- Display resolution
4096 x 2160 Pixel
- No. of DisplayPort
1 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- Christmas lighting features
12.0
- Cooling
Passive
- 10/100/1000 Mbps ports
1 x
- 4-pin Molex
1
- Software included
Norton® Internet Security (OEM version)
LAN bandwidth management software
- Range of use
PC
- Weight
1.69 kg
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
256 Mbit
- Screws included
yes
- Line-in
yes
- Ethernet LAN
yes
- Antenna included
yes
- Number of memory slots
4
- Number of M.2 (M) slots
3
- Products per shipping (inner) case
1 Stück(e)
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
- Headphone outputs
1
- Microphone in
yes
- Front panel connector
yes
- 12V power connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Front panel audio connector
yes
- Number of HDDs supported
4
- WiFi-AP antenna jack
2
- TPM connector
yes
- RGB LED pin header
yes
- Supported memory clock speed (max)
8200 MHz
- Lithium weight per battery
0.07 g
- Battery weight
3 g
- Batteries included
yes
- HDCP
yes
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
1.89 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- Unbuffered memory
yes
- Clear CMOS jumper
yes
- Number of storage drives supported
7
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3405625 Gigabyte B850 EAGLE WF7 ICE Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B850
Description
Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by excellent quality and latest technologies.
This text is machine translated.
This text is machine translated.
Features
- X3D Turbo Mode: Unleash gaming power at the next level
- DDR5-OC of up to 8200 MT/s
- AMD Socket AM5: Supports AMD Ryzen Series 9000 / 8000 / 7000 processors
- Digital VRM solution with 8+2+2 phases
- Dual channel DDR5: 4 DIMMs supporting AMD EXPO memory modules
- Wi-Fi EZ-Plug: Simple and convenient design for a quick installation of the Wi-Fi-antenna
- EZ-Latch Plus: PCIe and M.2 slots with quick release fastener and screwless design
- M.2 heat sink with screwless design
- User-friendly interface: Multi-theme interface
- AIO fan control and Q-Flash Auto-Scan in the BIOS and software
- Ultra fast memory: 3 M.2 slots, including PCIe 5.0 x4
- Efficient cooling: VRM thermal protection Advanced & M.2 thermal protection
- Reliable network connection: 2.5 GbE LAN & Wi-Fi 7 with high-performance high-gain antenna
- Versatile connection options: HDMI, DisplayPort
- PCIe UD slot: PCIe 5.0 x16 slots with 10 times stability and optimized heat dissipation
