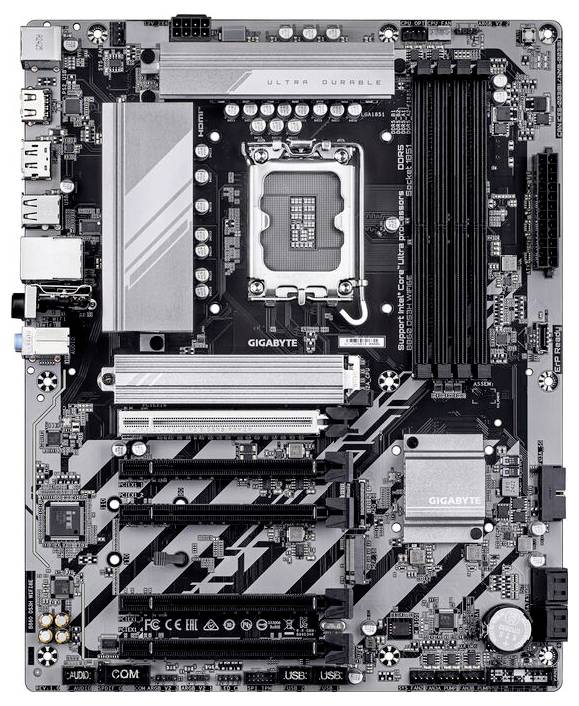

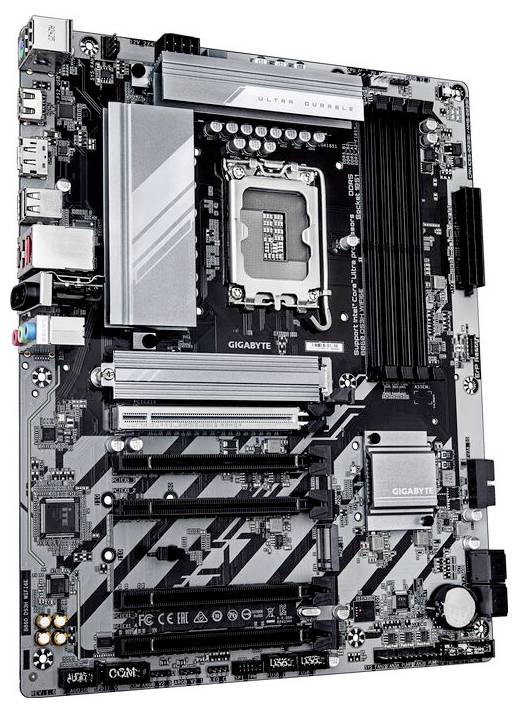

Name: Gigabyte B860 DS3H WIFI6E Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® B860
Brand: Gigabyte
SKU: 3376525

Gigabyte B860 DS3H WIFI6E Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® B860-0

Gigabyte B860 DS3H WIFI6E Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® B860-1

Gigabyte B860 DS3H WIFI6E Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® B860-2

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte B860 DS3H WIFI6E Motherboard

Intel LGA 1851 (socket V1) Intel core ultra (series 2)
PC ATX Intel B860 Realtek ALC897 7.1 channels
DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 6
BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
2.5 Gigabit Ethernet WLAN Wi-Fi 6E (802.11ax) Bluetooth 5.3

Technical specifications

LGA 1851 (socket V1)
Supported processor slots: LGA 1851
Supported memory: DDR5 SDRAM
ECC compatibility: ECC and non-ECC
Maximum internal memory per slot: 64 GB
Number of CPU fan ports: 2
Number of EPS power connections (4-pin): 1
Number of water pump connections: 3
Number of RGB LED pin strips: 4
HDMI version 2.1
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax)
Intel B860 motherboard chipset
Product color: Dark brown
1. M.2 Largest key size: 25110
1. M.2 highest PCI Express generation: 5.0
2. M.2 Largest key size: 25110
2. M.2 highest PCI Express generation: 4.0
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

Chipset: Intel® B860

: #####Intel® 1851

Form factor: ATX

RAM type: DIMM

RAM / Max. upgrade: 256 GB

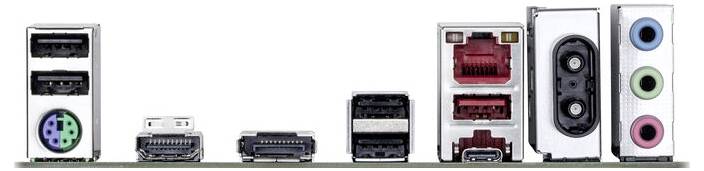

Interfaces: Audio line in
Gigabit LAN (1/2.5 Gbps)
HDMI® 2.1
SATA III
Wi-Fi 6E (IEEE 802.11ax)
Bluetooth

No. of DDR5 slots: 4 x

No. of LAN ports: 1 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 4 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of USB 3.2 2nd Gen (USB 3.1): 1 x

No. of USB 3.0 ports: 1 x

No. of SATA III ports: 4 x

Onboard audio: 7.1

No. of PS/2 ports: 1 x

Bluetooth: 5.3

Bluetooth: Yes

Factory colour: Multicolour

Depth: 244 mm

Height: 35 mm

Width: 305 mm

Display resolution: 4096 x 2160 Pixel

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No of. USB type A 3.1 /3.2 2nd gen: 1 x

Christmas lighting features: 12.0

Cooling: Passive

10/100/1000 Mbps ports: 1 x

Software included: Norton Internet Security (OEM version)
LAN bandwidth management software

Range of use: PC

Weight: 2 kg

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 256 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 2

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

Microphone in: yes

Front panel connector: yes

S/PDIF out connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

WiFi-AP antenna jack: 2

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 9066 MHz

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Batteries included: yes

HDCP: yes

EPS power connector (8-pin): yes

RAID support: yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes

Serial port headers: 1

Clear CMOS jumper: yes

Number of storage drives supported: 6

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3376525 Gigabyte B860 DS3H WIFI6E Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® B860

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.

This text is machine translated.
