Name: Gigabyte GA-B850M EAGLE WF7 Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B8
Brand: Gigabyte
SKU: 3737060

Top-down view of a Gigabyte B860M motherboard with Intel CPU socket, PCIe and M.2 slots, and large EAGLE-style heatsink.

Gigabyte B660M motherboard, showing CPU socket, RAM slots, PCIe slots, M.2 heatsink, and rear I/O shield.

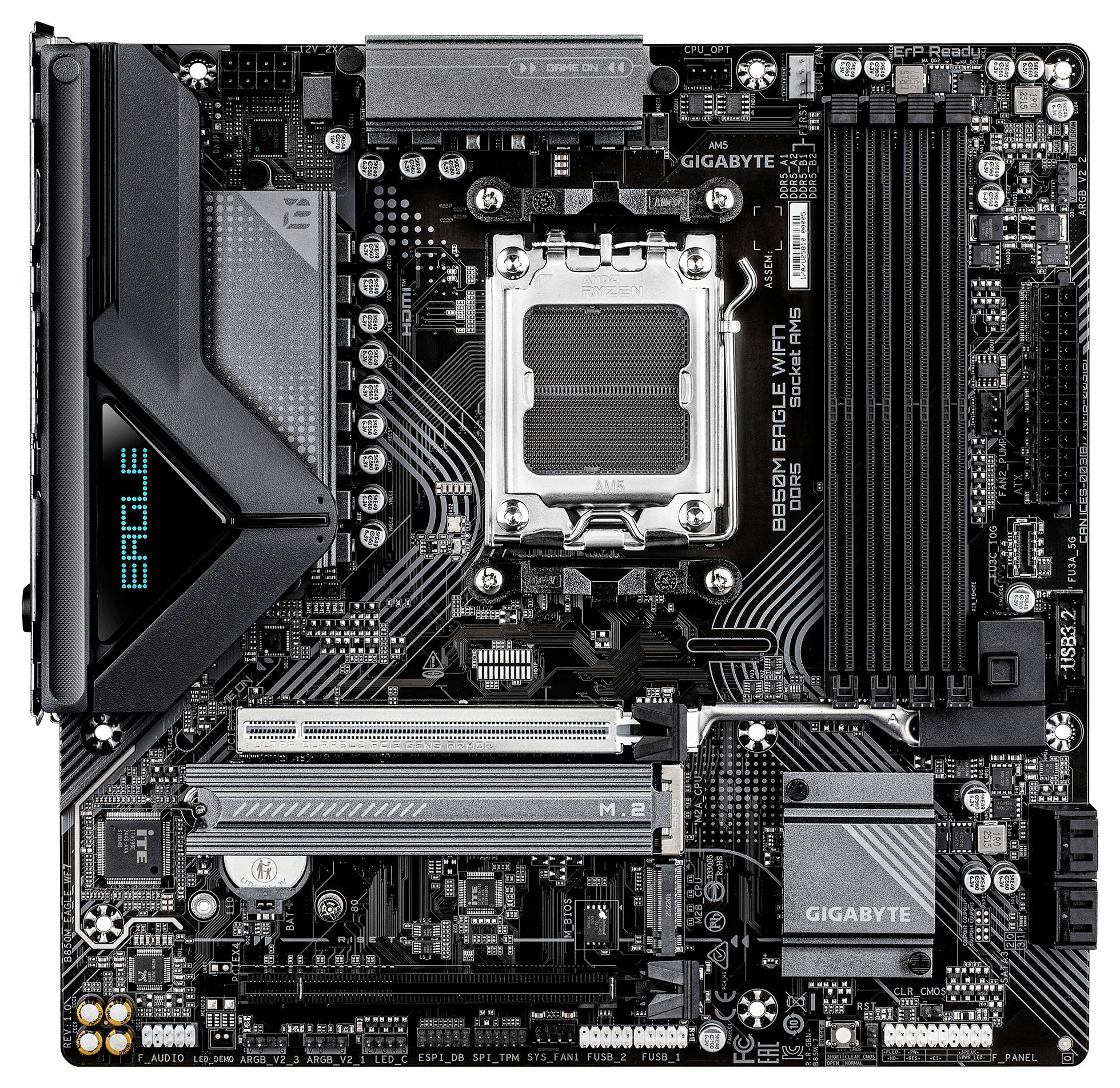

A black motherboard designed for PC assembly with multiple ports, slots for RAM and CPU, and labeled 'GIGABYTE' and 'D24M-AX'.

Gigabyte B850 EAGLE WIFI motherboard showing CPU socket, RAM slots, PCIe slots, M.2 heatsinks, and rear I/O shield.

Gigabyte B850M Eagle WiFi7 motherboard shown with retail box and included wireless antenna.

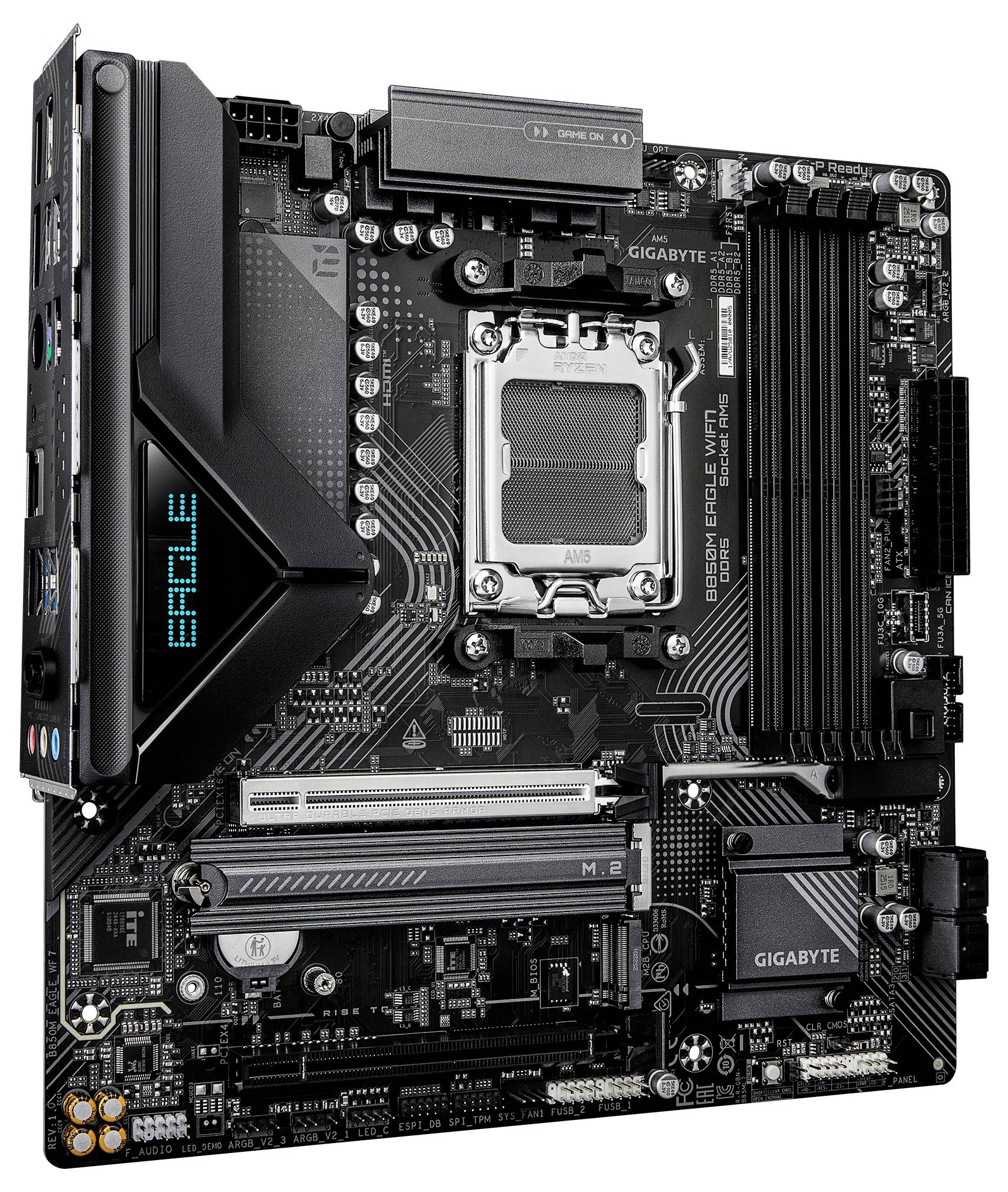

A computer motherboard with various slots and ports, including RAM slots, PCIe slots, a CPU socket, and branding labeled as 'Gigabyte'.

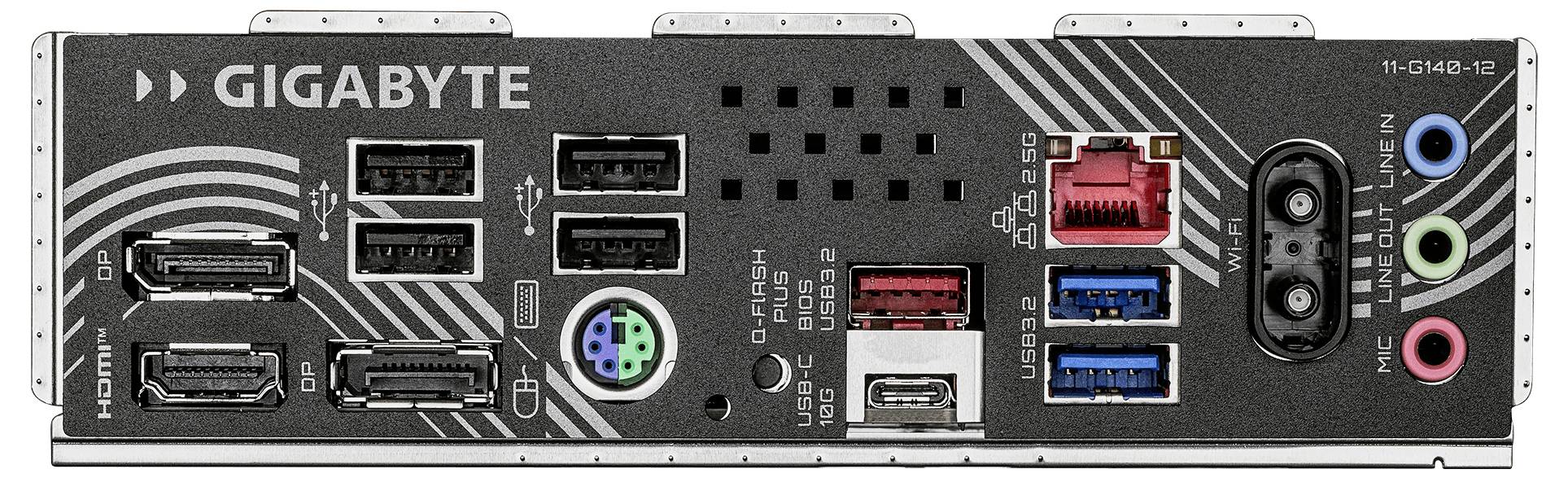

Rear I/O panel of a GIGABYTE motherboard with PS/2, USB, HDMI, Ethernet, and audio ports, plus optical S/PDIF output.

Motherboard back panel with various ports: USB, HDMI, Ethernet, audio jacks, a PS/2 port, and labeled slots for connectivity.

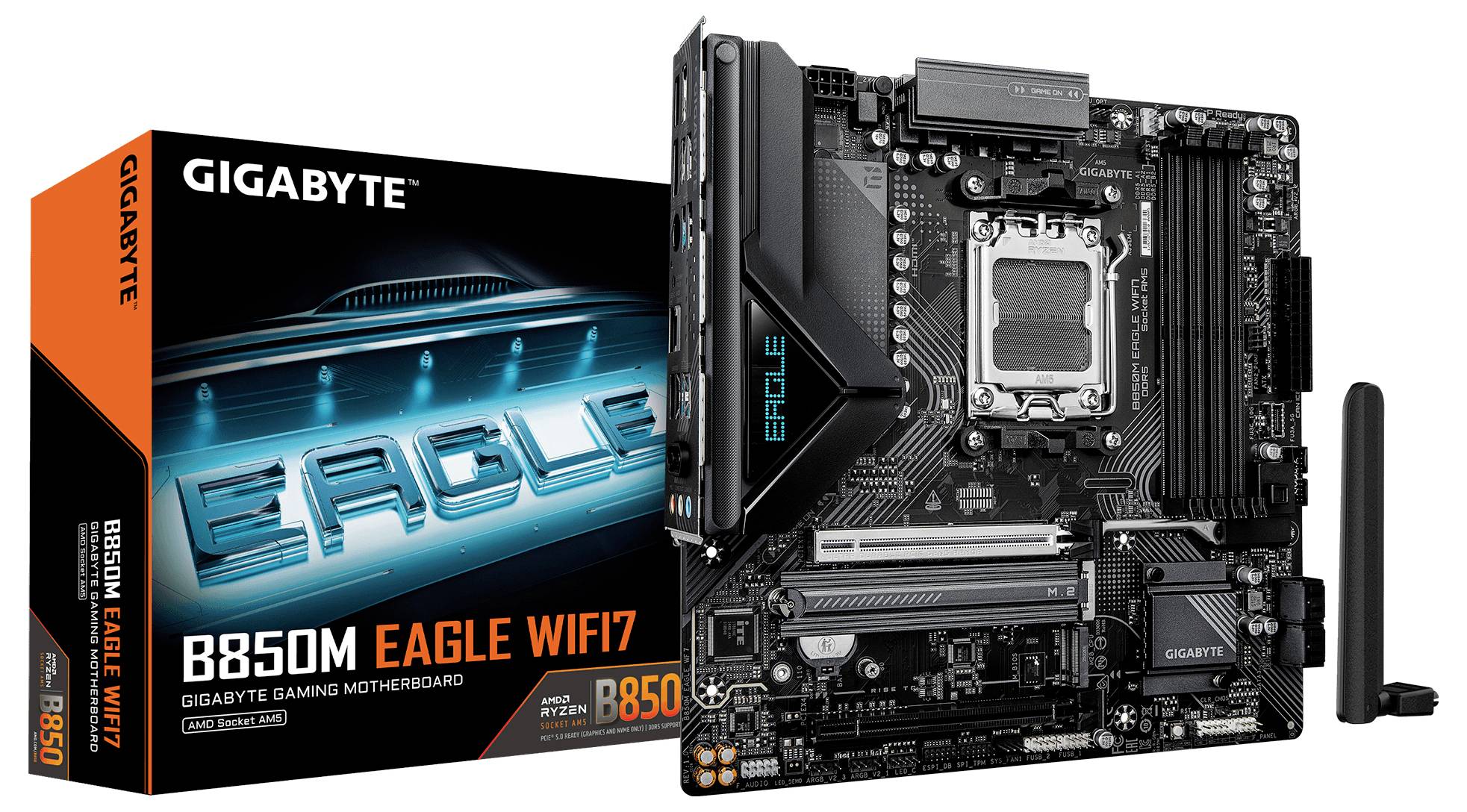

Gigabyte B850M EAGLE WIFI7 motherboard with retail box, showing an AMD AM5 micro-ATX board and included Wi-Fi antenna.<br>

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte GA-B850M EAGLE WF7 Motherboard

X3D Turbo Mode: Unleash the gaming power of a new era
Advanced connectivity: HDMI, 2*DisplayPort
AMD socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 series processors
Digital twin 8+2+2 phase VRM solution
Dual channel DDR5: DDR5 OC up to 8200MT/s. 4DIMMs with AMD EXPO memory module support
WIFI EZ-Plug: Quick and easy design for installing the Wi-Fi antenna
EZ-Latch Plus: PCIe and M.2 slots with quick release fastener and screwless design
M.2 heat sink with screwless design
Ultra-fast memory: 2M.2 slots, including PCIe 5.0 x4
Fast networking: 2.5 GbE LAN & Wi-Fi 7

Technical specifications

Product type: Motherboard

Chipset: AMD® B850

: #####AMD AM5

Form factor: Micro-ATX

Processor/type: Ryzen 9000 / 8000 / 7000 Serienprozessoren

RAM type: DIMM

RAM / Max. upgrade: 256 GB

Interfaces: Wi-Fi 7 (IEEE 802.11be)

No. of DDR5 slots: 4 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of USB 3.2 2nd Gen (USB 3.1): 1 x

No. of SATA III ports: 4 x

No. of PS/2 ports: 1 x

Bluetooth: 5.4

Bluetooth: Yes

Depth: 244 mm

Height: 35 mm

Width: 244 mm

Display resolution: 4096 x 2160 Pixel

No. of DisplayPort: 2 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

No of. USB type A 3.1 /3.2 2nd gen: 1 x

Christmas lighting features: 12.0

Cooling: Passive

HDCP: Yes

Battery capacity: 220 mAh

10/100/1000 Mbps ports: 1 x

Software included: Norton® Internet Security (OEM version)

Range of use: PC

Weight: 1.26 kg

Wi-Fi: Yes

BIOS memory size: 256 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

Microphone in: yes

Front panel connector: yes

12V power connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

WiFi-AP antenna jack: 2

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 8200 MHz

Lithium weight per battery: 0.07 g

: 4

: 2

: 2

: 1

: 64 GB

Battery weight: 3 g

Batteries included: yes

: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 1.46 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Unbuffered memory: yes

Clear CMOS jumper: yes

Number of storage drives supported: 6

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3737060 Gigabyte GA-B850M EAGLE WF7 Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® B8

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With thoughtful design and advanced features, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.

This text is machine translated.

Features

X3D Turbo Mode: Unleash the gaming power of a new era
AMD socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 series processors
Digital twin 8+2+2 phase VRM solution
Dual channel DDR5: DDR5 OC up to 8200MT/s. 4DIMMs with AMD EXPO memory module support
WIFI EZ-Plug: Quick and easy design for installing the Wi-Fi antenna
EZ-Latch Plus: PCIe and M.2 slots with quick release fastener and screwless design
M.2 heat sink with screwless design
Ultra-fast memory: 2M.2 slots, including PCIe 5.0 x4
Fast networking: 2.5 GbE LAN & Wi-Fi 7
Advanced connectivity: HDMI, 2*DisplayPort
