Buy Gigabyte GA-H610M H V2 (1700) Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel®

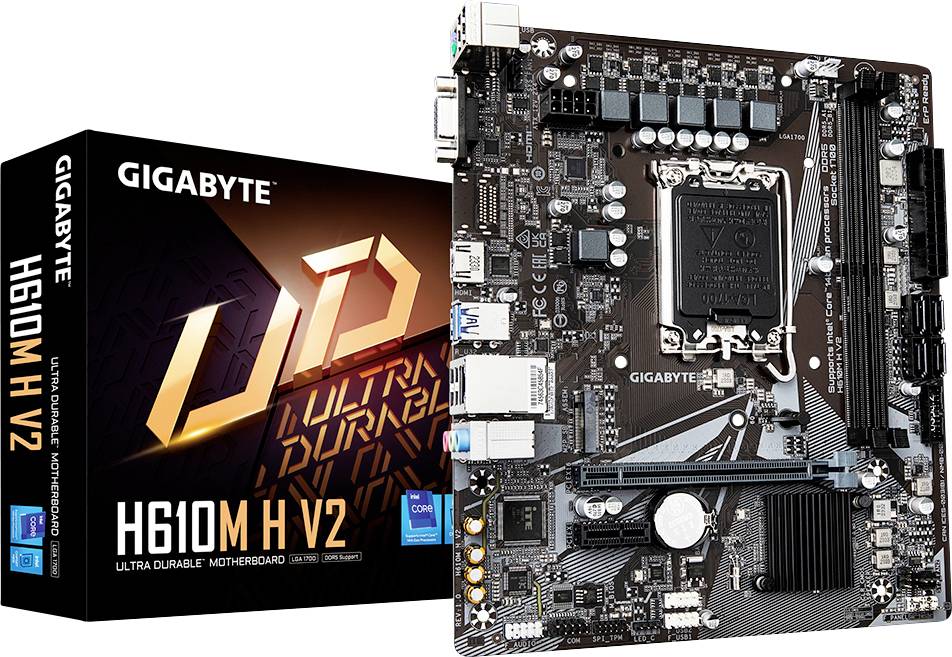

Gigabyte motherboard, model H610M H V2, next to its packaging. Layout showing multiple connections and components visible.

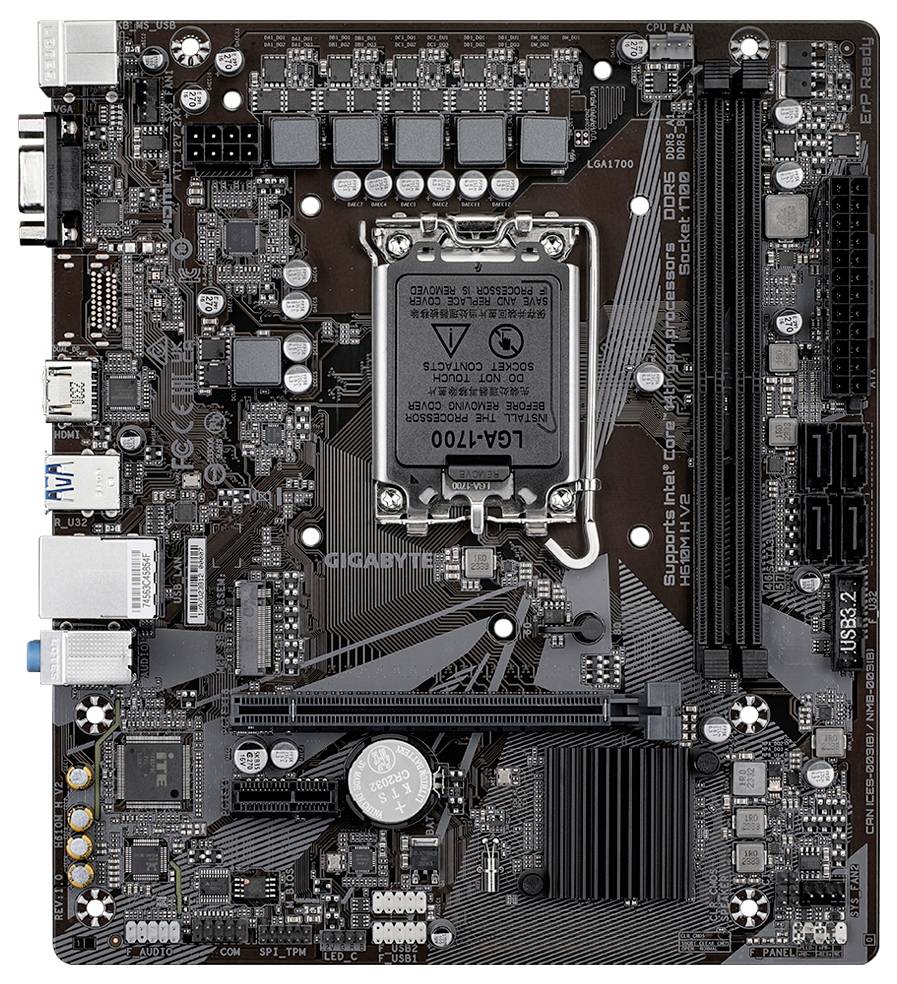

A computer motherboard with various expansion slots and connectors, including PCIe slots, RAM slots, and a CPU socket.

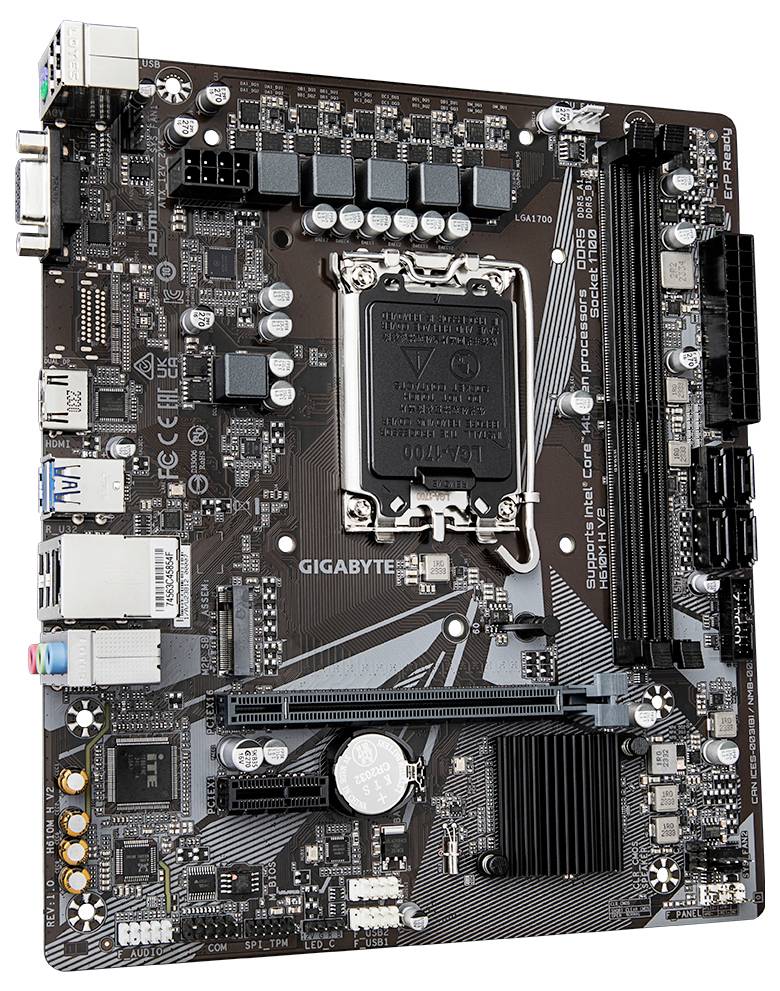

A black computer motherboard with various ports, circuits, and a CPU socket in the centre.

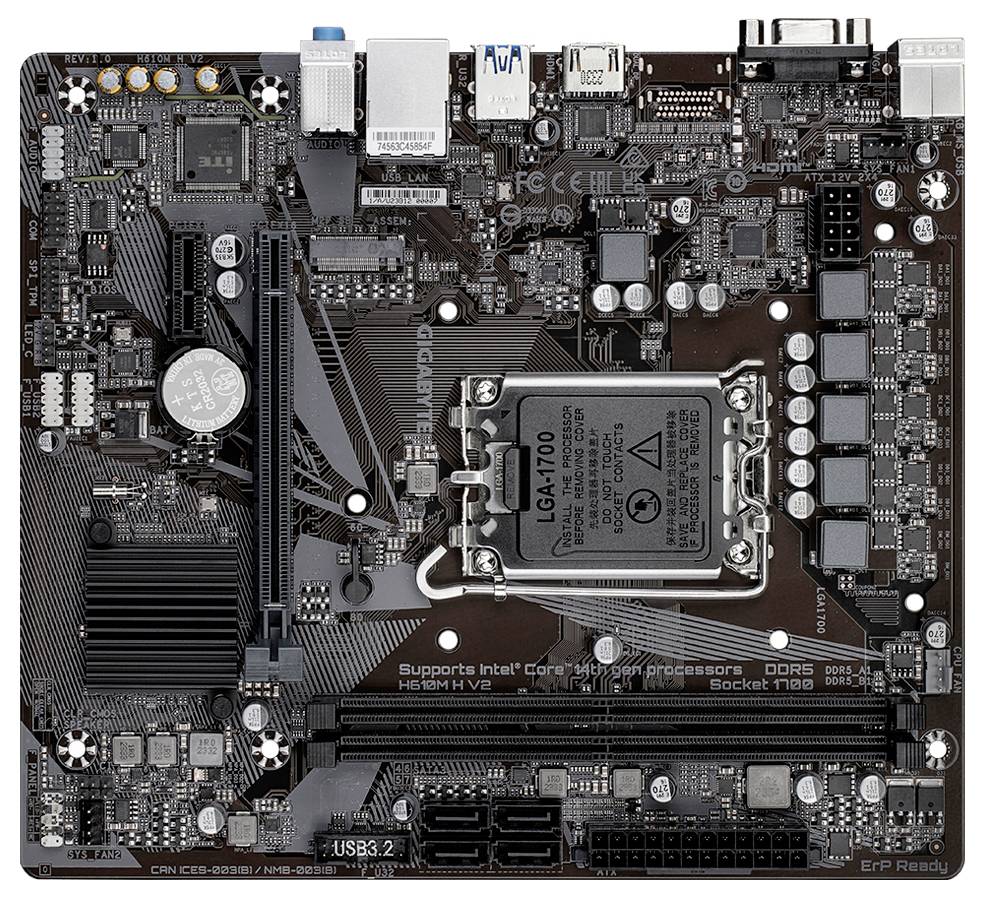

Illustration of a computer motherboard circuit board with various electronic components and connectors, including CPU socket.

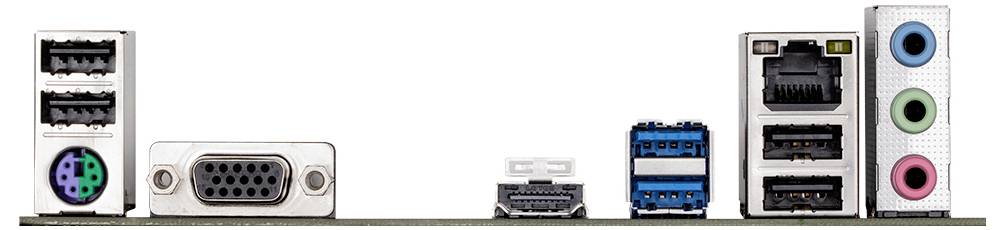

The rear panel of a computer motherboard shows various ports: USB, PS/2, VGA, HDMI, Ethernet and audio sockets.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Gigabyte GA-H610M H V2 (1700) Motherboard

Technical specifications

Product type: Motherboard

Chipset: Intel® H610

: Intel® 1700

Form factor: Micro-ATX

Processor/type: unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation

RAM type: DDR5 RAM

Clock speed: 4800 MHz
4400 MHz
5200 MHz
5600 MHz

RAM / Max. upgrade: 96 GB

Interfaces: HDMI™
VGA
USB A (USB 3.2 1st gen)
Audio line out
Audio line in
Microphone (3.5 mm jack)
RJ45
USB A (USB 2.0)
PS/2

No. of DDR5 slots: 2 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 4 x

No. of USB type A 3.0 ports: 2 x

No. of SATA III ports: 4 x

Onboard audio: 7.1 HD

No. of PS/2 ports: 1 x

Depth: 300 mm

Height: 100 mm

Width: 250 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207105 Gigabyte GA-H610M H V2 (1700) Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel®

Description

Gigabyte H610M H V2. Processor manufacturer: Intel, processor socket: LGA 1700, compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Supported memory: DDR5 SDRAM, RAM maximum: 96 GB, memory type: DIMM. Supported drive interfaces: M.2, SATA III, supported drives: HDD & SSD. Graphics card family: Intel, graphics card: HD graphics, maximum resolution: 4096 x 2304 pixels. USB-plug USB type-A

This text is machine translated.

Features

Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
PC micro ATX Intel H610 Express Realtek ALC897 7.1 channels
DDR5 SDRAM 2 DIMM ECC Without ECC RAM Maximum: 96 GB
HDD & SSD M.2, SATA III Number of supported storage drives: 5
Intel HD graphics
BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
Gigabit Ethernet
