Name: Gigabyte GA-H810M H Motherboard PC base #####Intel® 1851 Form factor (details) Micro-ATX Motherboard chipset Intel® H810
Brand: Gigabyte
SKU: 3394728

'GIGABYTE H310M H' motherboard, pictured beside its packaging. Serves as a central component in computers for controlling hardware.

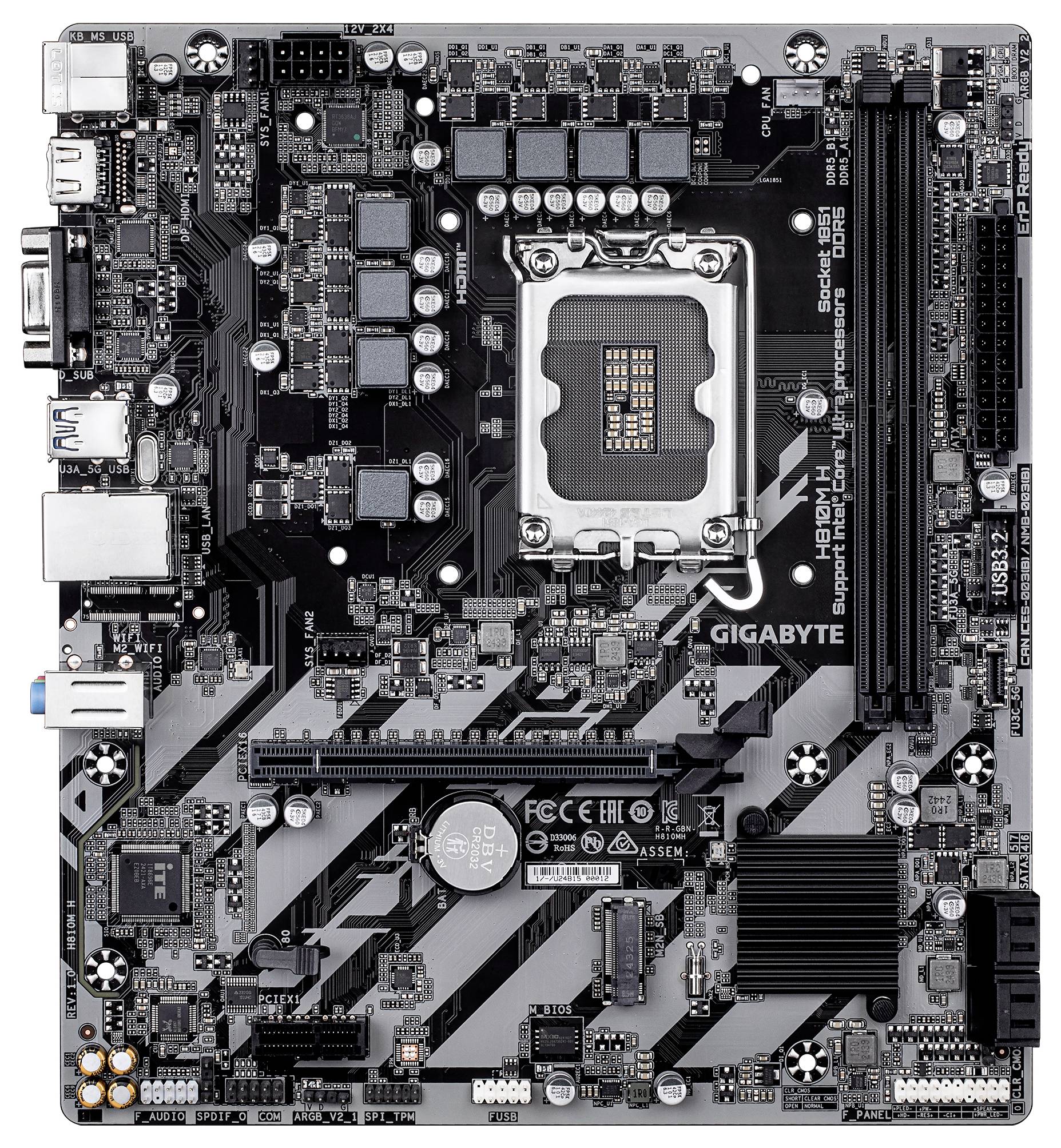

Motherboard with multiple connectors and a CPU socket in the centre, suitable for Gigabyte motherboards.

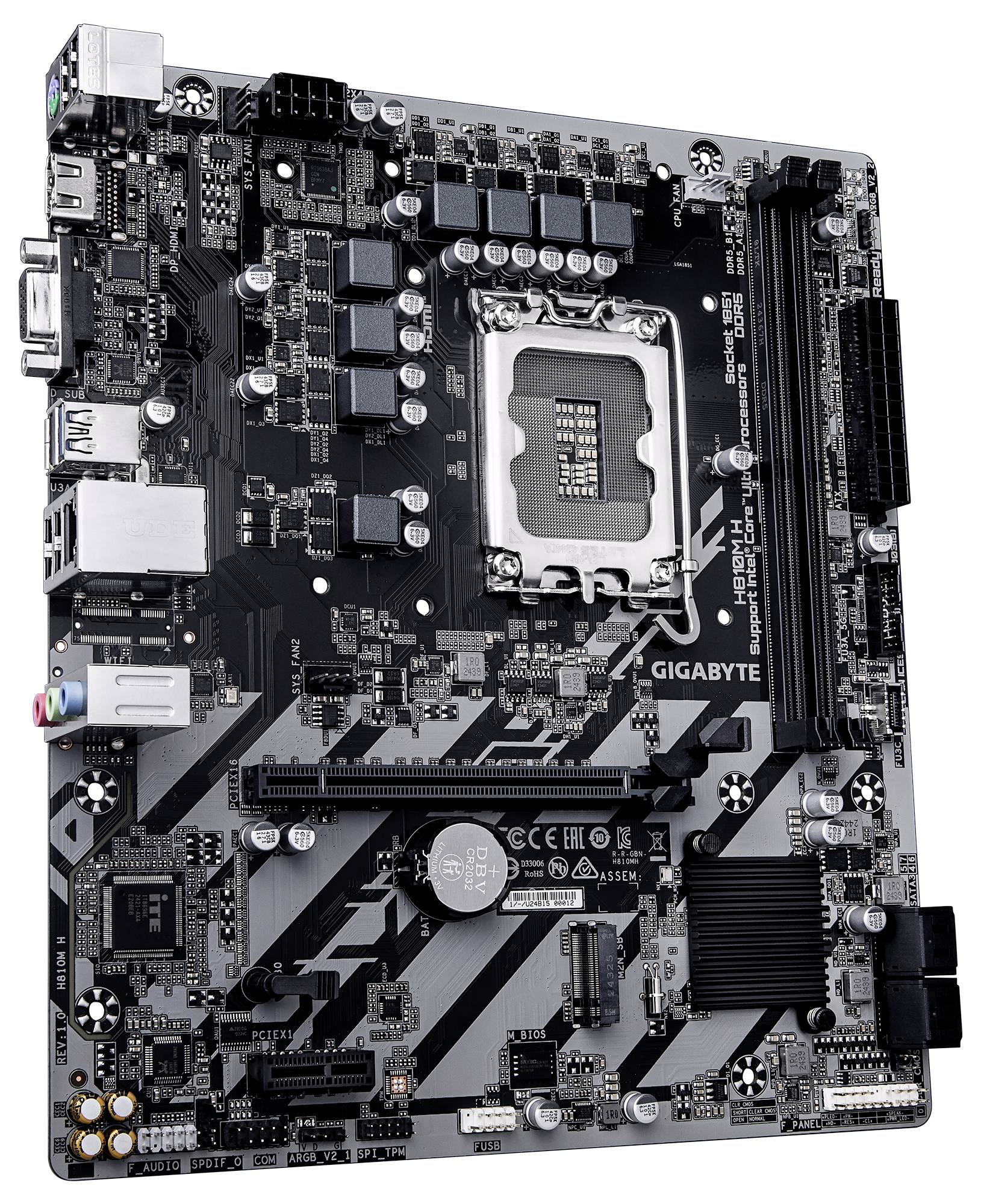

A black and grey motherboard with numerous ports, a CPU socket in the centre, and several RAM slots on the right side.

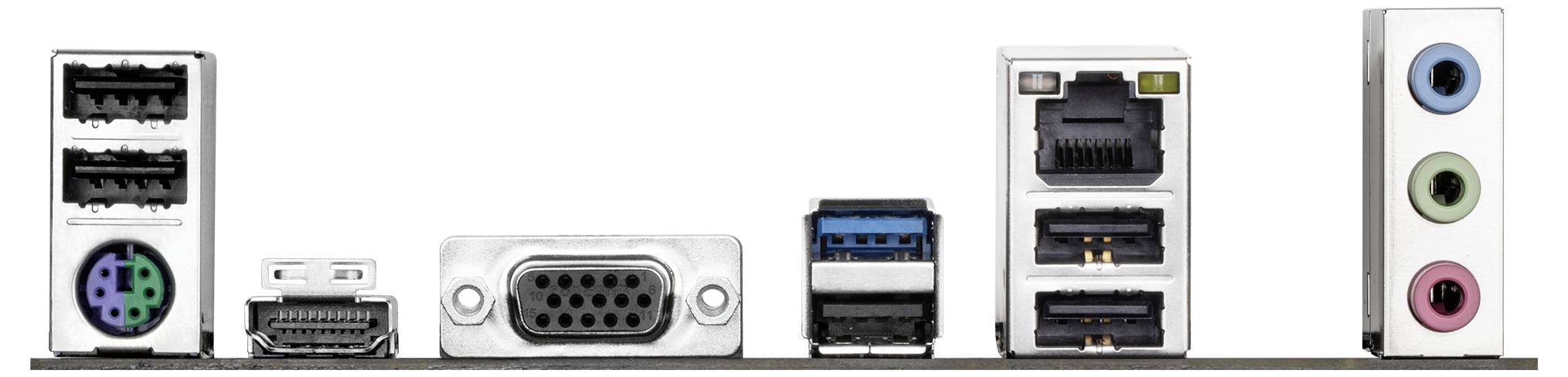

Back of a computer motherboard with various ports: PS/2, HDMI, VGA, USB, Ethernet, and Audio.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte H810M H mainboard – Intel core ultra (2 series) CPUs, 4+1+2 phases VRM, up to 6400 MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1

Intel LGA 1851 (socket V1) Intel core ultra (series 2)
PC micro ATX Intel H810 Realtek ALC897 7.1 channels
DDR5 SDRAM 2 DIMM RAM maximum: 128 GB
HDD & SSD M.2, PCI Express 4.0, SATA III RAID-support Number of supported storage drives: 5
BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
Gigabit Ethernet

Technical specifications

Audio: Realtek® Audio CODEC, High Definition Audio
LAN: Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Product type: Motherboard

Chipset: Intel® H810 Express

: #####Intel® 1851

Form factor: Micro-ATX

Processor/type: Intel® Core™ Ultra

RAM type: DDR5 RAM

RAM / Max. upgrade: 128 GB

Interfaces: PS/2
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
HDMI™
RJ45
Headphone input

No. of DDR5 slots: 2 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x16: 1 x

No. of PCIe x1: 1 x

No. of USB 2.0 ports: 5 x

No. of USB 3.2: 1 x

No. of SATA III ports: 4 x

Onboard audio: 2.0
4.0
5.1
7.1

Onboard graphics: HDMI, D-Sub

No. of PS/2 ports: 1 x

Factory colour: Multicolour

Depth: 215 mm

Height: 35 mm

Width: 244 mm

Display resolution: 4096 x 2160 Pixel

No. of HDMI ports: 1 x

No. of VGA ports: 1 x

No. of USB A 2.0 ports: 5 x

No. of USB type A 3.1 / 3.2 1st Gen: 1 x

Christmas lighting features: 12.0

Cooling: Passive

10/100/1000 Mbps ports: 1 x

Software included: Norton® Internet Security (OEM version)
LAN bandwidth management software

Range of use: PC

Weight: 860 g

Wi-Fi: No

UKCA: yes

BIOS memory size: 256 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

PCI Express x1 (Gen 3.x) slots: 1

Number of memory slots: 2

Number of M.2 (M) slots: 1

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

Microphone in: yes

Front panel connector: yes

S/PDIF out connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 6400 MHz

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Batteries included: yes

HDCP: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 860 g

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes

Serial port headers: 1

Clear CMOS jumper: yes

Number of storage drives supported: 5

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3394728 Gigabyte GA-H810M H Motherboard PC base #####Intel® 1851 Form factor (details) Micro-ATX Motherboard chipset Intel® H810

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.

This text is machine translated.

Features

Supports Intel core ultra processors (2 series),hybrid VRM design with 4+1+2 phases,EZ-Latch: PCIe x16 slot with quick release design,user-friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW,next generation memory: PCIe 4.0 x4 M.2 slots,fast network connection: GbE LAN,Extensive connectivity: HDMI
