Name: Gigabyte Gigabyte GA-B760M H V2 (1700) (D) Motherboard PC base #####Intel® 1700 Form factor (details) ATX
Brand: Gigabyte
SKU: 3737058

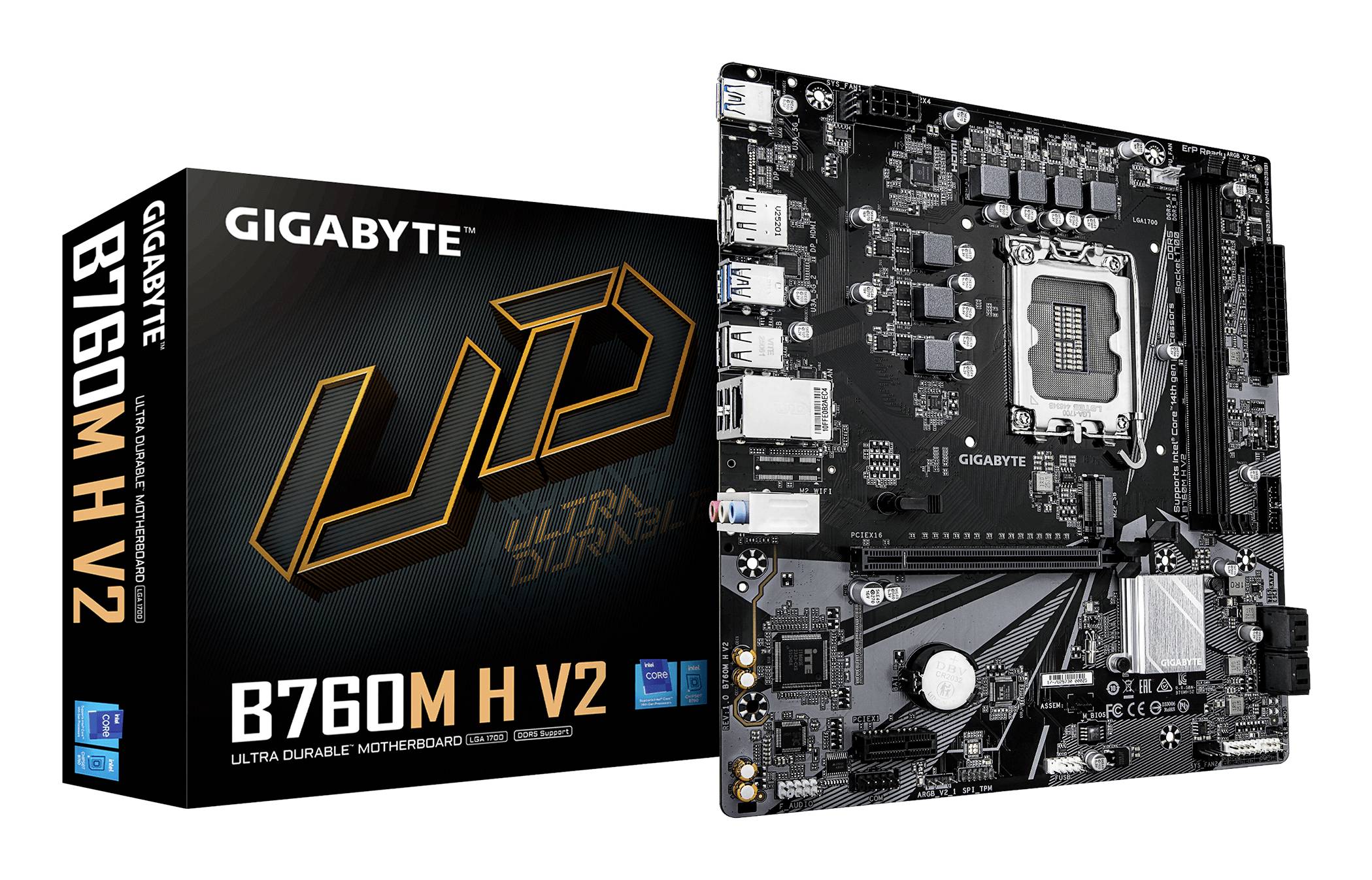

'GIGABYTE B760M H V2 Ultra Durable motherboard and its packaging box, showcasing the board layout and key components.'

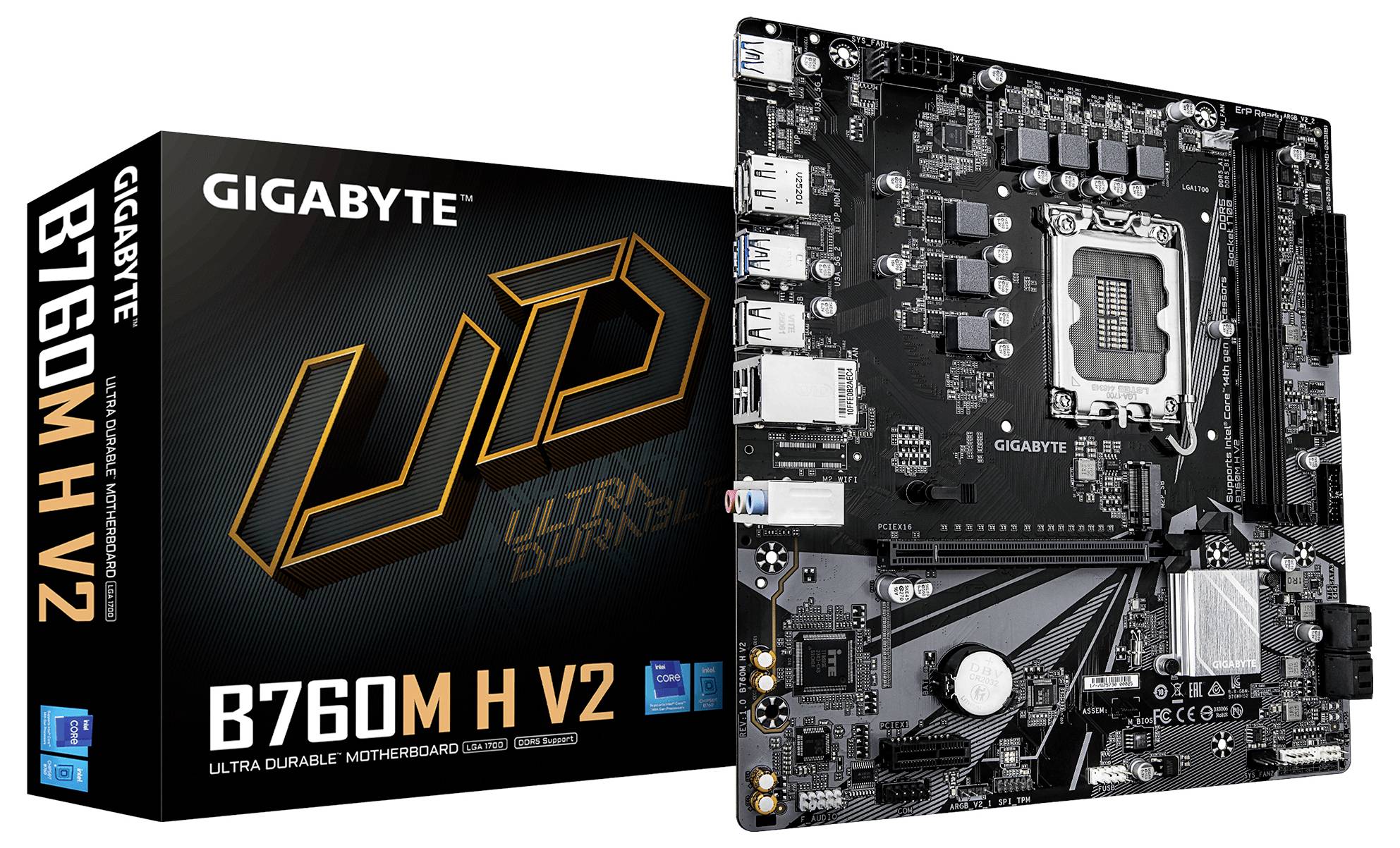

'GIGABYTE B760M H V2' motherboard box and product, showcasing ports, slots, and connectors, emphasizing 'Ultra Durable' feature.

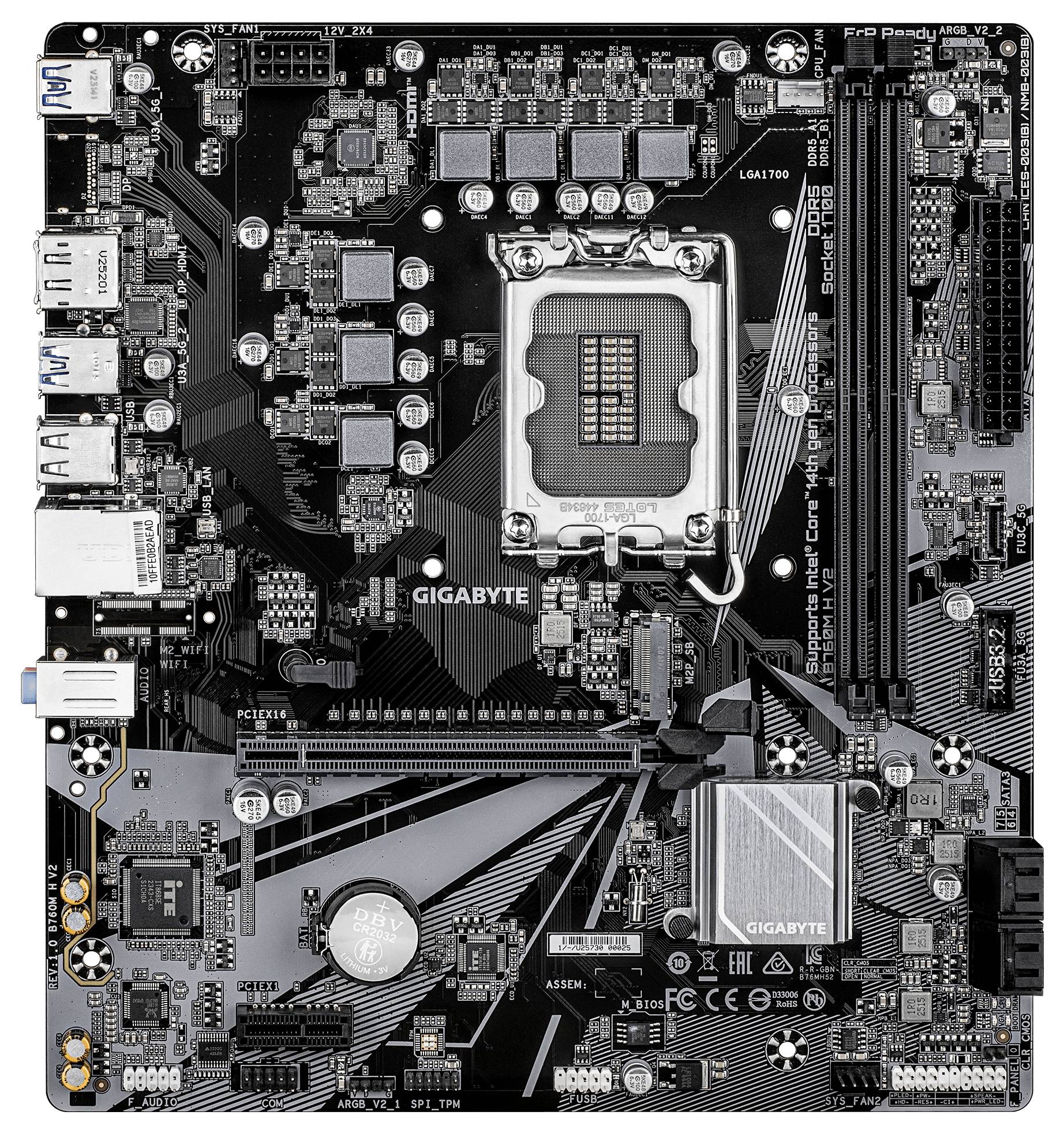

A GIGABYTE motherboard with multiple connection ports, chipset, and socket. Features include PCIe slots, RAM slots, and various connectors.

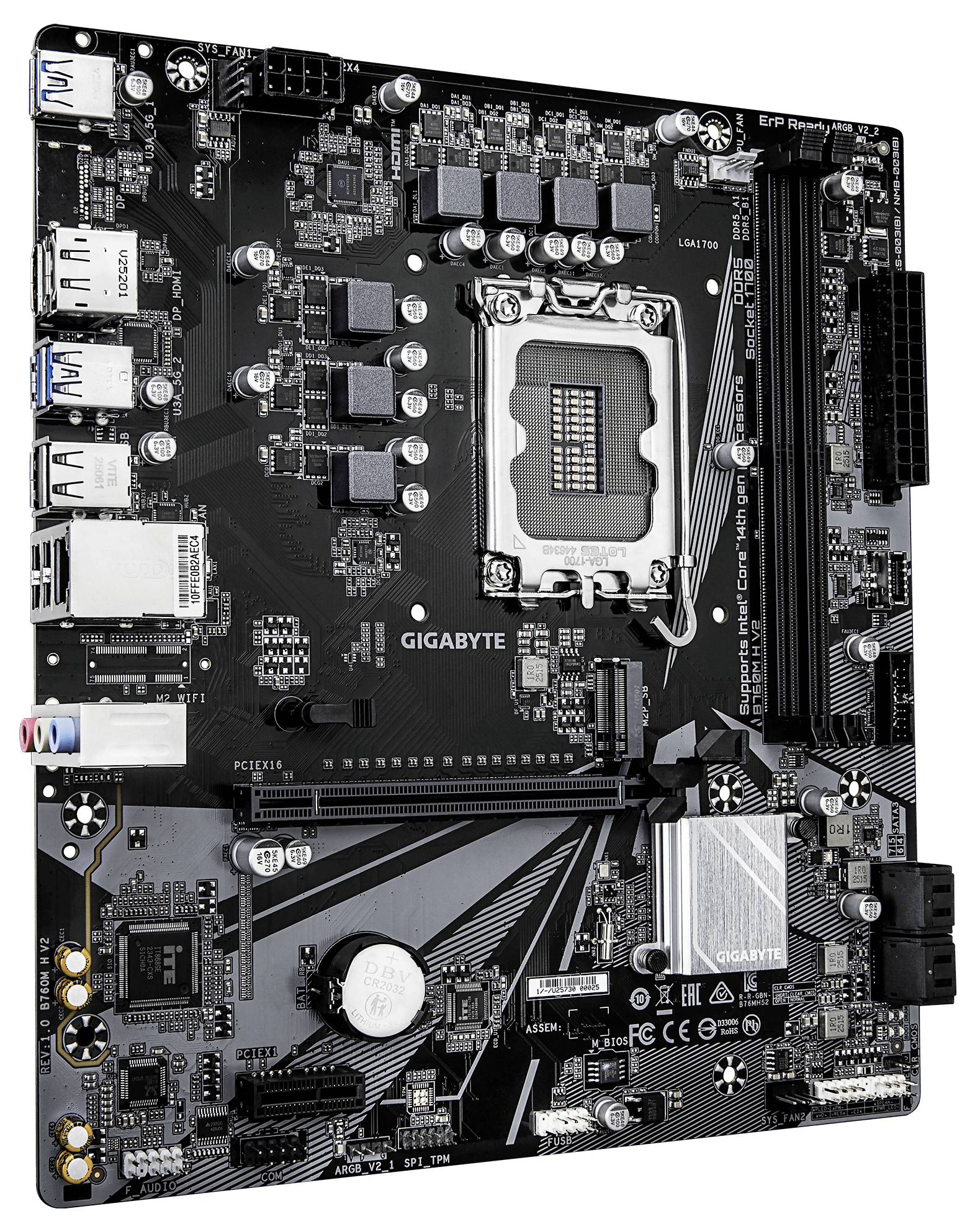

A black computer motherboard with labeled components, several slots, and sockets, including a central processor socket marked 'LGA1200'.

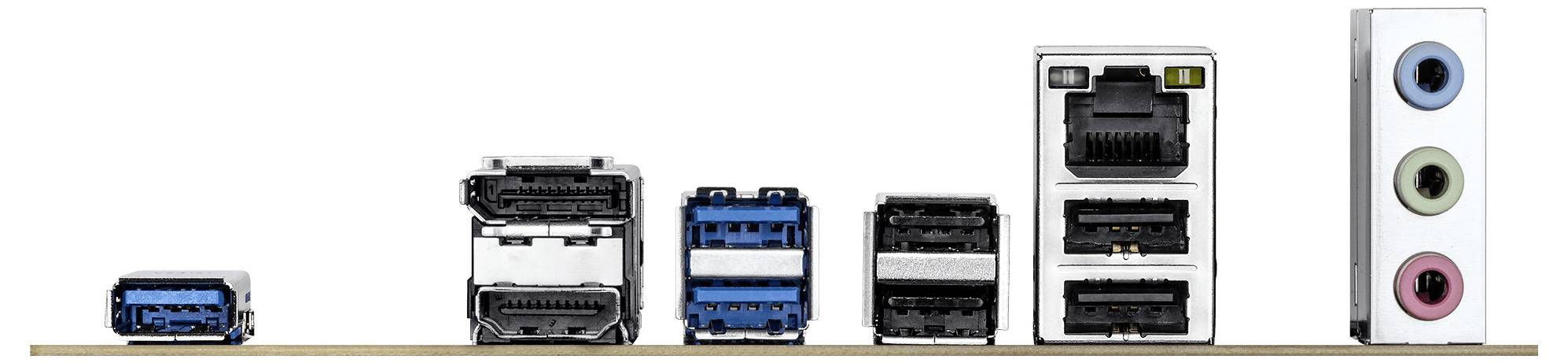

'Display of various computer ports including USB, HDMI, Ethernet, and audio jacks, arranged in a row for comparison.'

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte Gigabyte GA-B760M H V2 (1700) (D) Motherboard

Intel LGA 1700 Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel core i9 14th Gen, Intel® Pentium® Gold
PC micro ATX Intel B760 Express Realtek ALC897 7.1 channels
DDR5 SDRAM 2 DIMM RAM maximum: 128 GB
HDD & SSD M.2, PCI Express 4.0, SATA III RAID-support Number of supported storage drives: 5
BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
Gigabit Ethernet

Technical specifications

LGA 1700 processor socket
Compatible processors: Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i7 12th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel® Pentium Gold
Supported processor slots: LGA 1700
Supported memory: DDR5 SDRAM
HDMI version 2.1
Motherboard Intel B760 Express chipset
Product color: Dark brown
Motherboard form factor: Micro ATX
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

: #####Intel® 1700

Form factor: ATX

RAM type: DIMM

RAM / Max. upgrade: 128 GB

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 1 x

No. of SATA III ports: 4 x

Depth: 220 mm

Height: 35 mm

Width: 244 mm

Display resolution: 4096 x 2304 Pixel

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

Christmas lighting features: 12.0

Cooling: Passive

HDCP: Yes

Battery capacity: 220 mAh

10/100/1000 Mbps ports: 1 x

Software included: Norton® Internet Security (OEM version)

Range of use: PC

Weight: 770 g

Wi-Fi: No

UKCA: yes

BIOS memory size: 128 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

PCI Express x1 (Gen 3.x) slots: 1

Number of memory slots: 2

Number of M.2 (M) slots: 1

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

Microphone in: yes

Front panel connector: yes

12V power connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 8000 MHz

Lithium weight per battery: 0.07 g

: 2

: 1

: 1

: 64 GB

Battery weight: 3 g

Batteries included: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 850 g

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes

Serial port headers: 1

Clear CMOS jumper: yes

Number of storage drives supported: 5

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3737058 Gigabyte Gigabyte GA-B760M H V2 (1700) (D) Motherboard PC base #####Intel® 1700 Form factor (details) ATX

Description

Increase the performance of your computer with Gigabyte-proven motherboard series: AORUS, AERO and Gigabyte. With innovative design and modern functions, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.

This text is machine translated.

Features

Supports Intel Core 14./13./12. Processors
Superior performance: Hybrid 5+1+1 phase VRM solution
Dual channel DDR5: 2*DIMMs XMP memory module support
Next generation memory: PCIe 4.0 M.2 connectors
Fast networks: GbE LAN
EZ-Latch:PCIe x16 slot with quick release design
Advanced connectivity: DP, HDMI
Smart fan 6: Has multiple temperature sensors, hybrid fan connections with fan stop

Description

Features

Supports Intel Core 14./13./12. Processors
Superior performance: Hybrid 5+1+1 phase VRM solution
Dual channel DDR5: 2*DIMMs XMP memory module support
Next generation memory: PCIe 4.0 M.2 connectors
Fast networks: GbE LAN
EZ-Latch:PCIe x16 slot with quick release design
Advanced connectivity: DP, HDMI
Smart fan 6: Has multiple temperature sensors, hybrid fan connections with fan stop
