Name: Gigabyte Gigabyte GA-B860M GAMING WIFI6 (1851) (D Motherboard PC base #####Intel® 1851 Form factor (details) ATX
Brand: Gigabyte
SKU: 3589267

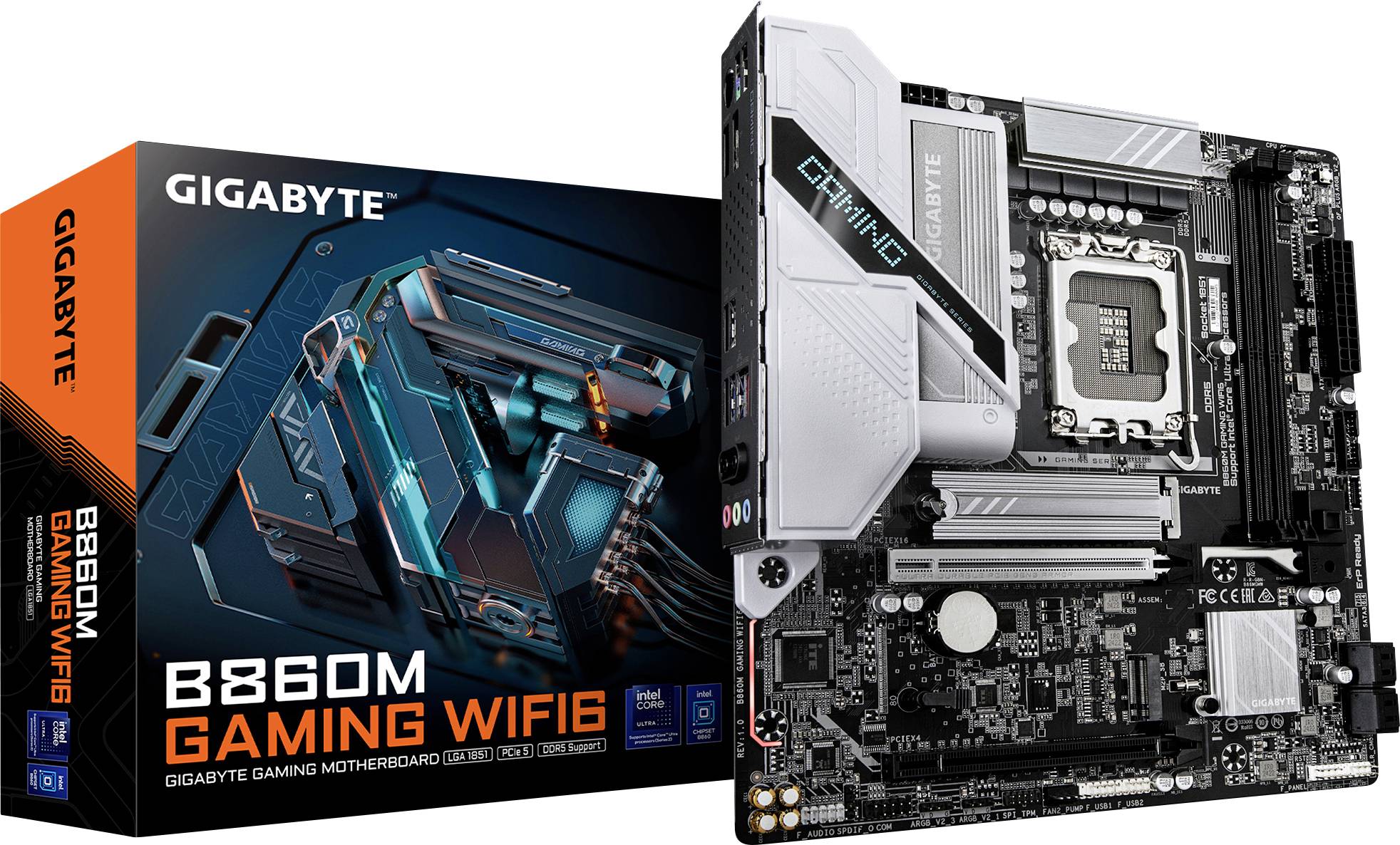

'GIGABYTE B660M GAMING WIFI 6 Motherboard' with detailed circuitry, socket, and ports visible, packaged in a vibrant box.

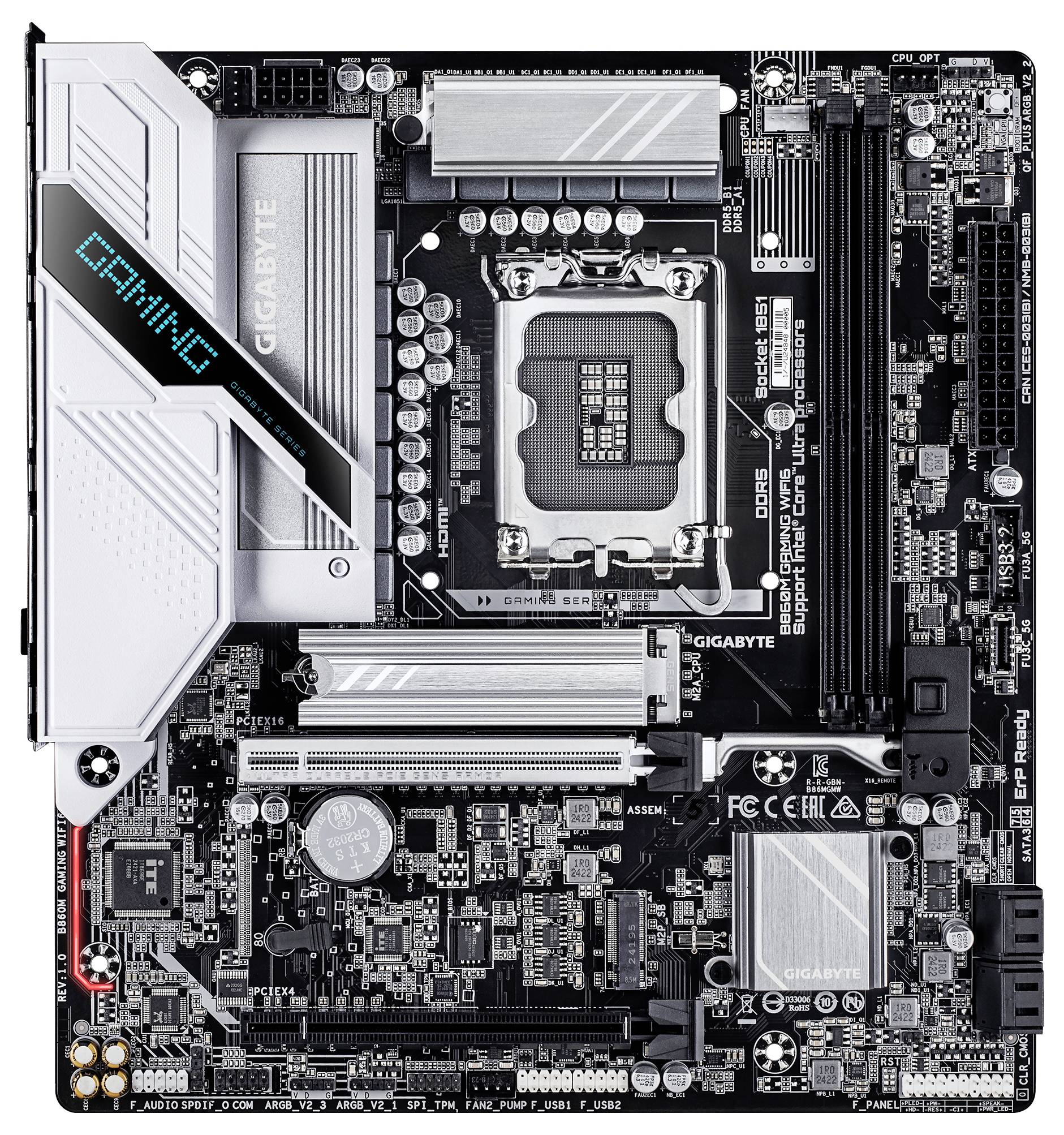

'Top view of a computer motherboard, featuring a prominent CPU socket, labeled 'Gaming,' with multiple slots and connectors for components.'

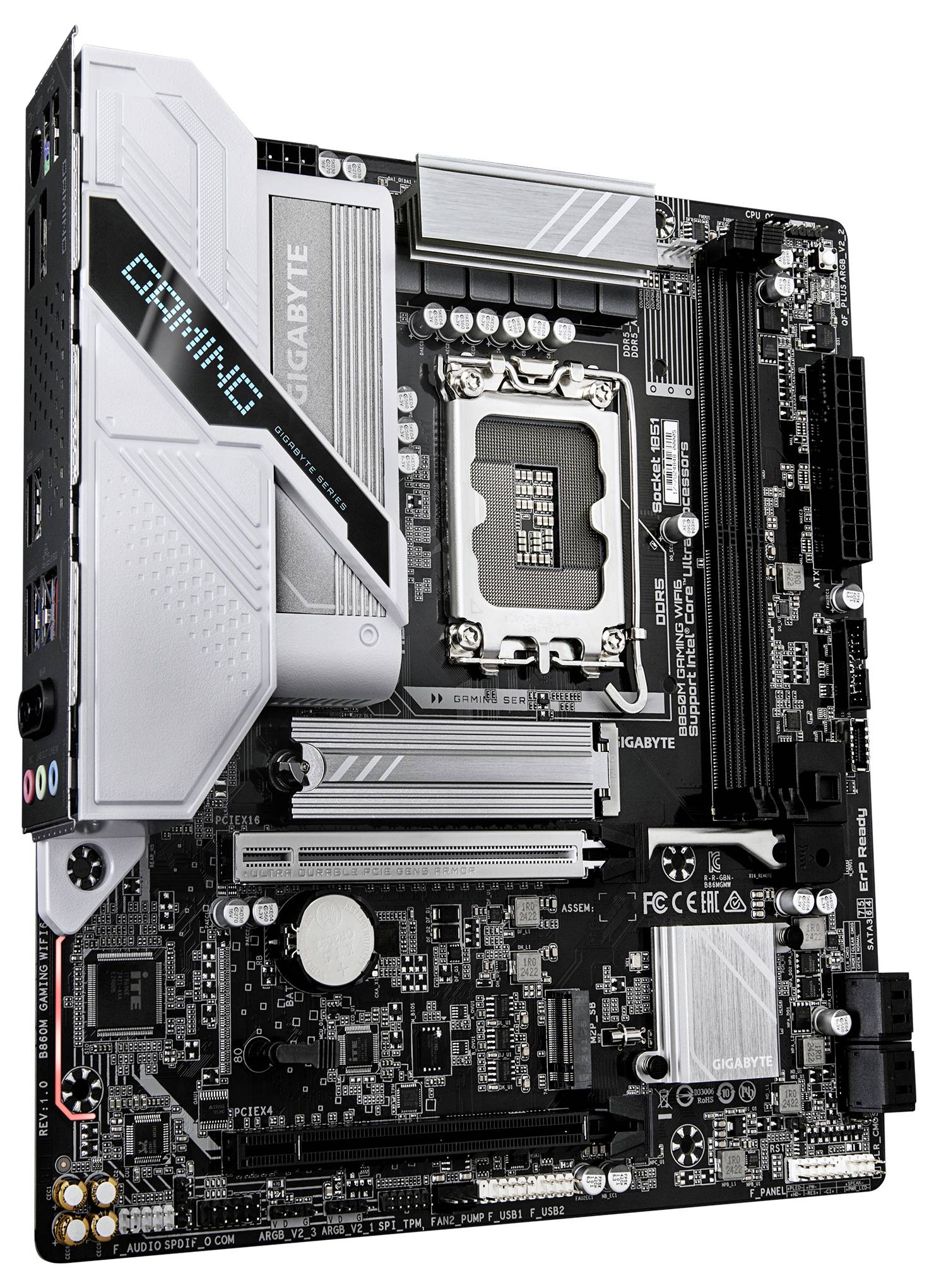

A computer motherboard with multiple slots and components, including a CPU socket, RAM slots, and PCIe slots. Features 'Gaming' label.

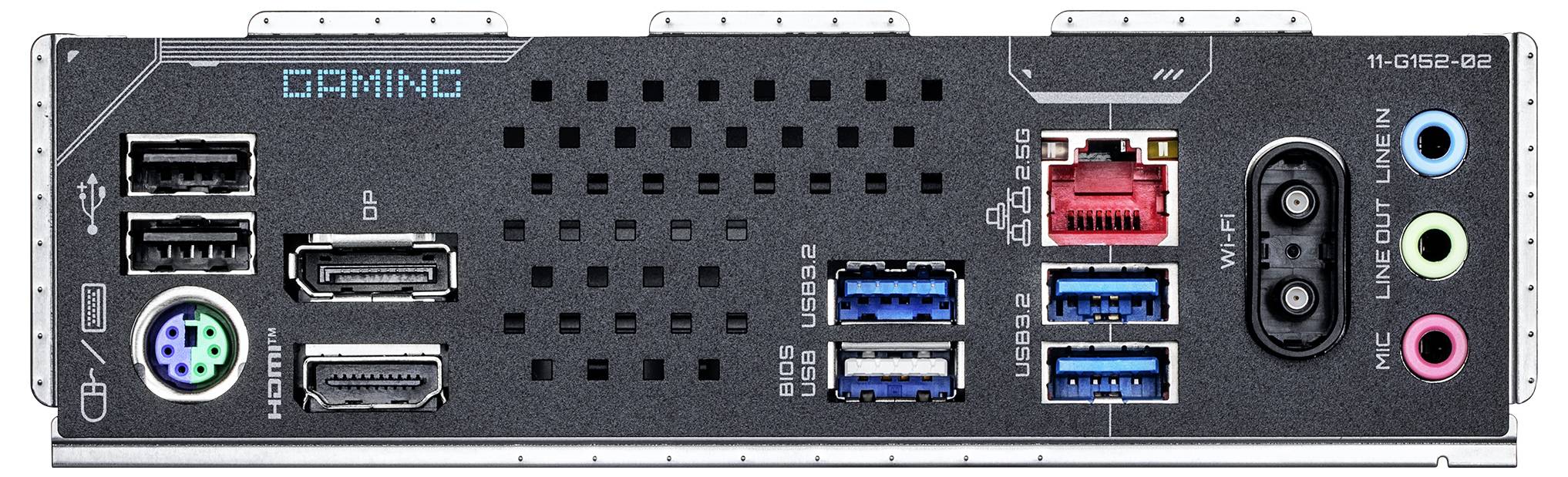

The image shows the rear I/O panel of a gaming motherboard with various ports: USB, Ethernet, HDMI, audio jacks, and PS/2 connector.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte Gigabyte GA-B860M GAMING WIFI6 (1851) (D Motherboard

Intel LGA 1851 (socket V1) Intel core ultra (series 1), Intel core ultra (series 2)
PC micro ATX Realtek ALC897 7.1 channels
DDR5 SDRAM 2 DIMM RAM maximum: 128 GB
HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 6
BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
2.5 Gigabit Ethernet WLAN Wi-Fi 6 (802.11ax) Bluetooth 5.3

Technical specifications

LGA 1851 (socket V1)
Supported processor slots: LGA 1851
Supported memory: DDR5 SDRAM
ECC compatibility: ECC and non-ECC
Maximum internal memory per slot: 64 GB
Number of CPU fan ports: 2
Number of EPS power connections (4-pin): 1
Number of water pump connections: 2
Number of RGB LED pin strips: 4
HDMI version 2.1
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Motherboard form factor: Micro ATX
1. M.2 Largest key size: 2280
1. M.2 highest PCI Express generation: 5.0
2. M.2 Largest key size: 2280
2. M.2 highest PCI Express generation: 4.0
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

: #####Intel® 1851

Form factor: ATX

RAM type: DIMM

RAM / Max. upgrade: 128 GB

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of SATA III ports: 4 x

Bluetooth: 5.3

Bluetooth: Yes

Factory colour: Brown

Depth: 225 mm

Height: 35 mm

Width: 244 mm

Display resolution: 4096 x 2160 Pixel

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 3 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

Christmas lighting features: 12.0

Cooling: Passive

HDCP: Yes

Battery capacity: 220 mAh

10/100/1000 Mbps ports: 1 x

Software included: Norton® Internet Security (OEM version)
LAN bandwidth management software

Range of use: PC

Weight: 1.23 kg

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 256 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 2

Number of M.2 (M) slots: 2

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

Microphone in: yes

Front panel connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

WiFi-AP antenna jack: 2

TPM connector: yes

RGB LED pin header: yes

Supported memory clock speed (max): 9066 MHz

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Batteries included: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 1.29 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

Unbuffered memory: yes

Clear CMOS jumper: yes

Number of storage drives supported: 6

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3589267 Gigabyte Gigabyte GA-B860M GAMING WIFI6 (1851) (D Motherboard PC base #####Intel® 1851 Form factor (details) ATX

Description

Increase the performance of your computer with Gigabyte-proven motherboard series: AORUS, AERO and Gigabyte. With innovative design and modern functions, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.

This text is machine translated.

Features

Supports Intel core ultra processors (series 2)
Hybrid 8+1+2-phase VRM solution
D5 Bionic Corsa for “Infinite Memory Performance”
WIFI EZ-Plug: Quick and easy design for installing the Wi-Fi antenna
PCIe EZ-Latch Plus: PCIe slots with quick release and screw-less design
Easy-to-use UI: Multi-Theme, AIO fan control and Q-Flash Auto-Scan in BIOS and SW
Ultra-fast memory: 2M.2 slots, including 1 PCIe 5.0 x4
Efficient cooling: VRM thermal protection Advanced & M.2 thermal protection
Fast network technology: 2.5GBE LAN & Wi-Fi 6 802.11ax
Advanced connectivity: HDMI, DisplayPort
