Gigabyte Gigabyte GA-X870E AORUS XTREME X3D AI TO Motherboard PC base #####AMD AM5 Form factor (details) ATX
EAN:
Part number:
Item no:

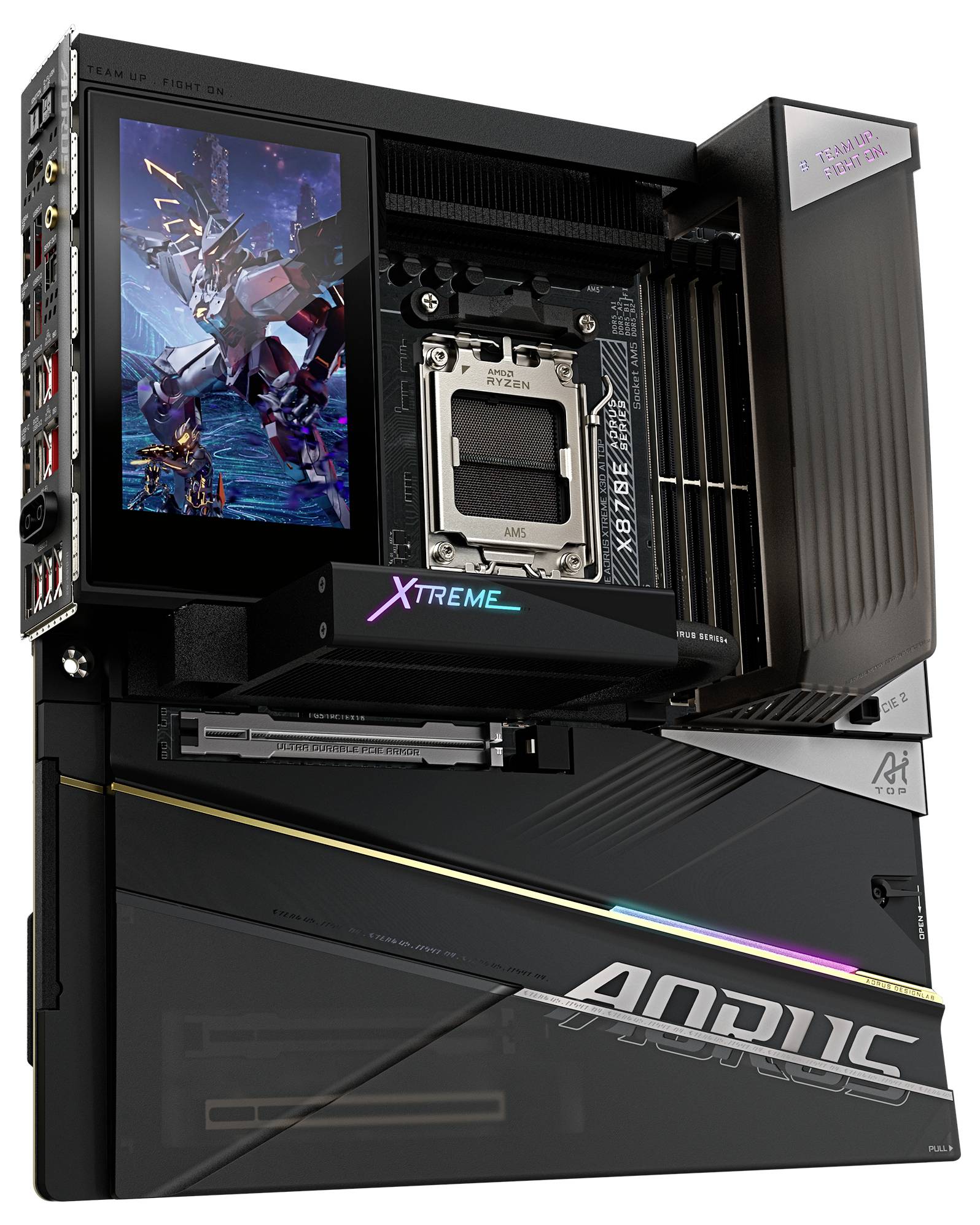

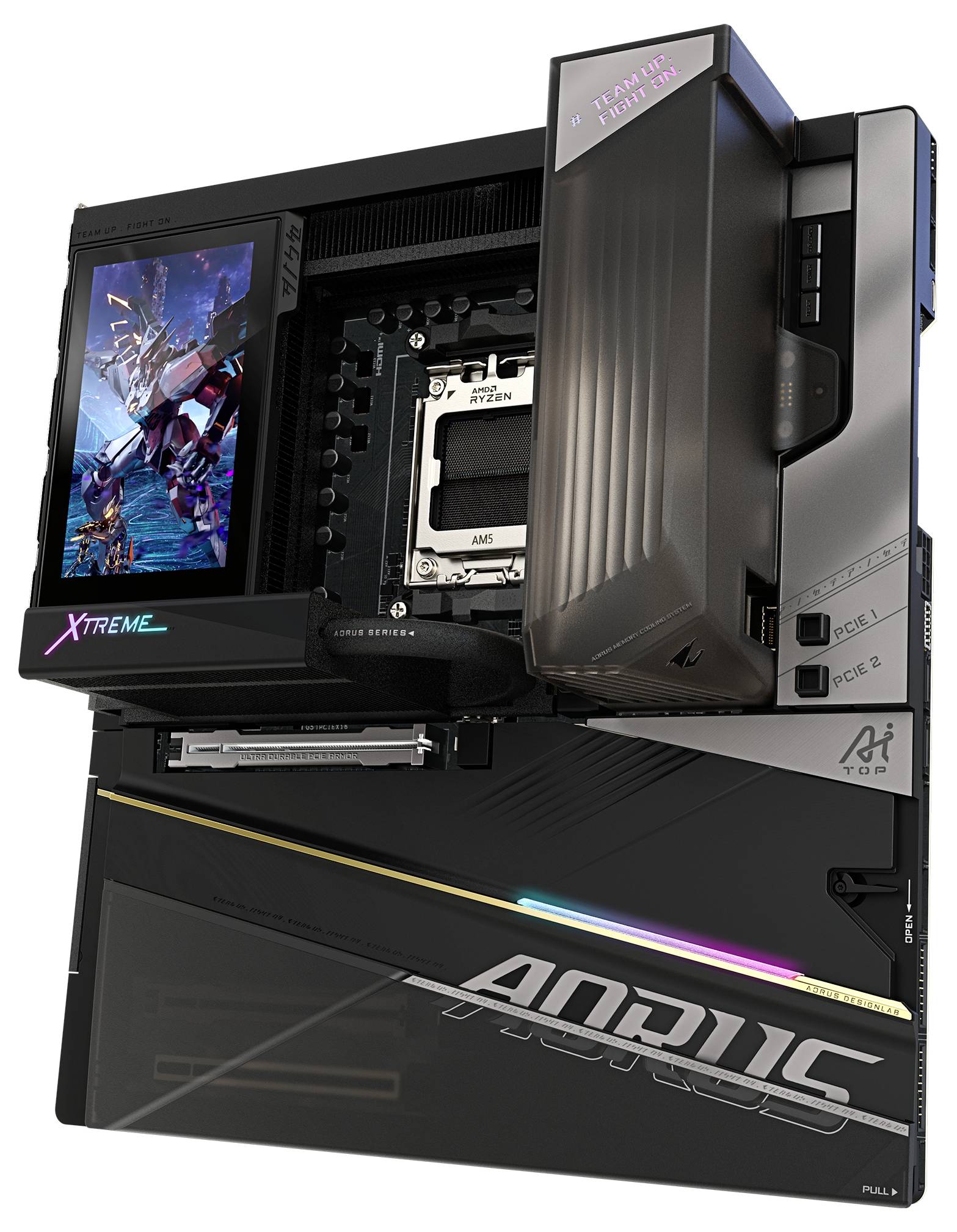

Gigabyte Gigabyte GA-X870E AORUS XTREME X3D AI TO Motherboard
Highlights & Details
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC Extended ATX AMD X870E 1 ESS ES9280AC + 2 ESS ES9080 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 7
- BIOS type: UEFI AMI 512 Mbit ACPI version: 5.0 Clear CMOS button
- 10 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- Supported memory: DDR5 SDRAM
- ECC compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Number of CPU fan ports: 2
- Number of EPS power connections (4-pin): 2
- Number of water pump connections: 3
- Number of temperature sensor headers: 2
- Number of RGB LED pin strips: 1
- HDMI version 2.1
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- AMD X870E motherboard chipset
- Motherboard form factor: Advanced ATX
- 1. M.2 Largest key size: 2580
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 22110
- 2. M.2 highest PCI Express generation: 5.0
- 3. M.2 Largest key size: 22110
- 3. M.2 highest PCI Express generation: 4.0
- 4. M.2 Largest key size: 22110
- 4. M.2 highest PCI Express generation: 4.0
- 5. M.2 Largest key size: 2280
- 5. M.2 highest PCI Express generation: 4.0
- Battery technology: Lithium-manganese dioxide (LiMnO2)
- Product type
Motherboard
#####AMD AM5
- Form factor
ATX
- RAM type
DIMM
- RAM / Max. upgrade
256 GB
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
2 x
- No. of USB 2.0 ports
1 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB 3.0 ports
1 x
- No. of SATA III ports
2 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
Black
- Depth
285 mm
- Height
35 mm
- Width
305 mm
- Display resolution
4096 x 2160 Pixel
- No. of HDMI ports
1 x
- No of. USB type A 3.1 /3.2 2nd gen
8 x
- Christmas lighting features
12.0
- Cooling
Passive
- HDCP
Yes
- Battery capacity
220 mAh
- 10/100/1000 Mbps ports
2 x
- Software included
Norton® Internet Security (OEM version)
- Range of use
PC
- Weight
8.02 kg
- Wi-Fi
Yes
- UKCA
yes
- BIOS memory size
512 Mbit
- Screws included
yes
- Line-in
yes
- Ethernet LAN
yes
- Antenna included
yes
- Number of memory slots
4
- Number of M.2 (M) slots
5
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Products per shipping (inner) case
1 Stück(e)
- Microphone in
yes
- S/PDIF out port
yes
- Front panel connector
yes
- CPU fan connector
yes
- ATX Power connector (24-pin)
yes
- Digital audio optical out
1
- Front panel audio connector
yes
- Number of HDDs supported
2
- WiFi-AP antenna jack
2
- RGB LED pin header
yes
- USB4 Gen 2x2 ports quantity
2
- Supported memory clock speed (max)
9000 MHz
- USB 3.2 Gen 2x2 connectors
1
- Lithium weight per battery
0.07 g
- Battery weight
3 g
- Batteries included
yes
- EPS power connector (8-pin)
yes
- RAID support
yes
- Package weight
11.2 kg
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
- Unbuffered memory
yes
- Clear CMOS button
yes
- Number of storage drives supported
7
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3589268 Gigabyte Gigabyte GA-X870E AORUS XTREME X3D AI TO Motherboard PC base #####AMD AM5 Form factor (details) ATX
Description
Increase the performance of your computer with Gigabyte-proven motherboard series: AORUS, AERO and Gigabyte. With innovative design and modern functions, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.
This text is machine translated.
This text is machine translated.
Features
- X3D Turbo Mode 2.0: Superior X3D performance, unleashed by AI
- AMD socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 series processors
- CPU Thermal Matrix: Provides extreme cooling performance in the VRM and DDR ranges
- Digital 24+2+2-Phase VRM Solution (Digital Twin)
- Dual channel DDR5: DDR5 OC up to 9000MT/s, 4DIMMs supporting AMD EXPO memory modules
- Ultra-fast memory: 5M.2 slots, including PCIe 5.0 x4

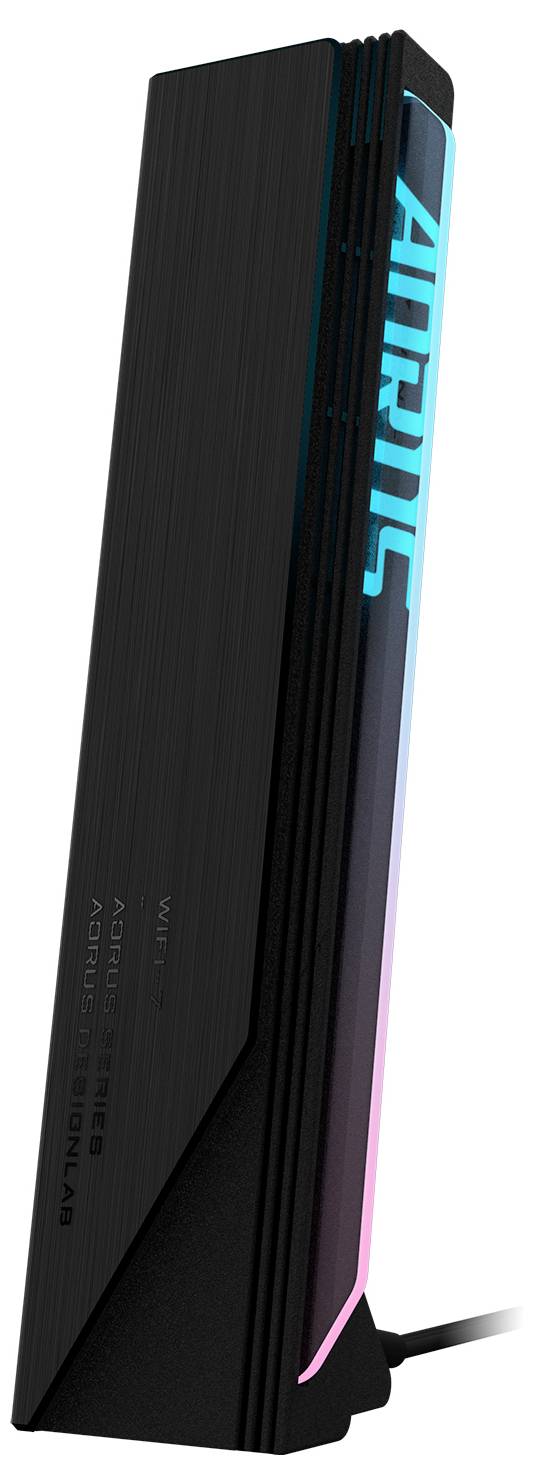

- High-speed network: Dual-10 GbE LAN & Wi-Fi 7 with adjustable ultra high gain antenna

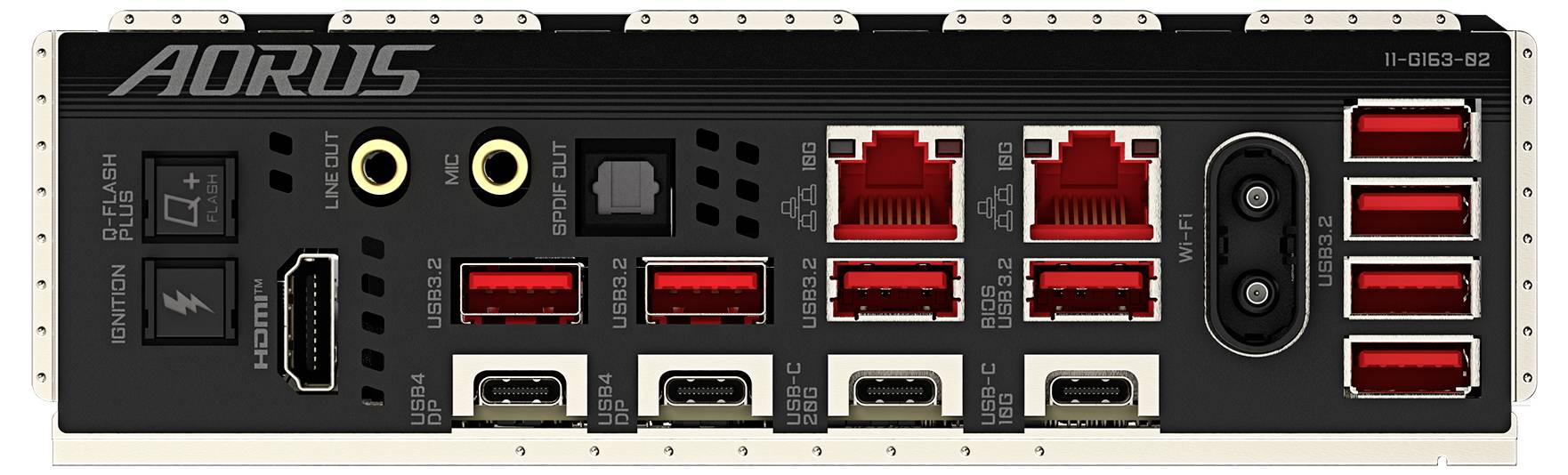

- Advanced connectivity: HDMI, Dual USB4 Type-C with DP Alt, Front QC-USB 65W
- PCB Thermal Plate: 14% thermal improvement and enhanced stability of the motherboard.

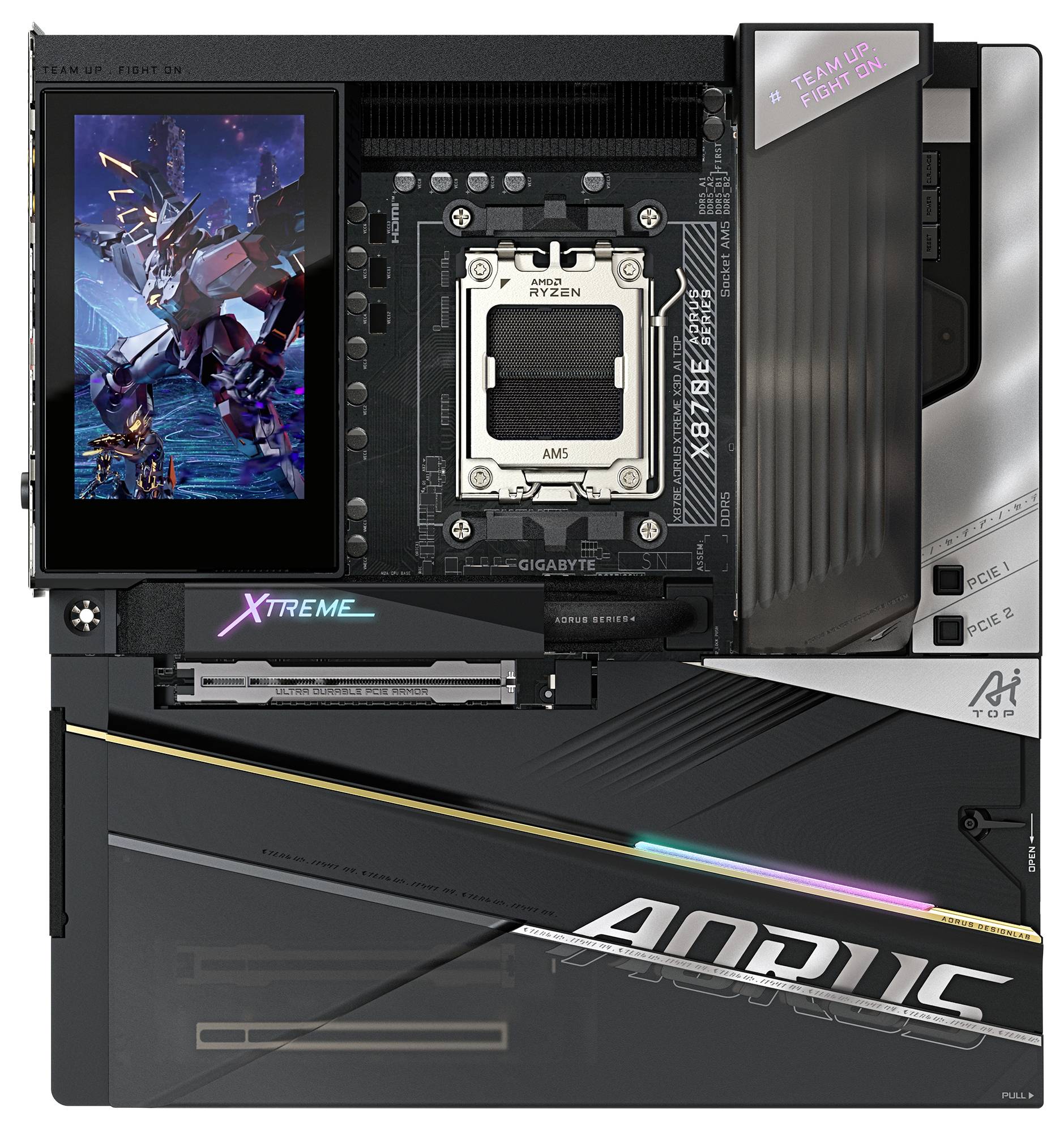

- 5" LCD Edge View: AORUS real-time dynamic visualizations with edge-shaped aesthetics that provide immediate system views.
