Name: Gigabyte Gigabyte GA-X870E EAGLE X WF7 (AM5) (D) Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard
Brand: Gigabyte
SKU: 3737059

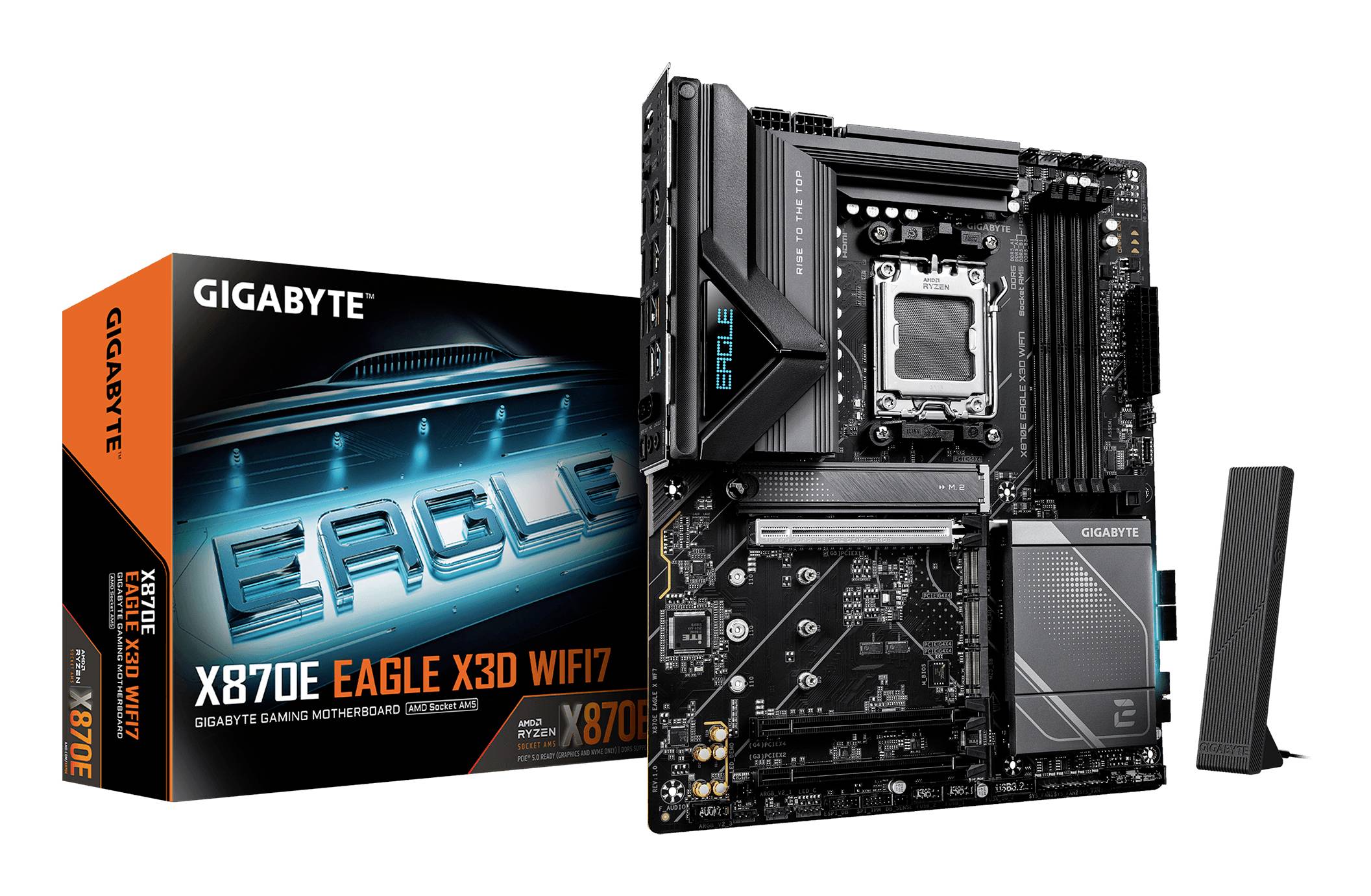

Gigabyte X870E Eagle X3D WiFi7 motherboard with packaging highlighting advanced features and WiFi capability, designed for gaming.

Gigabyte X670E AORUS Elite motherboard box next to the board, showing advanced cooling and wireless capabilities for gaming use.

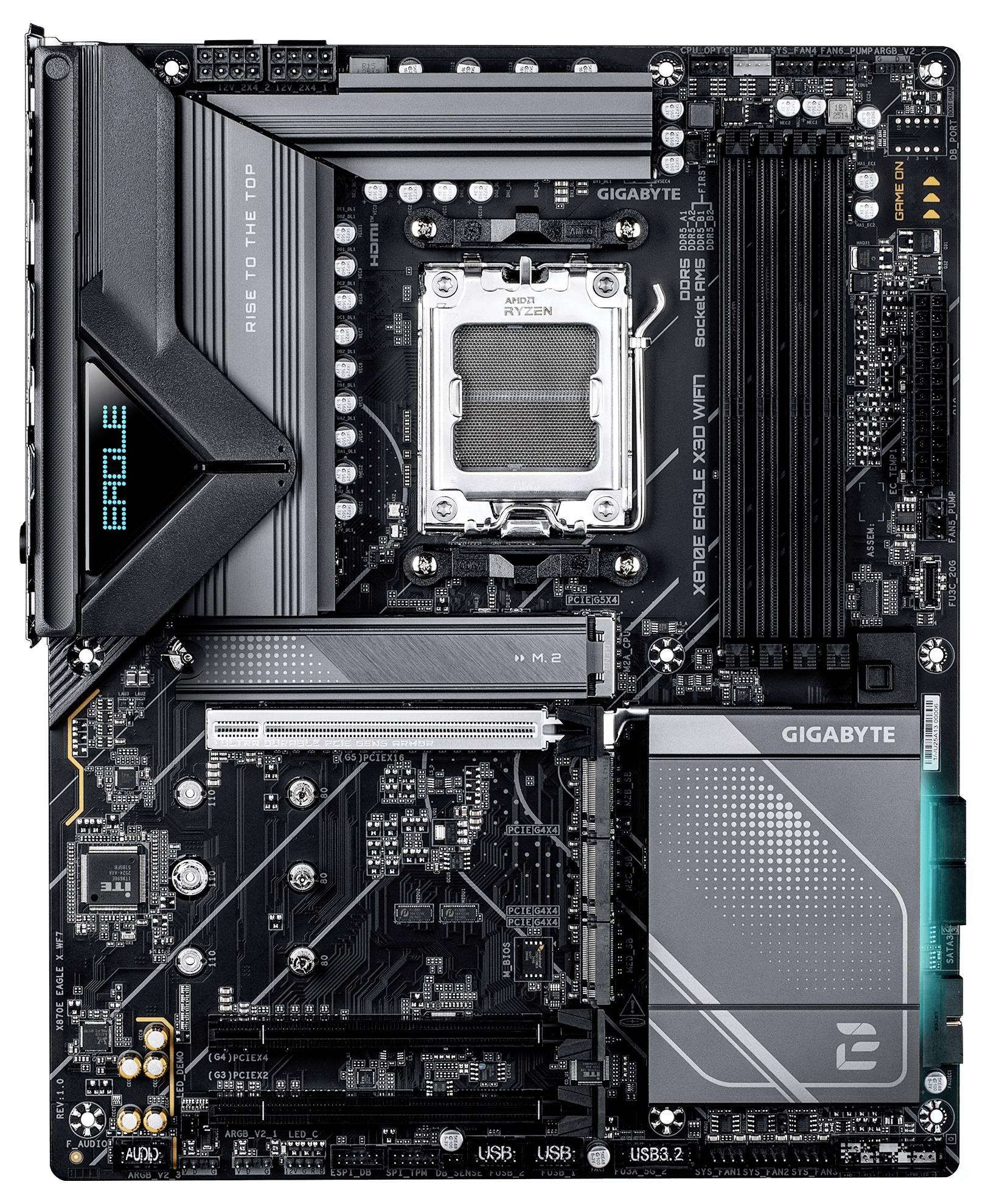

Computer motherboard with processor socket, RAM slots, and various connectors for components, featuring 'EAGLE' branding.

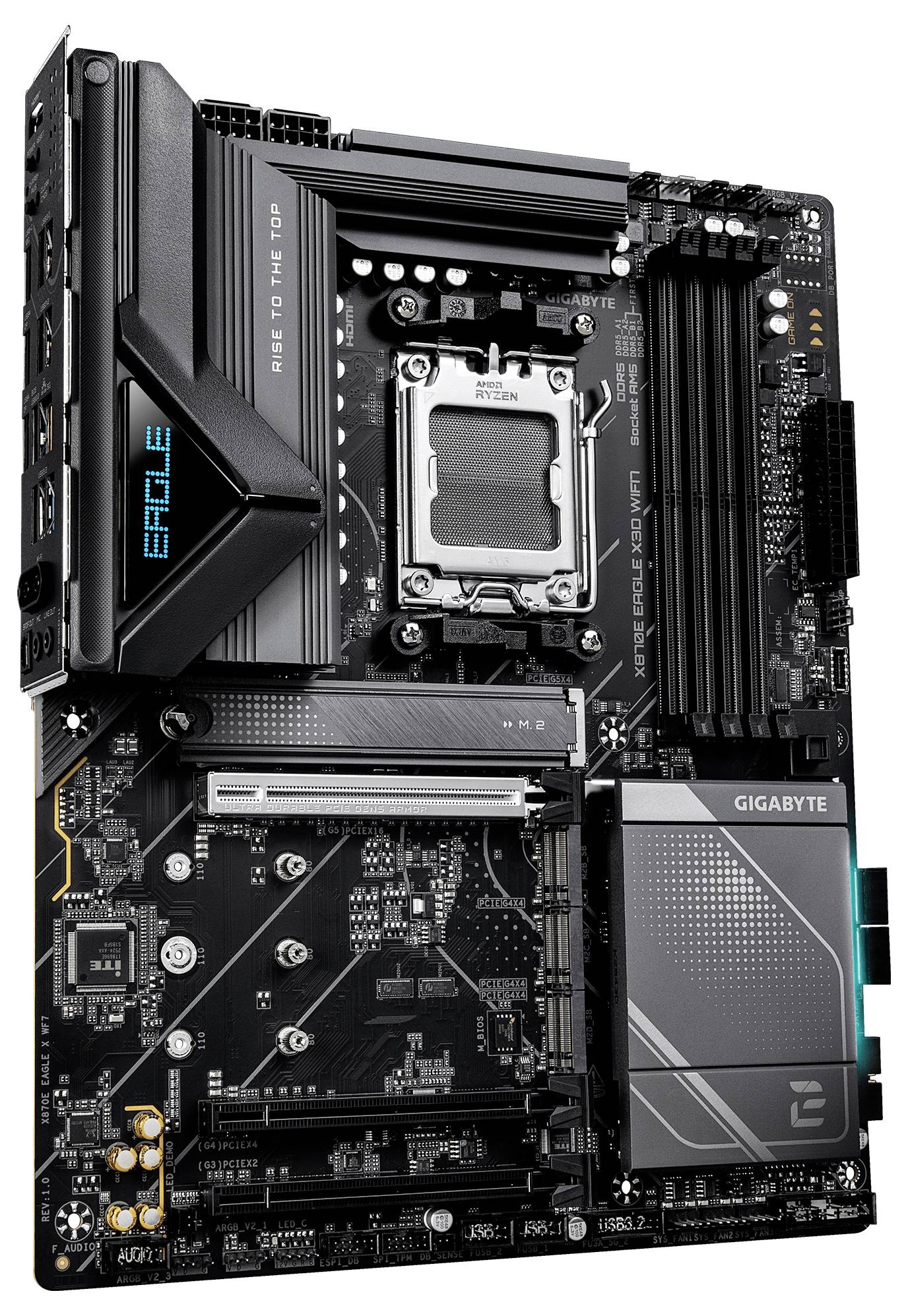

Computer motherboard showing various components including RAM slots, CPU socket, heat sink, and connectors labeled 'Eagle' and 'Gigabyte'.

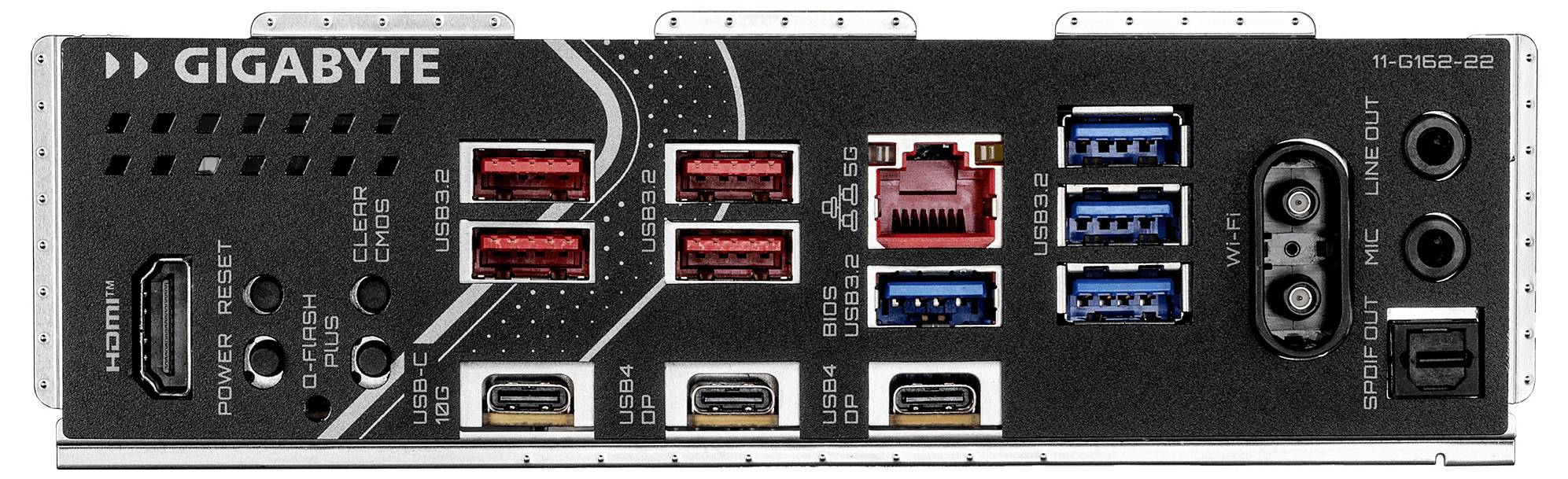

'Rear panel of a Gigabyte motherboard with HDMI, USB ports, Ethernet, audio jacks, clear CMOS, and BIOS update buttons.'

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte Gigabyte GA-X870E EAGLE X WF7 (AM5) (D) Motherboard

X3D Turbo Mode 2.0: Incredible X3D performance, unleashed by AI
AMD socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 series processors
Digital twin 14+2+2 phase VRM solution
Dual channel DDR5: 4DIMMs with AMD EXPO memory module support. DDR5 OC up to 9000MT/s
M.2 EZ-Flex: Highly efficient heat dissipation & flexible base plate for M.2 SSD
EZ-Latch design: M.2-Slots and PCIe slots with quick lock and screwless design
Ultra-fast memory: 4M.2 slots, including PCIe 5.0 x4
High-speed networking: 5GBE LAN & Wi-Fi 7 with trend-setting ultra high-gain antenna
Advanced connectivity: HDMI, Dual USB4 Type-C with DP Alt

Technical specifications

Socket AM5
Supported processor slots: Socket AM5
Supported memory: DDR5 SDRAM
HDMI version 2.1
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
AMD X870E motherboard chipset
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

Chipset: AMD® X870E

: #####AMD AM5

Form factor: ATX

Processor/type: Ryzen 9000 / 8000 / 7000 Serienprozessoren

RAM type: DIMM

RAM / Max. upgrade: 256 GB

Interfaces: Gigabit LAN (1/2.5/5 Gbps)

No. of DDR5 slots: 4 x

No. of LAN ports: 1 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of USB 3.2 2nd Gen (USB 3.1): 1 x

No. of USB 3.0 ports: 2 x

No. of SATA III ports: 4 x

Bluetooth: 5.4

Bluetooth: Yes

Factory colour: Black

Depth: 244 mm

Height: 35 mm

Width: 305 mm

Display resolution: 4096 x 2304 Pixel

No. of HDMI ports: 1 x

No. of USB type A 3.1 / 3.2 1st Gen: 4 x

No of. USB type A 3.1 /3.2 2nd gen: 4 x

Christmas lighting features: 12.0

Cooling: Passive

HDCP: Yes

Battery capacity: 220 mAh

10/100/1000 Mbps ports: 1 x

Software included: Norton® Internet Security (OEM version)

Range of use: PC

Weight: 2.01 kg

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 512 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 4

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

S/PDIF out port: yes

Front panel connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Digital audio optical out: 1

Front panel audio connector: yes

Number of HDDs supported: 4

WiFi-AP antenna jack: 2

TPM connector: yes

RGB LED pin header: yes

USB4 Gen 2x2 ports quantity: 2

Supported memory clock speed (max): 9000 MHz

USB 3.2 Gen 2x2 connectors: 1

Lithium weight per battery: 0.07 g

: 4

: 2

: 3

: 2

: 64 GB

: 2

: 1

Battery weight: 3 g

Batteries included: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 2.21 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes

Clear CMOS button: yes

Clear CMOS jumper: yes

Number of storage drives supported: 8

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3737059 Gigabyte Gigabyte GA-X870E EAGLE X WF7 (AM5) (D) Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With thoughtful design and advanced features, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.

This text is machine translated.

Features

X3D Turbo Mode 2.0: Incredible X3D performance, unleashed by AI
AMD socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 series processors
Digital twin 14+2+2 phase VRM solution
Dual channel DDR5: 4DIMMs with AMD EXPO memory module support. DDR5 OC up to 9000MT/s
M.2 EZ-Flex: Highly efficient heat dissipation & flexible base plate for M.2 SSD
EZ-Latch design: M.2-Slots and PCIe slots with quick lock and screwless design
Ultra-fast memory: 4M.2 slots, including PCIe 5.0 x4
High-speed networking: 5GBE LAN & Wi-Fi 7 with trend-setting ultra high-gain antenna
Advanced connectivity: HDMI, Dual USB4 Type-C with DP Alt
