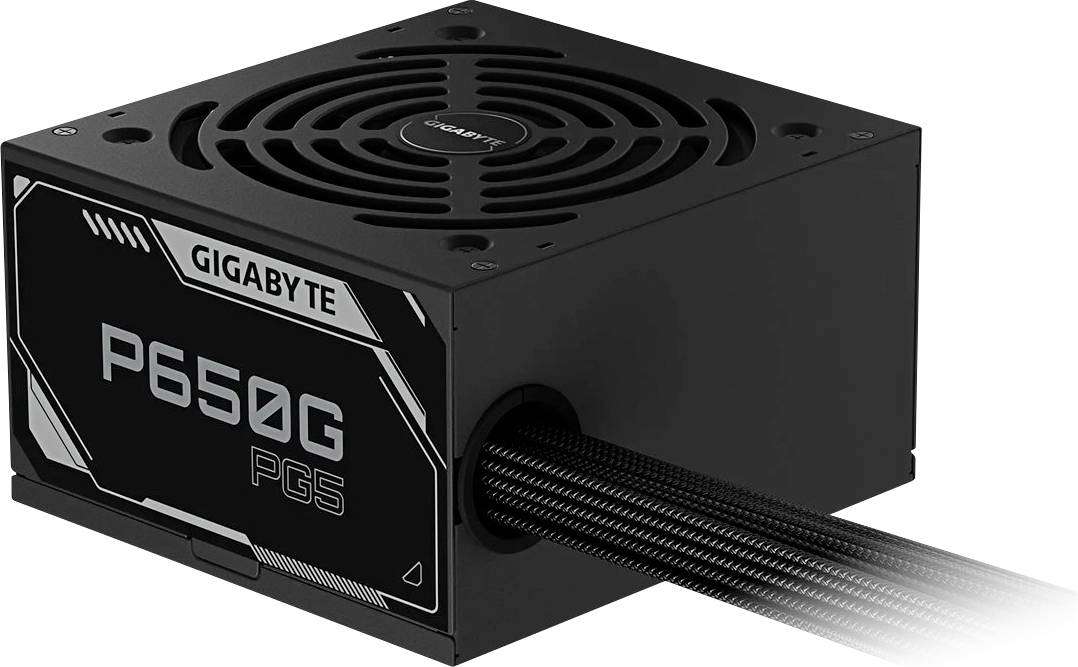

Gigabyte GP-P650G PG5 PC power supply unit 650 W ATX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
650 W
Modular
No
Certification
80 PLUS Gold
Form factor
ATX
Gigabyte GP-P650G PG5 PC power supply unit
Highlights & Details
- Power supply unit output 650 W
- PCI-Express (6+2-Pin) 2x
- Cable management No
- 80 PLUS Gold
Technical specifications
- Special features: Hydraulically mounted cooler fan, overvoltage protection, over-Power protection, short-circuit protection, low-voltage protection, Overcurrent protection, overheating protection, single 12 V busbar
- Specification compliance: ATX12V 3.1/ EPS12V
- Required frequency 50 - 60 Hz
- Output Power Connector Information: 1 x Power 24-pin ATX with removable 4-pin section | 1 x power 8-pin EPS12V with detachable 4-pin ATX12V range | 1 x 16-pin PCI Express power supply | 4 x 8-pin PCI Express Power with removable 2-pin section | 6 x 15-pin SATA power plug | 3 x internal power supply, 2-pin
- Power factor (LF) 0.9
- Efficiency: 0.9
- Product type
PC power supply unit
- PSU output power
650 W
- Modular
No
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
Multicolour
- ATX version
ATX 3.1
- Dim
(W x H x D) 15 x 8.6 x 14 cm
- Depth
14 cm
- Height
8.6 cm
- Width
15 cm
- -12V / DC
0.3 A
- +12 V/DC (1)
54.2 A
- 5 V DC
18 A
- +5V / DC SB
3 A
- 8-pin 12 V
1
- 24-pin
1
- 4-pin 12 V
1
- 20+4-pin.
1
- 4-pin Molex
3
- 4+4 pin ATX/EPS 12V
1
- 6-pin PCIe
2
- 6-pin PCIe
2
- 5-pin SATA
6
- Features
ATX 3.1
PCIe Gen 5.1
- Output rating > 500 W
650 W
- Power rating
501 - 750 W
- Fan size
120 mm
- 3.3V DC
18 A
- Operating voltage
100 - 240 V / AC
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3489316 Gigabyte GP-P650G PG5 PC power supply unit 650 W ATX 80 PLUS Gold
