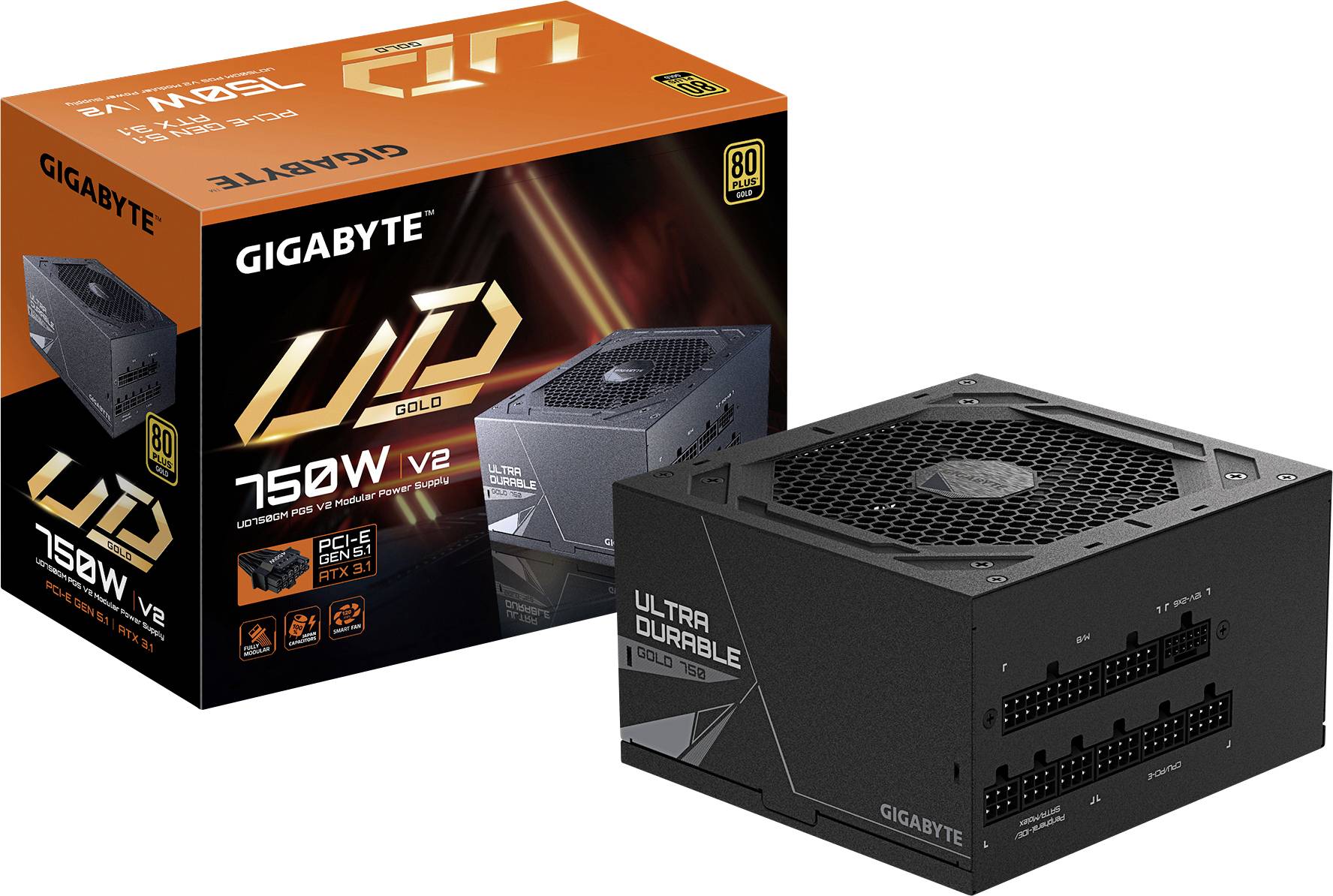

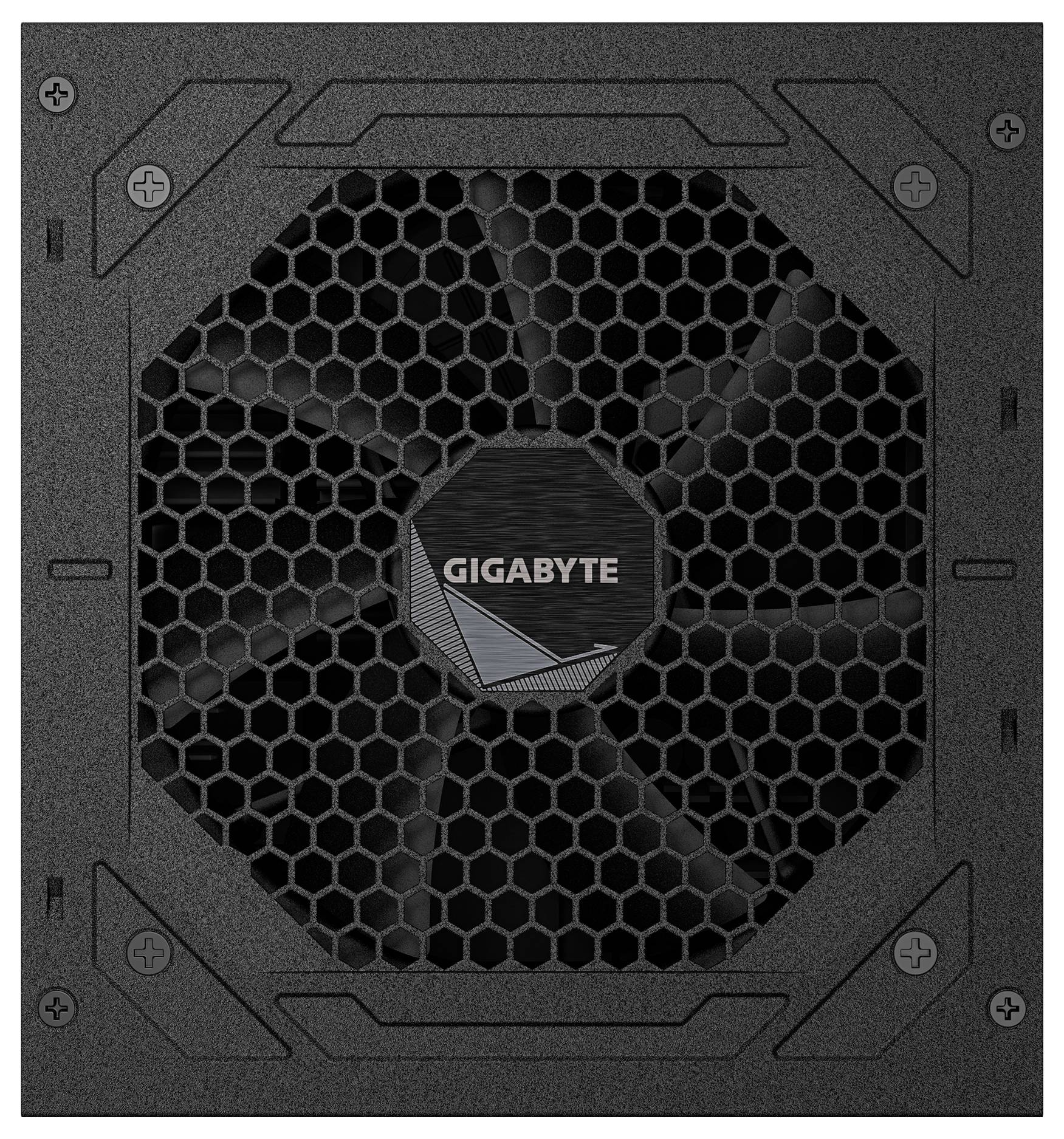

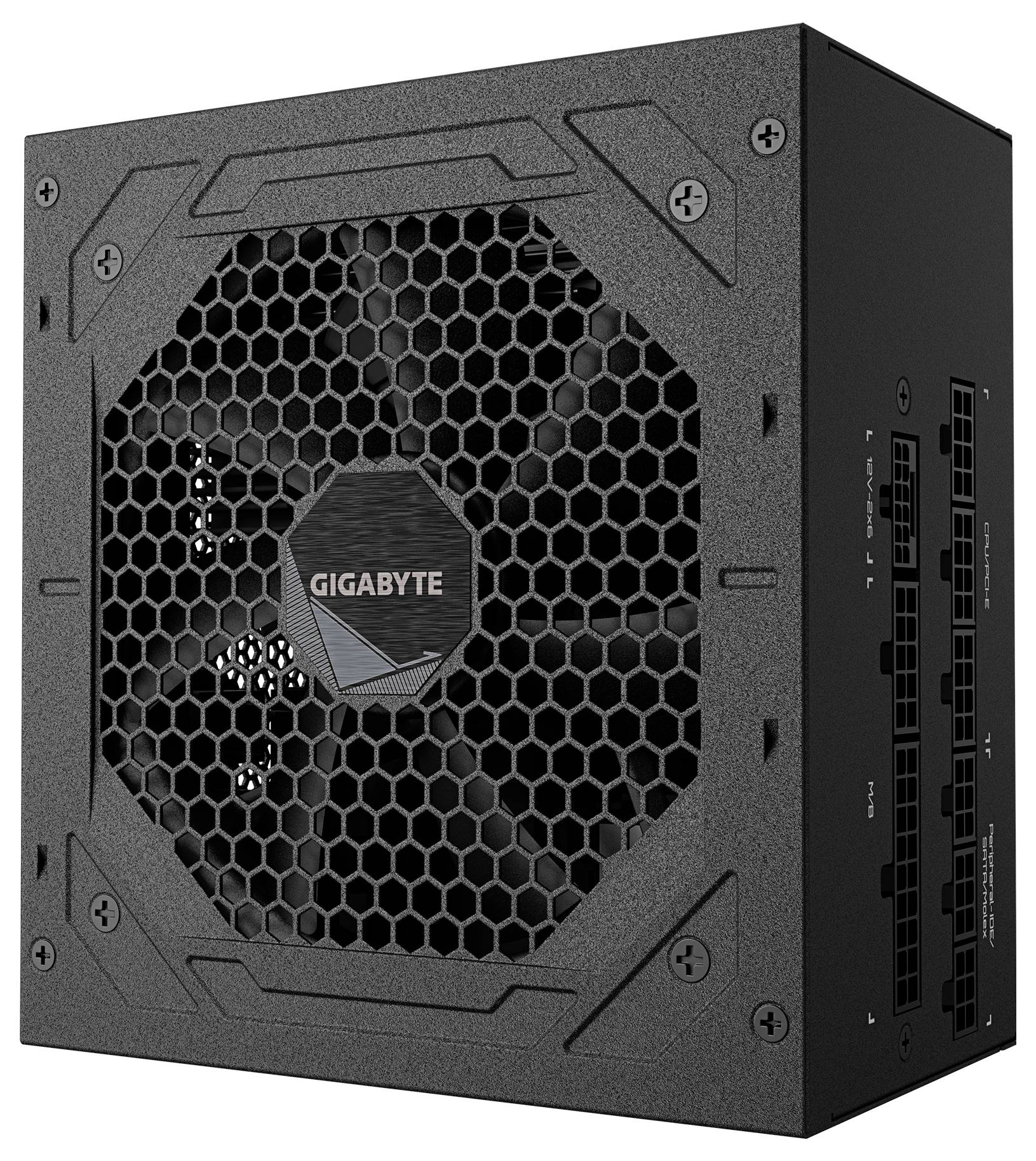

Gigabyte GP-UD750GM PG5 V2 Power supply unit 750 W ATX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
Power supply unit
PSU output power
750 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
ATX
Gigabyte GP-UD750GM PG5 V2 Power supply unit
Highlights & Details
- Power supply unit output 750 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Gold
Technical specifications
- 80 Plus Certification 80 PLUS Gold
- Fan diameter 12 cm
- Number of fans: 1 fans
- Product type
Power supply unit
- PSU output power
750 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
2.34 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
62.5 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 4-pin Molex
3
- 6-pin PCIe
4
- 5-pin SATA
8
- Power rating
501 - 750 W
- Cooling
Active
- Fan size
120 mm
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- Operating voltage
100 - 240 V
- UKCA
yes
- Motherboard power cable length
61 cm
- CPU power cable length
65 cm
- PCI Express power cable length
60 cm
- PCI Express connector
yes
- PCI Express power connectors (12+4 pin)
1
- Number of EPS connectors
2
- Mean time between failures (MTBF)
100000 h
- Efficiency
90 %
- Hold time
16 ms
- On/off switch
yes
- Floppy drive power connector
1
- CPU power connector (4+4 pin)
yes
- Power factor
0.9
- Package weight
2.5 kg
- Combined power (+3.3V)
105 W
- Combined power (+12V)
750 W
- Combined power (+5V)
105 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
15 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3489313 Gigabyte GP-UD750GM PG5 V2 Power supply unit 750 W ATX 80 PLUS Gold
Description
Ensure a reliable and efficient power supply with Gigabyte power supplies. Designed for peak performance and durability, our PSU provides stable and consistent power to operate your high performance systems. With advanced protection mechanisms and high-quality components, Gigabyte power supplies offer the confidence you need for a seamless, uninterrupted computer experience.
This text is machine translated.
This text is machine translated.
Features
- Intel ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold-certified
- Fully modular design
- Powerful single +12V-rail
- Compact format
- 100% Japanese capacitors
- 120 mm HYB-fan with intelligent speed control
- Optimized thermal solution
- PROTECTION FUNCTIONS OVP / OPP / SCP / UVP / OCP / OTP
