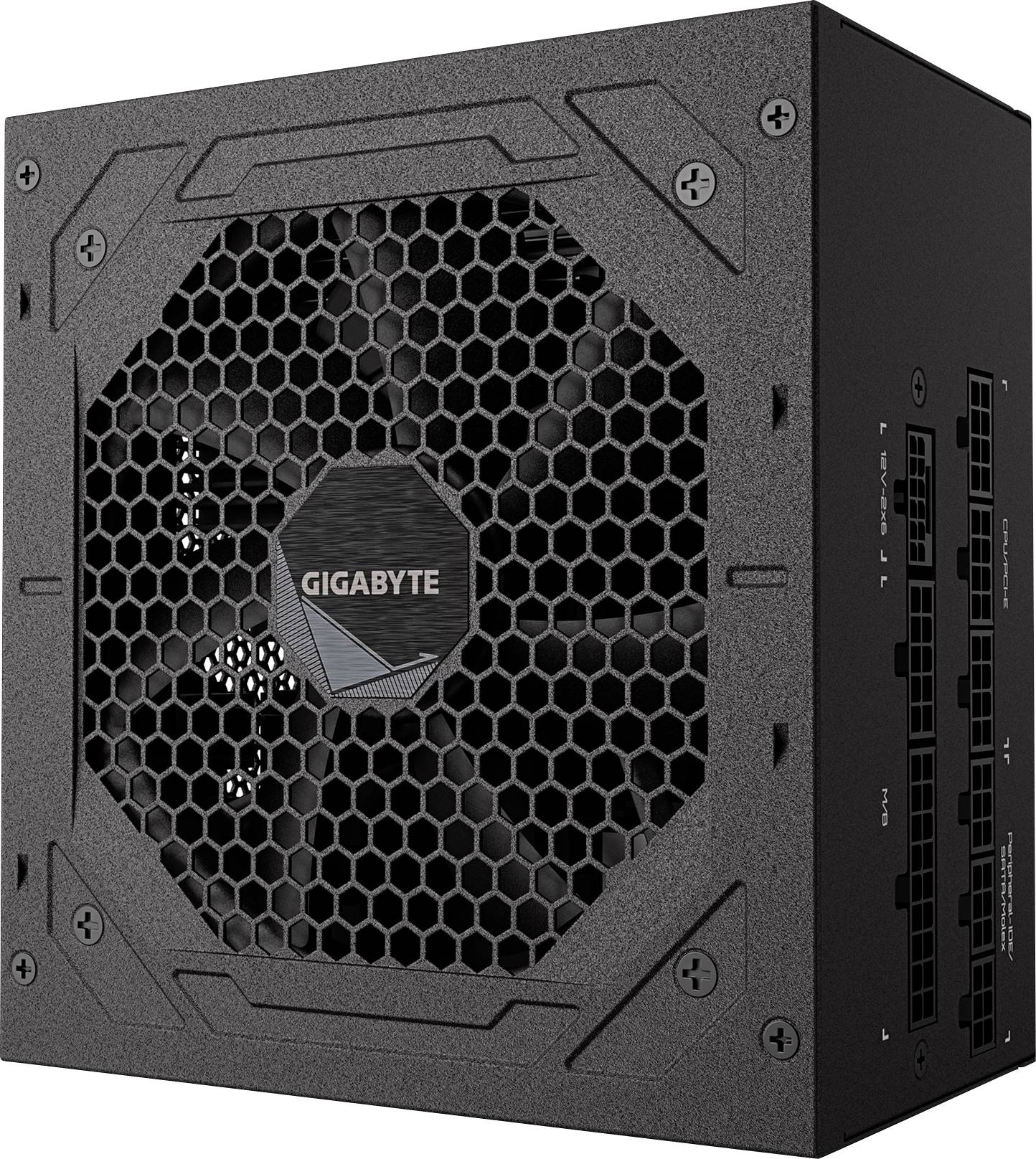

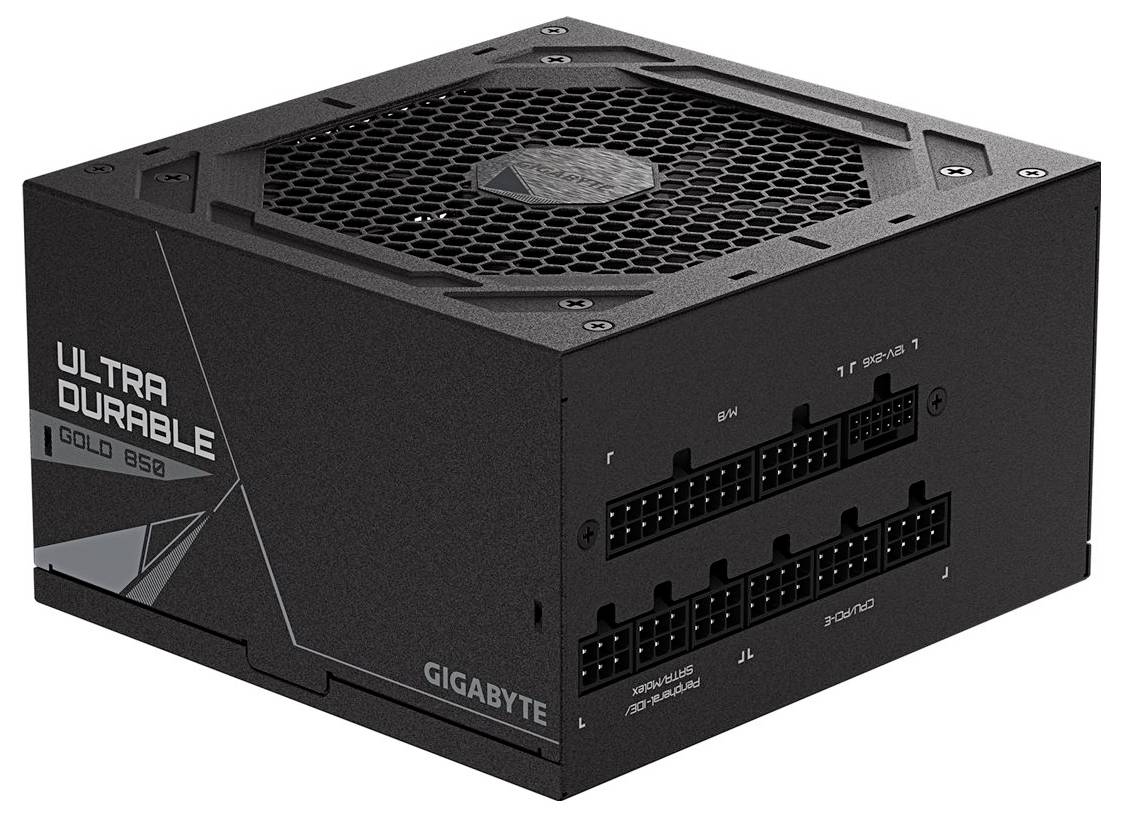

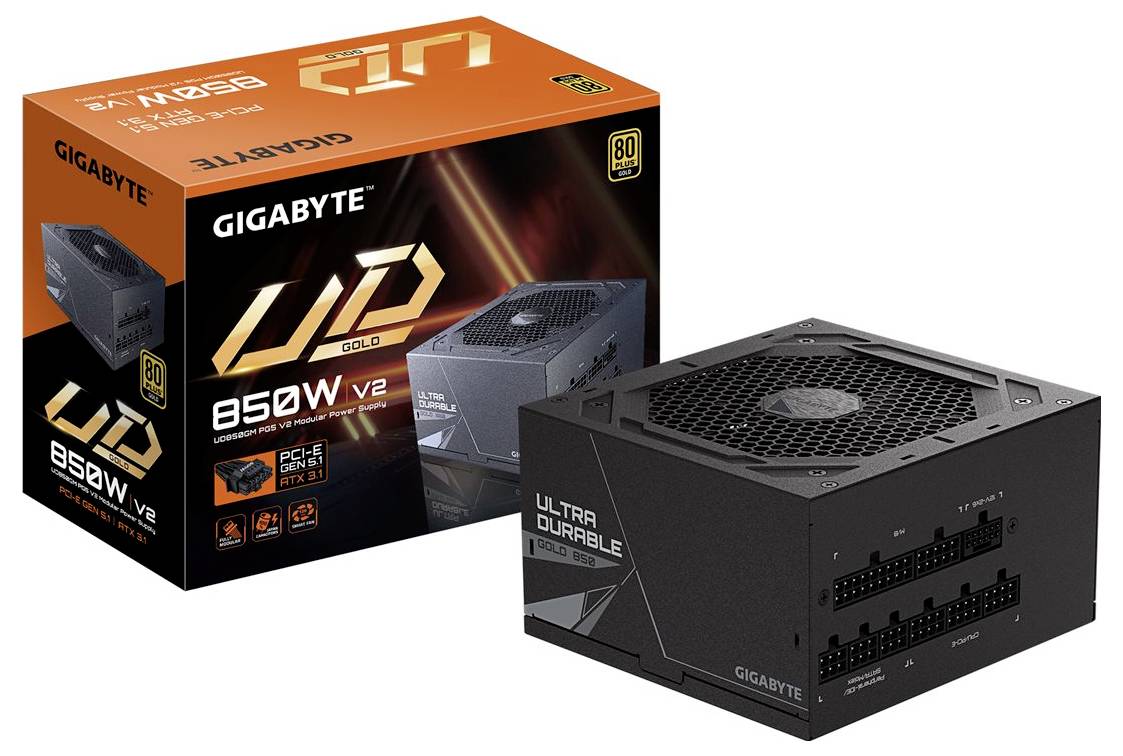

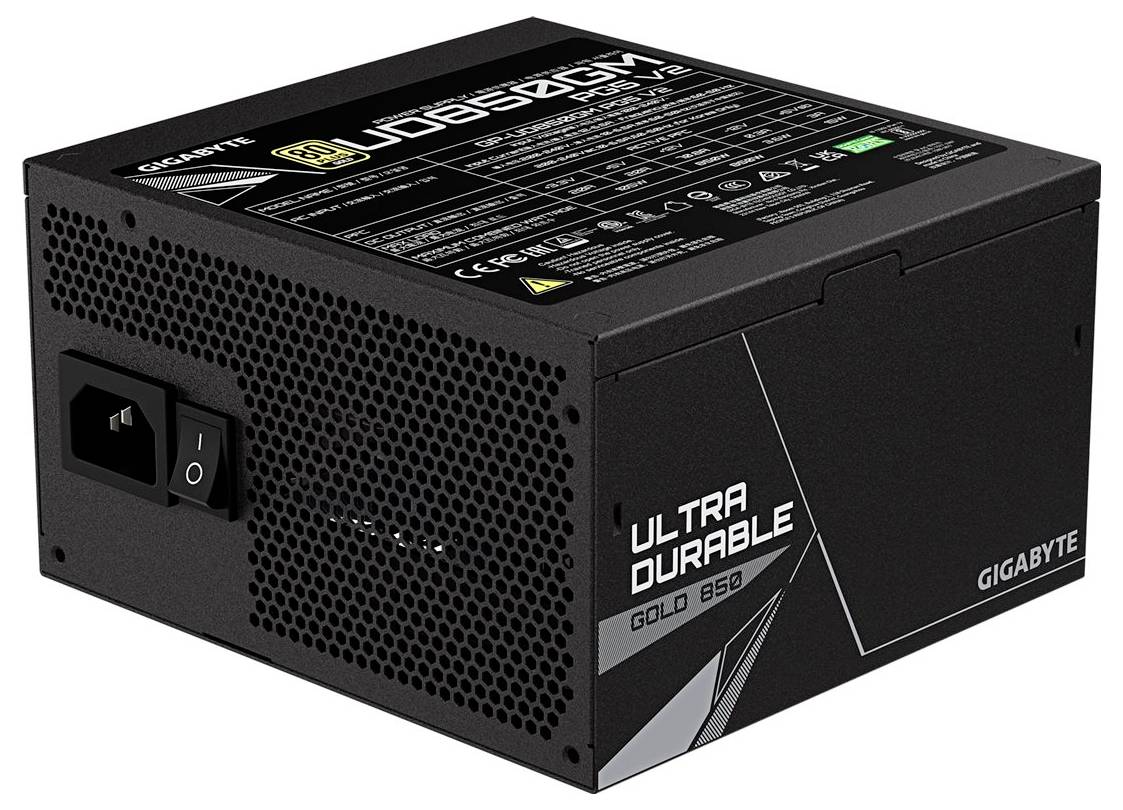

Gigabyte GP-UD850GM PG5 2.0 PC power supply unit 850 W ATX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
850 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
ATX
Highlights & Details
Gigabyte GP-UD850GM PG5 2.0 PC power supply unit
- Power supply unit output 850 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Gold
Technical specifications
- Cooling: Active
- Number of fans: 1 fans
- Packaging type: Box
- CPU connector (4+4 pin): Yes
- CPU power Cable length 60 cm
- SATA-power cable length 150.600 mm
- On/off switch: Yes
- AC input frequency 50/60 Hz
- Combined current (+3.3V) 105 W
- Combined current (+5Vsb): 15 W
- Combined current (+5V): 105 W
- Combined current (-12V): 3.6 W
- Combined current (+12V): 850 W
- Energy protection properties: Overcurrent, overload, overvoltage, overheating, short circuit, Undervoltage
- Input current 12 – 6 A
- Power factor correction filter (PFC): Active
- Power cable length of motherboard 61 cm
- Storage type: HYB
- Average time between failures (MTBF): 100000 hours
- Hold time 16 ms
- Efficiency: 90%
- Power factor 0.9
- PCI Express power connections (16-pin): 1
- PCI Express power cable length 70 cm
- PCI Express plug: Yes
- Peripheral (Molex) Power cable length 150.500 mm
- Product type
PC power supply unit
- PSU output power
850 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
2.4 kg

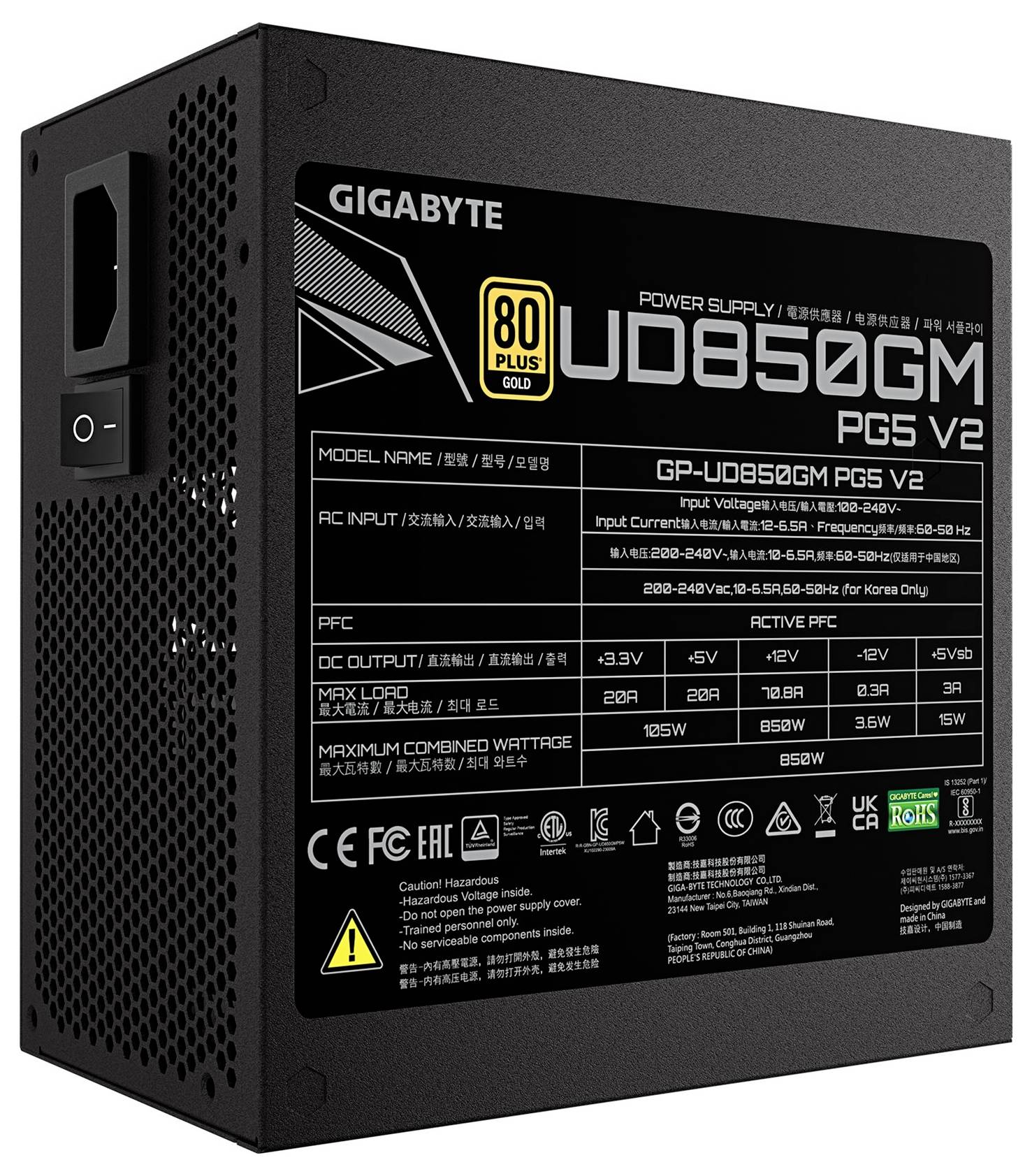

- -12V / DC
0.3 A
- +12 V/DC (1)
70.8 A
- 5 V DC
20 A
- +5V / DC SB
3 A

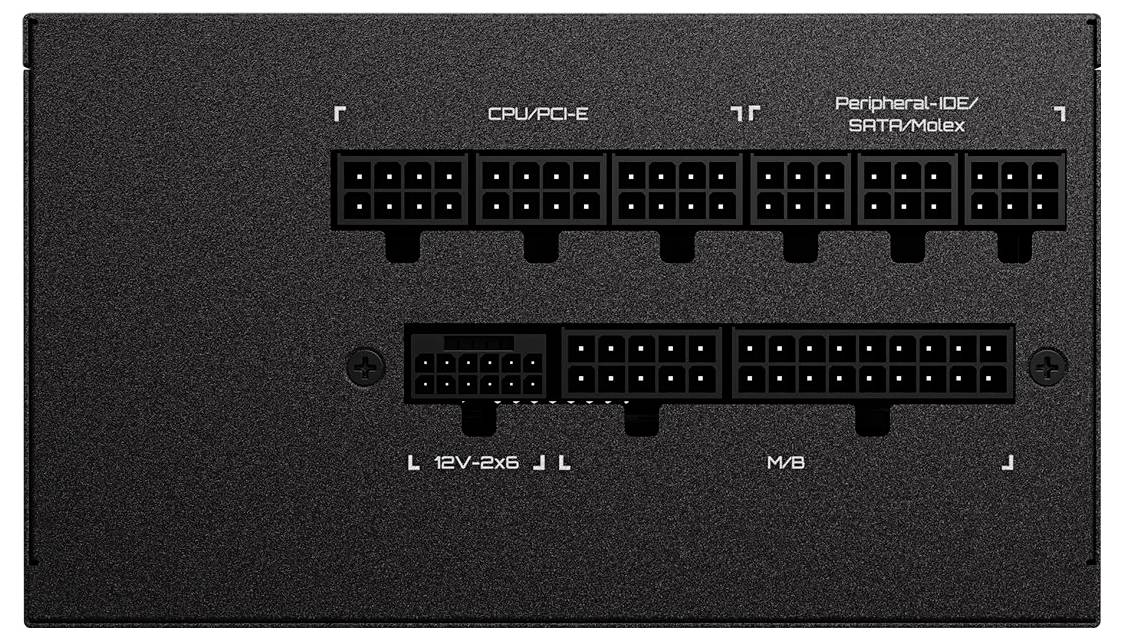

- 20+4-pin.
1
- 4-pin floppy
1
- 4-pin Molex
3
- 4+4 pin ATX/EPS 12V
2
- 6-pin PCIe
4
- 5-pin SATA
8
- Features
ATX 3.1
PCIe Gen 5.1
- Power rating
751 W -

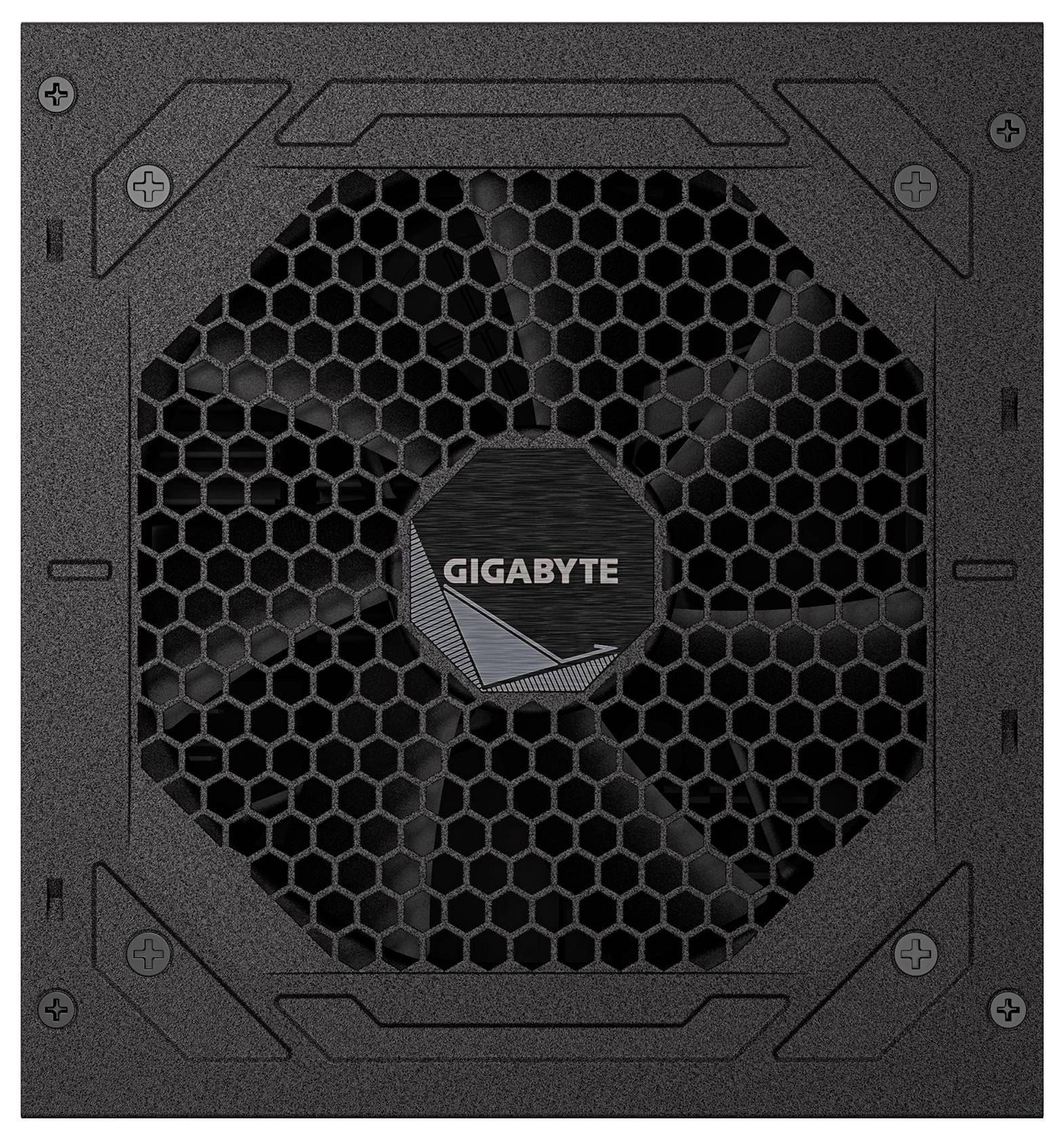

- Fan size
120 mm
- 3.3V DC
20 A
- Operating voltage
100 - 240 V / AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3492048 Gigabyte GP-UD850GM PG5 2.0 PC power supply unit 850 W ATX 80 PLUS Gold
Description
Ensure a reliable and efficient power supply with Gigabyte power supplies. Designed for peak performance and durability, our PSU provides stable and consistent power to operate your high performance systems. With advanced protection mechanisms and high-quality components, Gigabyte power supplies offer the confidence you need for a seamless, uninterrupted computer experience.
