Name: Gigabyte H610M D3W Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® H610
Brand: Gigabyte
SKU: 3537992

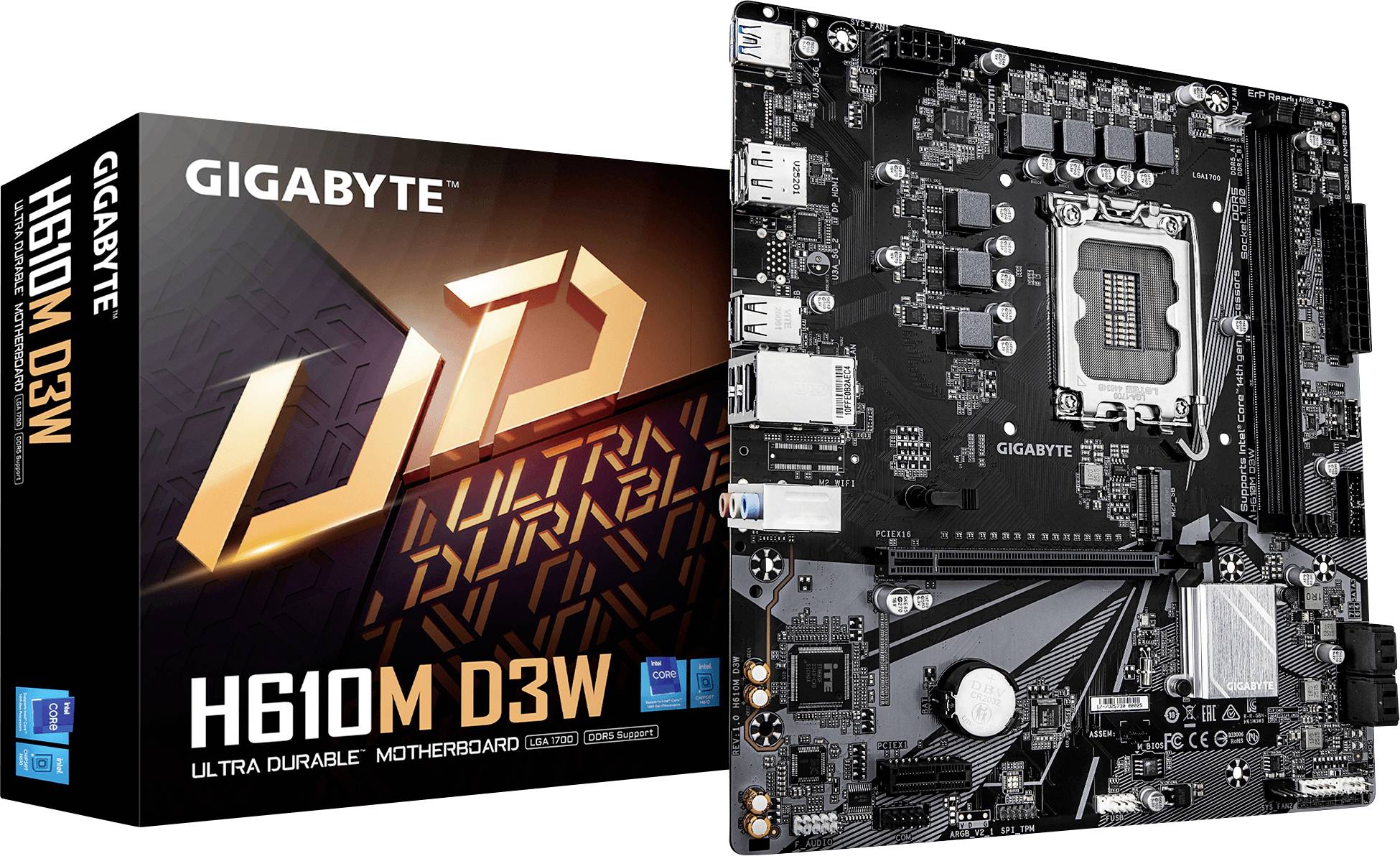

'GIGABYTE H610M D3W ULTRA DURABLE MOTHERBOARD' packaging and the actual motherboard, showcasing ports and components.

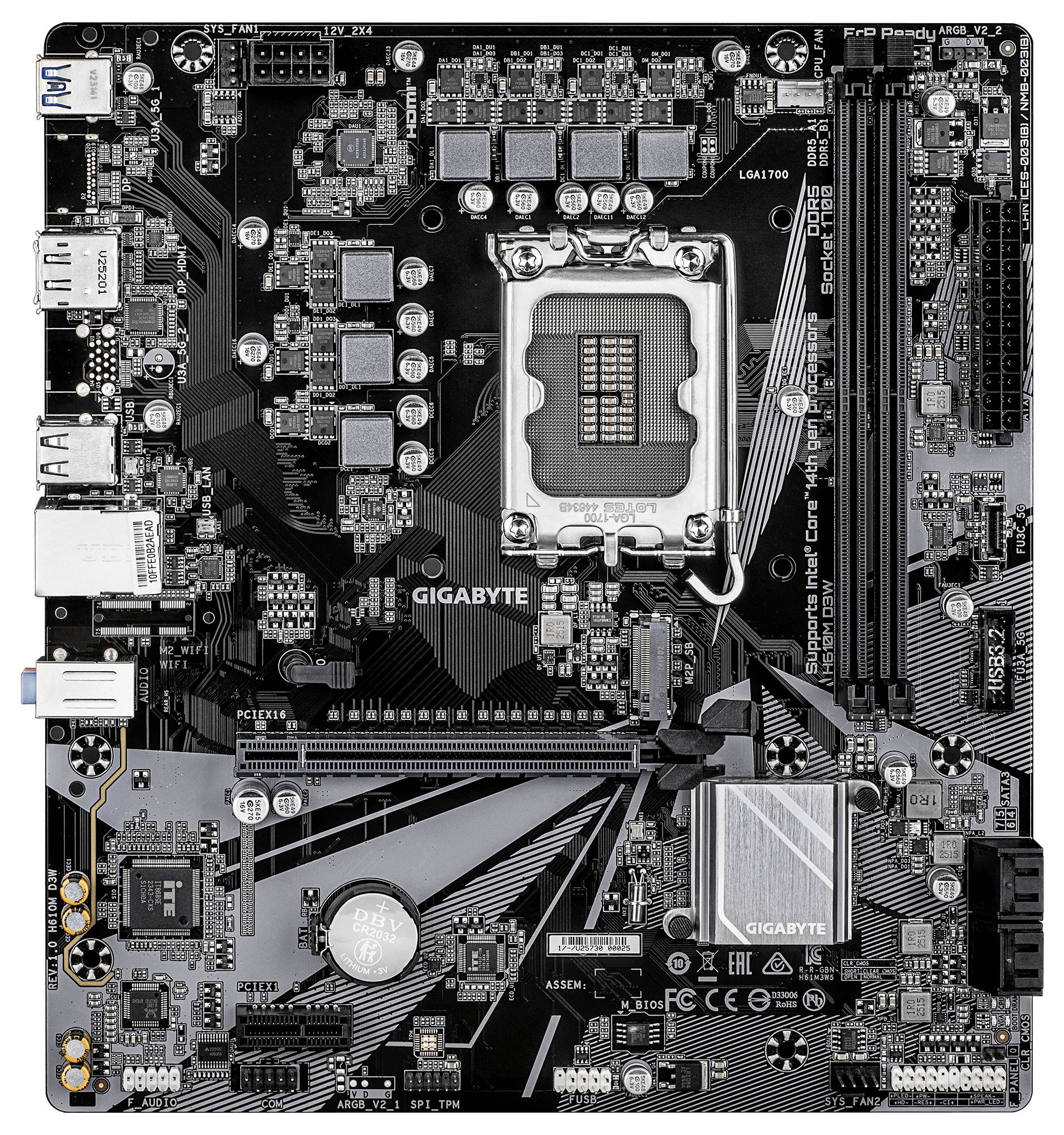

A black and grey computer motherboard featuring slots for RAM, CPU socket, various capacitors, and connectors for peripheral components.

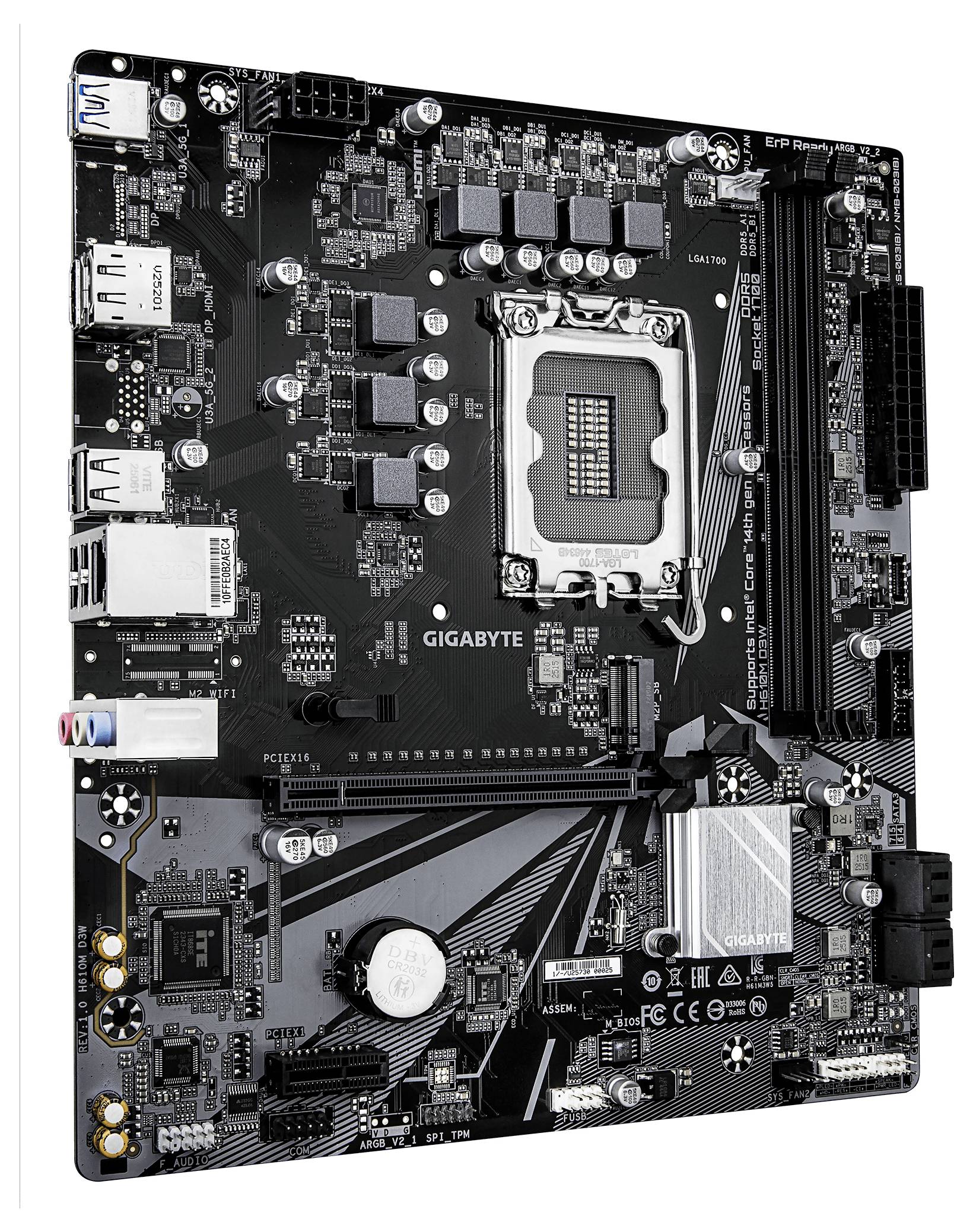

A motherboard with various ports and slots, labeled 'GIGABYTE', featuring a central CPU socket, RAM slots, and PCIe slots for connectivity.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Gigabyte H610M D3W Motherboard

Intel LGA 1700 Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel core i9 14th Gen, Intel® Pentium® Gold
PC micro ATX Intel H610 Realtek ALC897 7.1 channels
DDR5 SDRAM 2 DIMM RAM maximum: 128 GB
HDD & SSD M.2, PCI Express 3.0, SATA III Number of supported storage drives: 5
BIOS type: UEFI AMI 128 Mbit ACPI version: 5.0 Clear CMOS jumper
Gigabit Ethernet

Technical specifications

LGA 1700 processor socket
Compatible processors: Intel® Celeron®, Intel core i3 12th Gen, Intel core i3 13th Gen, Intel core i3 14th Gen, Intel core i5 12th Gen, Intel core i5 13th Gen, Intel core i5 14th Gen, Intel core i7 12th Gen, Intel core i7 13th Gen, Intel core i7 14th Gen, Intel core i7 12th Gen, Intel core i9 12th Gen, Intel core i9 13th Gen, Intel® Pentium Gold
Supported processor slots: LGA 1700
Supported memory: DDR5 SDRAM
ECC compatibility: ECC and non-ECC
Maximum internal memory per slot: 64 GB
Number of CPU fan ports: 1
Number of EPS power connections (4-pin): 1
HDMI version 2.1
Intel H610 motherboard chipset
Product color: Dark brown
Motherboard form factor: Micro ATX
1. M.2 Largest key size: 2280
1. M.2 highest PCI Express generation: 3.0
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

Chipset: Intel® H610

: Intel® 1700

Form factor: Micro-ATX

RAM type: DIMM

RAM / Max. upgrade: 128 GB

Interfaces: Gigabit LAN (1 Gbps)
USB A (USB 2.0)
USB A (USB 3.1 1st gen)
HDMI™
DisplayPort

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 1 x

No. of SATA III ports: 4 x

Depth: 220 mm

Height: 35 mm

Width: 244 mm

Display resolution: 4096 x 2160 Pixel

No. of DisplayPort: 1 x

No. of HDMI ports: 1 x

No. of USB A 2.0 ports: 4 x

No. of USB type A 3.1 / 3.2 1st Gen: 1 x

Christmas lighting features: 12.0

Cooling: Passive

10/100/1000 Mbps ports: 1 x

Software included: Norton® Internet Security (OEM version)

Range of use: PC

Weight: 742 g

Wi-Fi: No

UKCA: yes

BIOS memory size: 128 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

PCI Express x1 (Gen 3.x) slots: 1

Number of memory slots: 2

Number of M.2 (M) slots: 1

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

Microphone in: yes

Front panel connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Front panel audio connector: yes

Number of HDDs supported: 4

TPM connector: yes

Supported memory clock speed (max): 5600 MHz

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Batteries included: yes

HDCP: yes

EPS power connector (8-pin): yes

Package weight: 821 g

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes

Serial port headers: 1

Clear CMOS jumper: yes

Number of storage drives supported: 5

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3537992 Gigabyte H610M D3W Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel® H610

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With thoughtful design and advanced features, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.

This text is machine translated.

Features

Supports Intel Core 14./ 13./ 12. Processors
Dual channel non-ECC unbuffered DDR5, 2 DIMMs
5+1+1 hybrid digital VRM design
Fast network: GbE LAN
NVMe SSD PCIe 3.0 x4 m.2
DisplayPort / HDMI for multiple displays
High-quality audio capacitors and audio noise protection
Smart fan 6 has several temperature sensors, hybrid fan connections with fan stop
Anti-sulfur resistance design
