Name: Gigabyte TRX50 AERO D - 1.0 Motherboard PC base #####AMD sTR5 Form factor (details) E-ATX Motherboard chipset AMD® TRX50
Brand: Gigabyte
SKU: 3045589

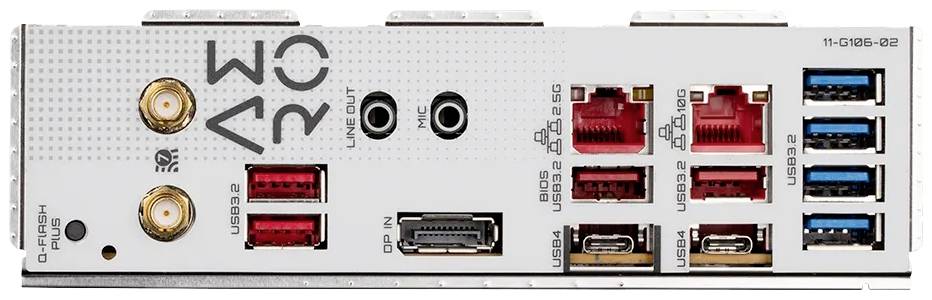

Back of a computer motherboard with multiple connection types: USB ports, HDMI, audio inputs, network connections, Wi-Fi aerials.

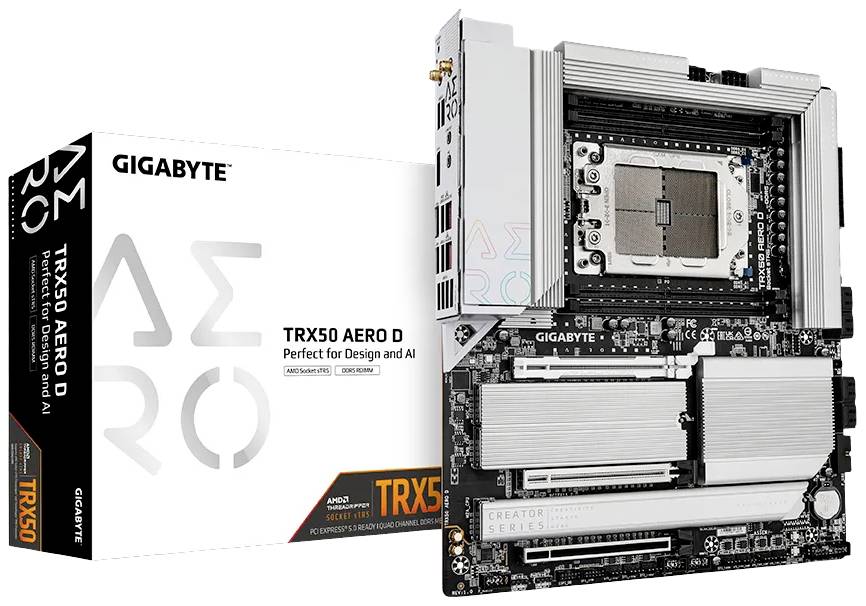

Gigabyte TRX50 AERO D motherboard beside its packaging. Developed for design and AI. Distinctive heatsinks and connection options.

1/4

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Supported RAM Health Check: ECC
RAM - Registered or buffered: Registered, 3DS-RDIMM
RAM features: Intel extreme memory profiles (XMP), four-channel memory architecture, AMD EXPO technology
Audio type: HD audio (8-channel)
Audio Codec: Realtek ALC4080/Realtek ALC897
Audio compatibility: High-definition audio, DTS:X Ultra
Network interfaces: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 2 x PCIe 5.0 x16; 1 x PCIe 4.0 x16; 3 x M.2 socket (2280/25,110 M.2 Key M slot); 1 x M.2 socket (2280 M.2 Key M slot)
Memory interfaces: SATA-600 ports: 8 x 7-pin serial ATA- RAID 0 / RAID 1 / RAID 10; PCIe 5.0 ports 3 x M.2; PCIe 4.0 ports 1 x M.2
External interfaces: 1 x LAN (2.5Gigabit Ethernet); 1 x LAN (10Gigabit Ethernet); 1 x microphone - Mini jack plug; 1 x Audio Line Out - Mini jack plug; 2 x antenna; 1 x DisplayPort; 4 x USB 3.2 Gen 1; 4 x USB 3.2 Gen 2; 1 x USB4; 1 x USB4/DisplayPort
Internal interfaces: 4 x USB 2.0 - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 1 x audio multi-pin connector; 1 x USB-C 3.2 Gen 2x2 - pin connector; 1 x SPI multi-pin connector
Power connections: Main power connection, 24-pin, 2 8-pin ATX12V connections
BIOS type: AMI
BIOS Features: WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardware monitoring: Housing temperature, system voltage, water cooling flow rate, fan failure warning, noise detection, Detection of fan speed
Hardware features: Q-Flash, 2x Copper PCB, Q-Flash Plus, RGB FUSION, M.2 Thermal Guard, Pre-assembled I/O shield, 12 layer PCB, Gigabyte Smart fan 6, MultiKey, PCIe EZ lock, M.2 EZ latch click, M.2 EZ Latch plus, 16+8+4 phase Power design, VRM thermal armor advanced, PCIe ultra Durable slot X, 108A Power stage

Product type: Motherboard

Chipset: AMD® TRX50

: #####AMD sTR5

Form factor: E-ATX

Processor/type: Ryzen ThreadRipper, Ryzen ThreadRipper PRO (unterstützt Ryzen Threadripper PRO 7000 Series / 7000 Series)

RAM type: DDR5 RAM

Clock speed: 5600 MHz
6000 MHz
4800 MHz
6400 MHz
7000 MHz
6800 MHz
4400 MHz
7200 MHz
5200 MHz
7600 MHz
7800 MHz
Show more

RAM / Max. upgrade: 1 TB

Interfaces: Gigabit LAN (1/2.5 Gbps)
Gigabit LAN (10 Gbps)
Microphone (3.5 mm jack)
Audio line out
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
USB C® (USB4®)
USB A (USB 2.0)
USB C® (USB 3.2 2x 2nd gen)
Bluetooth
Wi-Fi 7 (IEEE 802.11be)
Show more

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 2 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 2 x

No. of USB 2.0 ports: 4 x

No. of USB 3.2 2nd Gen (USB 3.1): 4 x

No. of USB 3.2: 4 x

No. of USB 3.0 ports: 3 x

UKCA: yes
