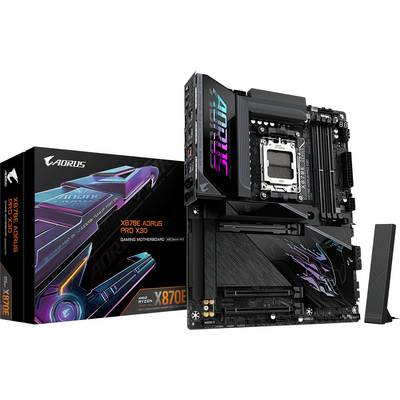

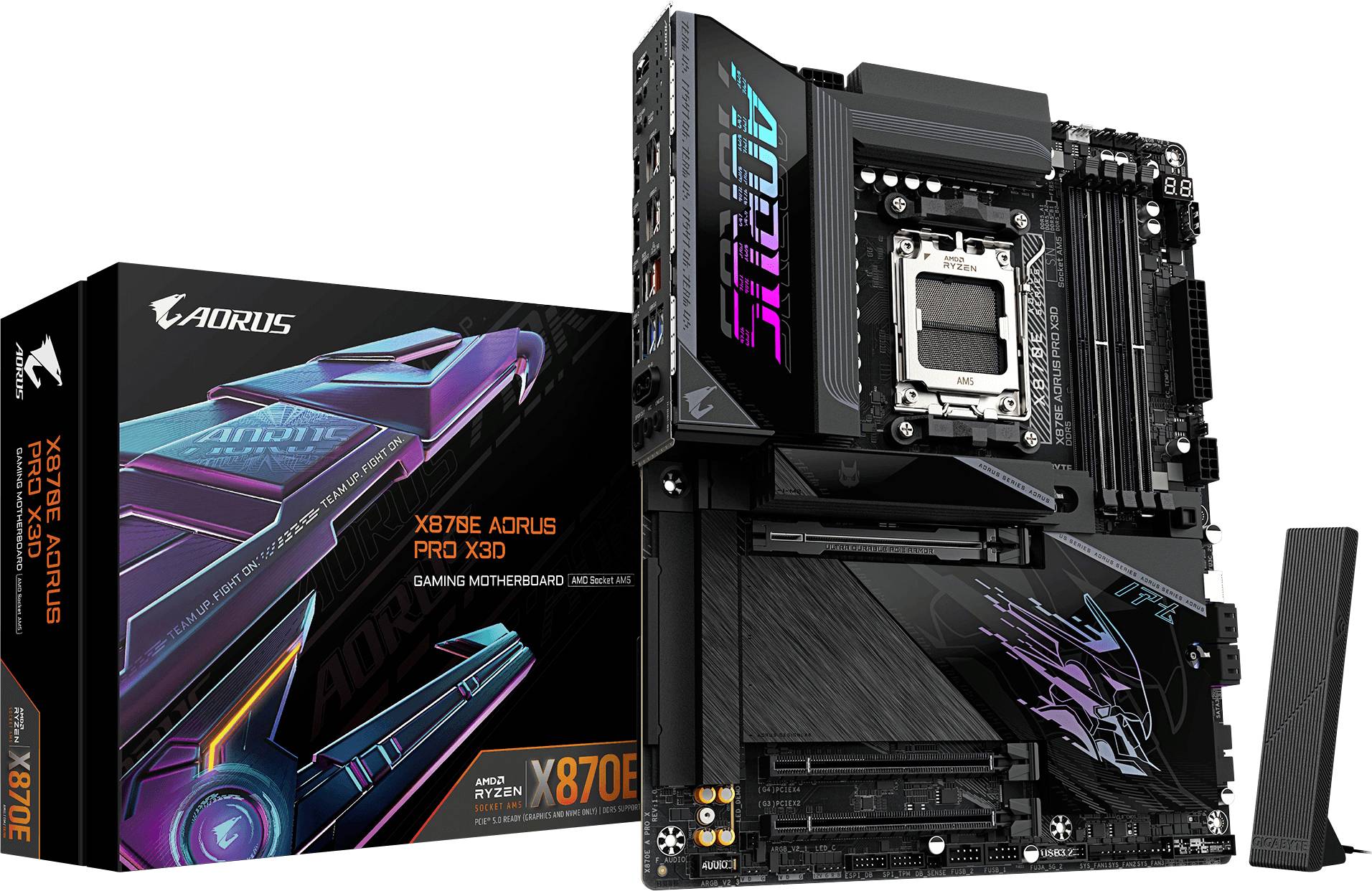

A motherboard set with box labeled 'X670E AORUS PRO X'. The motherboard features multiple PCI slots and a prominent heatsink, designed for gaming.

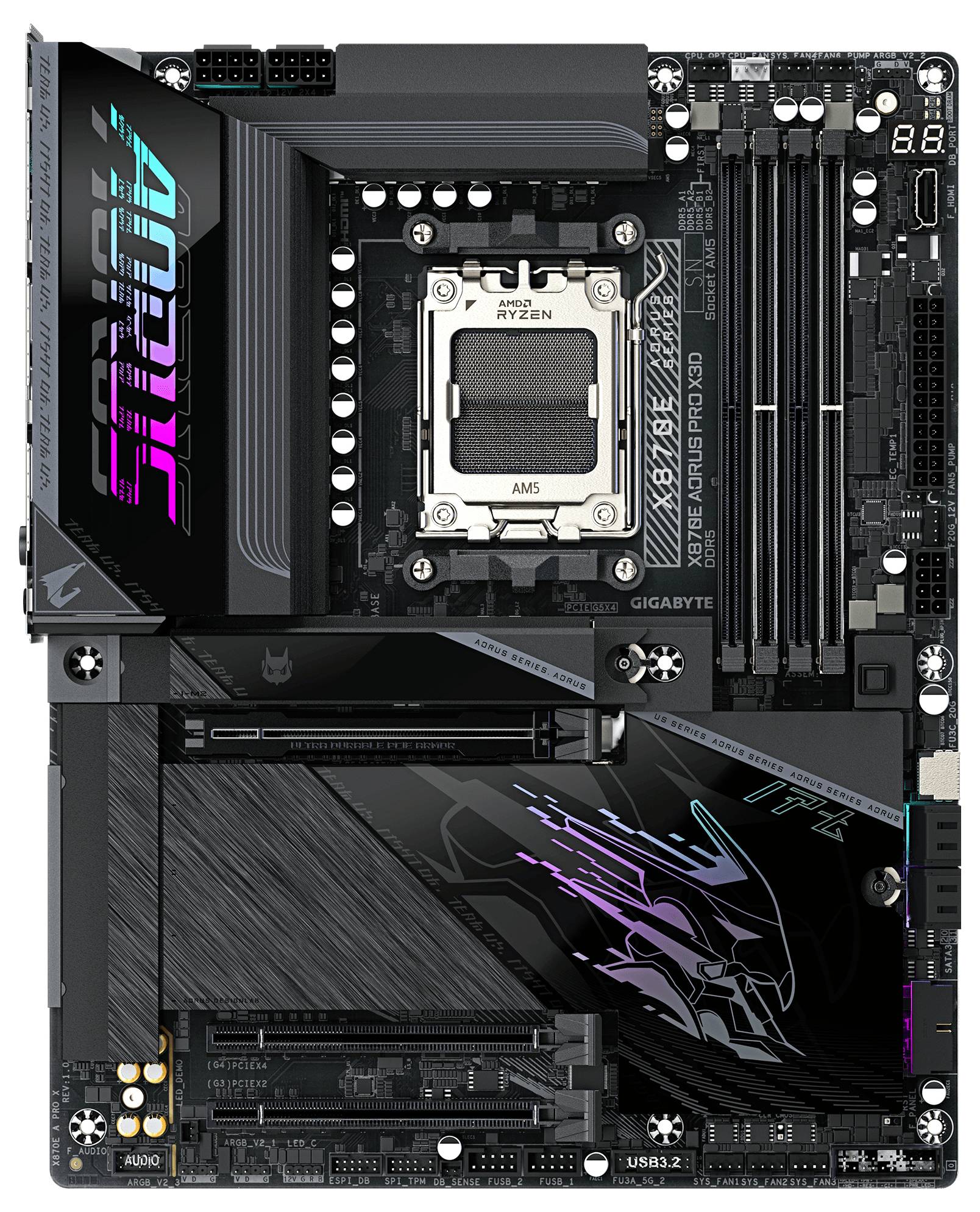

'AORUS' branded motherboard with 'RYZEN' CPU socket, RAM slots, and PCIe connections visible. RGB lighting accents add decorative flair.

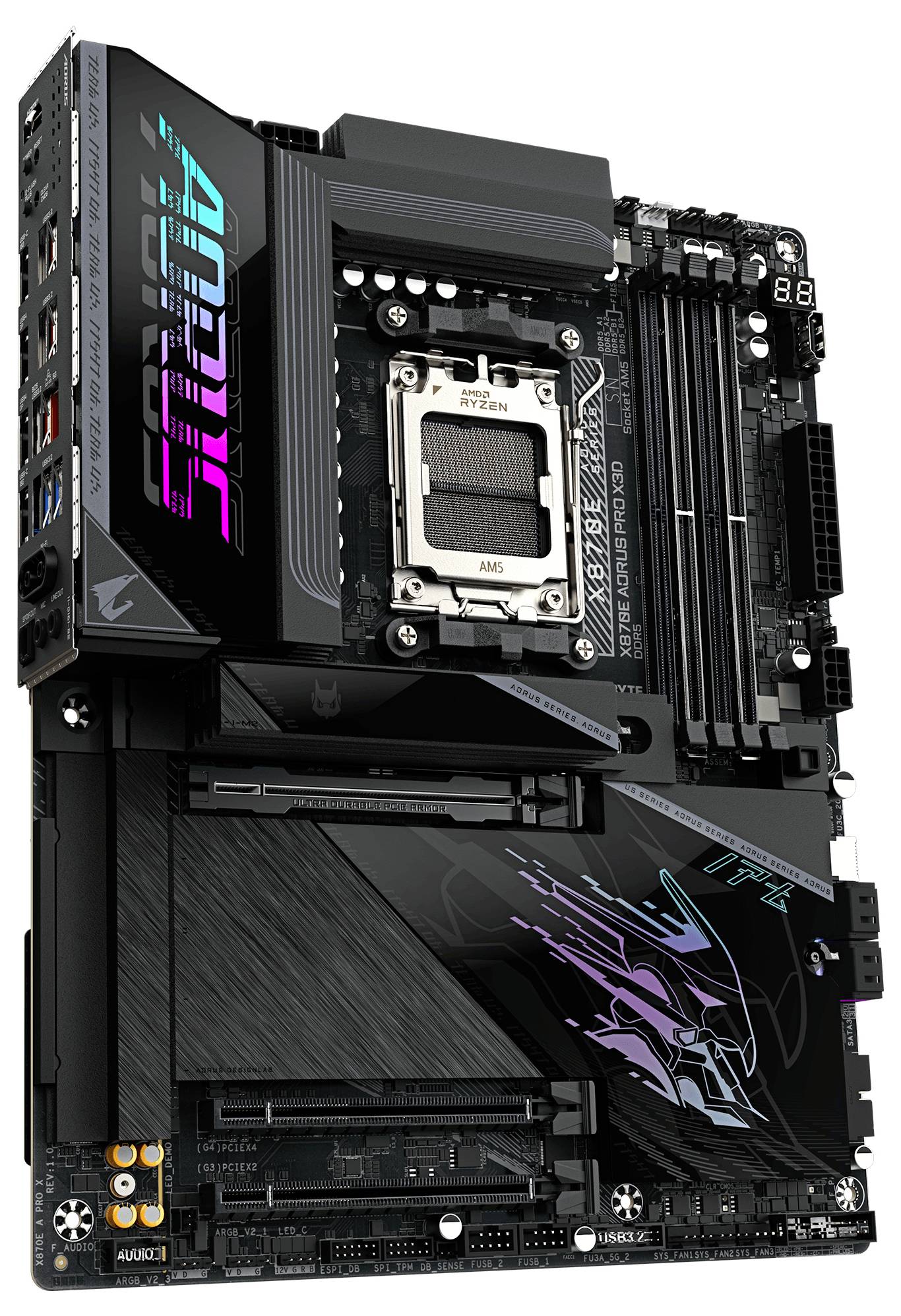

A high-end computer motherboard with multiple heat sinks, RAM slots, a CPU socket, and 'AORUS' branding in vibrant colors.

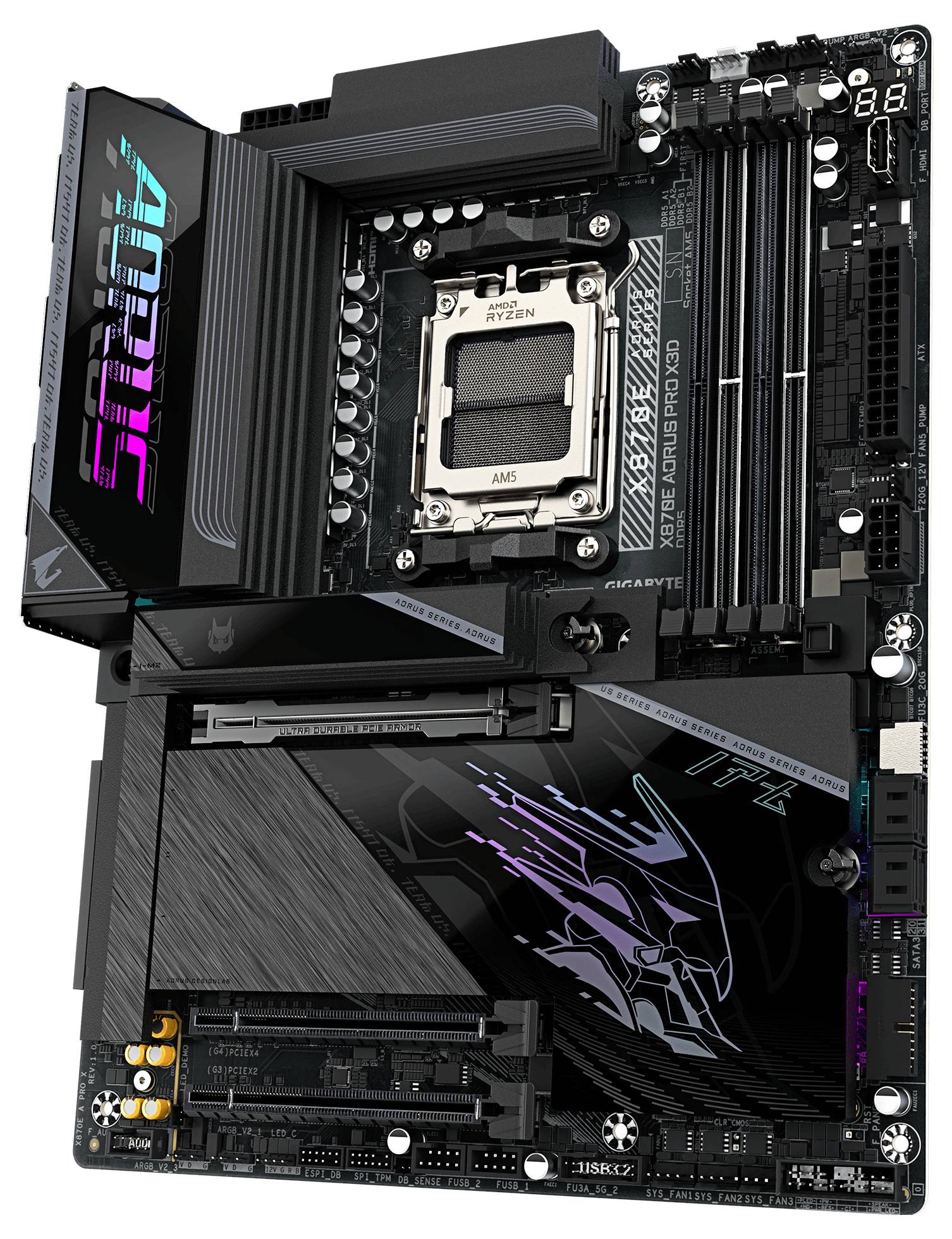

A black and gray Aorus motherboard with RGB lighting, four RAM slots, multiple PCIe slots, and an LGA socket for an AMD Ryzen processor.

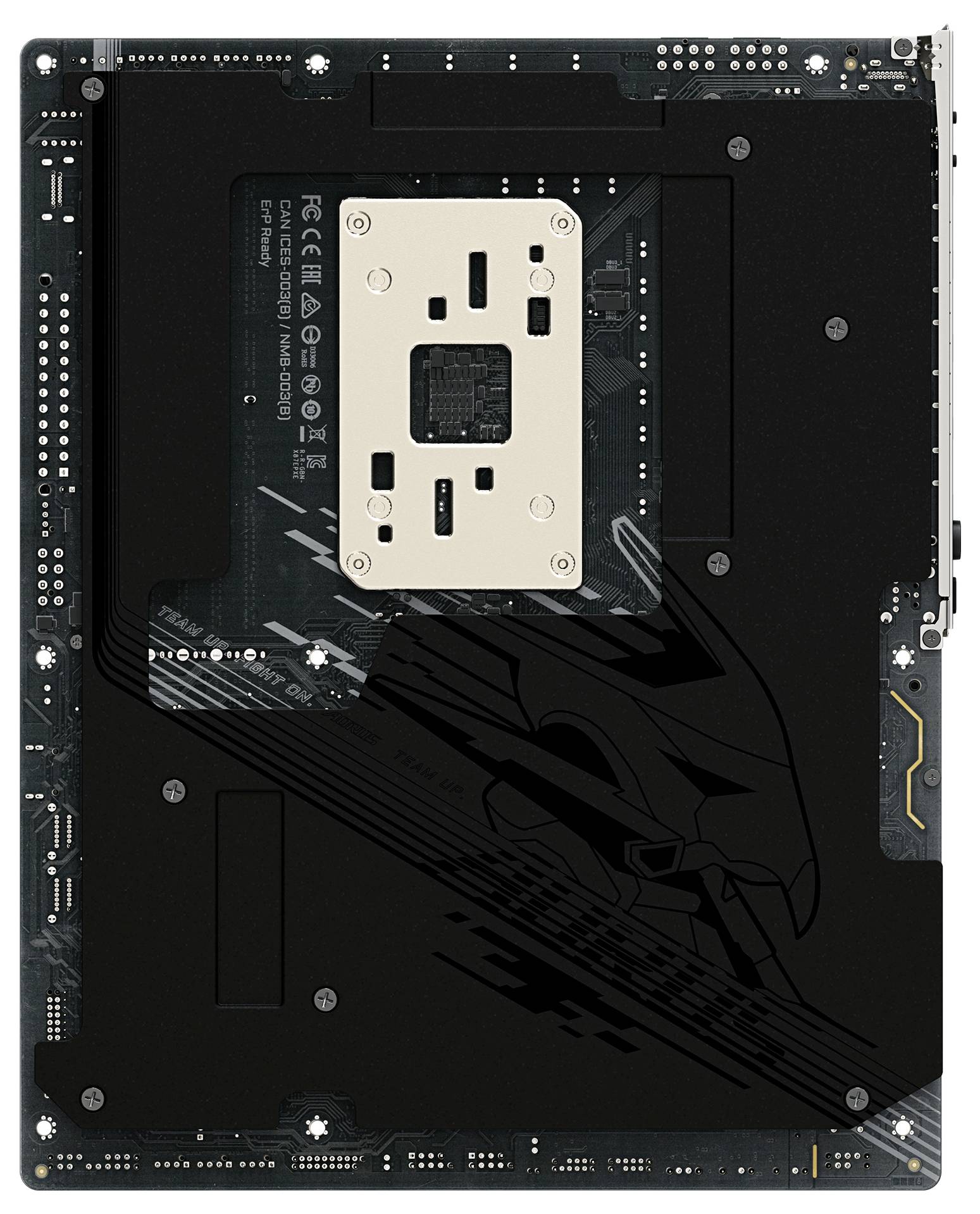

'A rear view of a computer motherboard with a black and gray design featuring a stylized eagle. Various circuit paths and components are visible.'

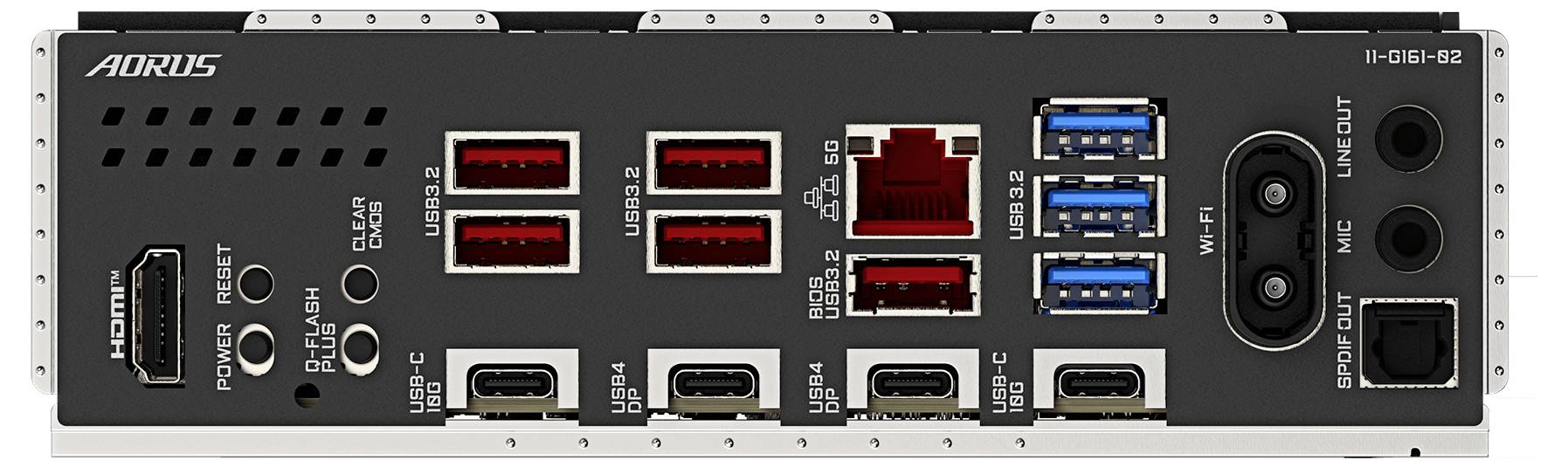

The image shows the rear panel of a computer motherboard with various ports including HDMI, USB, Ethernet, WiFi, and audio jacks.

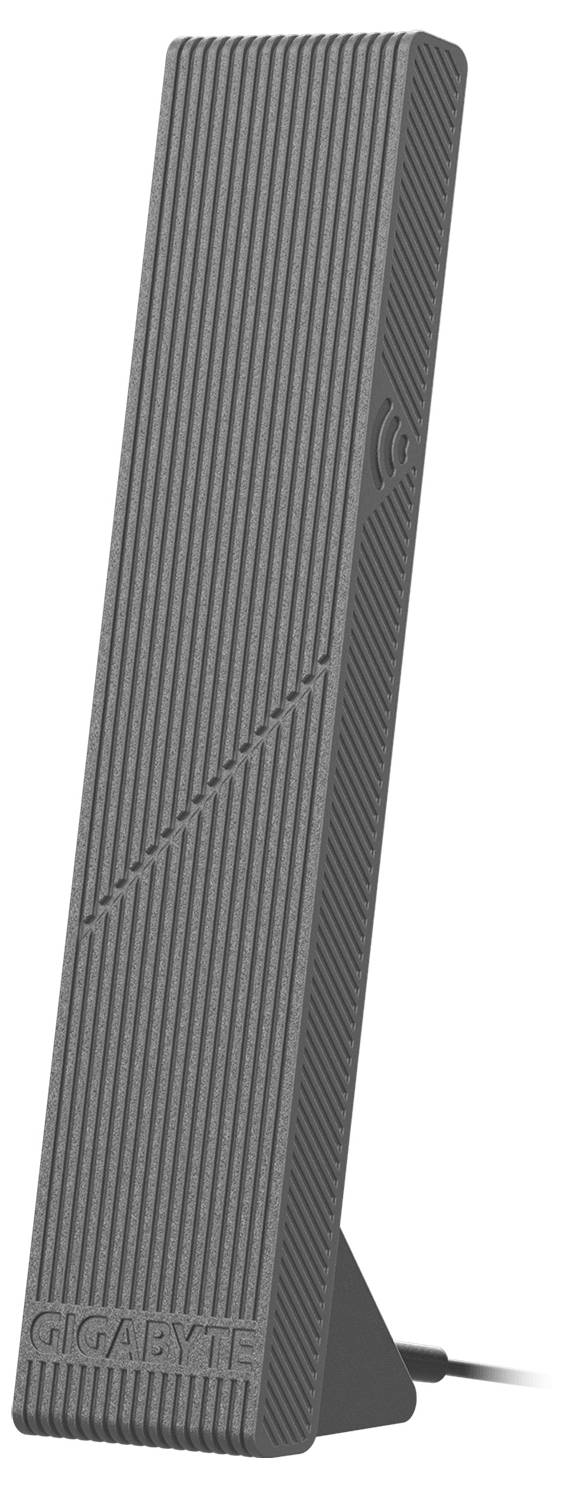

A vertical black Wi-Fi antenna with a ribbed surface, marked 'GIGABYTE', standing on a small base and connected via a cable.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Gigabyte X870E AORUS PRO X3D Motherboard

Highlights & Details

AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
PC ATX AMD X870E Realtek ALC1220-VB 7.1 channels
DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID-support Number of supported storage drives: 8
BIOS type: UEFI AMI 512 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4

Technical specifications

Socket AM5
Supported processor slots: Socket AM5
Supported memory: DDR5 SDRAM
ECC compatibility: Non-ECC
Maximum internal memory per slot: 64 GB
Number of CPU fan ports: 2
Number of EPS power connections (4-pin): 2
Number of water pump connections: 3
Number of temperature sensor headers: 2
Number of noise recognition headers: 1
Number of RGB LED pin strips: 4
HDMI version 2.1
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
AMD X870E motherboard chipset
1. M.2 Largest key size: 25110
1. M.2 highest PCI Express generation: 5.0
2. M.2 Largest key size: 22110
2. M.2 highest PCI Express generation: 5.0
3. M.2 Largest key size: 22110
3. M.2 highest PCI Express generation: 4.0
4. M.2 Largest key size: 22110
4. M.2 highest PCI Express generation: 4.0
Battery technology: Lithium-manganese dioxide (LiMnO2)

Product type: Motherboard

Chipset: AMD® X870E

: #####AMD AM5

Form factor: ATX

RAM type: DIMM

RAM / Max. upgrade: 256 GB

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe 3.0 x16: 1 x

No. of USB 2.0 ports: 2 x

No. of USB 3.2 2nd Gen (USB 3.1): 2 x

No. of SATA III ports: 4 x

Bluetooth: 5.4

Bluetooth: Yes

Factory colour: Black

Depth: 244 mm

Height: 35 mm

Width: 305 mm

Display resolution: 4096 x 2304 Pixel

No. of HDMI ports: 1 x

No. of USB type A 3.1 / 3.2 1st Gen: 3 x

No of. USB type A 3.1 /3.2 2nd gen: 5 x

Christmas lighting features: 12.0

Cooling: Passive

HDCP: Yes

Battery capacity: 220 mAh

10/100/1000 Mbps ports: 1 x

Range of use: PC

Weight: 3.73 kg

Wi-Fi: Yes

UKCA: yes

BIOS memory size: 512 Mbit

Screws included: yes

Line-in: yes

Ethernet LAN: yes

Antenna included: yes

Number of memory slots: 4

Number of M.2 (M) slots: 4

Products per shipping (inner) case: 1 Stück(e)

Headphone outputs: 1

S/PDIF out port: yes

Front panel connector: yes

CPU fan connector: yes

ATX Power connector (24-pin): yes

Digital audio optical out: 1

Front panel audio connector: yes

Number of HDDs supported: 4

WiFi-AP antenna jack: 2

TPM connector: yes

RGB LED pin header: yes

USB4 Gen 2x2 ports quantity: 2

Supported memory clock speed (max): 9000 MHz

USB 3.2 Gen 2x2 connectors: 1

Lithium weight per battery: 0.07 g

Battery weight: 3 g

Batteries included: yes

EPS power connector (8-pin): yes

RAID support: yes

Package weight: 4.25 kg

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

Unbuffered memory: yes

Clear CMOS button: yes

Clear CMOS jumper: yes

Number of storage drives supported: 8

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3589290 Gigabyte X870E AORUS PRO X3D Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® X870E

Description

Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With thoughtful design and advanced features, these boards offer reliable performance and high stability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and convince by high processing quality and support of the latest technologies.

This text is machine translated.

Features

X3D Turbo Mode 2.0: AI-supported X3D performance for smooth gaming
Dual channel DDR5: 4 DIMMs with AMD EXPO memory module support, DDR5-OC up to 9000 MT/s.
AMD socket AM5: Supports AMD Ryzen series processors 9000 / 8000 / 7000
Digital Twin VRM solution with 18+2+2 phases
M.2 EZ-Flex: Efficient heat dissipation and flexible, patented base plate for M.2-SSDs
Wi-Fi EZ-Plug: Simple design for a quick installation of the WLAN-antenna
M.2 EZ-Latch Click & Plus: Quick lock and tool-free design for M.2-slots and coolers
Fast memory connectivity: 4 M.2 slots, including PCIe 5.0 x4
Fast network connection: 5GBE LAN & Wi-Fi 7 with high performance high-gain antenna
Extensive connectivity options: HDMI, Dual USB4 Type-C with DP Alt, Front QC-USB 65W
