Gigabyte X870I AORUS PRO ICE Motherboard PC base #####AMD AM5 Form factor (details) Mini-ATX Motherboard chipset AMD® X8
EAN:
Part number:
Item no:

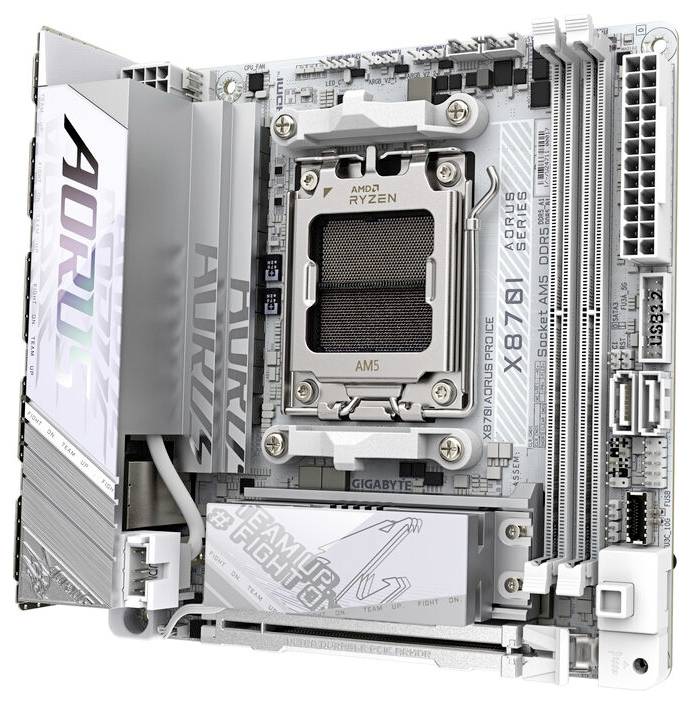

Gigabyte X870I AORUS PRO ICE Motherboard
Highlights & Details
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC Micro ITX AMD X870 Realtek ALC4080 7.1 channels
- DDR5 SDRAM 2 DIMM RAM maximum: 128 GB
- HDD & SSD M.2, SATA III RAID support Number of supported storage drives: 4
- BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
- 2.5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- Supported processor slots: Socket AM5
- ECC compatibility: Non-ECC
- Maximum internal memory per slot: 64 GB
- Number of CPU fan ports: 2
- Number of EPS power connections (4-pin): 1
- Number of water pump connections: 1
- Number of RGB LED pin strips: 3
- HDMI version 2.1
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- 1. M.2 Largest key size: 2280
- 1. M.2 highest PCI Express generation: 5.0
- 2. M.2 Largest key size: 2280
- 2. M.2 highest PCI Express generation: 4.0
- Battery technology: Lithium-manganese dioxide (LiMnO2)
- Product type
Motherboard
- Chipset
AMD® X870
#####AMD AM5
- Form factor
Mini-ATX
- Processor/type
unterstützt Ryzen 7000/8000/9000 Serie
- RAM type
DDR5 RAM
- Clock speed
4200 MHz
4100 MHz
4000 MHz
3900 MHz
3800 MHz
3600 MHz
3500 MHz
3400 MHz
3333 MHz
3300 MHz
Show more
- RAM / Max. upgrade
128 GB

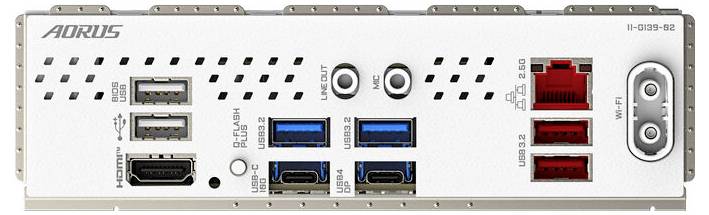

- Interfaces
USB A (USB 2.0)
USB A (USB 3.1 1st gen)
USB A (USB 3.1 2nd gen)
HDMI™
- No. of DDR5 slots
2 x
- No. of Gigabit LANs
1 x
- No. of PCIe x8
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x4
1 x
- No. of USB 2.0 ports
1 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of SATA III ports
2 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
White
- Depth
225 mm
- Height
35 mm
- Width
240 mm
- Display resolution
4096 x 2160 Pixel
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
2 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- No of. USB type A 3.1 /3.2 2nd gen
2 x
- Christmas lighting features
12.0
- Software included
Norton® Internet Security (OEM version)
LAN bandwidth management software
- Range of use
PC
- Weight
720 g
- Wi-Fi
Yes
- UKCA
yes
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Chassis intrusion connector
yes
- USB4 Gen 2x2 ports quantity
1
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3376520 Gigabyte X870I AORUS PRO ICE Motherboard PC base #####AMD AM5 Form factor (details) Mini-ATX Motherboard chipset AMD® X8
Description
Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.
This text is machine translated.
This text is machine translated.
Features
- AMD Socket AM5: Supports AMD Ryzen Series 7000/8000/9000 processors
- Digital Twin 8+2+1-phase VRM solution
- Dual channel DDR5: 2 DIMMs with AMD EXPO memory module support
- PCIe Gen5 x16 with PCIe UD slot & EZ-Latch Plus
- Ultra-fast memory: 2 M.2 slots, including 1 PCIe 5.0 x4
- Efficient overall heat: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Advanced connectivity: USB4 Type-C with DP Alt, HDMI
- Fast network connection: 2.5GBE LAN & Wi-Fi 7 directional ultra-high gain antenna
Scope of delivery
- 2 x fan expansion power cable
- WLAN-antenna
- 1 M.2-Screw
- 2 x thermal pads for M.2 SSD
- 2 x Serial ATA cable
