Gigabyte Z890 AORUS MASTER Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z89
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

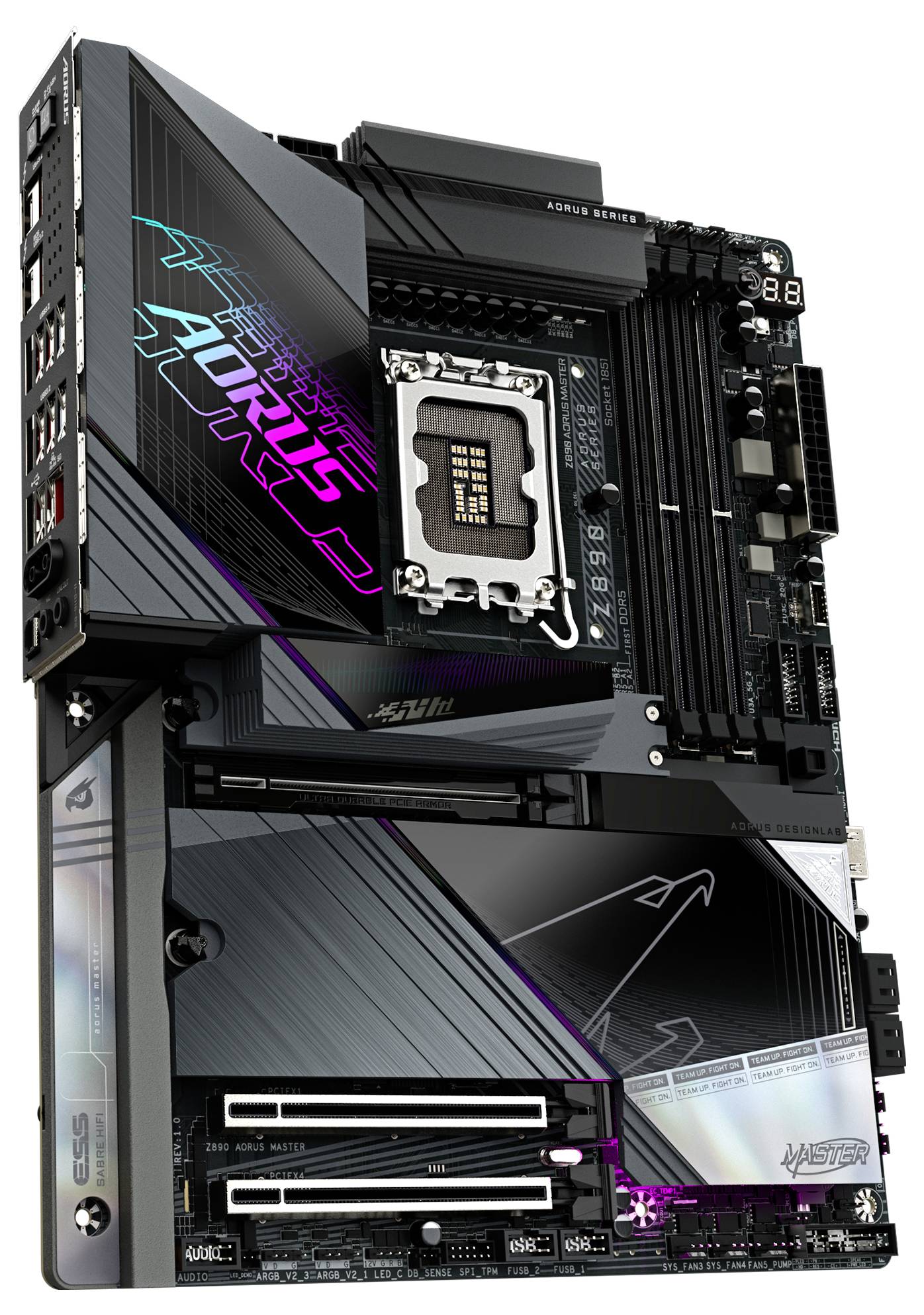

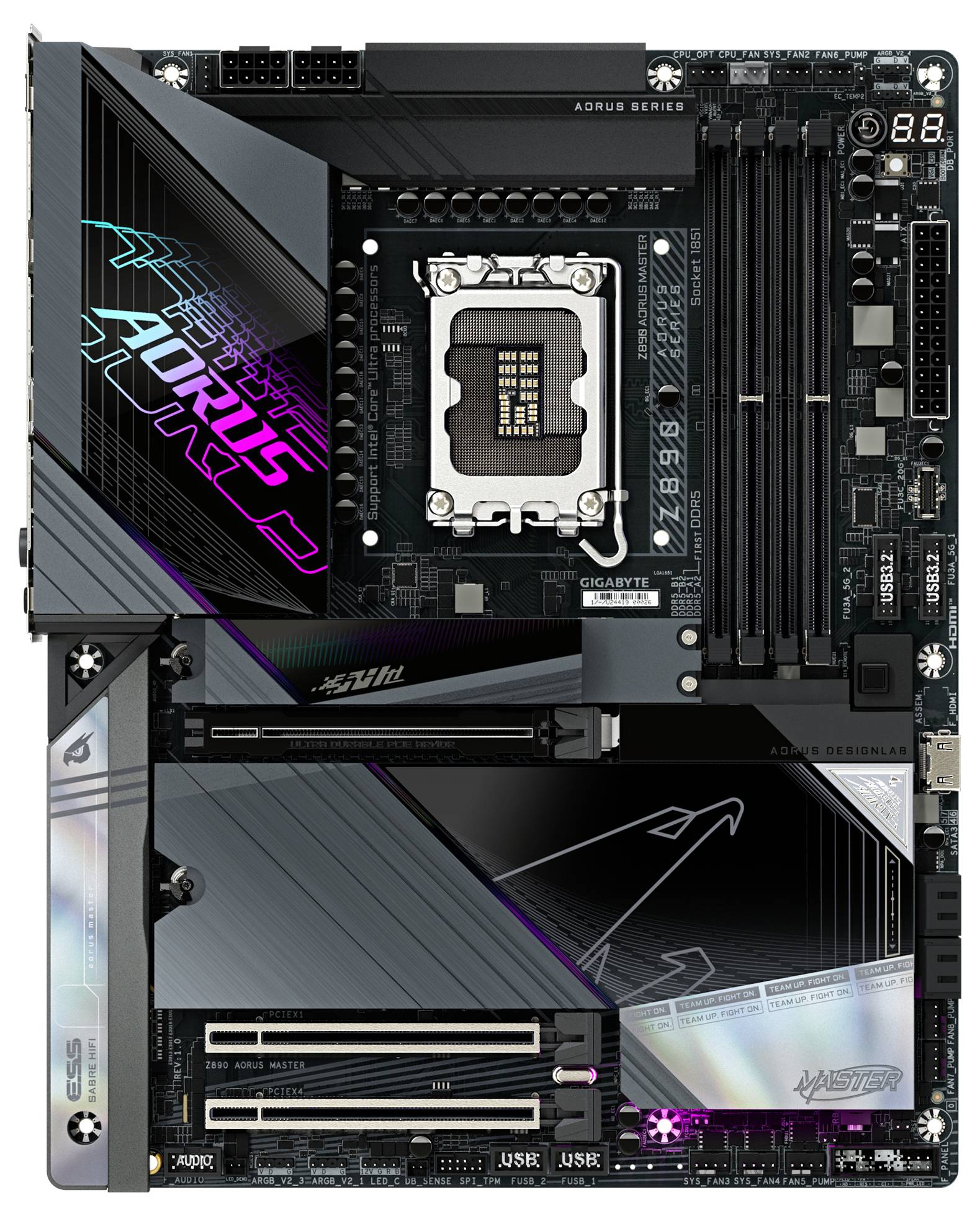

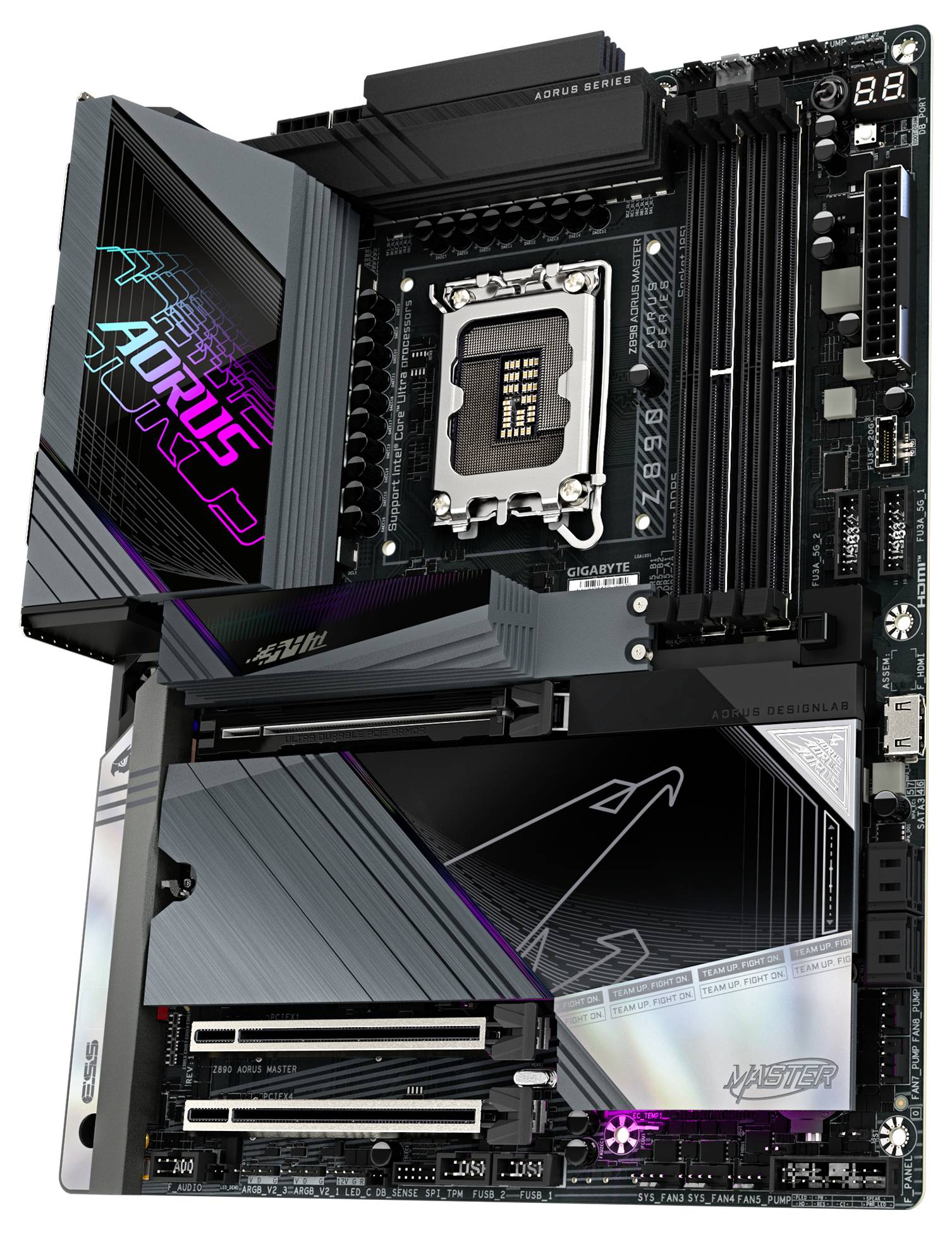

Gigabyte Z890 AORUS MASTER Motherboard
- Supports Intel core ultra (series 2) CPUs, 18+1+2 phase VRM
- Up to 9500MHz DDR5 (OC)
- 2x PCIe 5.0 + 3x PCIe 4.0
- Wi-Fi 7, 10GbE LAN, Thunderbolt 4
Technical specifications
- Product type
Motherboard
- Chipset
Intel® Z890
#####Intel® 1851
- Form factor
ATX
- RAM type
DDR5 RAM
- RAM / Max. upgrade
256 GB
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x4
1 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
6 x
- No. of USB 3.2 2nd Gen (USB 3.1)
6 x
- No. of USB 3.2
4 x
- No. of USB 3.0 ports
3 x
- No. of SATA III ports
4 x
- Onboard audio
Optical S/PDIF
7.1
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3341729 Gigabyte Z890 AORUS MASTER Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z89
User & Safety Instructions
User & Safety Instructions 3341729 Gigabyte Z890 AORUS MASTER Motherboard PC base #####Intel® 1851 Form factor (details) ATX Motherboard chipset Intel® Z89
Description
Increase the performance of your computer with Gigabyte's proven motherboard series: AORUS, AERO and Gigabyte. With innovative Design and most modern functions, these boards impress with their excellent performance and reliability. Whether you are a gamer, content creator or professional user, these series are tailored to your needs and guarantee excellent quality and the latest technologies.
This text is machine translated.
This text is machine translated.
Features
- Gigabyte Z890 AORUS Master motherboard - Supports Intel core ultra (2 series) CPUs
- LGA 1851 (socket V1)
- Compatible processors: Intel core ultra (series 2). Supported memory: DDR5 SDRAM
- RAM maximum: 256 GB
- RAM type DIMM. Supported drive interfaces: M.2, SATA III.
- Supported drives: HDD & SSD
- RAID levels 0, 1, 5, 10
- Motherboard form factor ATX
- Motherboard Chipset family: Intel
- Digital 18+1+2+1 Phase 110A SPS VRM with tantalum polymer capacitor
- Reinforced PCIe UD X slot PCIe 5.0 with PCIe EZ-Latch Plus design
- PCIe M.2 Design (up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
- Completely covered MOSFET heatsink with heat pipe/M.2 EZ-Latch Click design

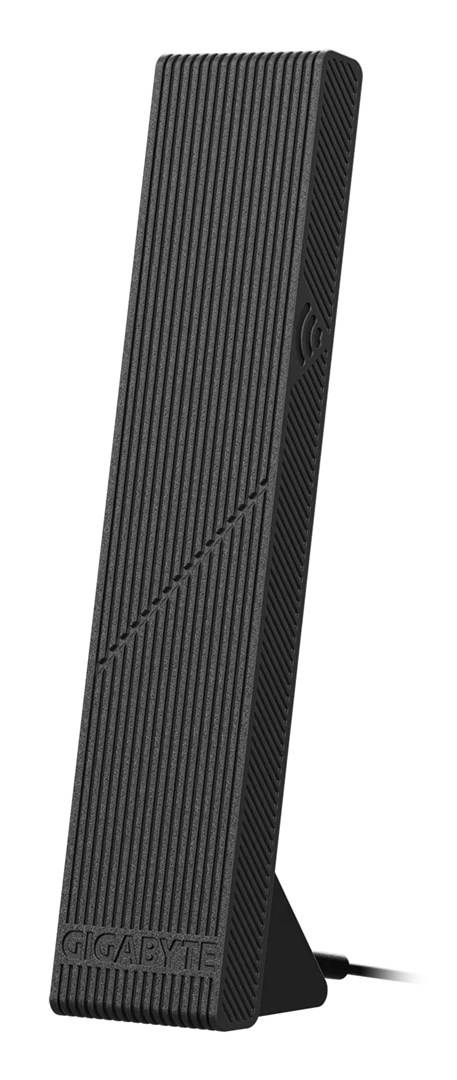

- Intel 2x2 Wi-Fi 7 BE200 with WIFI EZ-plug design

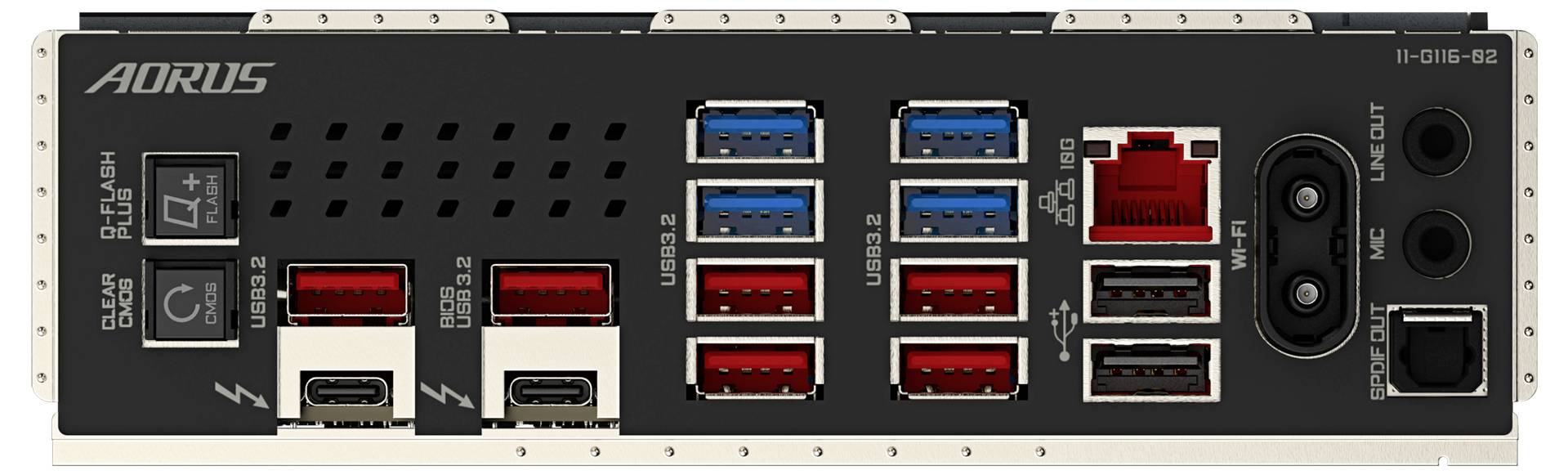

- 10GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2 Type-C

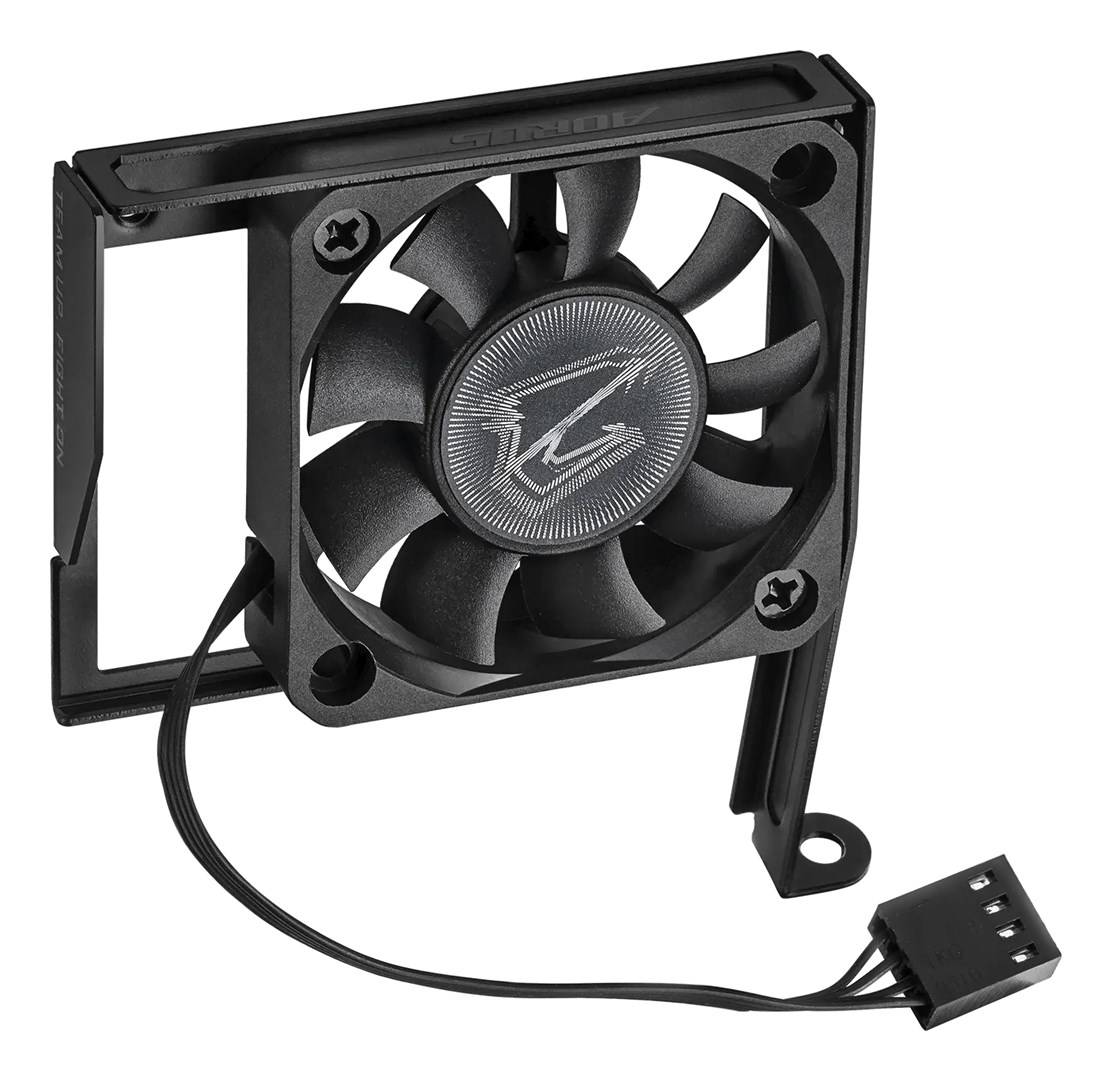

- AORUS Exclusive DDR cooling kit: DDR Wind Blade
- HDMI-connections 1
- Display port 2
- Microphone input: Yes
- S/PDIF output: Yes
- Thunderbolt ports 2
- M.2 (M) slots: 5
- Dimensions (LxWxH) 305 mm x 244 mm x 35 mm
- RGB LED pin strip: Yes
- Compatible processors: Intel core ultra (series 2)
- Supported memory clock rate (max.): 9500 MHz
- Maximum number of HDD/SSD supported: 9
- Audio channels: 5.1 channels
- Product color: Black
- PC health monitoring: Fan, temperature, voltage
- Supports Windows operating systems: Windows 11 x64
- Wi-Fi: Yes
- WLAN standard Wi-Fi 7 (802.11b)
- WLAN controller model Intel Wi-Fi 7 BE200
- Ethernet interface type 10 Gigabit Ethernet
- Bluetooth version: 5.4
