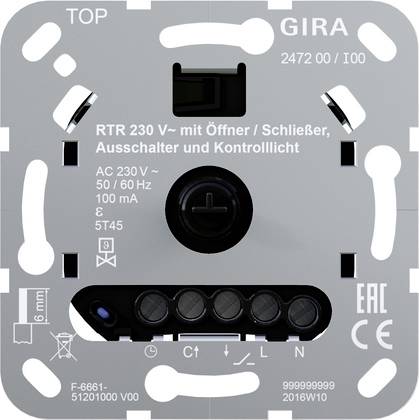

GIRA 247200 Thermostat Flush mount 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- With display: No.
- Brand design
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Power supply type 230 V AC
- Connection: Three-/four-wire
- With receiver: No.
- Measuring range 5 - .30 ° C
- Thermal feedback: None
- Control characteristics: PID
- Suitable for heating: Yes
- Number of Heating Outputs: 1
- Suitable for cooling: Yes
- Number of outputs cooling: 1
- Temperature read: No.
- With noise level indicator: No.
- Sensor/sensor type: Resistance sensor
- Operation: Rotation
- Hidden operation: No.
- With drinking water circuit: No.
- Contact version: Change-over (NO/NC)
- Max. Contact voltage 230 V.
- Explosion-proof: No.
- Power consumption in standby mode (solststandby): 0.5 W.
- Product type
Thermostat
- Mounting type
Flush mount
IP20
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3820854 GIRA 247200 Thermostat Flush mount 1 pc(s)
Description
Use of room temperature controller 230 V~ with NC or NO contact, circuit breaker and control light Features: - Control of electro-thermal actuators for 230 V~. - Regulate the room temperature in closed rooms. - Manual switch-off of temperature control. - Input terminal to activate the lowering temperature (ECO) via central clock. - Input terminal to activate cooling mode via central control. - Internal temperature sensor. - Frost protection function. - Silent switching. - Temperature drop detection (access to the frost protection temperature when the window is opened). - Output signal: Pulse width modulation (PWM) or two-point control (on/off). - Adaptation to valves (open or closed without current). - Offset setting (correction value for measured temperature). - Adjustment range of the room temperature can be restricted by adjusting rings. - Valve protection function (1 x weekly opening and closing of the valve).
This text is machine translated.
This text is machine translated.
