GIRA 247400 Thermostat Flush mount 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- With display: No.
- Brand design
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Power supply type 230 V AC
- Connection: Three-/four-wire
- Measuring range 10 - .50 ° C
- Thermal feedback: None
- Control characteristics: PID
- Suitable for heating: Yes
- Number of Heating Outputs: 1
- Suitable for cooling: No.
- Temperature read: No.
- With noise level indicator: No.
- Sensor/sensor type: Resistance sensor
- Operation: Rotation
- Hidden operation: No.
- With drinking water circuit: No.
- Contact version: Opener (NC)
- Max. Contact voltage 230 V.
- Explosion-proof: No.
- Power consumption in standby mode (solststandby): 0.5 W.
- Product type
Thermostat
- Mounting type
Flush mount
IP20
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3820969 GIRA 247400 Thermostat Flush mount 1 pc(s)
Description

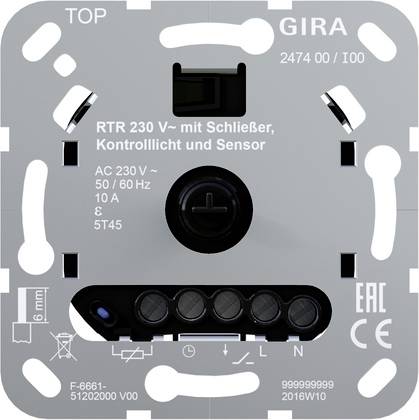

Insert Room temperature controller 230 V~/10 A with NO contact, control light and sensor for electrical floor heating Features: - Electronic temperature controller for controlling electrical floor heating or floor temperature control systems. - Regulate the floor temperature in closed rooms. - Manual switch-off of floor temperature control. - Input terminal to activate the lowering temperature (ECO) via central clock. - External temperature sensor (remote sensor). - Frost protection function. - Output signal: Pulse width modulation (PWM) or two-point control (on/off). - Heating interruption for continuous heating after one hour for 5 minutes. - Adjustment range of the room temperature can be restricted by adjusting rings. Notes: - Install remote sensor in the floor in the empty pipe. - The supply line to the remote sensor can be extended to 50 m with 2-wire cable (2 x 1.5 mm²). Included in delivery: - Remote sensor in plastic cap is included.
This text is machine translated.
This text is machine translated.
