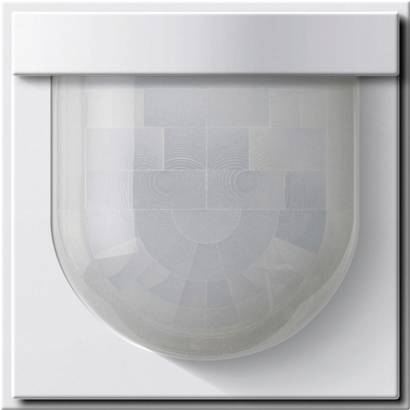

GIRA 537566 Flush mount Motion detector attachment White
EAN:
Part number:
Item no:
Technical specifications
- Suitable for protection class (IP): IP44
- Material: Plastic
- Material quality: Thermoplastic
- Low-level creep protection: No.
- Animal slope: No.
- Staircase lighting timer: Yes
- Response brightness adjustable: No.
- Teach-Function for Response Brightness: No.
- Max. Range to one side: 3 m.
- Max. Range: Front 12 m
- Network-compatible: No.
- Response sensitivity adjustable: Yes
- Halogen-free: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With motion detector: Yes
- HVAC activation: No.
- Installation height 2.2 m
- Motion detector/button combination: No.
- With orientation light: No.
- Max. duty cycle 2 min
- Horizontal coverage angle: 1..180°
- Constant light control: No.
- Suitable for wireless transmission: No.
- Product type
Motion detector attachment
- Mounting type
Flush mount
- Factory colour
White
- Similar RAL
9010
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3820844 GIRA 537566 Flush mount Motion detector attachment White
Description
System 3000 motion detector attachment 2.20 m standard pure white TX_44 Features: - Automatic switching of lighting, depending upon the heat movement and ambient brightness. - Operation with System 3000 Switch, DIMM or Extension Insert 3-wire. - Extension of the detection area in combination with extension insert 3-wire. - Adjustable brightness threshold. - Sensitivity adjustable in four steps. - When a System 3000 extension unit is connected to the main station with operator panel or mechanical button, the lighting can be switched on or dimmed for the duration of the follow-up time. With System 3000 Dimming feature - switching on with the last set brightness or stored switching-on brightness. - The switch-on brightness can only be permanently stored via System 3000 extension unit with operator panel.
