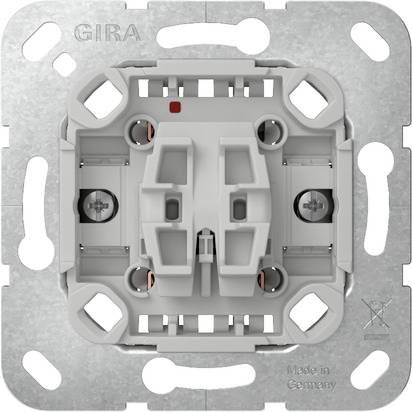

GIRA Rocker switch insert 310600 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Suitable for protection class (IP): IP20
- Material: Other
- Material quality: Other
- Surface protection: Other
- Mounting type: Claw / screw attachment
- Connection type: Plug-in terminal
- Halogen-free: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Antibacterial treatment: No.
- Operating mode rocker/button
- Lighting: Optional
- Assembly: Base element
- Switching type: Toggle switch
- Push button: No
- Number of operating rockers: 1
- With mounting plate: No.
- Text field/label area: No.
- Feedback contact: No.
- Heating switch: No.
- Washing machine switch: No.
- Number of modules (for modular design): 1
- Rated current 10 A
- Lighting function: Control and orientation
- Type
Rocker switch Auswe use 310600
- Product type
Rocker switch insert
- Nominal voltage
250 V
- Content
1 pc(s)
- Mounting type
Flush mount
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3824701 GIRA Rocker switch insert 310600 1 pc(s)
Description
Use of rocker switch 10 AX 250 V~ Universal-off changeover switch Features: - Floating rocker switch provides automatic and precise positioning of rocker in the cover frame. - Quick mounting (3.5 turns per mounting claw). - Easier claw attachment with rugged screw head drive PZ1 / slit / PH - Voltage testing possible from the front. - Uniform stripping length (11 mm) for switches and sockets ensures faster and more efficient mounting. - The use of rigid and flexible conductor material is possible. - Easily accessible release levers. - Unbreakable thermoplastic base. - Standard LED lighting elements can be used from the front. - By turning the lighting element at 180°, it is possible to change between the control lighting and continuous lighting depending on the switch. Notes: - Can also be illuminated.
