Glass fibre tester 237114 Softing FX_700_kit Networks
EAN:
Part number:
Item no:
Highlights & Details
FiberXpert 700 Loss Test Set
Technical specifications
- Product type
Glass fibre tester
- Function
Continuity
- Acoustic signal
Yes
- Display
LCD
- Optical display
Yes
- Dim
(W x H x D) 112.3 x 72.9 x 31.8 mm
- Weight
1.304
- Range
Networks
- Features
Data export mode
- Width
112.3 mm
- Height
72.9 mm
- Depth
31.8 mm
- Type
FX_700_kit
Fibre optic certification set
Fibre optic conductor
TRUE
LCD/acoustic
TRUE
FALSE
TRUE
TRUE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3192658 Glass fibre tester 237114 Softing FX_700_kit Networks
Description
Quad damping measurement kit for multimode & singlemode
Provides intuitive, flexible, and fast attenuation measurements of fiber links and provides the data in one documentation.
Contains the necessary tools to certify fiber links to a wide range of common cabling standards in single-mode and multi-mode networks (Tier 1 certification possible).

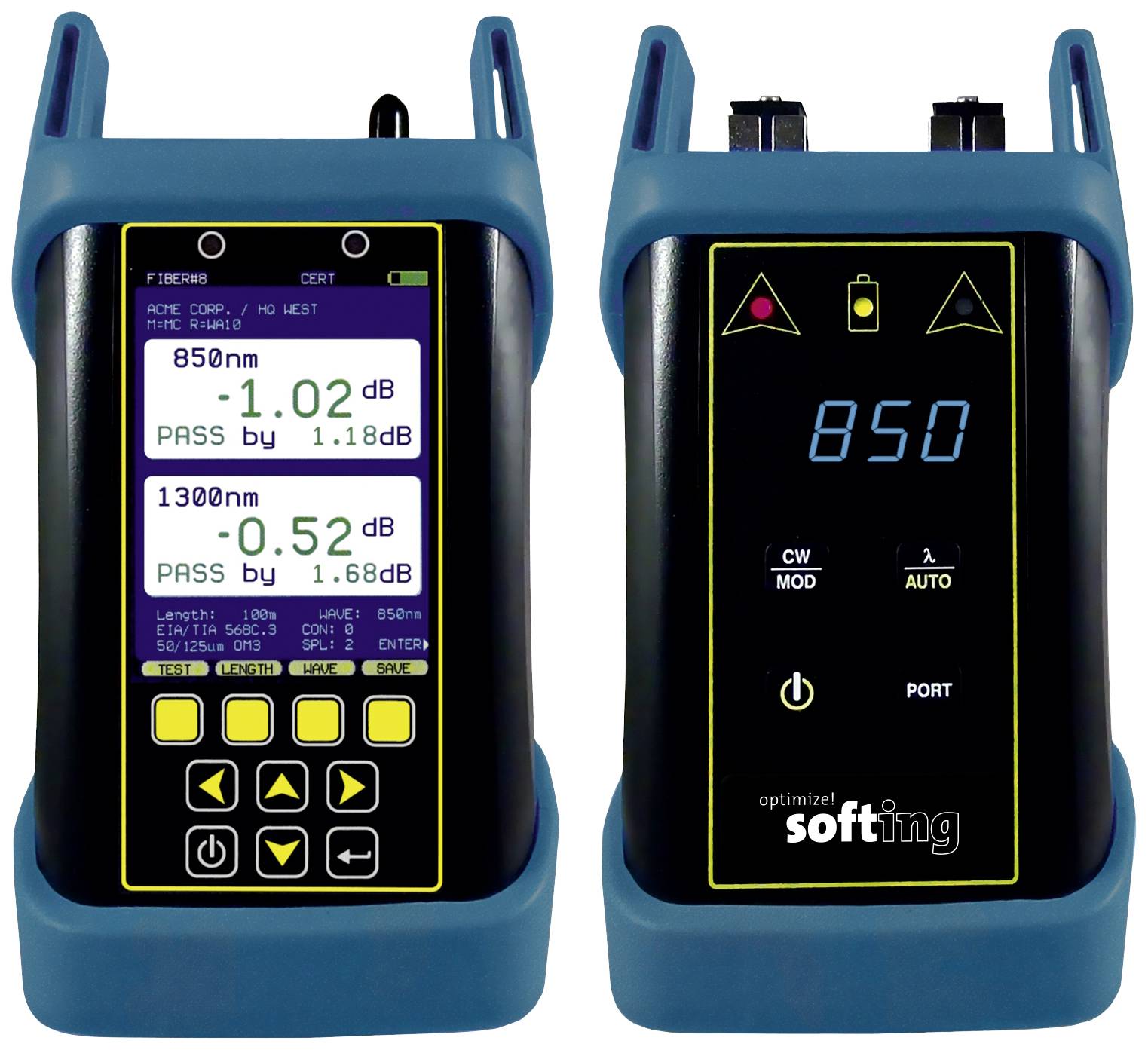

For a quick distinction the result is shown directly in color on the LCD display as PASS/FAIL status.
Full Tier 1 fiber measurement on 4 calibrated wavelengths (850, 1300, 1310, 1550nm) possible.
Measures optical loss (attenuation) and optical power measurement included. The user interface is in German, as is the software.
Up to 10,000 measurements can be stored in the internal memory and printed as official test reports on the cost and license-free PC software.
Continuity test of fiber optic cables and measurement cable/reference fiber test.
Supports 7 wavelengths (850, 980, 1300, 1310, 1490, 1550, 1625nm)

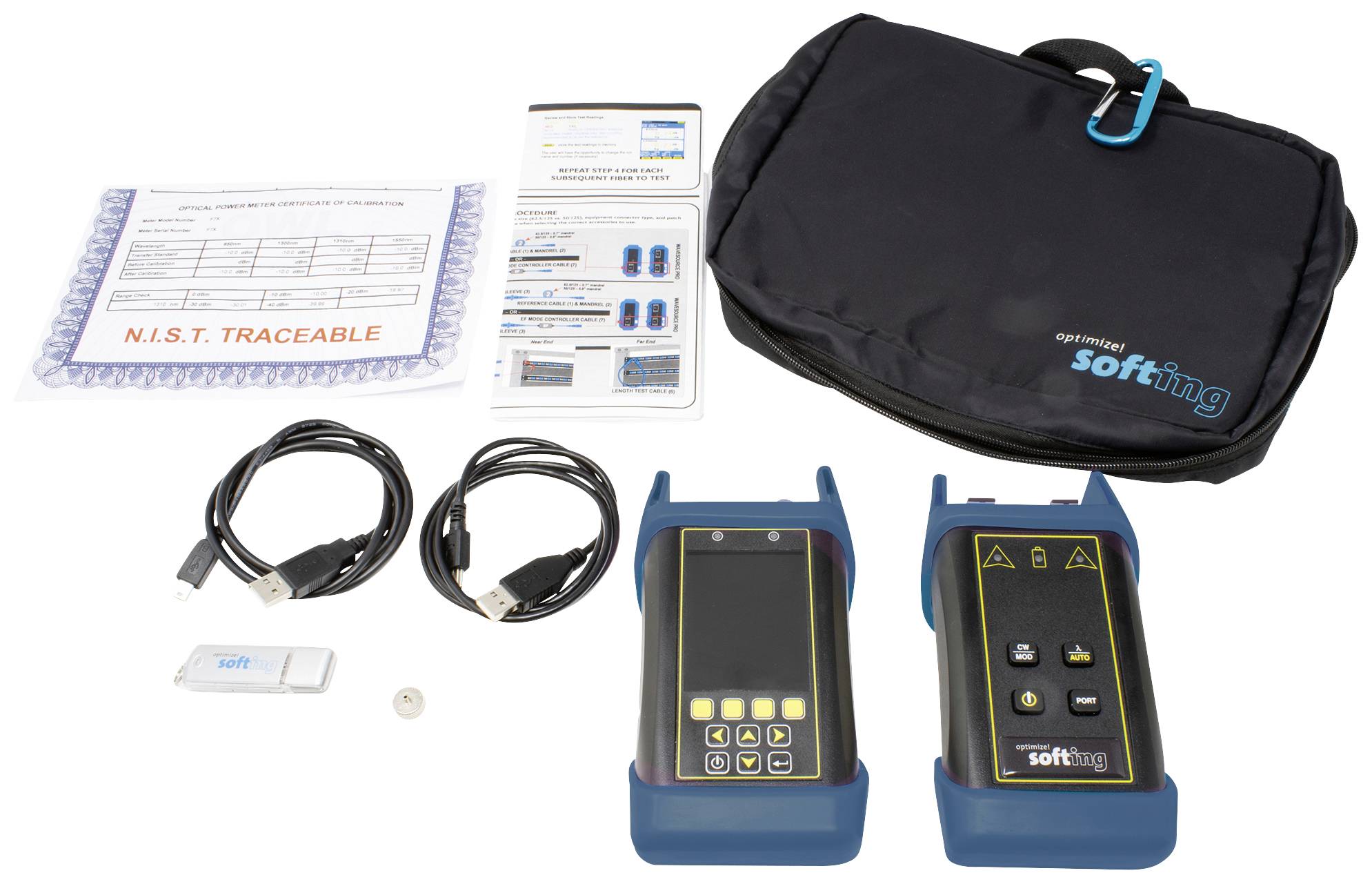

Delivery: 1 optical Power meter, 1 quad light source, 1 carry bag, 2 protective covers (rubberized), 2 USB download cable (for battery charge too), 1 USB stick with PC software and product documentation, 1 universal adapter, 1.25 mm ferrule, 1 universal adapter 2.5 mm ferrule, 1 calibration certificate, 1 brief user manual
