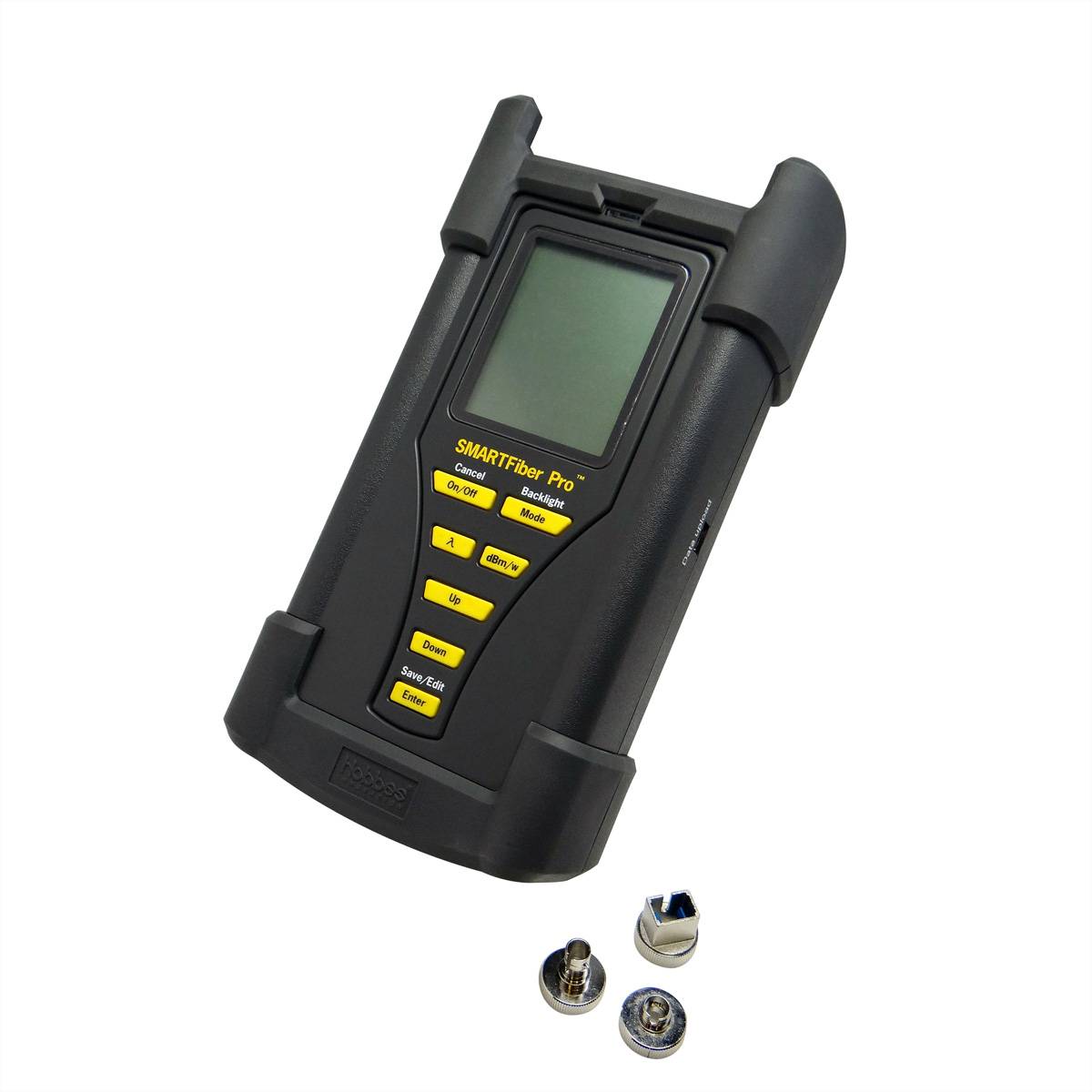

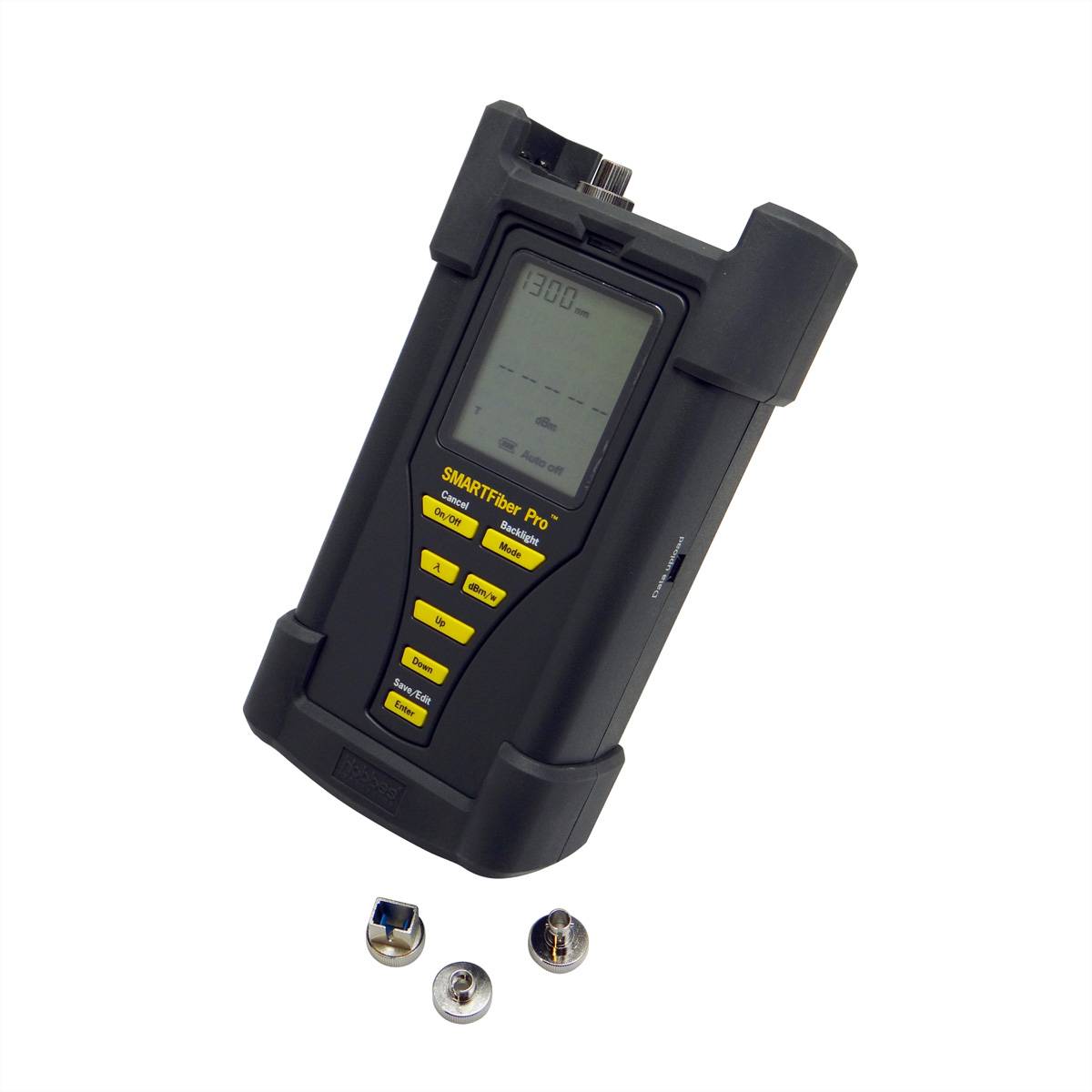

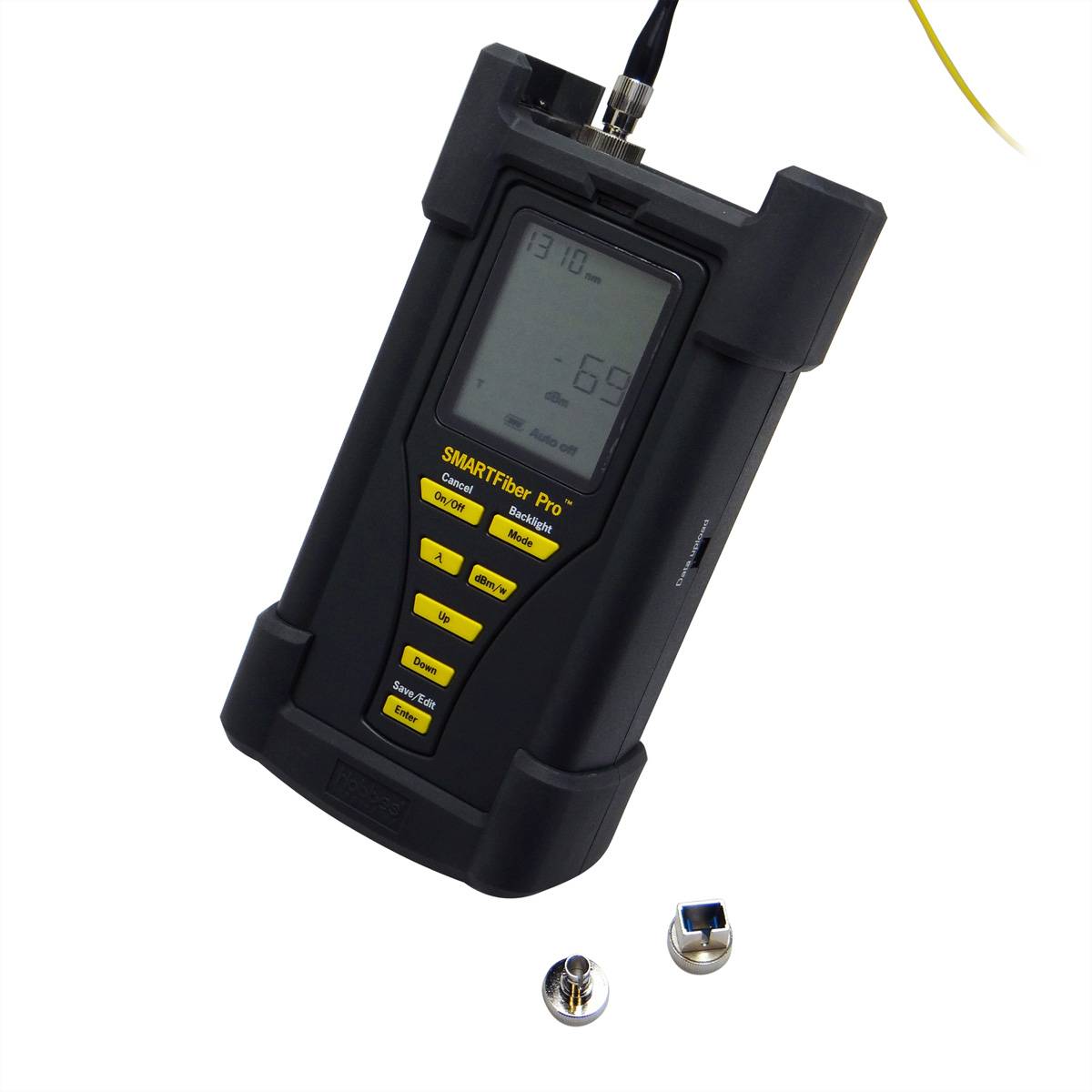

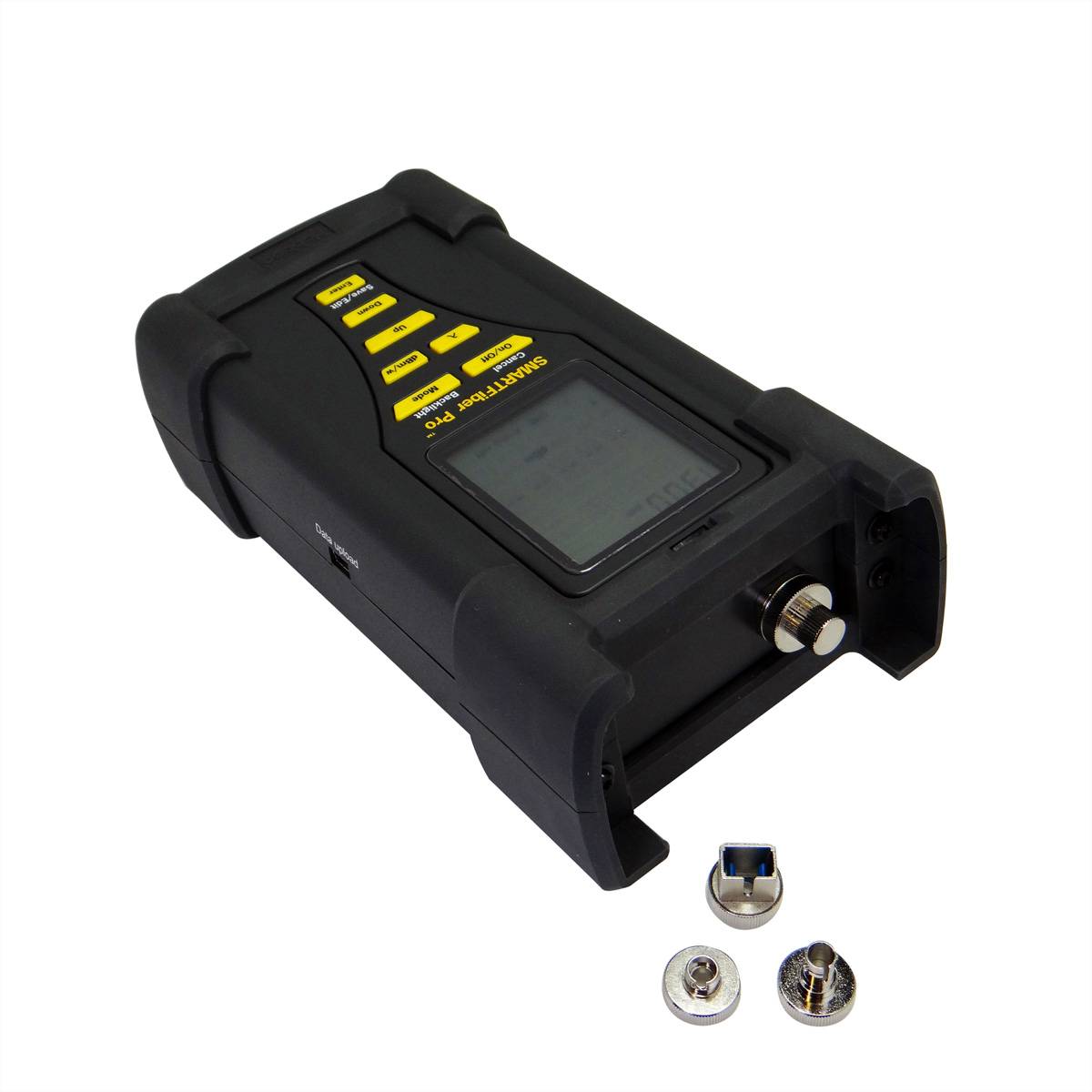

Glass fibre tester 257835PRO Hobbes HOBBES SMARTFiberPro LWL-Leistungsmessge Networks

The SMARTFiberPro is an easy-to-use fiber optic power meter for testing the power of light transmission in fiber optic fibers over six wavelengths: 850, 1300, 1310, 1490, 1550 and 1625 nm. The device tests the optical light intensity in a range from +3 to -60 dBm. The Hobbes SMARTFiberPro has a 2.5 mm universal adapter that is compatible with most interfaces such as ST, SC or FC. It is possible to test cables in single mode or multi mode. With an optional 2.5 mm to 1.25 mm adapter fiber optic interfaces such as LCD with a diameter of 1.25 mm can be used. For test purposes, the Hobbes SMARTFiberPro can also receive analogue sound signals (270Hz, 1kHz, 2 kHz). . For quick and easy application and testing of the corresponding wave ranges, we recommend the use together with a Hobbes OPTISource for automatic identification of the wavelengths in fiber optic cables. The device uses an InGaAs detector to ensure an improved sensitivity and temperature stability. . It can store up to 1000 test results in the internal memory and upload them to the PC via the built-in USB port. In combination with the included software, you have the option to graphically display test results as well as in tabular form and to generate test reports.

This text is machine translated.
