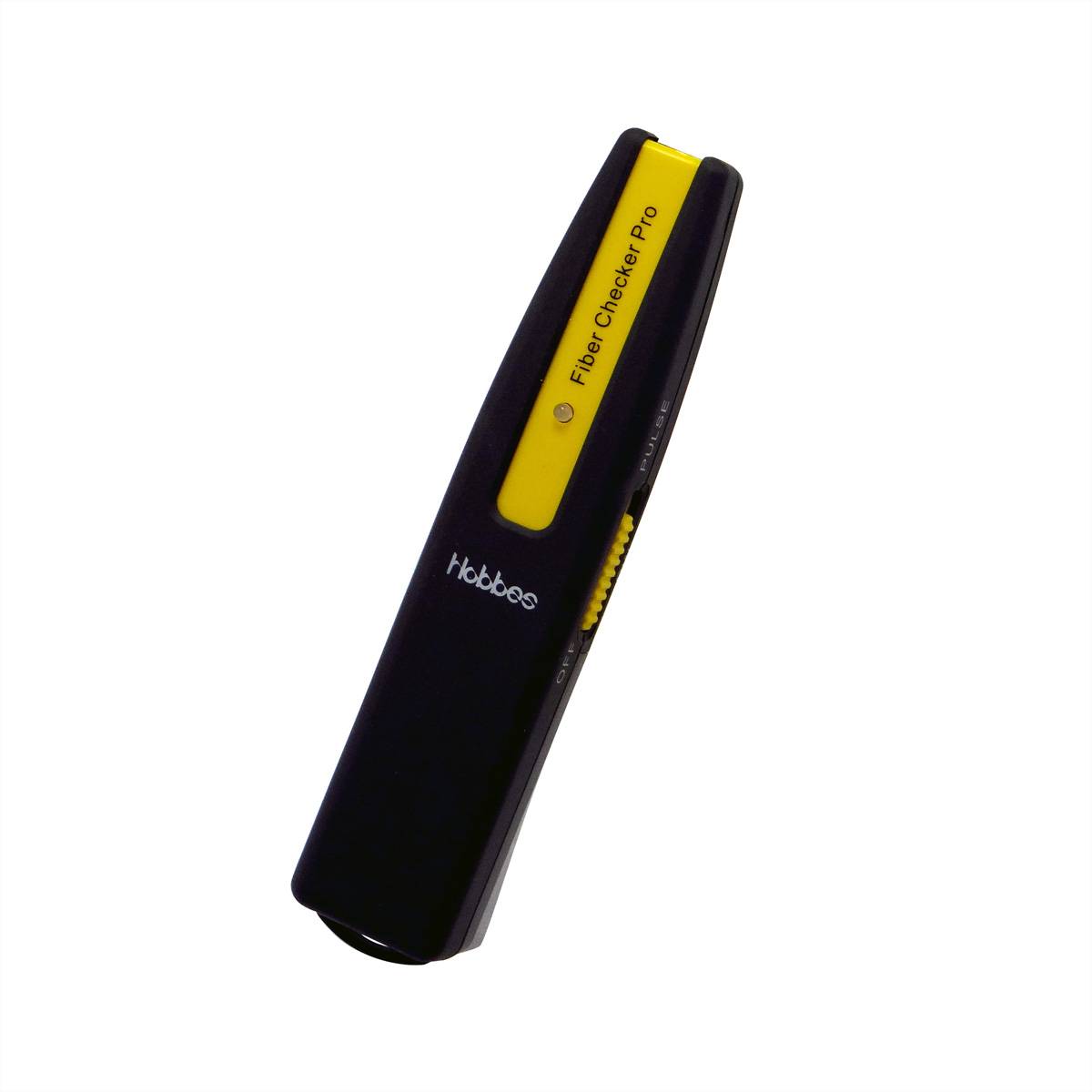

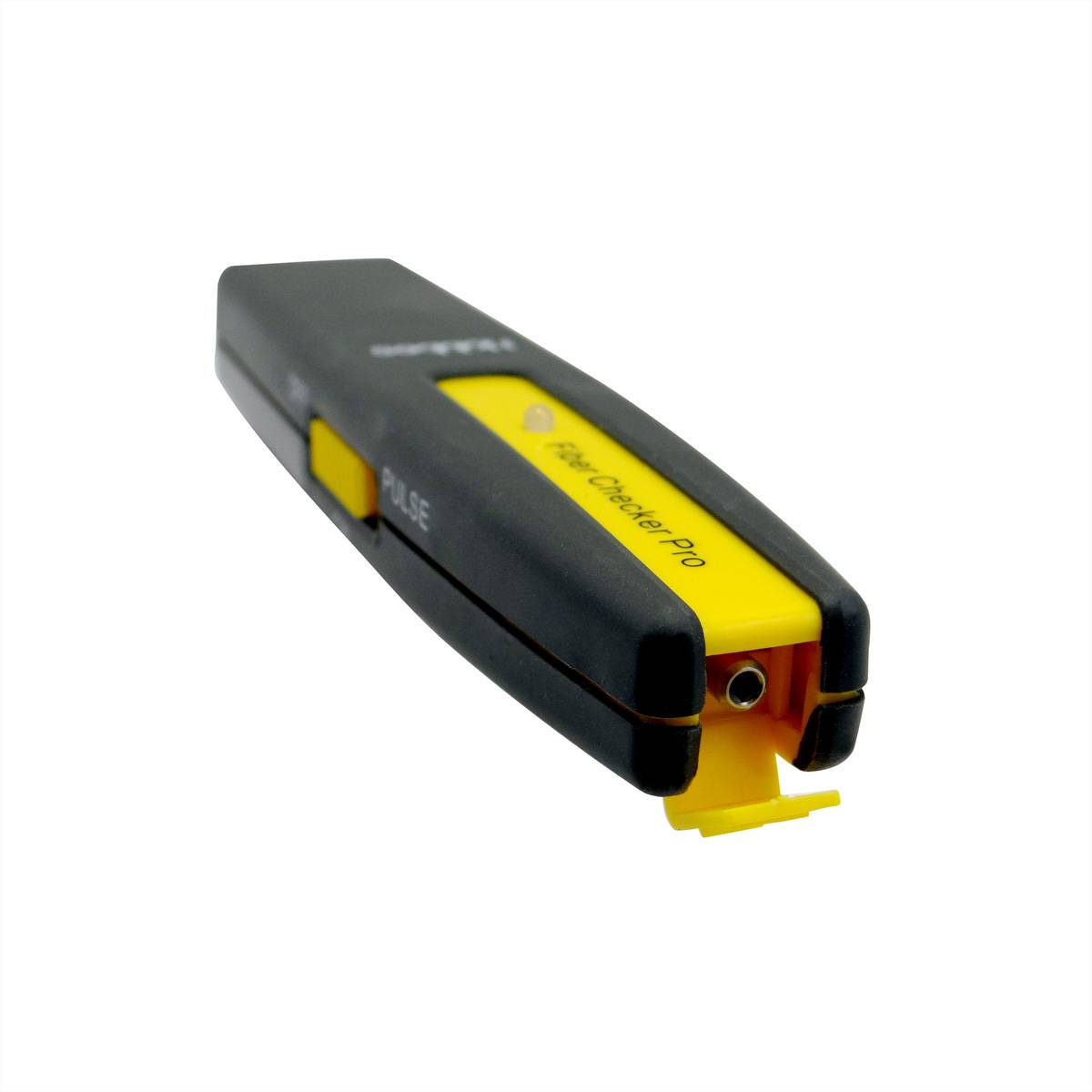

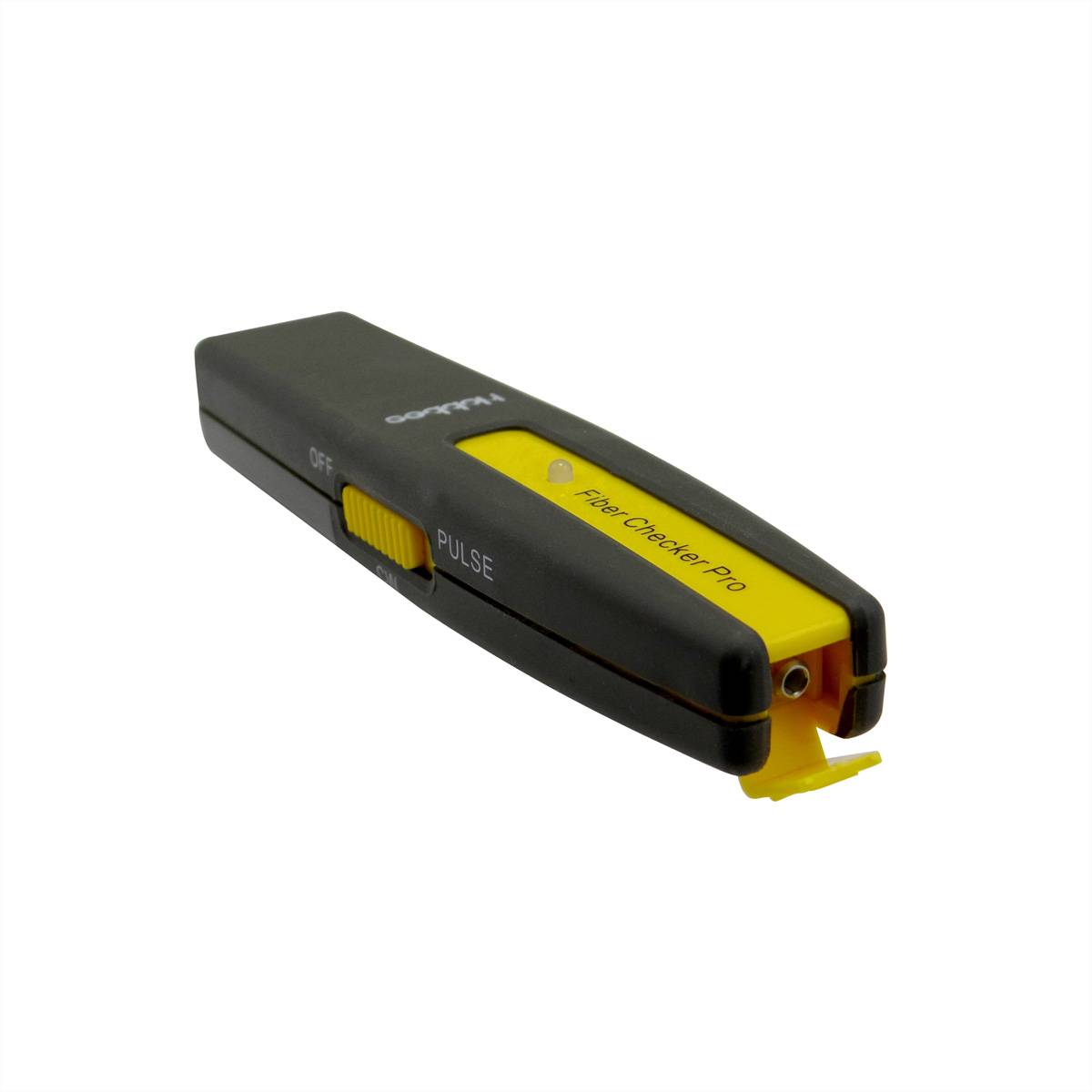

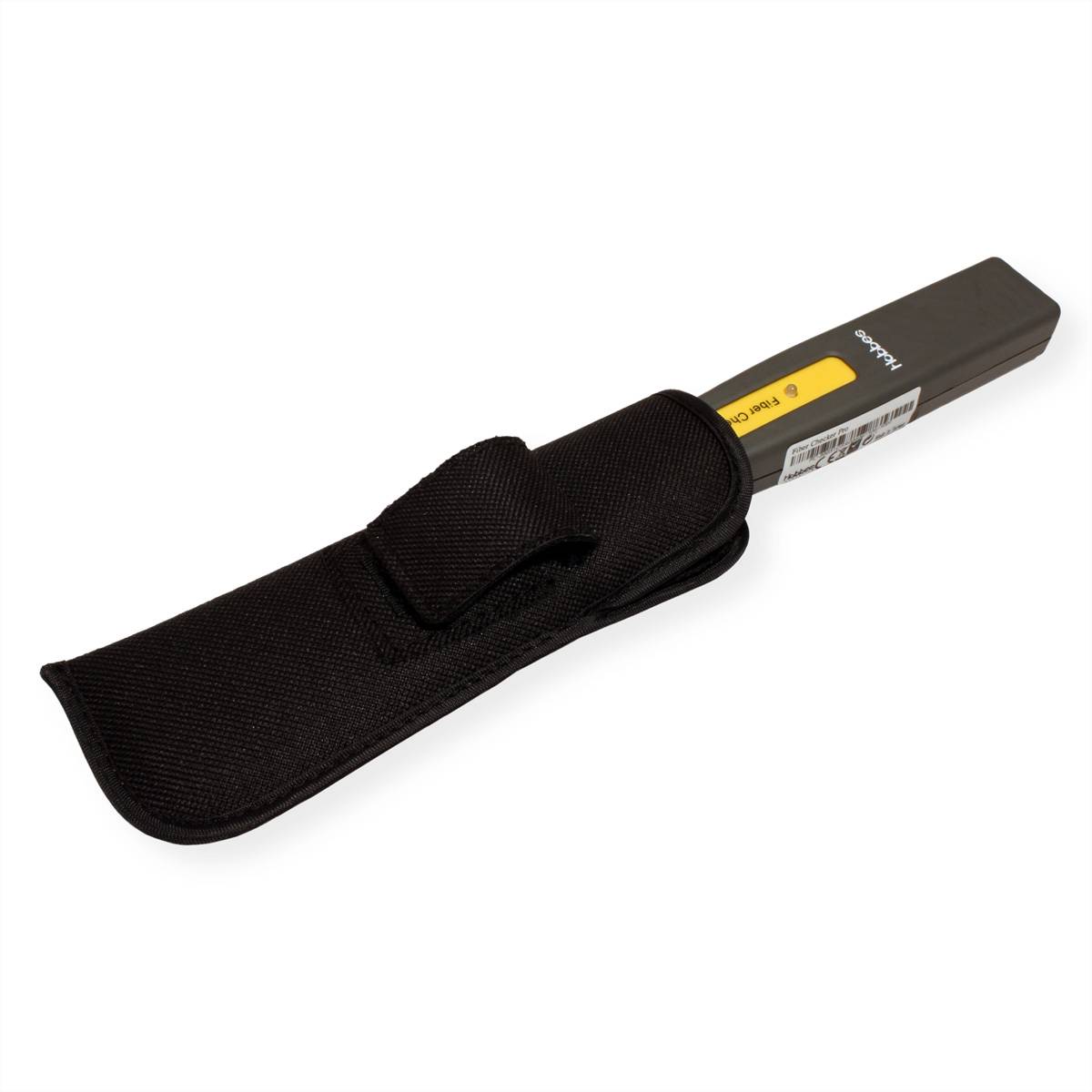

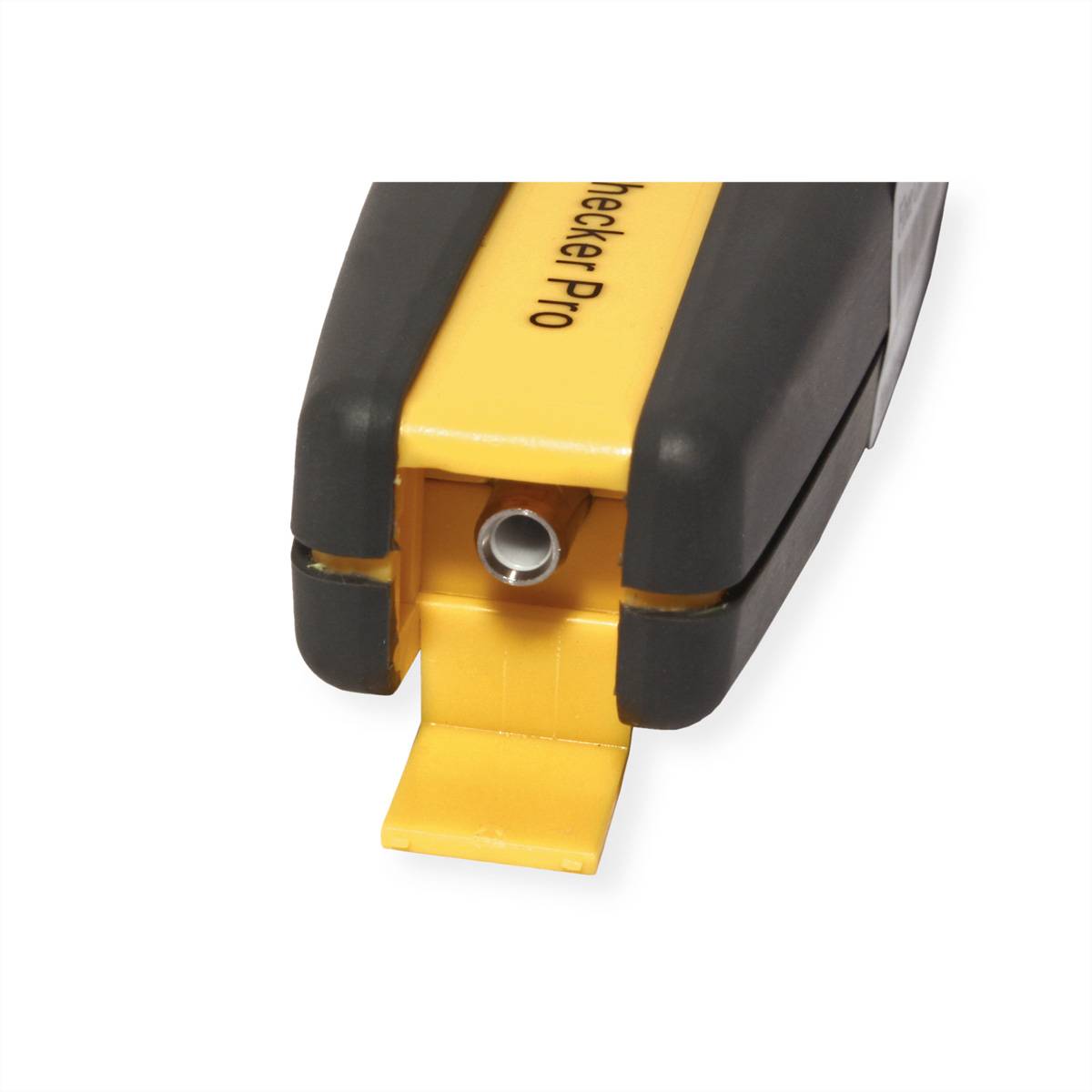

Glass fibre tester FC-2005PC Hobbes HOBBES Portabler Laser Fiber Checker Pro Networks
EAN:
Part number:
Item no:
Highlights & Details
The Hobbes Fiber Checker Pro is designed for simple and fast inspection of faulty fiber optic cables
Technical specifications
- Product group: Tester
- Product type: Fiber tester
- Battery category: Device battery
- Number of batteries / rechargeable batteries: 2 pieces
- AAA rechargeable battery
- Battery: Required (not included)
- Weight: 60.26 g
- Packaging height 40 mm
- Package width 70 mm
- Packaging depth 220 mm
- Package weight: 0,094 kg
- Gross weight: 0.094
- Product type
Glass fibre tester
- Function
Location
- Max. cable length
3 km
- Optical display
Yes
- Test sockets
ST plug
- Dim
(W x H x D) 70 x 40 x 220 mm
- Weight
0.094
- Range
Networks
- Width
70 mm
- Height
40 mm
- Depth
220 mm
- Type
HOBBES Portabler Laser Fiber Checker Pro
- Factory colour
Multicolour
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3796776 Glass fibre tester FC-2005PC Hobbes HOBBES Portabler Laser Fiber Checker Pro Networks
User & Safety Instructions
User & Safety Instructions 3796776 Glass fibre tester FC-2005PC Hobbes HOBBES Portabler Laser Fiber Checker Pro Networks
Description
The Hobbes Fibre Checker Pro is designed for simple and fast inspection of faulty fiber optic cables. The cable emits a visible (650nm) strong laser signal - breaks become visible through a visible light beam in the area of the faulty spot. Breaks or damage in the fiber optic cable reflect / break the light and indicate the damaged area by a bright illumination. Universal connector, can be used with common connector types (ST, SC, FC, etc.). With the optional 2.5mm to 1.25mm adapter (13.01.3372), you can also test 1.25mm cable (e.g. with LC connector). Switchable between continuous and pulsating beam . Visible beam of light on up to 3 km LWL-route (minimum). Suitable for both multimode and single mode routes. 2 x AAA 1.5 V (LR03 / AM-4) test device batteries
This text is machine translated.
Scope of delivery
- HOBBES Portable Laser Fibre Checker Pro
