Glass fibre tester NP-FIBER-PRIMA-MM2-150-SC/UPC-LC/UPC NetPeppers NP-FIBER-PRIMA-MM2-150-SC/UPC-LC/UPC Telecom, Network
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 159.66 / piece)
€ 159.66
plus VAT.
Highlights & Details

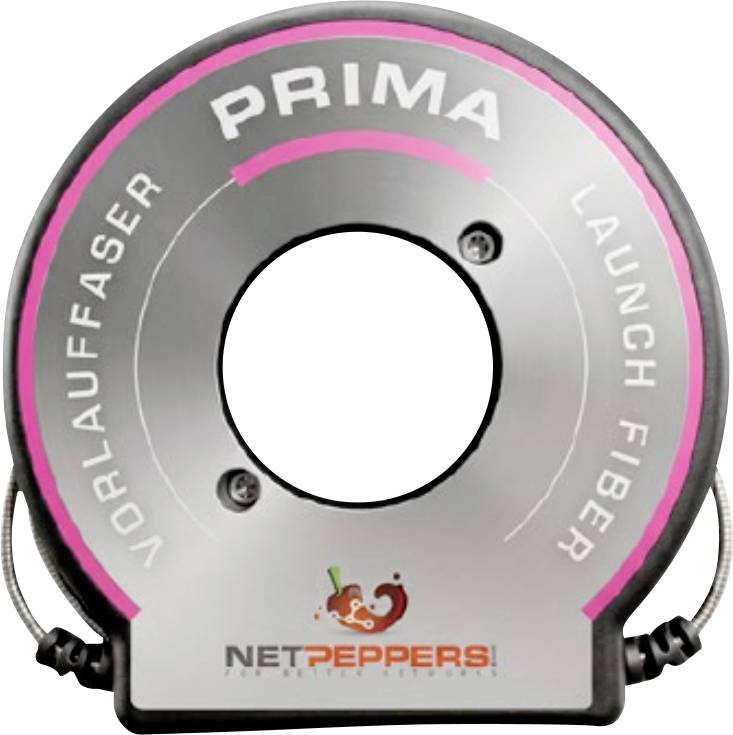

NetPeppers PRIMA precursor fiber
Technical specifications
- SC/UPC-LC/UPC
- Robust ABS-plastic casing
- 1 meter armored cable ends for mechanical protection
- Fixing possibility for server cabinets or distribution boxes
- Glass fiber type: Multimode OM4
- Product type
Glass fibre tester
- Max. cable length
150 m
- Acoustic signal
No
- Optical display
No
- Dim
(L x W x H) 13 mm x 13 cm x 3 cm
Manufacturer's standards (no certificate)
- Weight
170 g
- Range
Telecom
Networks
- Width
13 cm
- Height
3 cm
- Length
13 mm
- Depth
3 cm
- Type
NP-FIBER-PRIMA-MM2-150-SC/UPC-LC/UPC
Documents & Downloads
Datasheet
Datasheet 3778329 Glass fibre tester NP-FIBER-PRIMA-MM2-150-SC/UPC-LC/UPC NetPeppers NP-FIBER-PRIMA-MM2-150-SC/UPC-LC/UPC Telecom, Network
User & Safety Instructions
User & Safety Instructions 3778329 Glass fibre tester NP-FIBER-PRIMA-MM2-150-SC/UPC-LC/UPC NetPeppers NP-FIBER-PRIMA-MM2-150-SC/UPC-LC/UPC Telecom, Network
Description
The PRIMA prefeed fibers from NetPeppers have been developed for use in FTTx and LAN installations.
The compact ABS plastic housing is firmly attached to the armored cable ends and thus offers optimum protection of the inner lead-fibers.
The armored cable ends protect the connecting cables of the lead fiber under mechanical load. By means of the fixing on the housing of the launch fiber,
The lead fiber can also be attached to a server cabinet or to a distribution box to protect it from external influences.
By default, the user of the PRIMA lead fiber also receives an OTDR test protocol to prove the quality of the lead fibers.
This text is machine translated.
The compact ABS plastic housing is firmly attached to the armored cable ends and thus offers optimum protection of the inner lead-fibers.
The armored cable ends protect the connecting cables of the lead fiber under mechanical load. By means of the fixing on the housing of the launch fiber,
The lead fiber can also be attached to a server cabinet or to a distribution box to protect it from external influences.
By default, the user of the PRIMA lead fiber also receives an OTDR test protocol to prove the quality of the lead fibers.
This text is machine translated.
Scope of delivery
- 1 feed fiber PRIMA Multimode, 150 m
- 1 carabiner holder
- 1 OTDR and plug end surfaces
- Measurement protocol
