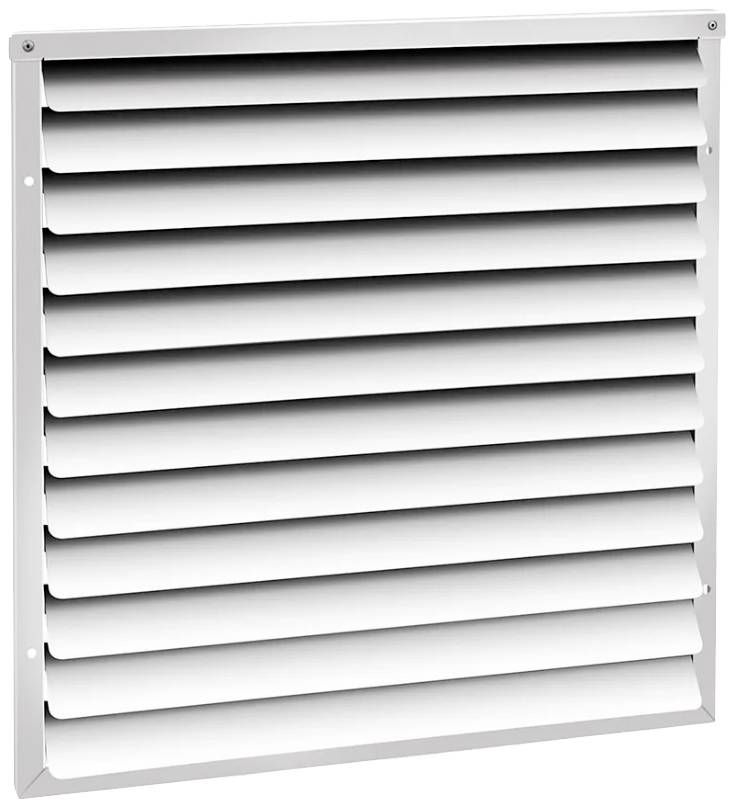

Glen Dimplex 340220 Weather vent cover
EAN:
Part number:
Item no:
Technical specifications
- Material: Aluminium
- Channel nominal width 500 mm
- Rated height channel 500 mm
- Front width 650 mm
- Front height 650 mm
- With wire mesh: No.
- With insect screen: No.
- With pressure flap, blowing: No.
- With pressure relief flap, sucking: No.
- With counter-rotating flap valve: No.
- With evenly rotating flap valve: No.
- With mounting frame: No.
- Lockable: No.
- Motor-controlled: No.
- Colour: Other
- Product type
Weather vent cover
- Content
1 pc(s)
- Material (details)
Aluminium
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3158885 Glen Dimplex 340220 Weather vent cover
Description
Rain protection grille specially designed for air / water heat pumps with low pressure loss of approx. 5 Pa for protection against impacts
For standard interfacing with the air hose set or with air ducts, the permissible total pressure loss is maintained
Aluminium frame (width 25 mm) for wall fitting
Painted gray-white (RAL 9002).
This text is machine translated.
For standard interfacing with the air hose set or with air ducts, the permissible total pressure loss is maintained
Aluminium frame (width 25 mm) for wall fitting
Painted gray-white (RAL 9002).
This text is machine translated.
