Glen Dimplex 358390 358390
EAN:
Part number:
Item no:
Technical specifications
- Material jacket: Plastic
- Material: Fittings: Brass
- Material: Stainless steel
- Primary connection: Internal thread (metric)
- Primary nominal diameter: 1 1/2 in. (40)
- Secondary connection: Internal thread (metric)
- Nominal diameter secondary: 1 1/2 in. (40)
- Pump connection: Internal thread (metric)
- Size of pump connection: 1 1/2 in. (40)
- Max. Operating pressure 6 bar
- Medium temperature 5..95°C
- Suitable for cooling: Yes
- Suitable for heating: Yes
- Suitable for glycol: Yes
- Suitable for ethanol: Yes
- Design: Other
- With adapter for heat meter: No.
- With heat meter: No.
- In-built circulation pump: No.
- High-efficiency pump (according to EC 547/2012 and EC 641/2009): No.
- With pressure gauge: Yes
- With control valve: No.
- With shut-off valve: Yes
- With check valve: Yes
- With safety valve: Yes
- With thermometer: No.
- Drain cock: No.
- With mixer motor: No.
- Suitable for servo motors: No.
- With three-way valve: No.
- With pump ball valve: Yes
- With connection temperature sensor: Yes
- With connection expansion tank: Yes
- With automatic ventilation: No.
- Wall setup: Yes
- With wall mounting bracket: Yes
- With feet: No.
- With differential pressure control: No.
- Flow direction: Left
- With heat insulation: Yes
- Heating circuit controller expandable: No.
- Distribution bars expandable: Yes
- Heat exchanger expandable: No.
- Width 340 mm
- Height: 540 mm
- Depth: 275 mm
- Product type
Splitter
- Dim
(W x H x D) 340.00 x 540.00 x 275.00 mm
- Height
540.00 mm
- Depth
275.00 mm
- Width
340.00 mm
- Type
others
- Max. temperature
95 °C
- Min. temperature
5 °C
- Weight
0
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159832 Glen Dimplex 358390 358390
Description

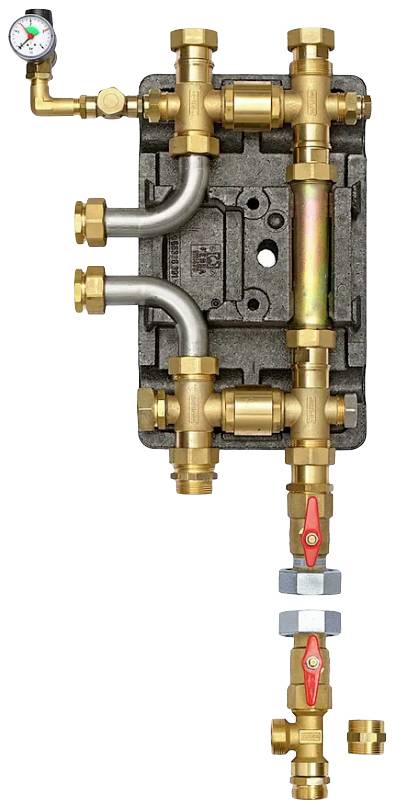

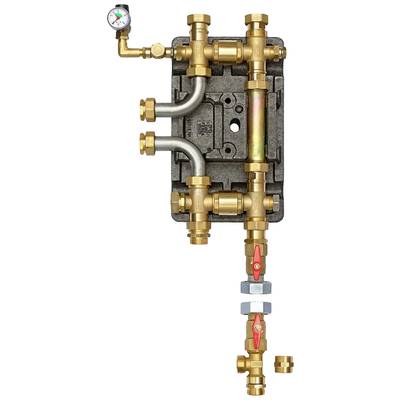

Combined assembly with insulating shells for the easy installation connection of heat pump, buffer storage, warm water storage (via the supplied T-piece) and heating system. Consists of 2 shut-off valves, 2 bypass lines with backflow preventer (response pressure 2000 Pa), safety module with pressure gauge and connection possibility for expansion vessel. Installation possibility for circulation pump, DN 25 (pump not included in delivery). Recommended for connection of heat pumps with a heating water flow rate of up to 2.0 m³/h and for feeding of foreign energy (e.g. wood/solar) in the series buffer storage (see configuration documentation). To reduce the pump running times, the auxiliary circulation pump can only be operated with the compressor. In this case, the return sensor included in the delivery must be installed and connected in the existing immersion sleeve. Because of the hydraulic decoupling, the load circuit requires a separate circulation pump.
