Glen Dimplex 364630 364630 Grey
EAN:
Part number:
Item no:
Technical specifications
- Design: Double-walled channel insulated
- Material of channel: Other
- Material Quality Channel: Other
- Wall thickness channel 22 mm
- Material of insulation: Stone wool
- Insulation thickness 10 mm
- Surface protection external: Untreated
- Surface protection inside: Other
- Perforated inner wall: No.
- Outer color: Grey
- Channel nominal width 600 mm
- Rated height channel 600 mm
- Connection 1: End of channel
- Connection 2: End of channel
- With slider profile: Yes
- With slide-on terminal: No.
- Length: 1000 mm
- Working length 1000 mm
- Max. Medium temperature (continuous operation): 60 °C.
- Embeddable in concrete: No.
- Anti-bacterial version: No.
- Anti-static version: Yes
- Product type

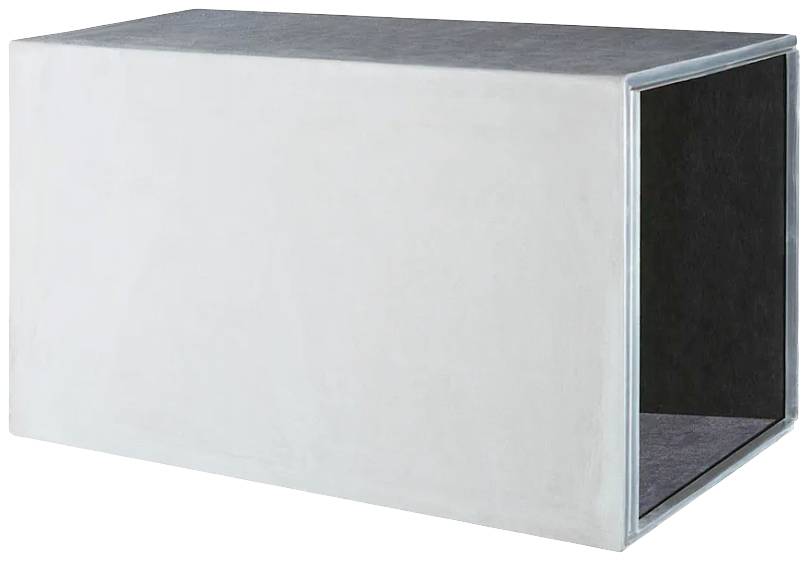

Air duct
- Factory colour
Grey
- Length
1000.00 mm
- Type
Double-walled channel insulated
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159806 Glen Dimplex 364630 364630 Grey
Description
Optimized air duct, suitable for air flow from internally positioned air/water heat pumps
Connector system consisting of 4 glass fiber reinforced concrete side panels with a heat and sound-insulated inner side to prevent condensation and to significantly reduce the sound transmission (sound insulation measure ~1 dB(A) per lfm, arc ~3 dB(A)). 2 end frames provide for additional stability of the air duct and allow easy assembly of the side parts. The channels must be protected against impact and can be suspended by the customer or painted with water-resistant dispersion paint if required. Supplied with multiforce adhesive.
This text is machine translated.
Connector system consisting of 4 glass fiber reinforced concrete side panels with a heat and sound-insulated inner side to prevent condensation and to significantly reduce the sound transmission (sound insulation measure ~1 dB(A) per lfm, arc ~3 dB(A)). 2 end frames provide for additional stability of the air duct and allow easy assembly of the side parts. The channels must be protected against impact and can be suspended by the customer or painted with water-resistant dispersion paint if required. Supplied with multiforce adhesive.
This text is machine translated.
