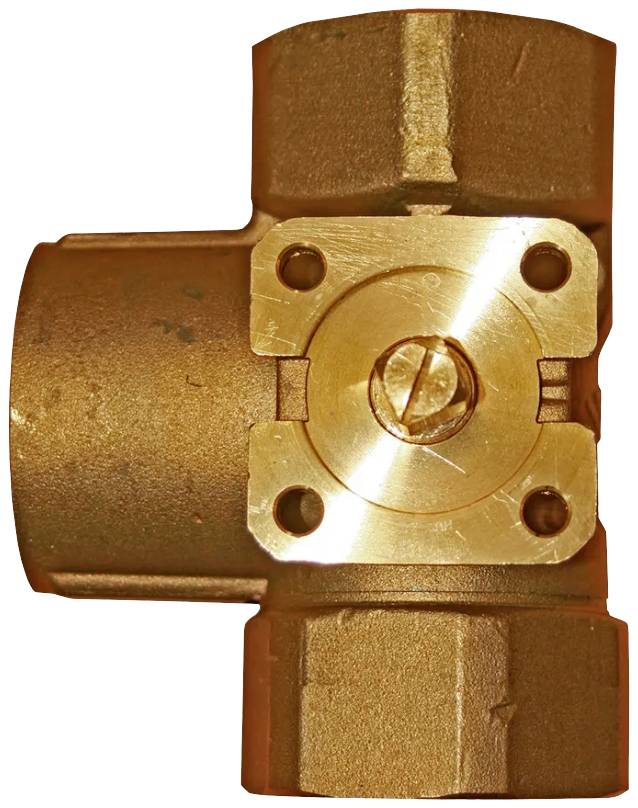

Glen Dimplex 364680 364680 3-way ball valve
EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Brass
- Material quality: Brass, zinc-resistant (DZR)
- Nominal diameter: DN 25
- Connection 1: Inner thread (metric)
- With coupling connection 1: No.
- Connection 2: Inner thread (metric)
- With coupling connection 2: No.
- Connection 3: Inner thread (metric)
- Print level item: PN 40
- Max. Pressure difference at 20 °C: 1.8 bar
- With coupling connection 3: No.
- Max. Operating pressure 10 bar
- Medium temperature (continuous operation): 0..100°C.
- Surface protection: Untreated
- Medically clean: No.
- Grease free: Yes
- Operation: Electric motor
- Seal: Ethylene propylene-Dien rubber (EPDM)
- Complete passage: Yes
- Ball bore: T-bore
- Angle Page 1 - Page 2: 90 °
- Angle Page 1 - Page 3: 90 °
- Kvs-value: 10
- Suitable for heating: Yes
- Suitable for cooling: Yes
- Product type
3-way ball valve
- Material
Brass
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159840 Glen Dimplex 364680 364680 3-way ball valve
Description
3-way ball valve with T-drill can be used universally in closed circuits as a mixer, e.g. in the heating circuit as pre-temperature mixer and as a mixer in bi-valently-regenerative linking. Ball valve made of brass with internal thread connections. Functional accessories: Actuator EMA DWK.
