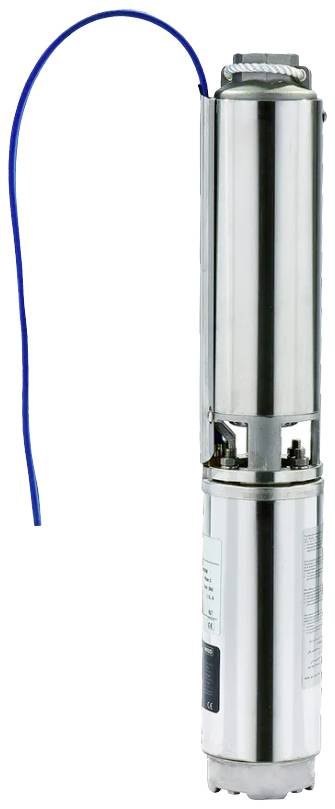

Glen Dimplex 364730 Submersible pump 3.2 m³/h 0.3 kW 2.8 bar
EAN:
Part number:
Item no:
Technical specifications
- Material of pump housing: Stainless steel
- Material quality of pump housing: Stainless steel 304 (1.4301)
- Material of blower wheel/impeller: Other
- Material quality Blower wheel/impeller: Other
- Volume flow (BEP): 3.2 m³/h.
- Volume flow delivery height (BEP): 26 kPa
- Max. delivery head 26 m
- Max. Operating pressure 2.8 bar
- Electrical connection: Cable
- Cable length 15 m
- Rated voltage 380..415 V
- Number of phases: 3
- Frequency: 50 Hz
- Nominal current: 0.52 A
- Engine output power (P2): 0.25 kW
- Insulation class IEC: B
- Speed 2900 1 rpm
- Motor speed control: External (not included)
- Type of speed control: Controlled in fixed steps
- Medium temperature (continuous operation): 3..40°C.
- Outlet side connection: Internal thread (metric)
- Nominal diameter, outlet side connector: 1 1/4 in. (32)
- Connection standard outlet side:EN 1092-2
- With non-return valve: Yes
- Diameter pump: 98 mm
- Length of pump and motor: 513 mm
- Immersion depth: 0.22 m
- Min Drill hole diameter 125 mm
- Max. Sand content: 0 g/m³
- Weight: 10 kg
- Protection class (IP) IP68
- Product type
Submersible pump
0.3 kW
- Pressure connection
G1"
- Max. operating pressure
2.8 bar
- Max. feed rate
3.2 m³/h
- Max. delivery head
26 m
IP68
- Weight
10 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159846 Glen Dimplex 364730 Submersible pump 3.2 m³/h 0.3 kW 2.8 bar
Description
High-efficiency well pump with stainless steel housing for low power consumption (motor power consumption 0.3 kW) and high number of work. Can be used in the cold-water cycle (primary circuit) of a water/water heat pump up to 10 kW, max. Delivery height 26 m, operating temperature range +3 °C to +40 °C, max. Diameter of well pump 100 mm, pressure port Rp 1 "
, Power connection, 3/PE ~400 V, 50 Hz, including connection cable 4 x 1.5 mm² (length 15 m), protection class IP 68. Delivery height max. 11 m at a volume flow of 3.2 m3/h.
This text is machine translated.
, Power connection, 3/PE ~400 V, 50 Hz, including connection cable 4 x 1.5 mm² (length 15 m), protection class IP 68. Delivery height max. 11 m at a volume flow of 3.2 m3/h.
This text is machine translated.
