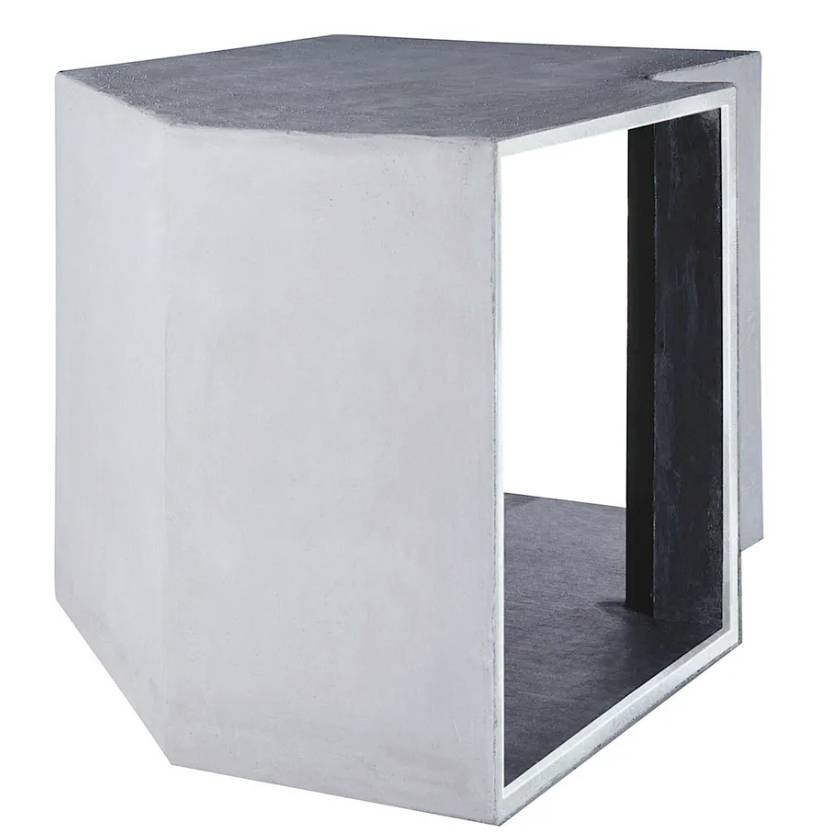

Glen Dimplex 366170 Bend Grey
EAN:
Part number:
Item no:
Technical specifications
- Design: Double-walled channel insulated
- Material of channel: Other
- Material Quality Channel: Other
- Wall thickness channel 22 mm
- Material of insulation: Stone wool
- Insulation thickness 10 mm
- Surface protection external: Cement
- Surface protection inside: Other
- Perforated inner wall: No.
- Outer color: Grey
- Channel nominal width 769 mm
- Rated height channel 769 mm
- Connection 1: Other
- Connection 2: Other
- With slider profile: No.
- With slide-on terminal: No.
- Design outer arc: Segment arc
- Interior curve design: Segment curve
- Ventilation blade: No.
- Direction change: Horizontal
- Angle of sheet: 90 °
- Max. Medium temperature (continuous operation): 60 °C.
- Embeddable in concrete: No.
- Anti-static version: Yes
- Product type
Bend
- Max. temperature
60 °C
- Factory colour
Grey
- Type
Double-walled channel insulated
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3158910 Glen Dimplex 366170 Bend Grey
Description
Optimized air duct, suitable for air flow from internally positioned air/water heat pumps
Connector system consisting of 4 glass fiber reinforced concrete side panels with a heat and sound-insulated inner side to prevent condensation and to significantly reduce the sound transmission (sound insulation measure ~1 dB(A) per lfm, arc ~3 dB(A)). 2 end frames provide for additional stability of the air duct and allow easy assembly of the side parts. The channels must be protected against impact and can be suspended by the customer or painted with water-resistant dispersion paint if required. Supplied with multiforce adhesive.
This text is machine translated.
Connector system consisting of 4 glass fiber reinforced concrete side panels with a heat and sound-insulated inner side to prevent condensation and to significantly reduce the sound transmission (sound insulation measure ~1 dB(A) per lfm, arc ~3 dB(A)). 2 end frames provide for additional stability of the air duct and allow easy assembly of the side parts. The channels must be protected against impact and can be suspended by the customer or painted with water-resistant dispersion paint if required. Supplied with multiforce adhesive.
