Buy Glen Dimplex 367800 367800 Splitter

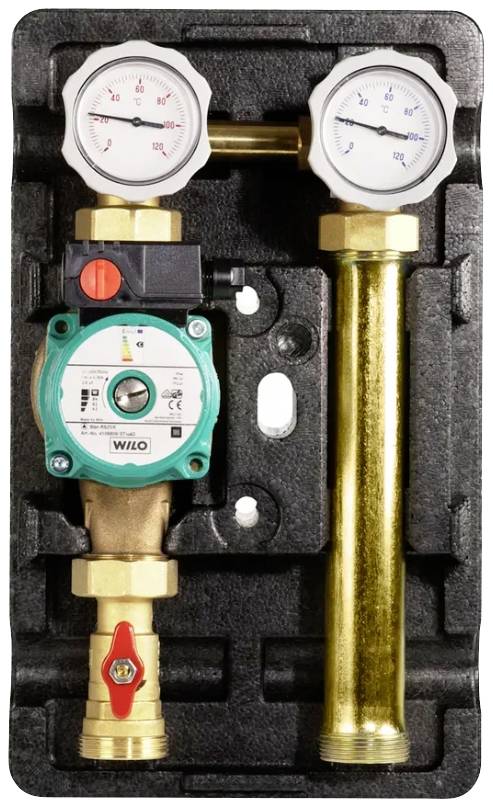

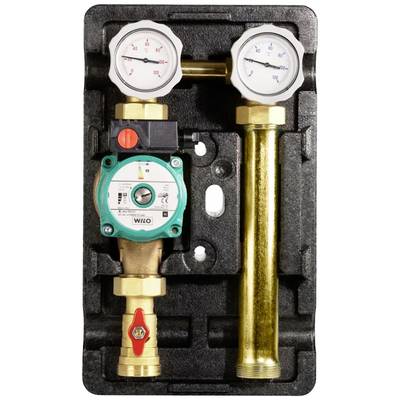

Heating pump unit with two manometers and pump, installed in a black housing. Indicators display pressure in red and blue.

Glen Dimplex

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Material jacket: Plastic
Material: Fittings: Brass
Material: Stainless steel
Primary connection: Outside thread (metric)
Primary nominal diameter: 1 1/2 in. (40)
Secondary connection: Internal thread (metric)
Nominal diameter secondary: 1 1/4 in. (32)
Pump connection: Internal thread (metric)
Size of pump connection: 2 in. (50)
Max. Operating pressure 6 bar
Medium temperature 5..95°C
Thermometer display range 0..120°C.
Suitable for cooling: No.
Suitable for heating: Yes
Suitable for glycol: Yes
Suitable for ethanol: Yes
Design: Unmixed heating circuit
With adapter for heat meter: No.
With heat meter: No.
In-built circulation pump: No.
High-efficiency pump (according to EC 547/2012 and EC 641/2009): No.
Mounting length of pump: 180 mm
With pressure gauge: No.
With control valve: No.
With shut-off valve: Yes
With check valve: Yes
With safety valve: No.
With thermometer: Yes
Drain cock: No.
With mixer motor: No.
Suitable for servo motors: No.
With three-way valve: No.
With pump ball valve: Yes
With connection temperature sensor: No.
With connection expansion tank: No.
With automatic ventilation: No.
Wall setup: Yes
With wall mounting bracket: Yes
With feet: No.
With differential pressure control: No.
Flow direction: Right
With heat insulation: Yes
Heating circuit controller expandable: No.
Distribution bars expandable: Yes
Heat exchanger expandable: No.
Width 250 mm
Height: 420 mm
Depth: 250 mm

Product type: Splitter

Dim: (W x H x D) 250.00 x 420.00 x 250.00 mm

Height: 420.00 mm

Depth: 250.00 mm

Width: 250.00 mm

Type: Unmixed heating circuit

Max. temperature: 95 °C

Min. temperature: 5 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3159792 Glen Dimplex 367800 367800 Splitter

Description

Combined module with insulating shells for connecting hot water or swimming pool preparation. Applicable for a heating water flow up to max. 2.5 m³/h (WWM 25) or 3.5 m3/h (WWM 32). Consists of two ball valves with non-return valve, 2 integrated thermometers, pump ball valve, insulating shells, possibility to install circulation pump, Marking 180 mm, which is to be designed after the pressure loss of the heating system (not included in delivery).
