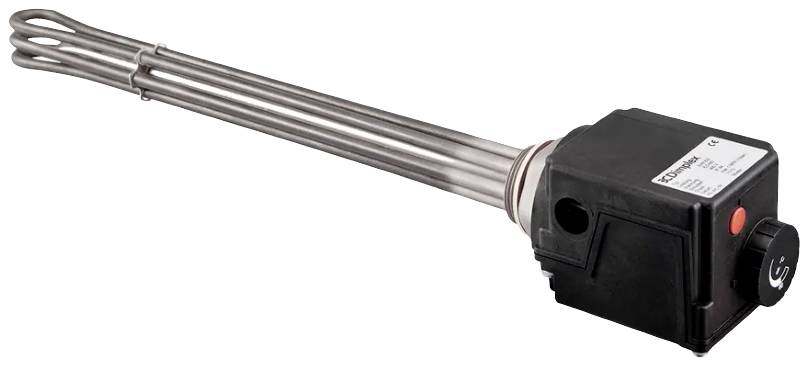

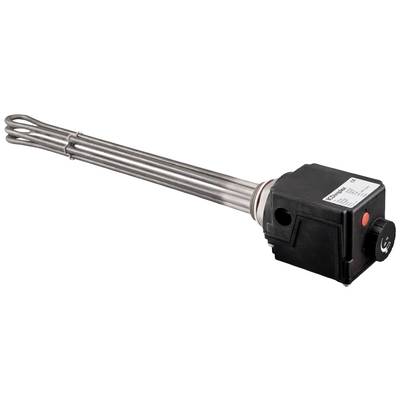

Glen Dimplex 370060 370060
EAN:
Part number:
Item no:
Technical specifications
- Connected load 6 kW
- Nominal voltage 1 400 V
- Nominal voltage 2 400 V
- Design: One-circuit
- Connection type: screw terminals.
- Immersion depth: 445 mm
- Operating pressure 6 bar
- Material of heating element: Stainless steel
- Temperature setting 30..75°C
- Safety temperature limiter: Yes
- Product type
In-line heater
- Type
One-circuit
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159807 Glen Dimplex 370060 370060
Description
For the electrical additional heating in enameled hot-water storage tanks
Consists of individual radiators with temperature control, adjustable from 30°C to 75°C incl. safety temperature limiter, protection class IP 44, 1 "
SURFACE Due to the available leakage resistance (insulated installation) suitable for all enameled hot-water storage systems (WWSP) with connection sockets 1 "
.
This text is machine translated.
Consists of individual radiators with temperature control, adjustable from 30°C to 75°C incl. safety temperature limiter, protection class IP 44, 1 "
SURFACE Due to the available leakage resistance (insulated installation) suitable for all enameled hot-water storage systems (WWSP) with connection sockets 1 "
.
This text is machine translated.
