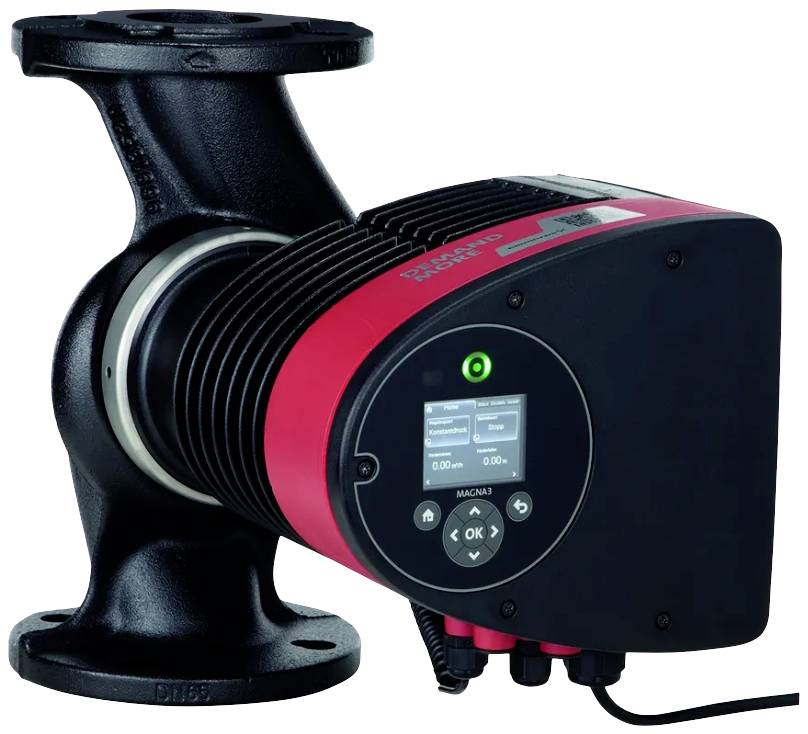

Glen Dimplex 371800 Circulation pump 25 m³/h 0.27 kW 10 bar
EAN:
Part number:
Item no:
Technical specifications
- Pump housing material: Cast iron
- Material quality of pump housing: Cast iron GG 25 (GJL-250)
- Material of blower wheel/impeller: Other
- Material quality Blower wheel/impeller: Other
- Volume flow (BEP): 8 m³/h.
- Volume flow delivery height (BEP): 7 kPa
- Max. Pump volume: 25 m³/h.
- Max. lifting height 8.2 m
- Max. Operating pressure 10 bar
- Double pump: No.
- Electrical connection: Connection terminals
- Cable length 0 m
- Rated voltage 220..240 V
- Number of phases: 1
- Frequency: 50 Hz
- Nominal current: 1.2 A
- Engine power absorbed (P1): 0.27 kW
- Pump Power Consumption (solpump): 17 W.
- Pump power consumption in standby mode (solststand-by pump): 17 W.
- Energy efficiency class (EEI): 0.18
- Insulation class IEC F
- Pump circuit: Other
- Motor speed control: Integrated
- Type of speed control: Infinitely variable
- Communication: Integrated and prepared
- Wireless standard Bluetooth: No.
- Wireless standard WLAN 802.11: No.
- Radio standard 2G / 3G / 4G: No
- Wireless standard 5G: No
- Interface signal 0-10 V / 2-10 V: Yes
- Interface signal 0-20 mA / 4-20 mA: Yes
- Interface PT100 / PT1000 / PTC: No.
- Pulse Width Modulation (PWM) interface: No.
- Interface: Pulse counter: Yes
- Potential-free switch contact: No.
- With RS-485 communication interface: No.
- With RS-232 communication interface: No.
- Supports protocol for Ethernet/IP: No.
- Supports protocol for KNX: No.
- Supports protocol for PROFIBUS: No.
- Supports protocol for PROFINET IO: No.
- Supports protocol for CAN/CANopen: No.
- Supports protocol for Modbus TCP: No.
- Supports protocol for Modbus RTU: No.
- Supports protocol for BACnet MS/TP: No.
- Supports protocol for BACnet IP: No.
- Supports protocol for LON/LonWorks: No.
- Supports protocol for LIN Bus: No.
- Medium temperature (continuous operation): -10..110°C
- Surrounding temperature 0 to .40 °C
- Inlet side connection: Flange
- Diameter, inlet side connection: DN 40
- Flange inlet pressure stage: PN 10
- Outlet side connection: Flange
- Nominal diameter, outlet side connector: DN 40
- Pressure stage flange connection outlet side: PN 10
- Flange shape: Round
- Mounting length 220 mm
- Protection type (IP): IPX4D
- Product type
Circulation pump
- Operating voltage
230 V
0.27 kW
- Hose connector
DN 40
- Pressure connection
DN 40
- Max. operating pressure
10 bar
- Max. feed rate
25 m³/h
- Max. delivery head
8.2 m
- Recess length
22 cm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159762 Glen Dimplex 371800 Circulation pump 25 m³/h 0.27 kW 10 bar
Description
High-efficiency heat circulation pump to ensure the minimum heat water flow through the heat pump, delivery height 7 m at a volume flow of 8.0 m3/h, fixed speeds are stored, control of the pump with 0-10 V input signal is possible, sampling rate 220 mm, connection of flange DN 40
Incl. Heat insulation shells
Connection voltage 1/N/PE ~ 230 V, 50 Hz.
This text is machine translated.
Incl. Heat insulation shells
Connection voltage 1/N/PE ~ 230 V, 50 Hz.
