Glen Dimplex 374750 374750
EAN:
Part number:
Item no:
Technical specifications
- Suitable for valves: Yes
- Suitable for ventilation fittings: No.
- Power voltage 230 V AC
- Communication protocol: Without
- Power consumption in operation: 2 W
- Linear format:
- Control type on/off: No.
- Modulation control type: No.
- Control type Split-Range: No.
- Length of connection cable 1 m.
- Transmission: With gears
- Connection to valve: Branded
- With head flange Direct-Mount according to ISO 5211: Yes
- With zero voltage reverse: No.
- Type of safety function: Other
- Operating mode of the safety function: Other
- Automatic lift detection: No.
- Adjustable status report: No.
- Auxiliary contacts: No.
- Status message: None
- Auxiliary contacts optional: No.
- End contacts: Without
- Adjustable work area: No.
- With mechanical status indicator: Yes
- Suitable for manual operation: Yes
- Running time 120 seconds
- Torque: 5 Nm
- Potential-free switch contact: No.
- Max. Rotation angle 90 °
- With security function: No.
- Protection class (IP) IP54
- Max. Electric power consumption 4.5 VA
- Permissible relative humidity: 95%
- Ambient temperature -10..55°C
- Height: 127 mm
- Width 70 mm
- Depth: 138 mm
- Explosion-proof: No.
- Housing material: Plastic
- Product type
Actuator
IP54
- Dim
(W x H x D) 70.00 x 127.00 x 138.00 mm
- Height
127.00 mm
- Depth
138.00 mm
- Width
70.00 mm
- Material
Plastic
- Type
linear
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159778 Glen Dimplex 374750 374750
Description

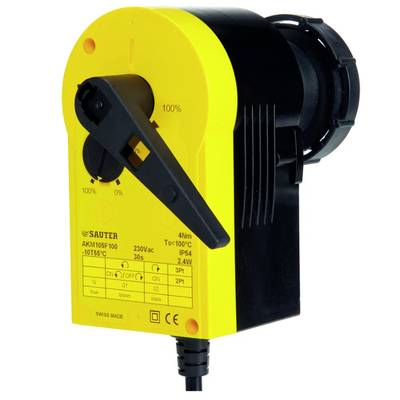

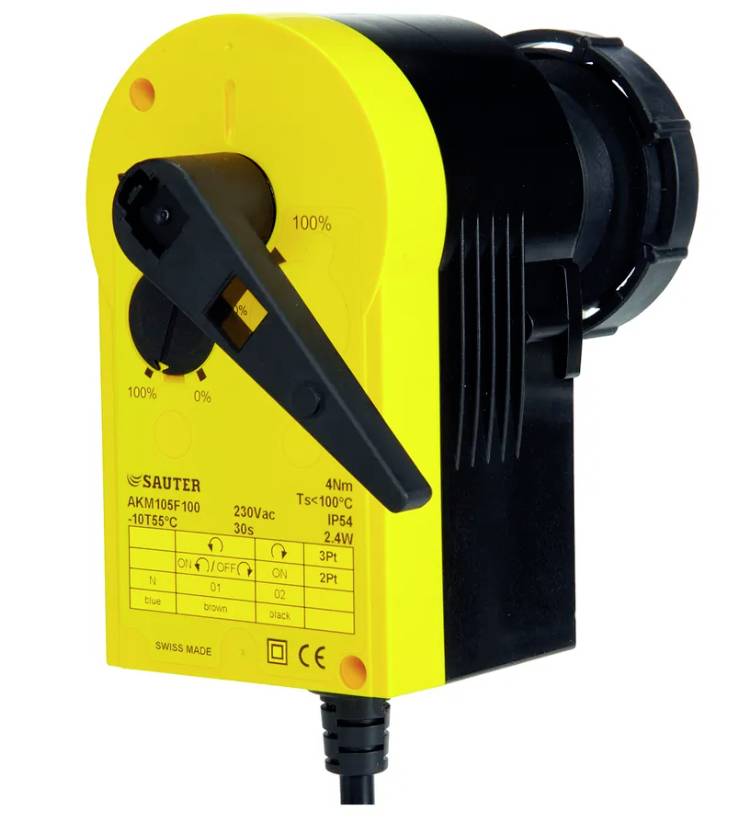

Actuator for 3-way ball cocks DWK, 2/3-point control signal, ~230 V, 50 Hz for switching times of 120 s (angle of rotation 90 °) at 50 Hz. Delivery includes cable, length 1m.
