Glen Dimplex 381630 381630
EAN:
Part number:
Item no:
Technical specifications
- Design: Other
- Product type
Connector kit
- Type
others
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159809 Glen Dimplex 381630 381630
Description

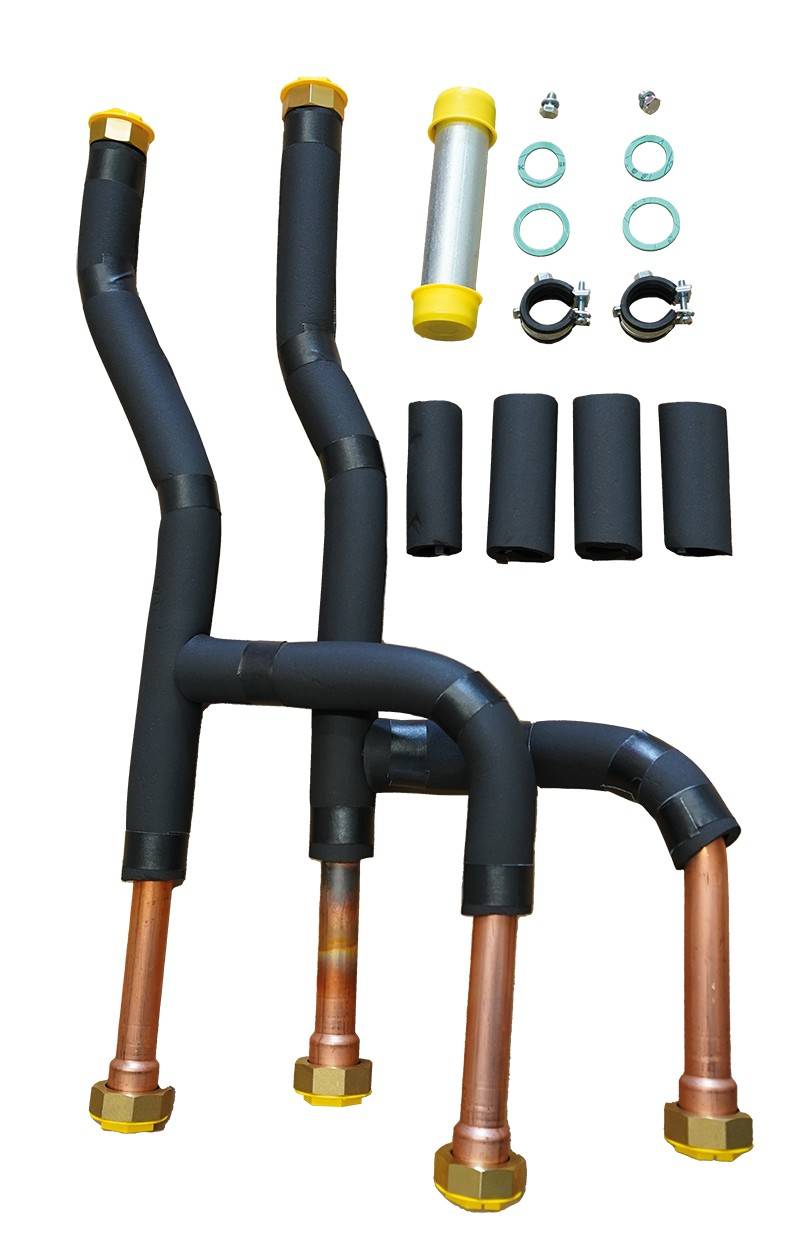

The pipe assembly, which can be screwed directly into the internal unit of the heat pump, consists of two specially curved, insulated pipes with transition pieces for the connection of two heating circuits and coordinated to the air/water heat pump M Flex with cooling function. With these pipe assemblies guided from the top of the heat pump (G 1 "
IG), a connection of the heating circuit modules MHUC 25 or MHMC 25Flex is possible. Supplied with 180 mm spacer for installation in the internal unit of the heat pump (replacement for M13 heating circulation pump).
This text is machine translated.
IG), a connection of the heating circuit modules MHUC 25 or MHMC 25Flex is possible. Supplied with 180 mm spacer for installation in the internal unit of the heat pump (replacement for M13 heating circulation pump).
This text is machine translated.
