Glen Dimplex M99010 M99010 Pipe set
EAN:
Part number:
Item no:
Technical specifications
- Material jacket: Plastic
- Material: Fittings: Brass
- Material: Pipework: Brass
- Primary connection: Internal thread (metric)
- Primary nominal diameter: 1 in. (25)
- Secondary connection: Internal thread (metric)
- Nominal diameter secondary: 1 1/2 in. (40)
- Pump connection: Internal thread (metric)
- Size of pump connection: 1 1/2 in. (40)
- Max. Operating pressure 6 bar
- Medium temperature 7..95°C
- Thermometer display range 0..90°C.
- Suitable for cooling: Yes
- Suitable for heating: Yes
- Suitable for glycol: Yes
- Suitable for ethanol: Yes
- Design: Mixed heating circuit
- With adapter for heat meter: No.
- With heat meter: No.
- In-built circulation pump: No.
- High-efficiency pump (according to EC 547/2012 and EC 641/2009): Yes
- Mounting length of pump: 180 mm
- With pressure gauge: No.
- With control valve: No.
- With shut-off valve: Yes
- With safety valve: No.
- With thermometer: Yes
- Drain cock: No.
- With mixer motor: Yes
- Suitable for servo motors: Yes
- With three-way valve: Yes
- With pump ball valve: Yes
- With connection temperature sensor: Yes
- With connection expansion tank: No.
- With automatic ventilation: No.
- Wall setup: Yes
- With wall mounting bracket: Yes
- With feet: No.
- With differential pressure control: No.
- Flow direction: Left
- With heat insulation: Yes
- Heating circuit controller expandable: No.
- Distribution bars expandable: Yes
- Heat exchanger expandable: No.
- Width 250 mm
- Height: 420 mm
- Depth: 250 mm
- Product type
Pipe set
- Dim
(W x H x D) 250.00 x 420.00 x 250.00 mm
- Height
420.00 mm
- Depth
250.00 mm
- Width
250.00 mm
- Type
Mixed Heating circuit
- Max. temperature
95 °C
- Min. temperature
7 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3135614 Glen Dimplex M99010 M99010 Pipe set
Description

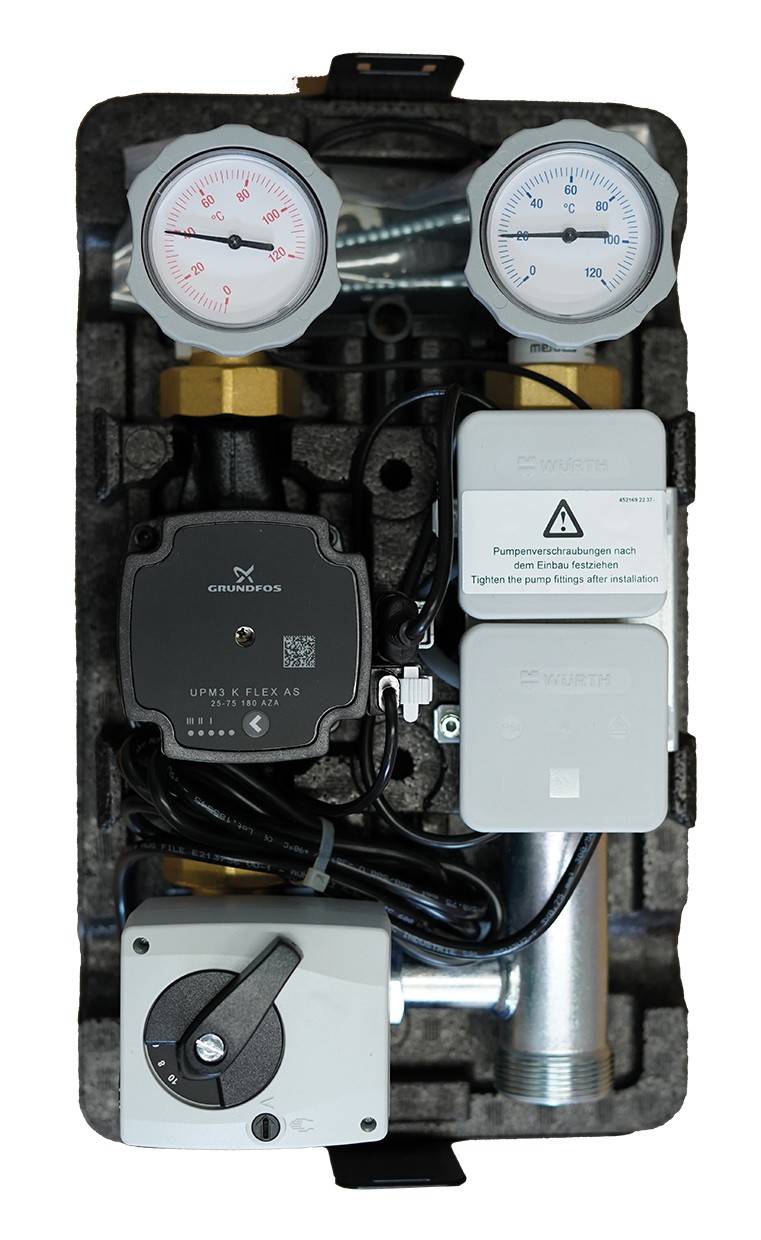

Ready-to-connect pre-assembled module for mixed heating circuit DN 25 for heating and cooling applications (active, silent cooling). Can be used for a heating water flow up to max. 2.5 m³/h, heating circuit connection (1"
IG), heat generator circuit (G 1 1/2"
IG). Comprising of two ball valves with non-return valve and integrated thermometers for forward and heating return, pump ball valves, high-efficiency circulation pump XXX with PWM-input signal (pitch 180 mm), 3-way mixer with stepper motor (140 s running time, connection voltage ~230 V, protection class IP 40), insertion sensor NTC 10, insulated pipe and a damping bowl with white cover plate. Includes ready-to-plug pre-wired circulating pump, mixer and sensor (cable length XXX m) for direct connection to the heat pump manager.
This text is machine translated.
IG), heat generator circuit (G 1 1/2"
IG). Comprising of two ball valves with non-return valve and integrated thermometers for forward and heating return, pump ball valves, high-efficiency circulation pump XXX with PWM-input signal (pitch 180 mm), 3-way mixer with stepper motor (140 s running time, connection voltage ~230 V, protection class IP 40), insertion sensor NTC 10, insulated pipe and a damping bowl with white cover plate. Includes ready-to-plug pre-wired circulating pump, mixer and sensor (cable length XXX m) for direct connection to the heat pump manager.
This text is machine translated.
