Glen Dimplex M99032 M99032 Pipe set
EAN:
Part number:
Item no:
Technical specifications
- Material jacket: Plastic
- Material: Fittings: Brass
- Material: Pipework: Brass
- Primary connection: Internal thread (metric)
- Primary nominal diameter: 1 in. (25)
- Secondary connection: Internal thread (metric)
- Nominal diameter secondary: 1 1/2 in. (40)
- Pump connection: Internal thread (metric)
- Size of pump connection: 1 1/2 in. (40)
- Max. Operating pressure 6 bar
- Medium temperature 7..95°C
- Thermometer display range 0..90°C.
- Suitable for cooling: Yes
- Suitable for heating: Yes
- Suitable for glycol: Yes
- Suitable for ethanol: Yes
- Design: Mixed heating circuit
- With adapter for heat meter: No.
- With heat meter: No.
- In-built circulation pump: No.
- High-efficiency pump (according to EC 547/2012 and EC 641/2009): No.
- Mounting length of pump: 180 mm
- With pressure gauge: No.
- With control valve: No.
- With shut-off valve: Yes
- With safety valve: No.
- With thermometer: Yes
- Drain cock: No.
- With mixer motor: Yes
- Suitable for servo motors: Yes
- With three-way valve: Yes
- With pump ball valve: Yes
- With connection temperature sensor: Yes
- With connection expansion tank: No.
- With automatic ventilation: No.
- Wall setup: Yes
- With wall mounting bracket: Yes
- With feet: No.
- With differential pressure control: No.
- Flow direction: Left
- With heat insulation: Yes
- Heating circuit controller expandable: No.
- Distribution bars expandable: Yes
- Heat exchanger expandable: No.
- Width 250 mm
- Height: 420 mm
- Depth: 250 mm
- Product type
Pipe set
- Dim
(W x H x D) 250.00 x 420.00 x 250.00 mm
- Height
420.00 mm
- Depth
250.00 mm
- Width
250.00 mm
- Type
Mixed Heating circuit
- Max. temperature
95 °C
- Min. temperature
7 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3148445 Glen Dimplex M99032 M99032 Pipe set
Description

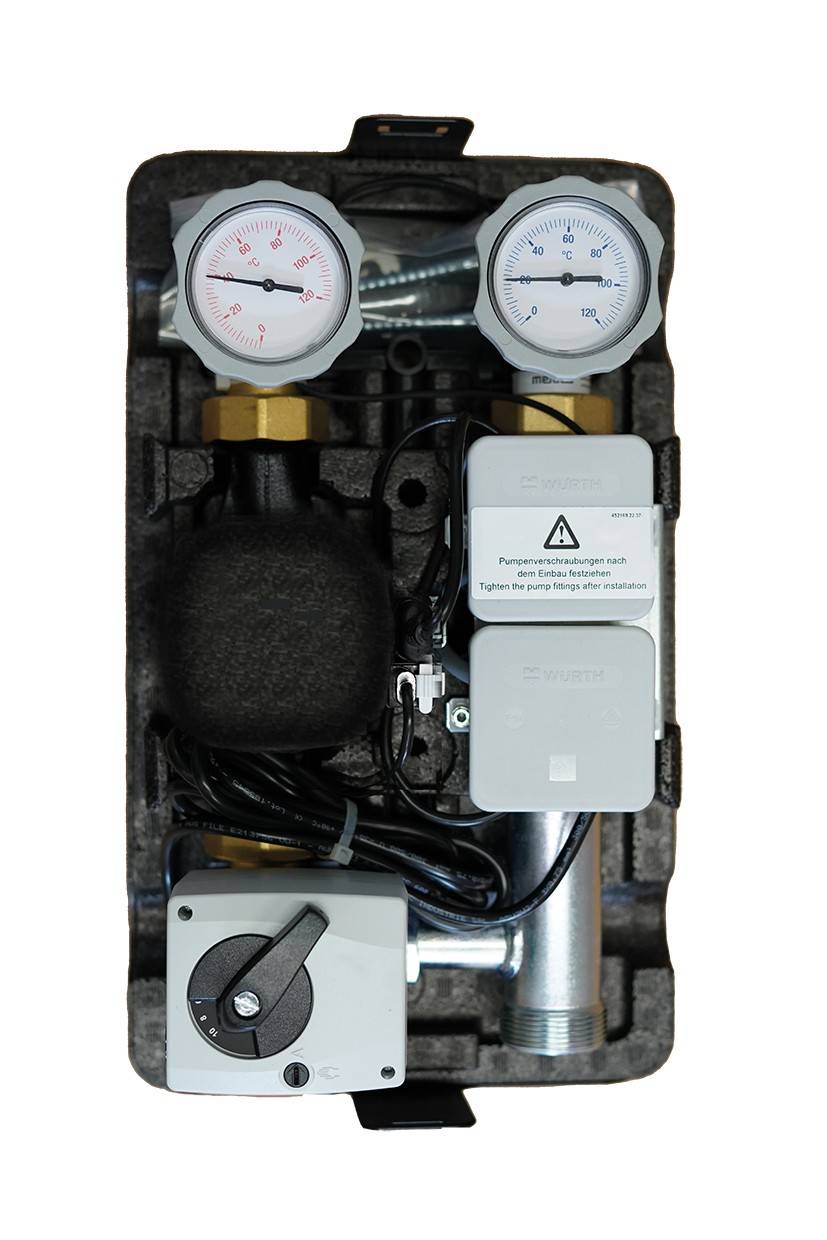

Ready-to-connect pre-assembled module for mixed heating circuit DN 25 for heating and cooling applications (active, silent cooling). Can be used for a heating water flow up to max. 2.5 m³/h, heating circuit connection (1"
IG), heat generator circuit (G 1 1/2"
IG). Comprising of two ball valves with non-return valve and integrated thermometers for forward and heating return, pump ball valves, 3-way mixer with stepper motor (140 s running time, connection voltage ~230 V, protection class IP 40), insertion sensor NTC 10, insulated pipes and a damping bowl with white cover plate. Includes ready-wired mixer and sensors for direct connection to the heat pump manager and ready to plug in. Electrical connection of the pump ready-to-plug pre-assembled - pump not supplied with the assembly (the M 13 consumer circuit pump, which is installed in the internal unit of the heat pump at the factory, must be installed in the MHMC 25Flex heating circuit module). Spacer 180 mm for installation in the inner unit included.
This text is machine translated.
IG), heat generator circuit (G 1 1/2"
IG). Comprising of two ball valves with non-return valve and integrated thermometers for forward and heating return, pump ball valves, 3-way mixer with stepper motor (140 s running time, connection voltage ~230 V, protection class IP 40), insertion sensor NTC 10, insulated pipes and a damping bowl with white cover plate. Includes ready-wired mixer and sensors for direct connection to the heat pump manager and ready to plug in. Electrical connection of the pump ready-to-plug pre-assembled - pump not supplied with the assembly (the M 13 consumer circuit pump, which is installed in the internal unit of the heat pump at the factory, must be installed in the MHMC 25Flex heating circuit module). Spacer 180 mm for installation in the inner unit included.
This text is machine translated.
