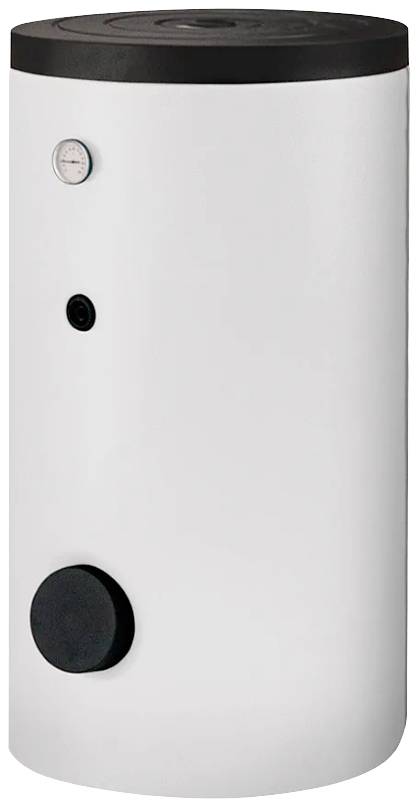

Glen Dimplex WWSP 442 WWSP 442 Warm water tank (free-standing) C (A - G)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class C
- Energy efficiency classes: A+ to F
- Material Sheath: Other
- Surface protection vessel: Enamelled
- Material of the boiler: Steel
- Content :400 l
- Max. operating temperature: 110 °C
- Max. Operating pressure 6 bar
- Material of insulating material: Polyurethane (PUR)
- With immersion tube: Yes
- Recirculation connection: No.
- With drain facility (connection): Yes
- Vertical placement: Yes
- Height: 1591 mm
- Diameter 700 mm
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 1 in. (25)
- Hot water connection: External thread
- Nominal diameter of hot water connection: 1 in. (25)
- Connection circulation cable: Internal thread
- Nominal diameter of circulation pipe: 3/4 in. (20)
- Product type
Warm water tank (free-standing)
- Operating voltage
0 V
- Height
1591.00 mm
- Manufacturer
Glen Dimplex
C (A - G)
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159782 Glen Dimplex WWSP 442 WWSP 442 Warm water tank (free-standing) C (A - G)
Description
Nominal capacity 400 l, capacity 352 l, exchange area 4.2 m², plain tube (inside) for a transmission capacity up to 20 kW, 3 adjustable feet, storage tank made of steel (inside specially enameled) with protective anode, max. Operating pressure 10 bar, PU insulation (elcosol) for low standby losses (1.97 kWh/24h), drinking water connections 1 Ag, 2 x circulation connection "
, Connection G 1 for additional heating CEHK (DFM 1988) and flange DN 110 for flange heating, temperature sensor NTC 10 for connection to the heat pump manager integrated, color white
This text is machine translated.
, Connection G 1 for additional heating CEHK (DFM 1988) and flange DN 110 for flange heating, temperature sensor NTC 10 for connection to the heat pump manager integrated, color white
