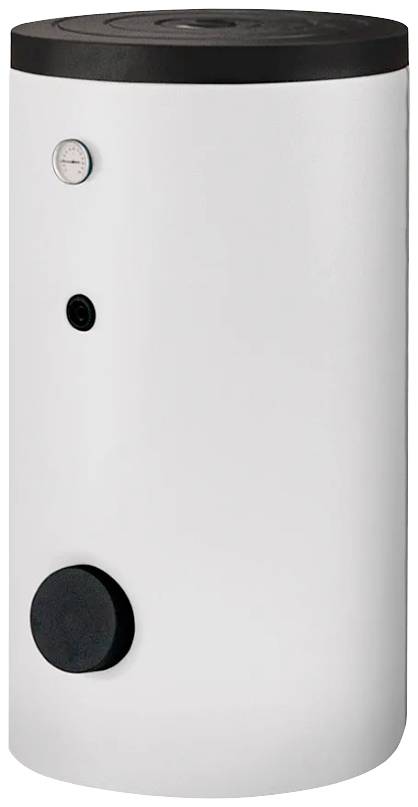

Glen Dimplex WWSP 556 WWSP 556 Warm water tank C (A - G)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class C
- Energy efficiency classes: A+ to F
- Material Sheath: Other
- Surface protection vessel: Enamelled
- Material of the boiler: Steel
- Content :500 l
- Max. operating temperature: 110 °C
- Max. Operating pressure 6 bar
- Material of insulating material: Polyurethane (PUR)
- With immersion tube: Yes
- Recirculation connection: No.
- With drain facility (connection): Yes
- Vertical placement: Yes
- Height: 1920 mm
- Diameter 700 mm
- Connection of cold drinking water: External thread
- Nominal diameter of cold drinking water: 1 in. (25)
- Hot water connection: External thread
- Nominal diameter of hot water connection: 1 in. (25)
- Connection circulation cable: Internal thread
- Nominal diameter of circulation pipe: 3/4 in. (20)
- Product type
Warm water tank
- Operating voltage
0 V
- Height
1920.00 mm
- Manufacturer
Glen Dimplex
C (A - G)
- Nominal voltage
0 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159849 Glen Dimplex WWSP 556 WWSP 556 Warm water tank C (A - G)
Description
Nominal capacity 500 l, capacity 430 l, trading area 5.7 m² for a transmission power up to approx. 30 kW, additional supports for screw-in heating CEHK, standby loss approx. 2.26 kWh / 24 h (94 W)
Temperature sensor NTC included in delivery.
This text is machine translated.
Temperature sensor NTC included in delivery.
This text is machine translated.
