GMKtec Mini PC K16-1 AMD Ryzen 7 680M 32GB+1TB AMD Ryzen 7 7735HS 4.75 GHz 32 GB RAM 1 TB SSD AMD Radeon 680M Graphics W
EAN:
Part number:
Item no:
Number
Total (€ 836.13 / piece)
€ 836.13
plus VAT.
Highlights & Details
GMKtec K16-1 AMD Ryzen 7 680M 32GB+1TB Mini PC
- AMD Ryzen 7 7735HS 8 core(s) / max. 4.75 GHz
- RAM: 32 GB LPDDR5 RAM 6400 MHz
- 1 TB SSD
- AMD Radeon 680M Graphics
- Windows® 11 Pro
- High-Performance Architecture: Equipped with an AMD Ryzen™ 7 7735HS processor featuring Zen 3+ architecture, 8 cores, and 16 threads.
- Powerful Graphics Engine: Integrates AMD Radeon™ 680M graphics (RDNA 2, 12 cores running up to 2200MHz), great for gaming and creative tasks.
- Ultra-Fast Next-Gen Memory: Standard configuration comes with 32GB on-board LPDDR5 RAM clocked at a blazing 6400MHz.

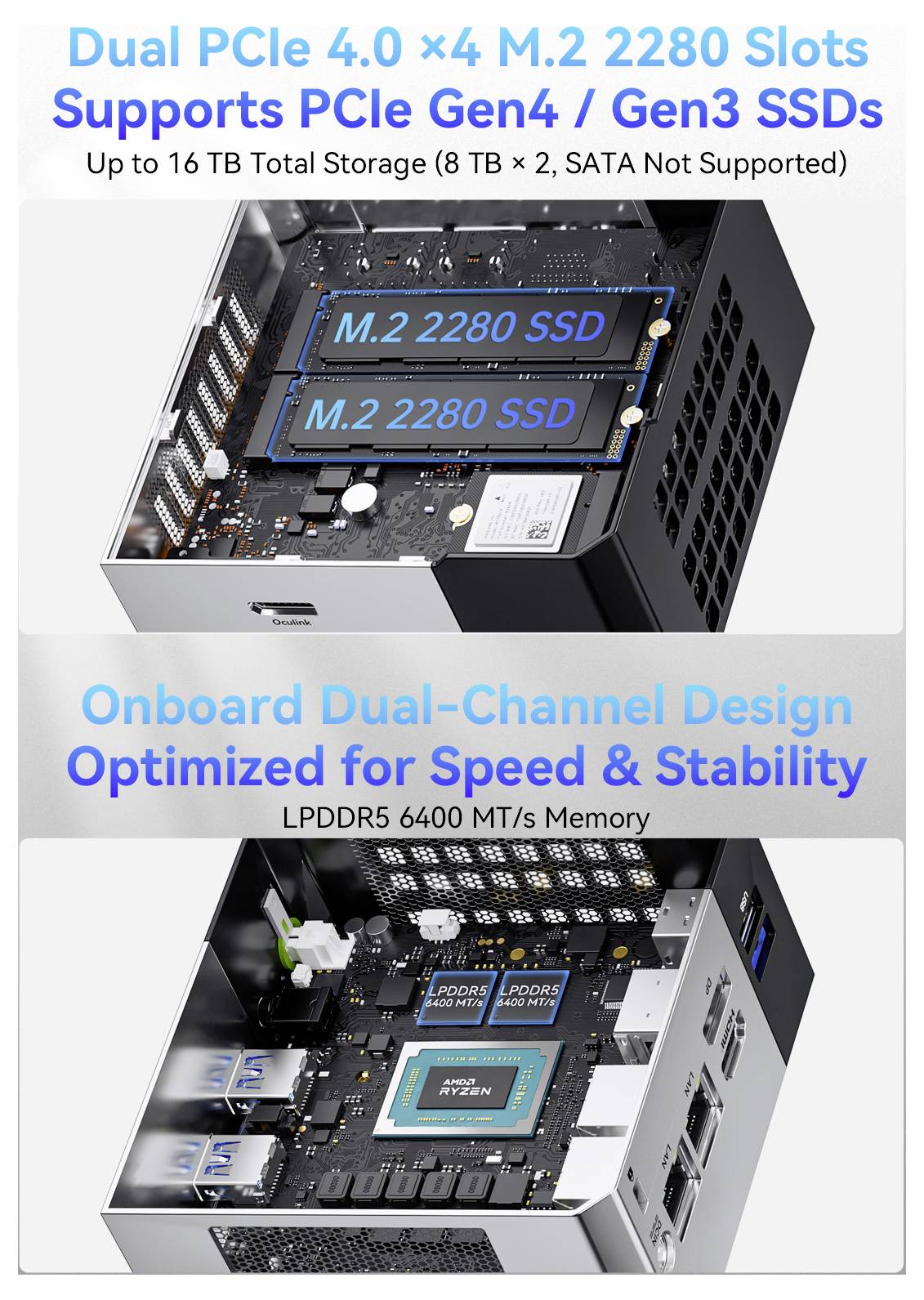

- Massive Storage Expansion Capability: Features dual M.2 2280 PCIe 4.0 x4 SSD slots, allowing expansion of up to 16TB total (8TB per slot).
- High-Speed OCulink Support: Includes a dedicated OCulink PCIe Gen4 x4 port to connect external graphics cards (eGPUs) at high bandwidth.
Technical specifications
- Product type
Mini PC
- Model
K16
- CPU series
AMD Ryzen 7
- CPU
AMD Ryzen 7 7735HS
- Processor/type
7735HS
- Processor cores (No.)
8 x
- CPU speed
3.2 GHz
- CPU turbo clock speed (max.)
4.75 GHz
- CPU cache
16 MB
32 GB
- RAM type
LPDDR5 RAM
- Memory clock speed
6400 MHz
- Onboard graphics card (GPU manufacturer)
AMD
- Onboard graphics card (version)
Radeon 680M Graphics
- SSD size (total)
1024 GB
- SSD 1 type
SSD
- SSD
1 TB
- SSD connection
M.2 PCIe
- HDD capacity (total)
0 GB
- Hard drive
0 GB
- Bluetooth
5.2
- Mobile internet
WiFi
- Keyboard layout
Keyboard not included
- No. of DisplayPort
1 x
- No. of Gigabit LANs
2 x
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
1 x
- No of. USB type A 3.1 /3.2 2nd gen
3 x
- No. of USB 3.0 ports
1 x
- Interfaces
Headphone jack (3.5 mm)
- Factory colour
Black
- Width
107 mm
- Height
63 mm
- Depth
111 mm
- Weight
590 g
- PSU power
120 W
- Software included
Windows 11 Pro
- Operating system (Version)
Windows® 11 Pro
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3778402 GMKtec Mini PC K16-1 AMD Ryzen 7 680M 32GB+1TB AMD Ryzen 7 7735HS 4.75 GHz 32 GB RAM 1 TB SSD AMD Radeon 680M Graphics W
Description

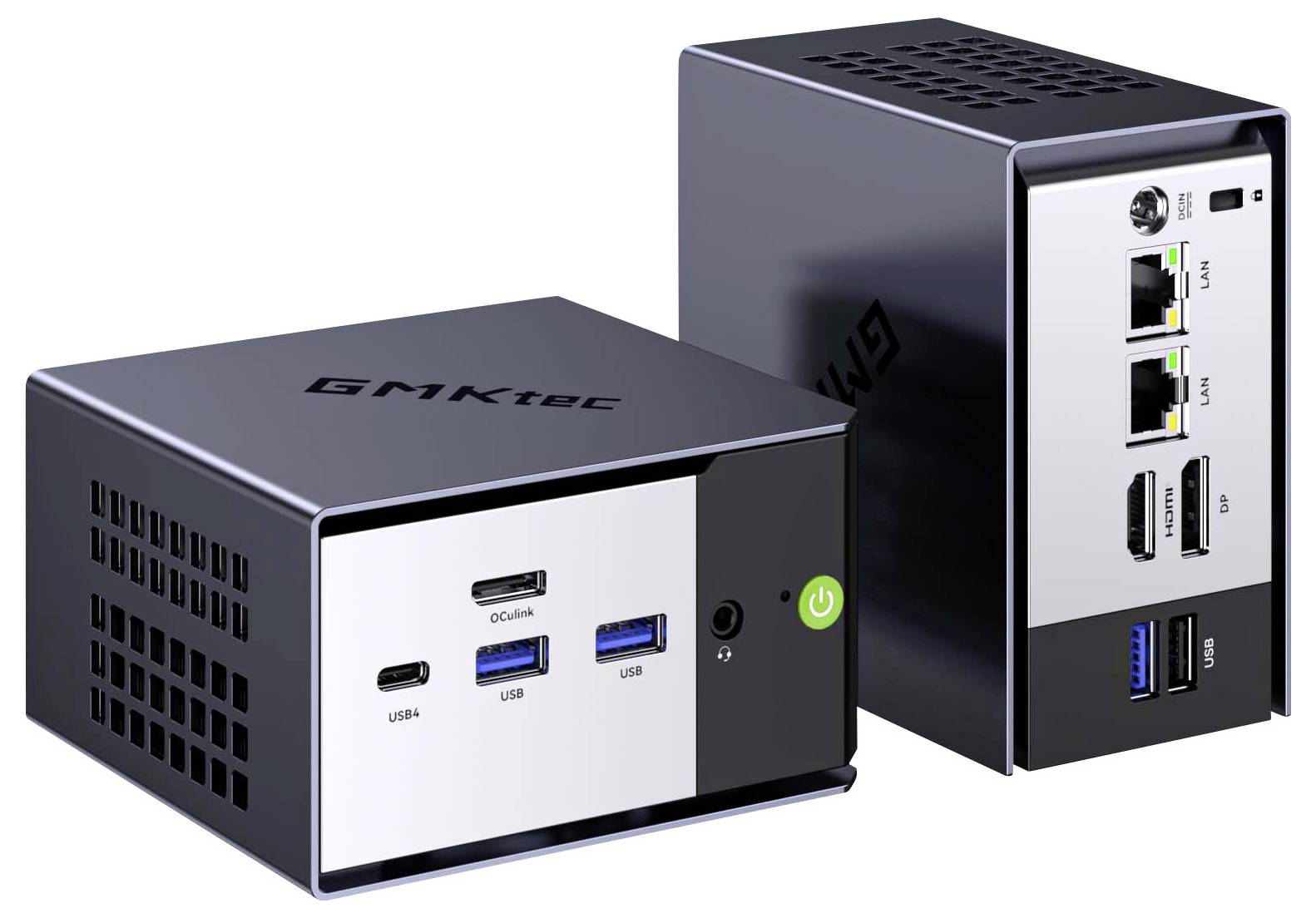

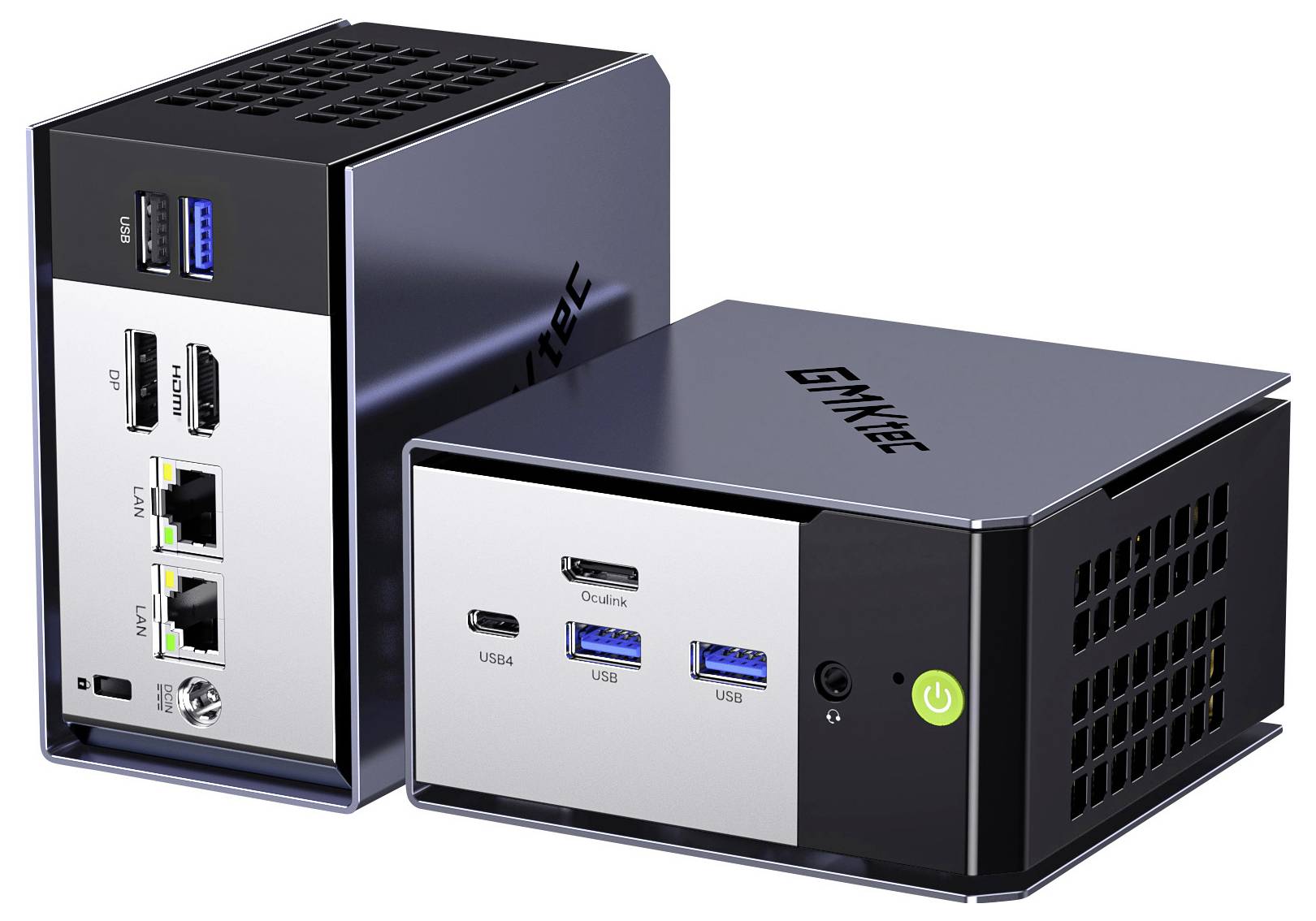

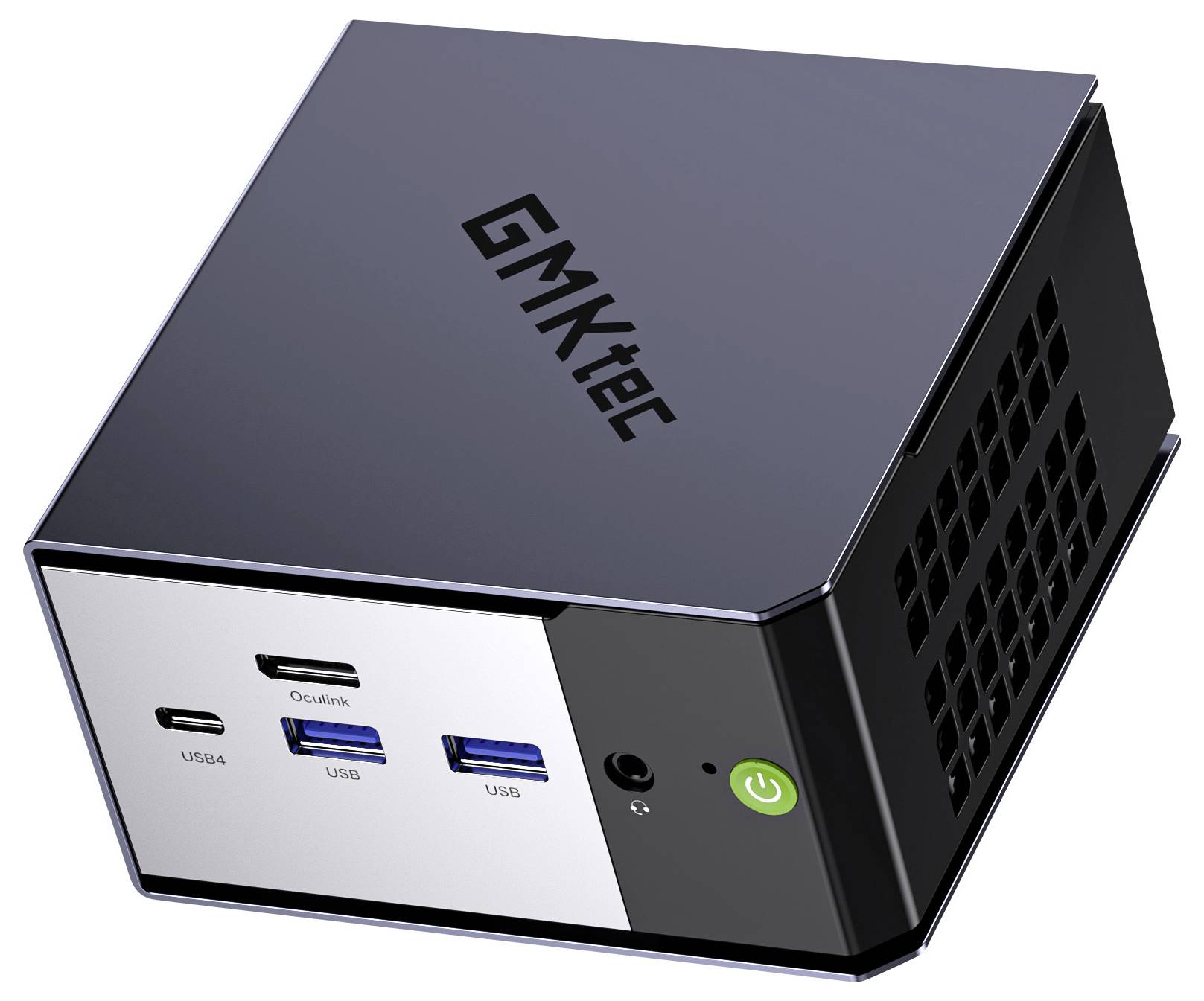

The GMKtec K16-1 mini PC in a compact metal housing is designed for users with a focus on graphics and computing power. Equipped with an AMD Ryzen 7 7735HS, 32 GB LPDDR5-RAM and a 1 TB SSD, it is optimally equipped for demanding projects.
Strong graphics performance
The integrated AMD Radeon 680M graphics card on RDNA 2 basis masters creative tasks reliably. In addition, an OCulink connection enables the low-latency integration of external graphics cards.

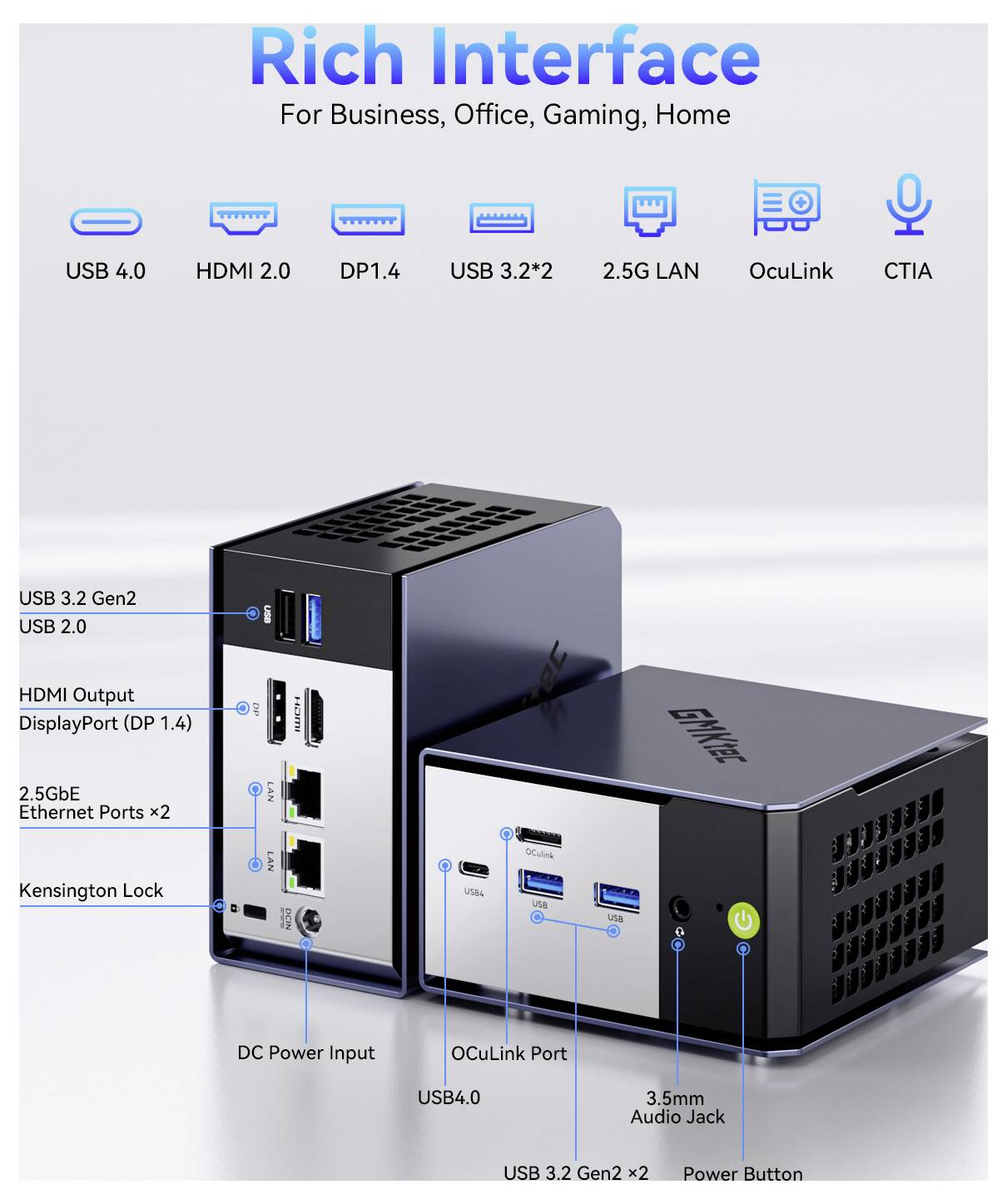

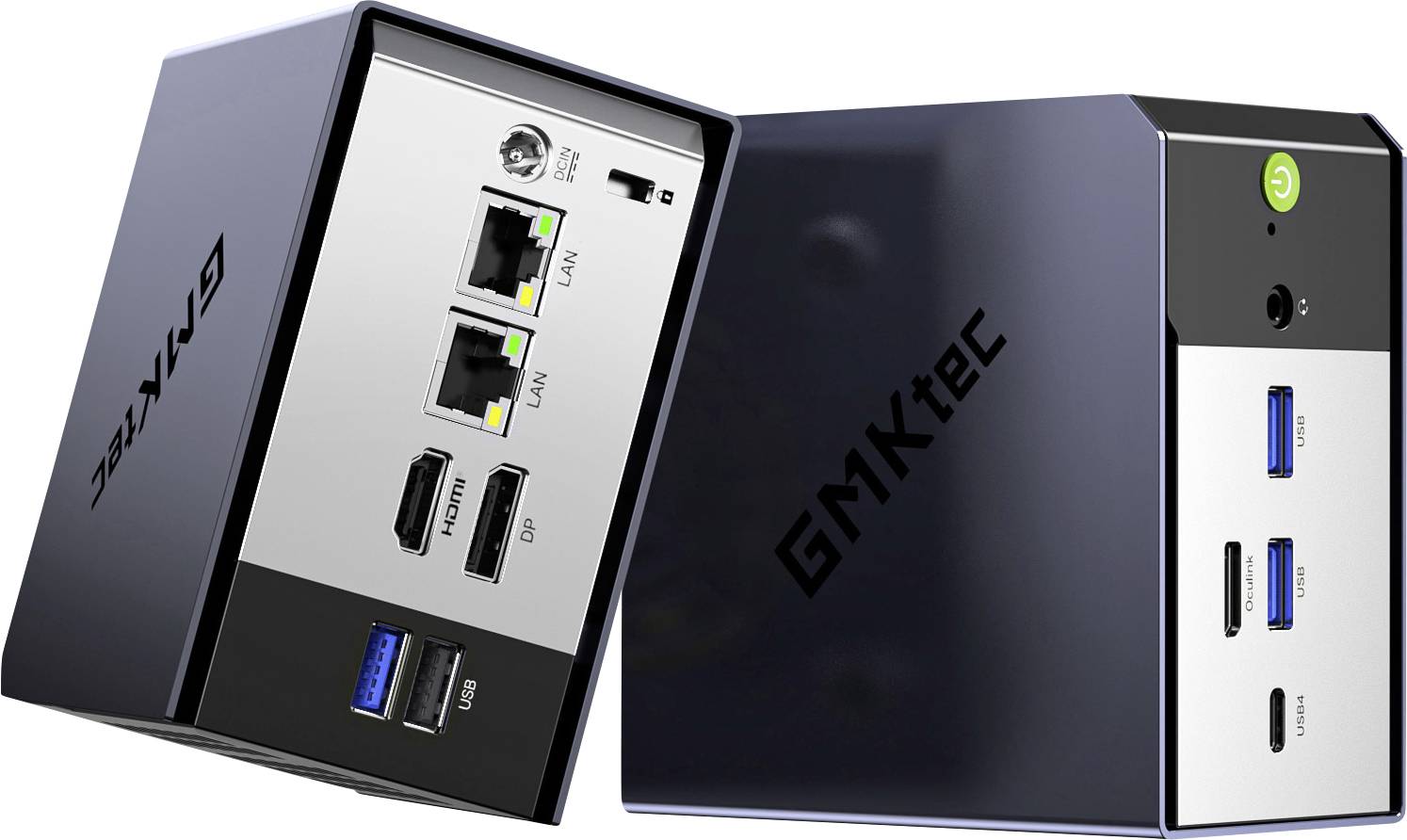

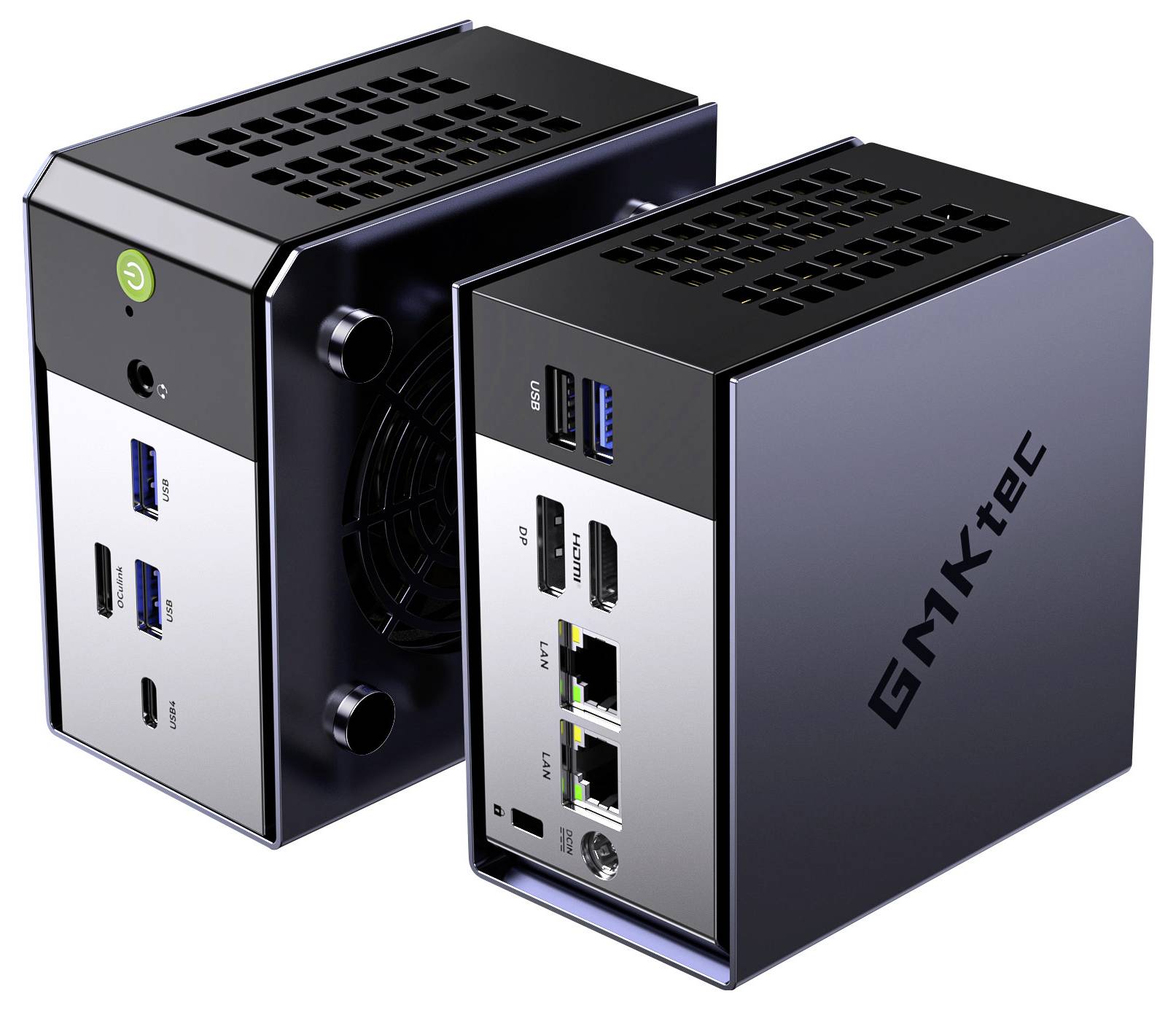

Extensive connectivity options
A full USB4 port supports high data rates, image output and Power delivery. Two 2.5G LAN ports also ensure secure, wired networking.
Flexible multi-monitor setups
Up to three monitors can be connected simultaneously via HDMI, DisplayPort and USB4 in order to optimize the workflow at the workplace.
This text is machine translated.
Strong graphics performance
The integrated AMD Radeon 680M graphics card on RDNA 2 basis masters creative tasks reliably. In addition, an OCulink connection enables the low-latency integration of external graphics cards.
Extensive connectivity options
A full USB4 port supports high data rates, image output and Power delivery. Two 2.5G LAN ports also ensure secure, wired networking.
Flexible multi-monitor setups
Up to three monitors can be connected simultaneously via HDMI, DisplayPort and USB4 in order to optimize the workflow at the workplace.
This text is machine translated.
Features

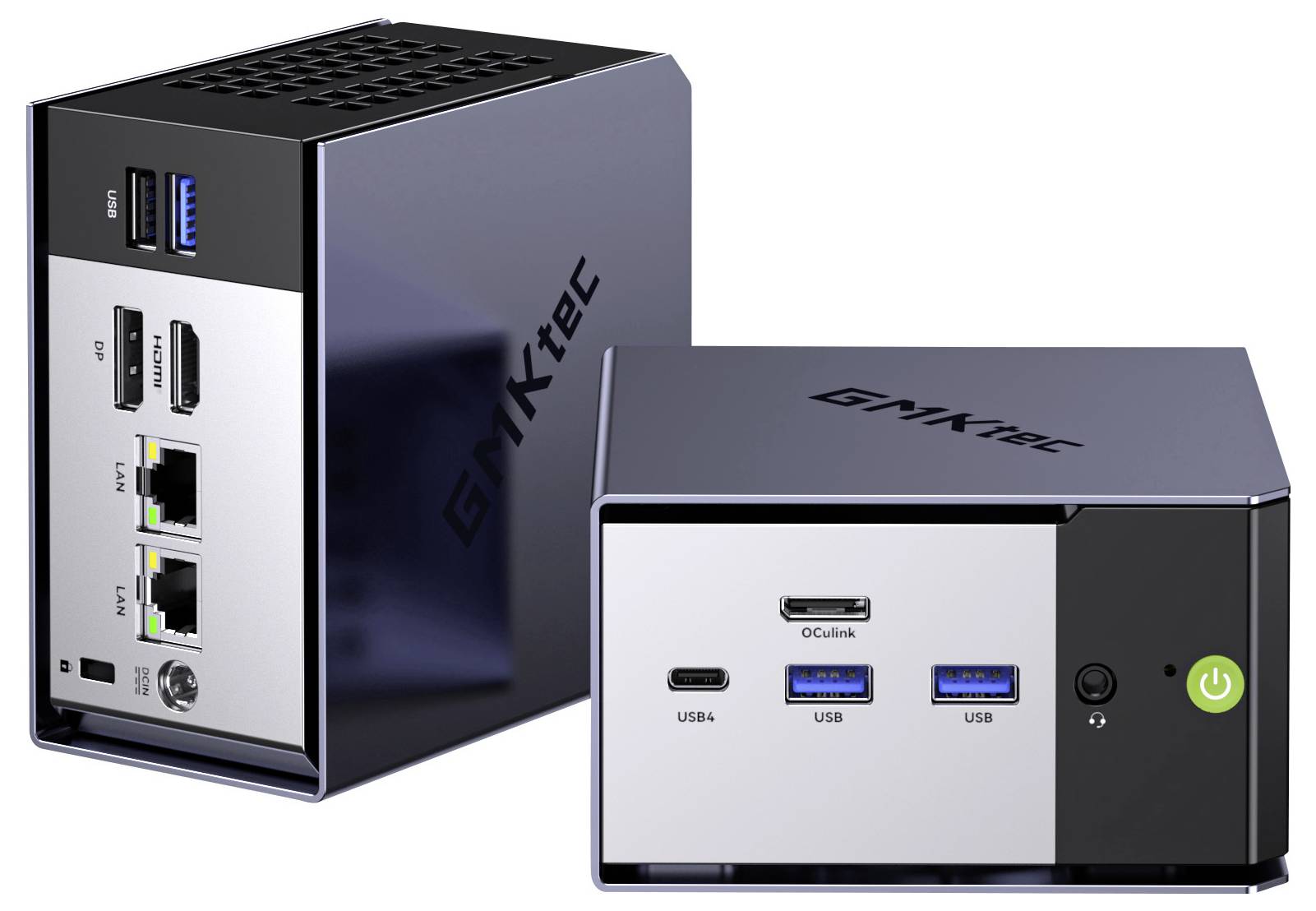

- Full-Function USB4.0: Features a rear full-featured USB4 port supporting 40Gbps data transfer, Power Delivery (up to 100W PD), and DisplayPort 1.4 output.
- Triple Display Output: Supports connecting up to three screens simultaneously via HDMI, DisplayPort, and USB4, accommodating resolutions up to 8K.
- Advanced Networking: Equipped with Wi-Fi 6E (up to 2.4Gbps bandwidth) and Bluetooth 5.2 for wireless connections, alongside dual 2.5G Ethernet LAN ports for secure, wired networking.
- Pre-installed Premium OS: Out of the box, it comes pre-loaded with Windows 11 Pro, supporting 14 major languages (defaulting to English).
- Compact, Portable Metal Build: Features a sturdy Metallic Gray chassis with a highly space-efficient footprint.

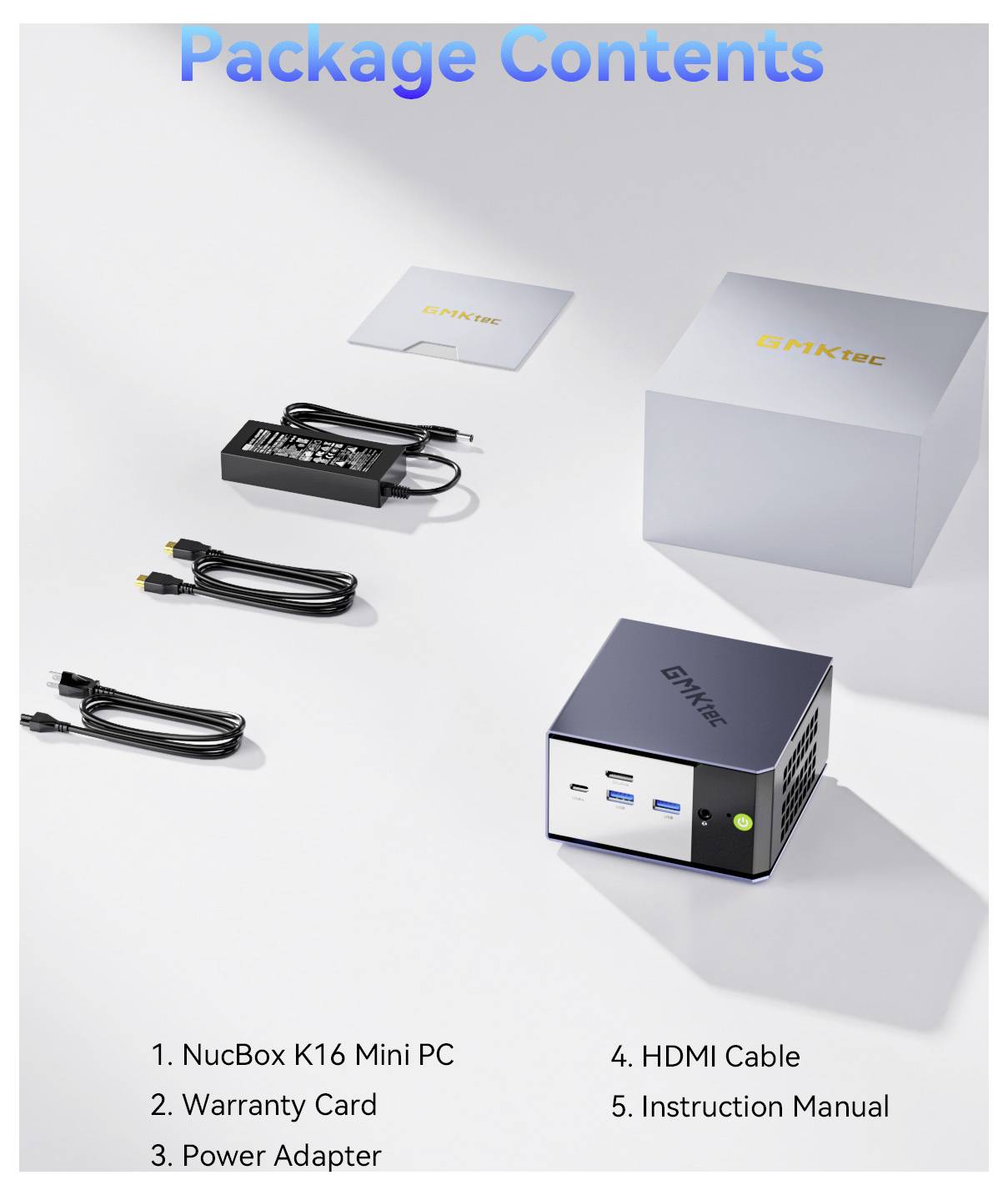

Scope of delivery
- GMKtec K16 Mini PC
- HDMI cable
- Power adapter
