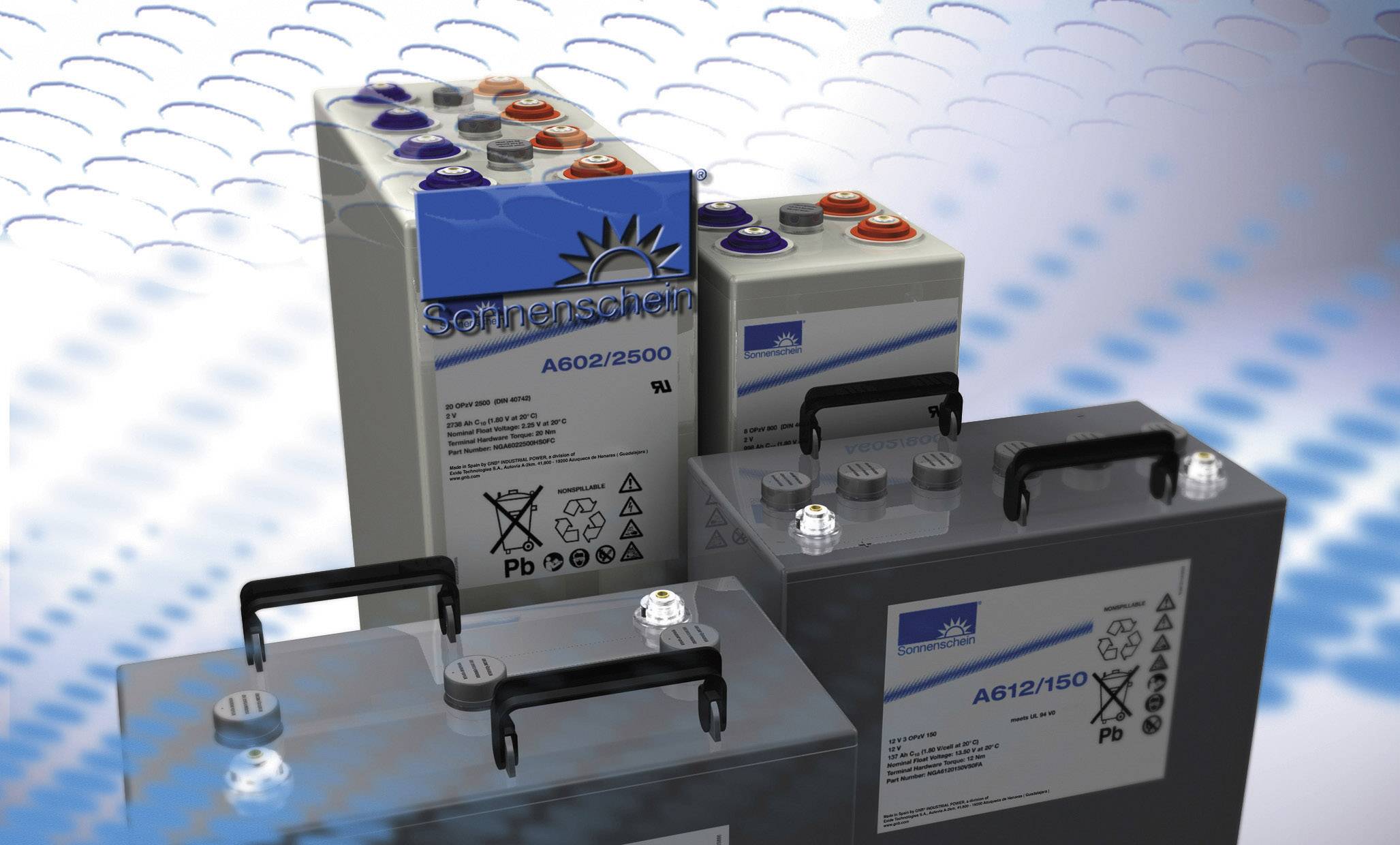

'Solar Energy Batteries' with inscription and symbols. Various sizes, primary colours blue and grey, on a graphic background.

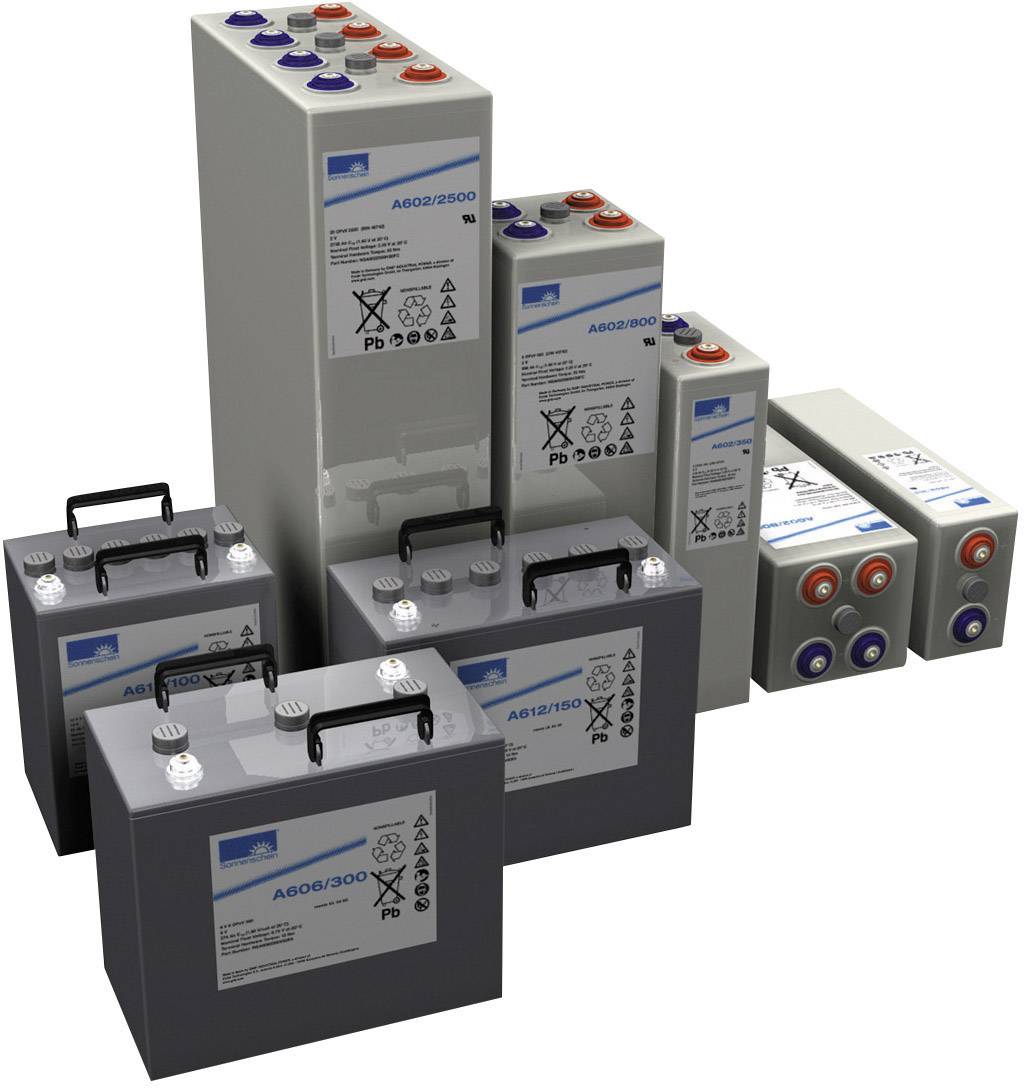

A group of various grey batteries in different sizes with handles and labels displaying technical specifications.

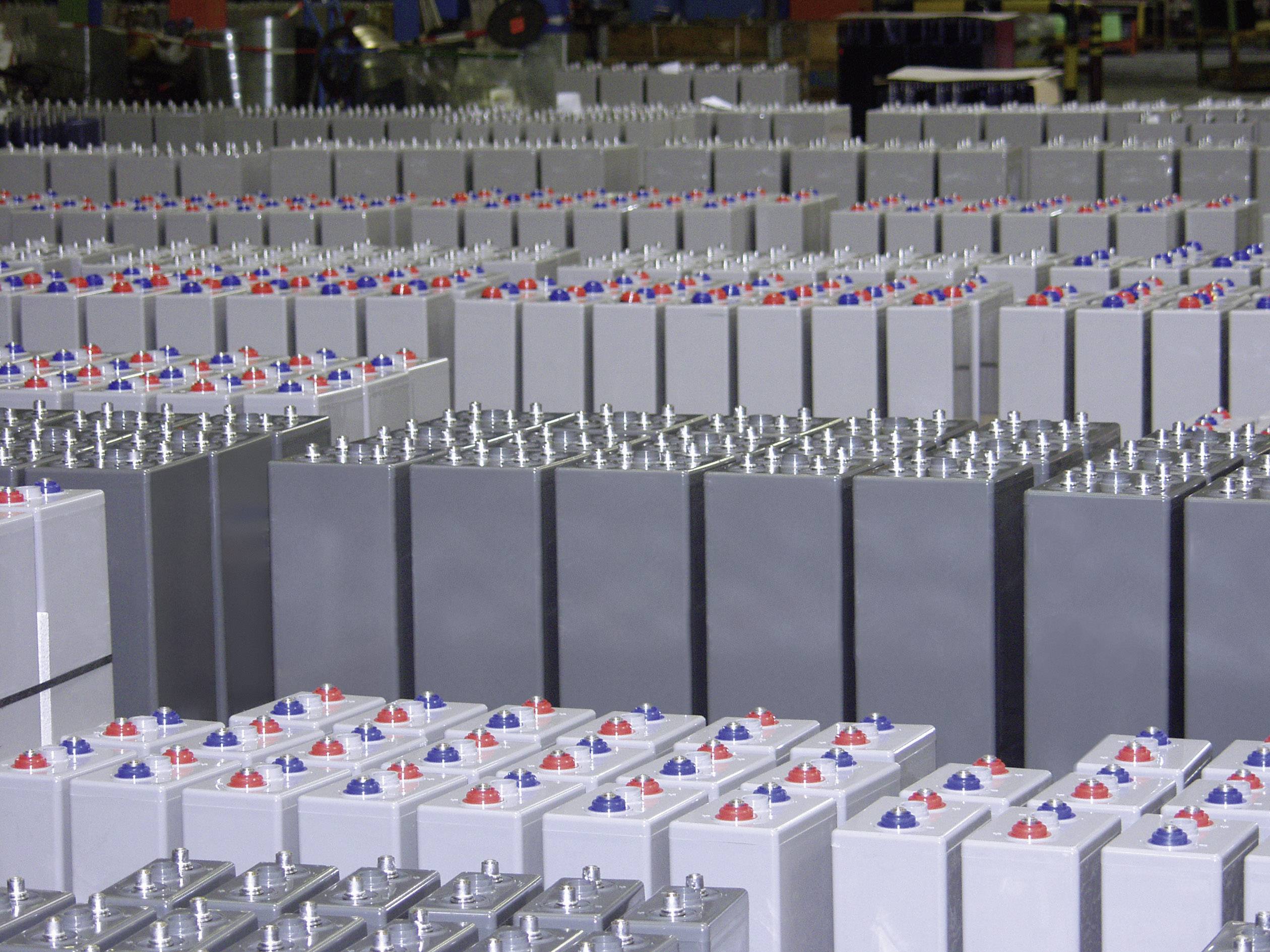

Rows of grey industrial batteries in a factory environment, stacked and ready for dispatch.

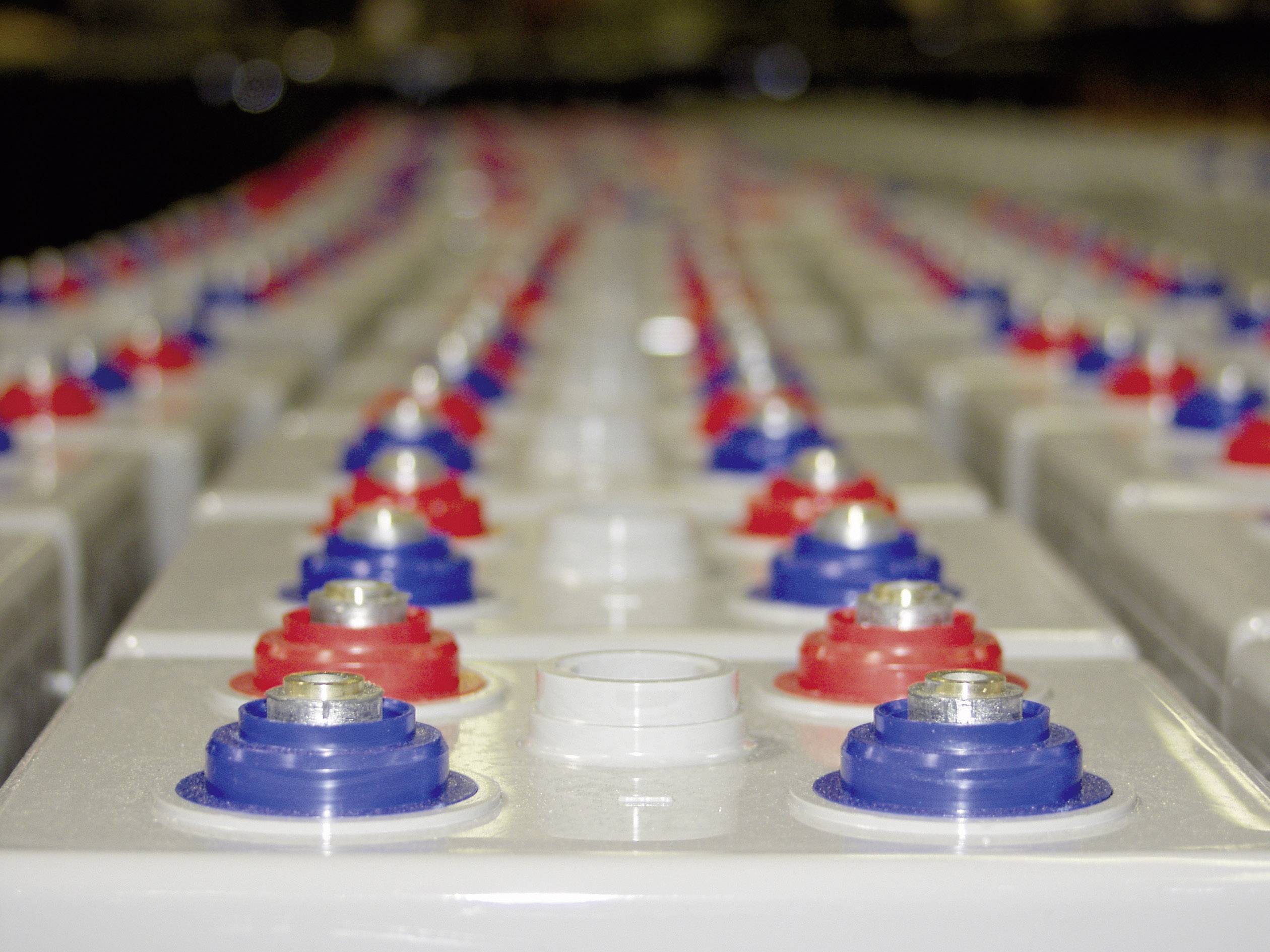

Row of industrial battery cells with alternating red and blue caps in a production facility.

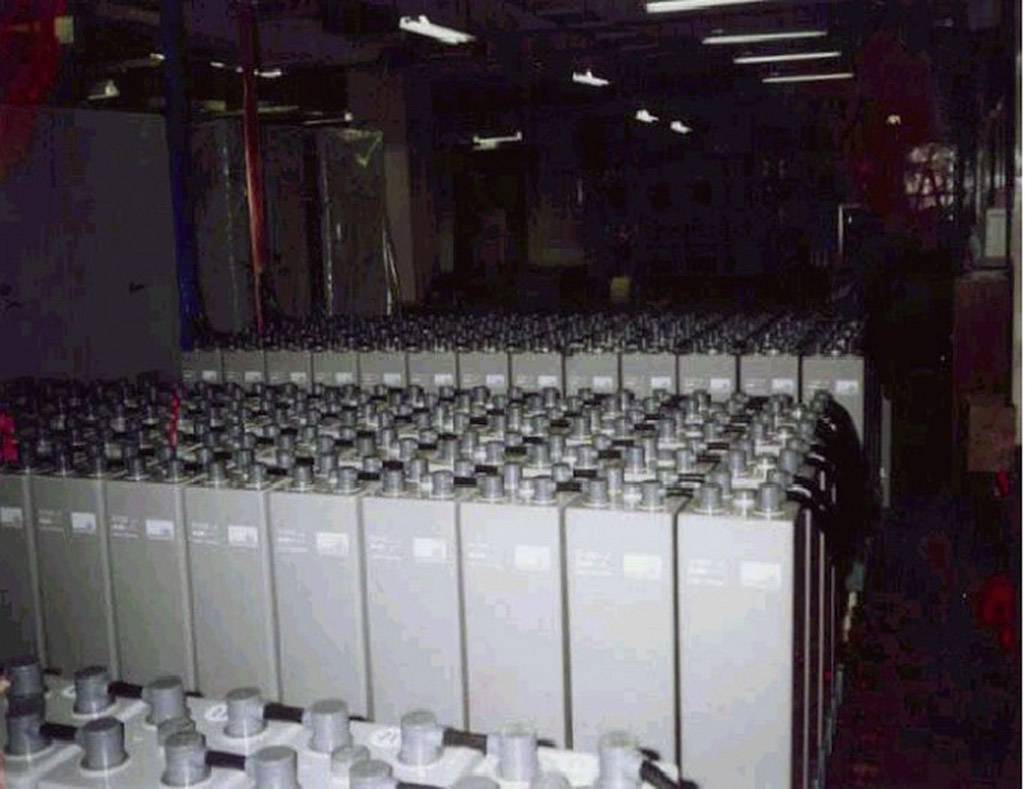

A row of large grey batteries stands in a storage room, arranged in uniform rows. The lighting is dim.

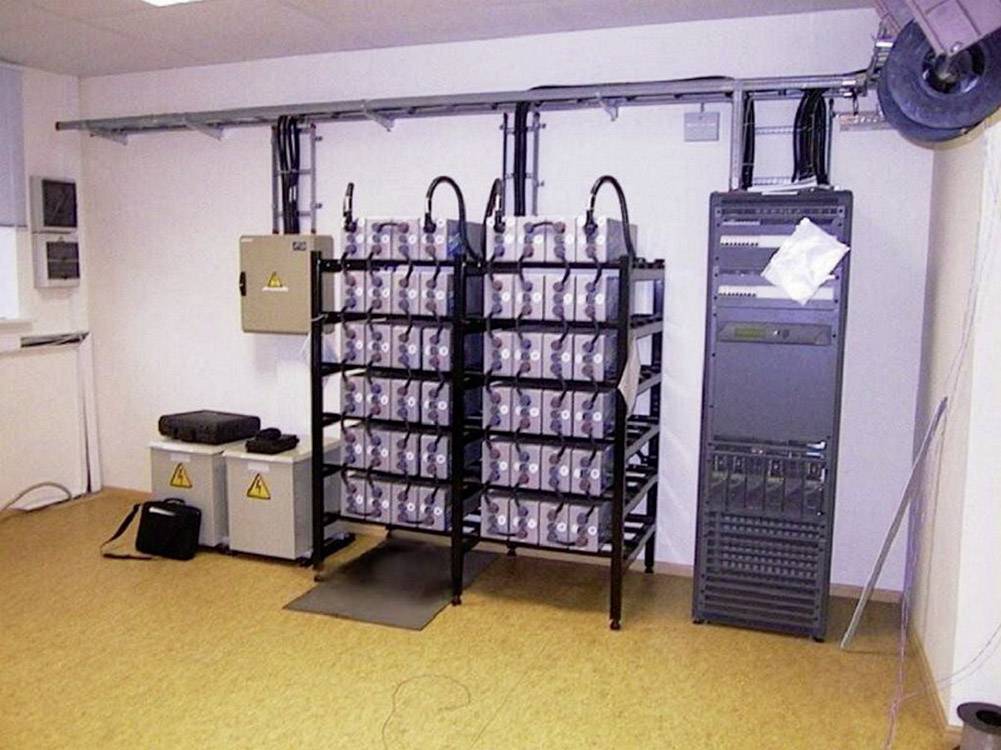

Server room with multiple UPS units, circuit breaker panel, and server rack. Cabling secured to the wall.<br><br>Note: The translation is already very close to British English. Minor adjustments have been made to ensure it sounds natural and precise.

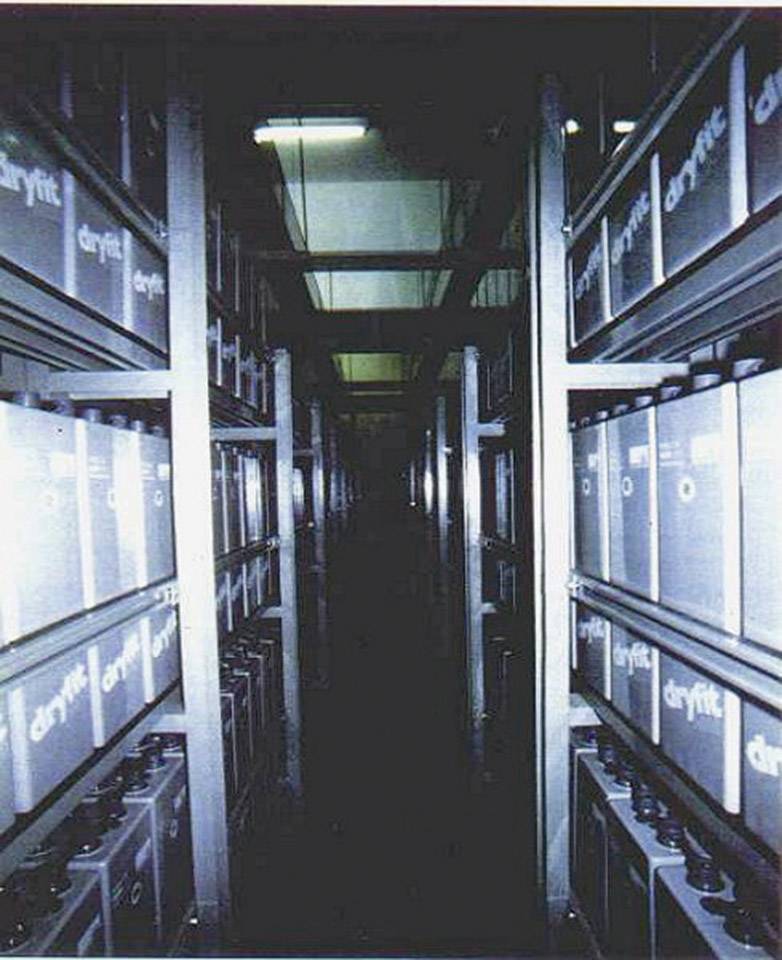

A long, narrow corridor between towering shelving units with large canisters bearing the word 'dryptik' in a dimly lit room.

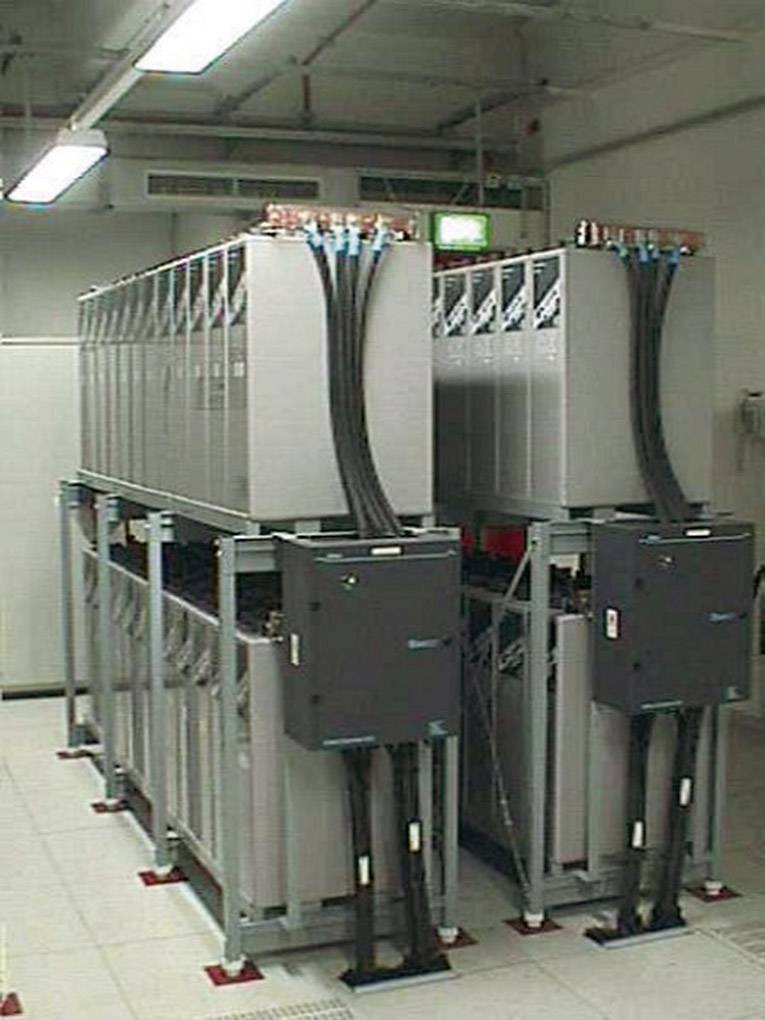

Data centre with two rows of large, grey switch cabinets and cables at the top in a white-illuminated room.

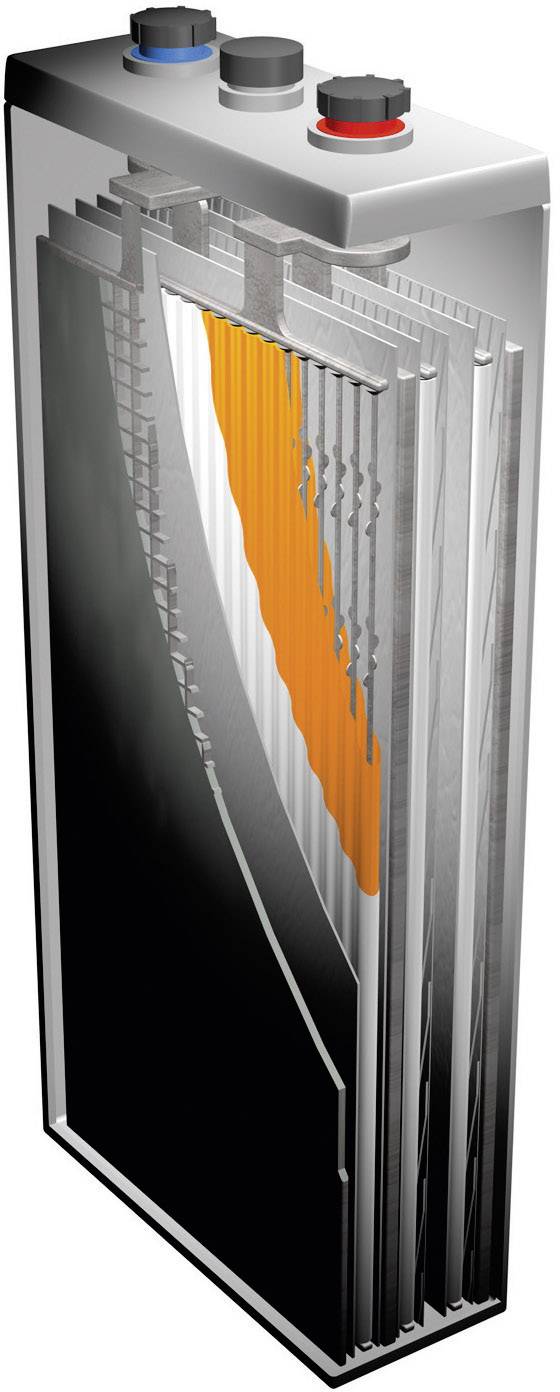

Cross-section of a battery showing various layers and internal structure, including positive and negative terminals at the top.

Cross-section of an industrial battery with positive and negative electrode plates, separators, and three terminals on top.

1/12

Datasheet (PDF)

Dispatches on Wed, 7 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 726.89 / piece)

€ 726.89

plus VAT.

Report legal concerns

Highlights & Details

Lead-acid battery dryfit A606 / 200

maintenance-free
Very low gassing and against deep discharge
Low energy consumption and greater cost efficiency

Technical specifications

Internal resistance 2.31 mΩ
Short-circuit current 2550 A

Dim: (W x H x D) 273 x 358 x 204 mm

Product type: VRLA

Technology: VRLA gel

Voltage: 6 V

Capacity (mAh, Ah): 182 Ah

Height: 358 mm

Weight: 43 kg

Content: 1 pc(s)

Type: 6V 4 OPzV 200

Rechargeable: Yes

Connector: M8 connector

Depth: 204 mm

Width: 273 mm

Features: Maintenance-free

Pin type: F-M8

Range of use: Alarm systems
Electric vehicles

VDS certification: No

Documents & Downloads

Datasheet

Datasheet 617949 GNB Sonnenschein 6V 4 OPzV 200 NGA6060200HS0FA VRLA 6 V 182 Ah VRLA gel (W x H x D) 273 x 358 x 204 mm M8 connector Main

User & Safety Instructions

User & Safety Instructions 617949 GNB Sonnenschein 6V 4 OPzV 200 NGA6060200HS0FA VRLA 6 V 182 Ah VRLA gel (W x H x D) 273 x 358 x 204 mm M8 connector Main

Description

The Sonnenschein A600 series combines exceptional energy-storage properties with rugged reliability, proven for decades in many installations worldwide.

Features

Maintenance-free
Low energy consumption and thus cost-saving
Powerful tubular plate technology for a longer service life
Very low gassing due to internal gas recombination
Designed in accordance with IEC 60896-21 / -22
Design Life: 15 years for 6/12 V blocks and 20 years for 2 V cells at 20 ° C (80% residual capacity C10)
very low gassing also horizontally mountable
Robust design load due to internal gas recombination
shelf life up to 2 years at 20 ° C without recharging by very low self
deep discharge
under harsh conditions
Completely recyclable cells correspond to DIN 40742
gel electrolyte
housing material polypropylene (PP)
