Gooseneck Desktop microphone JTS ST-5000T Transfer type (details):Corded Switch
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 0.805 kg
- Dimensions 96 x 46 x 113 mm
- Ass. Operating temperature 0-40 °C
- Weight: 748 g.
- Gross weight: 1.078 kg
- Max. Sound pressure 140 dB
- Connection: XLR, balanced
- Design: Table
- Characteristic: Kidney
- Sensitivity 15.8 mV/Pa
- Signal-to-noise ratio 78 dB
- Type: Gooseneck microphone
- Transmission type: Cable
- System: Capacitor
- Audio frequency range 20-20000 Hz
- Supply: DC 36-52 V, Phantom
- Gooseneck length 122 mm
- Nominal impedance 100 Ω
- Product type
Desktop microphone
- Type
Gooseneck
- Transfer type
Corded
- Characteristics
Cardioid
- Impedance
100 Ω
- Features
Switch
- Connector
XLR balanced
- Weight
748 g
- Width
96 mm
- Height
113 mm
- Dim
(W x H x D) 96 x 113 x 46 mm
- Interfaces
XLR
- Frequency range
20-20000 Hz
- Depth
46 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3340671 Gooseneck Desktop microphone JTS ST-5000T Transfer type (details):Corded Switch
User & Safety Instructions
User & Safety Instructions 3340671 Gooseneck Desktop microphone JTS ST-5000T Transfer type (details):Corded Switch
Description

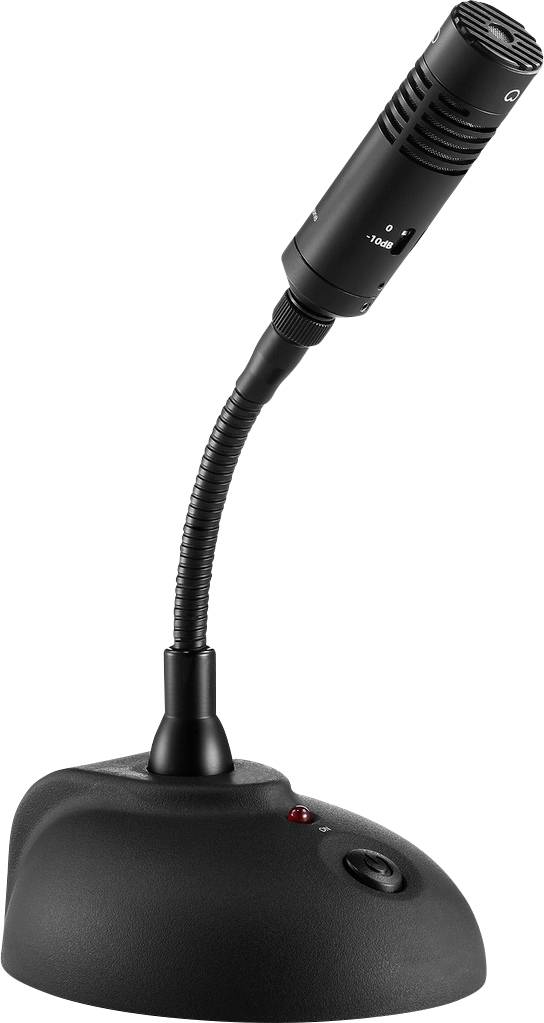

Gooseneck desktop microphone
High-quality gold-plated 1.25 cm capacitor capsule (½") Low-cut switch (80 Hz) Switchable 10 dB attenuation Low noise ON/OFF switch LED operation indicator XLR output
This text is machine translated.
High-quality gold-plated 1.25 cm capacitor capsule (½") Low-cut switch (80 Hz) Switchable 10 dB attenuation Low noise ON/OFF switch LED operation indicator XLR output
This text is machine translated.
Features
- Type: Gooseneck microphone
- Design: Table
- Transmission type: Cable
- Characteristic: Kidney
- System: Capacitor
- Audio frequency range 20-20000 Hz
- Nominal impedance 100 Ω
- Sensitivity 15.8 mV/Pa
- Signal-to-noise ratio 78 dB
- Max. Sound pressure 140 dB
- Supply DC 36-52 V
- Phantom
- Gooseneck length 122 mm
- Ass. Operating temperature 0-40 °C
- Dimensions 96 x 46 x 113 mm
- Weight: 748 g.
- XLR connection
- balanced
- Packaging dimensions (W x H x L) 0.295 x 0.14 x 0.16 m
- Gross weight: 1.078 kg
- Net weight: 0.805 kg
