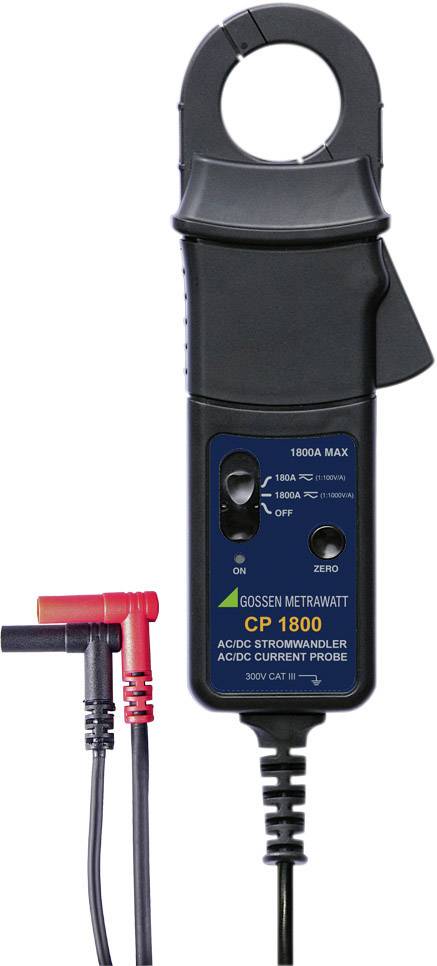

Gossen Metrawatt CP1800 Clamp meter adapter A/AC reading range: 100 mA - 1250 A A/DC reading range: 100 mA - 1250 A
EAN:
Part number:
Item no:
Highlights & Details
Current probe sensor with voltage output
- N/A
- Opening range of current clamps 32 mm
Technical specifications
- Measuring range DC, AC: 125 A/1250A (RMS)
- Resolution 100 mA/500 mA
- Conductor Φ 32 mm
- Frequency range: DC up to 20 kHz own uncertainty: 1% + 100 / 500 mA
- Opening range of current clamps
32 mm
- Product type
Clamp meter adapter
- Type B
4 mm plug
Manufacturer's standards (no certificate)
- A AC reading range (min.)
100 mA
- Amperage reading range AC (max.)
1250 A
- Basic accuracy
1 %
- Amperage reading range DC (min.)
100 mA
- A DC reading range (max.)
1250 A
- Power supply (details)
9 V battery
- Dim
(L x W x H) 200 x 74 x 25 mm
- Current reading
AC/DC
- Reading category
CAT III 300 V
- Weight
380 g
- Max. frequency
20 kHz
- Width
74 mm
- Height
25 mm
- Length
200 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1405750 Gossen Metrawatt CP1800 Clamp meter adapter A/AC reading range: 100 mA - 1250 A A/DC reading range: 100 mA - 1250 A
Description
The current probe sensor CP 1800 was for precise, contact-free measurement of AC and DC currents. Using the Hall effect technology, it can be used for precise current measurement.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 9V alkaline battery
- User manual
