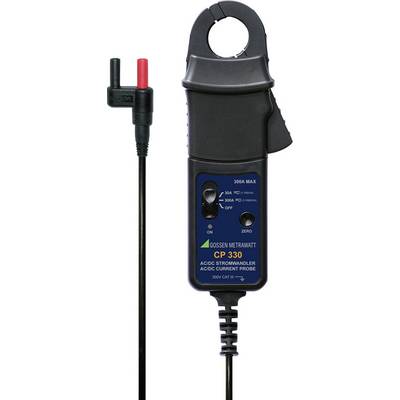

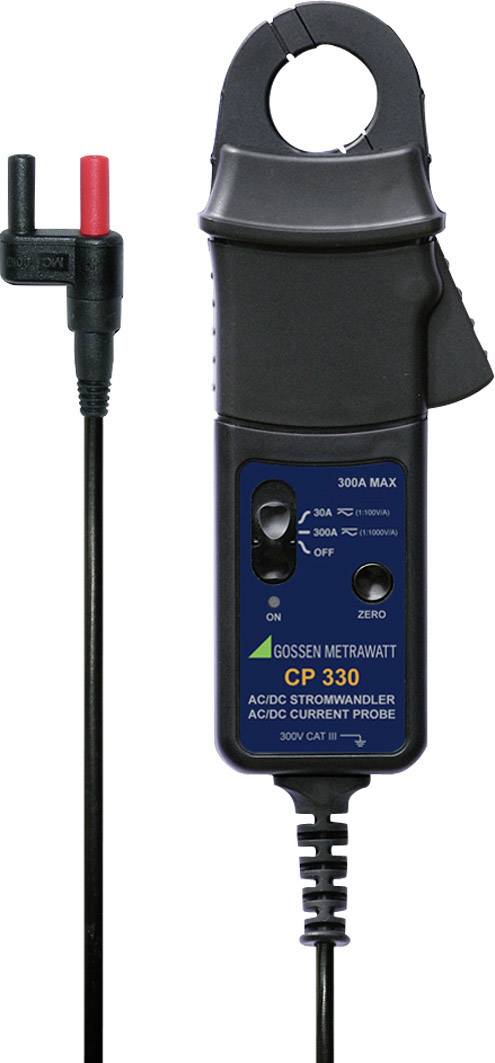

Gossen Metrawatt CP330 Clamp meter adapter A/AC reading range: 50 mA - 300 A A/DC reading range: 50 mA - 300 A
EAN:
Part number:
Item no:
Highlights & Details
Current probe sensor with voltage output
- N/A
- Opening range of current clamps 25 mm
Technical specifications
- Measuring range DC, AC 30 A/300 A (RMS)
- Resolution 50 mA/100 mA
- Conductor Ø 25 mm
- Frequency range: DC up to 20 kHz own uncertainty: 1% + 50 / 100 mA
- Opening range of current clamps
25 mm
- Product type
Clamp meter adapter
- Type B
4 mm plug
Manufacturer's standards (no certificate)
- A AC reading range (min.)
50 mA
- Amperage reading range AC (max.)
300 A
- Basic accuracy
1 %
- Amperage reading range DC (min.)
50 mA
- A DC reading range (max.)
300 A
- Power supply (details)
9 V battery
- Dim
(L x W x H) 194 x 74 x 25 mm
- Current reading
AC/DC
- Reading category
CAT III 300 V
- Weight
400 g
- Max. frequency
20 kHz
- Width
74 mm
- Height
25 mm
- Length
194 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1405748 Gossen Metrawatt CP330 Clamp meter adapter A/AC reading range: 50 mA - 300 A A/DC reading range: 50 mA - 300 A
Description
The current probe sensor CP 330 was for precise, contact-free measurement of AC and DC currents. Using the Hall effect technology, it can be used for precise current measurement.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 9V alkaline battery
- User manual
