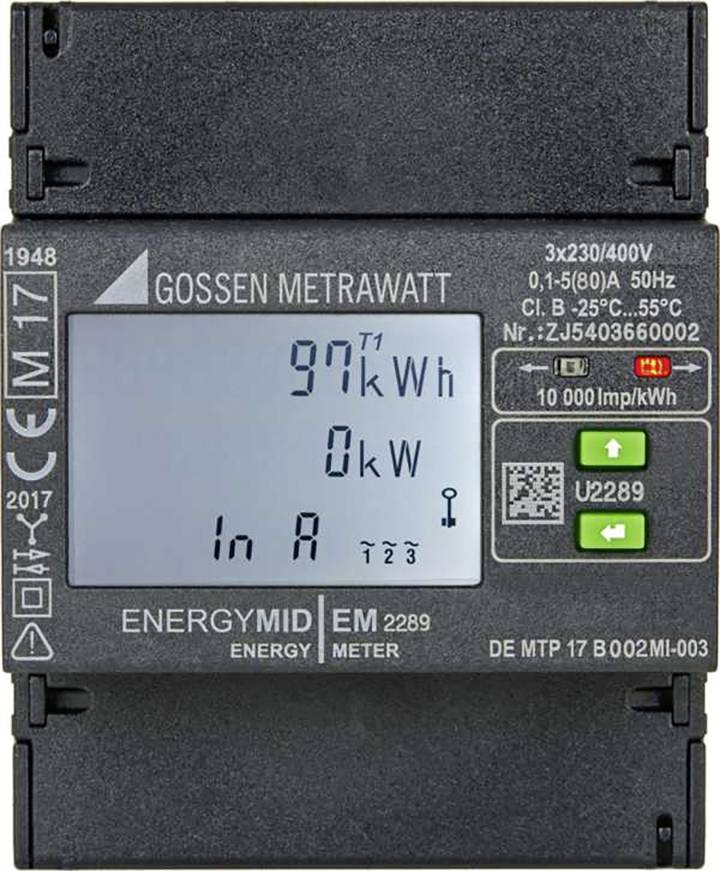

Gossen Metrawatt EM2289 S0 U2289-V022 Electricity meter (3-phase) Digital MID-approved: Yes 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electricity meter (3-phase)
Display
Digital
Calibration
Calibrated
Dim
(L x W x H) 69 x 72 x 90 mm
Weight
300 g
Datasheet (PDF)
Highlights & Details
GMC-I Energy meter EM2289 MID, S0, multi-functional
- For 4 conductor networks, 400 V with direct connection 5 (80) A
- Programmable S0 Impulse Output
- MID-approval
- Display of active energy, as well as current values U, I, P, Q, S, PF, f, THD
Technical specifications
- Product type
Electricity meter (3-phase)
- Display
Digital
- Calibration
Calibrated
- Dim
(L x W x H) 69 x 72 x 90 mm
- Weight
300 g
- Operating voltage
400 V AC
- Recess width
72 mm
- Recess length
90 mm
- MID-approved
Yes
- Reading type
Active energy
- Nominal voltage range
400 V AC (max)
- Mains voltage (max.)
400 V AC
- Width
72 mm
- Height
90 mm
- Length
69 mm
- Current (max.)
80 A
- Current range
80 A (max)
- Type
EM2289 S0
- Effective current range
5(80) A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1625910 Gossen Metrawatt EM2289 S0 U2289-V022 Electricity meter (3-phase) Digital MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1625910 Gossen Metrawatt EM2289 S0 U2289-V022 Electricity meter (3-phase) Digital MID-approved: Yes 1 pc(s)
Description
ENERGYMID EM 2289 - multi-energy counter for 4 conductor networks.
Applications
The calibrated energy counter can be used to capture and settlement of active energy in industry, household, commercial, industrial and building technology can be used. The transfer of values to acquisition, billing and optimization systems as well as building automation and control technology takes place via pulse output
Energy acquisition in the industry for individual lines or machines
Measurement of renewable energy from photovoltaic and wind energy systems
Detection and clearing of consumption at camping sites, shopping centers, residential, boat investors
Power detection for hotels, convention centers and measure
Internal cost distribution for time sharing apartments and untervermietete industrial building
Consumption settlement in business centers
Construction of power detection systems
Remote transmission of consumption values and Expense Report
Technical characteristics:
Design for 4-conductor networks, 400 V
5 (80) A direct connection
Ultra compact housing 4 TE (72 mm) with integrated interface
Fast error detection by color change on the display (e.g., rotary field direction, phase failure or overload)
Multi-functional design - up to 33 more measured variables directly on the display can be read, for example, active power, current, voltage, power factor or frequency
, Accuracy Class B for industry and trade as well as increased requirements in households
Suitable for accounting purposes thanks to initial verification after MID (conformity assessment procedures module B+D)
Measurement of the energy reference and the energy output, thanks to the 4-quadrant measurement
Cost-effective network monitoring by collection THD for current and voltage as well as the neutral conductor current IN
Flexible communication via integrated universal pulse output (2 x S0 with adjustable pulse rate, duration and selectable voltage range)
High-contrast three line LCD display (42 x 28 mm) with LED-background lighting
8 tariff inputs adaptable to future tariff structure on the energy market: 4 Tariffs (hardware controlled as standard) with bus 4 additional tariffs (software-controlled)
Protection against manipulation thanks to the sealable cover and parameterization lock
This text is machine translated.
