Buy Gossen Metrawatt EM2289 U2289-V039 Electricity meter (3-phase) 80 A MID-approved: Yes 1 pc(s)

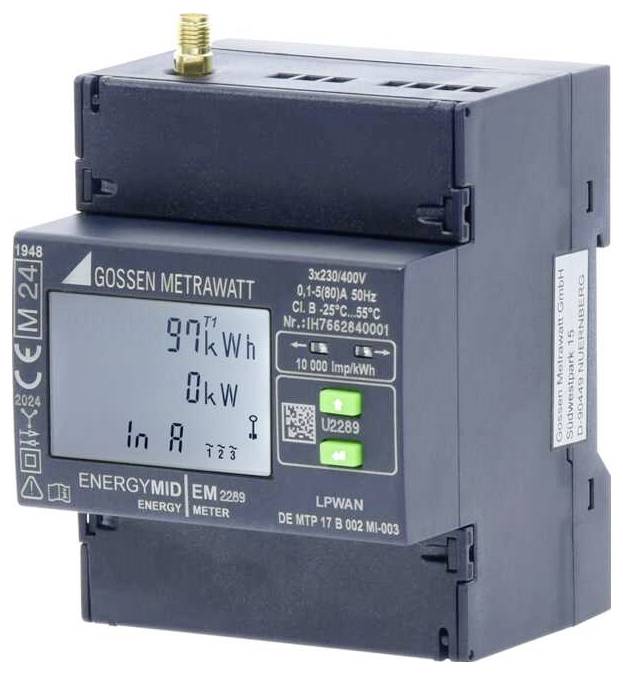

An energy watt digital meter displays the following information: '9.71 kWh', '0 kW', 'In A'. Further technical details are visible on the casing.

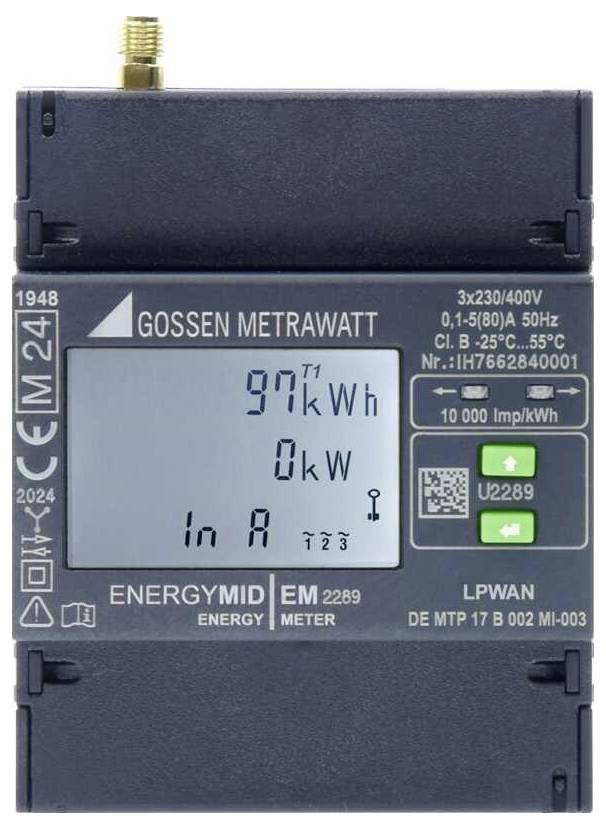

Electricity meter with display showing '97 kWh' consumption and '0 kW' current usage. Manufacturer: Gossen Metrawatt. Model: ENERGIMID EM 2289.

1/2

Product type

Electricity meter (3-phase)

Current load

80 A

Calibration

Regenerated/calibrated

Special feature

Certified meter reading range (PTB-A 50.7), integrated radio interface based on the LoRaWAN®

Factory colour

Black

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 357.14 / piece)

€ 357.14

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Multifunctional energy counter for 4 wire networks, 400V with direct connection 5(80) A with support of the LoRaWAN® protocol

Multi-functional energy meter with MID-certification for direct or converter connection as well as 2-,3- or 4-conductor networks (depending on type)
Integrated radio interface based on the LoRaWAN® standard in the compact 4 TE housing
No battery change necessary by supplying the interface from the measuring voltage
Function update of the interface via FUOTA
4 Quadrant measurement: Energy reference and discharge
Recording of THD for current and voltage as well as neutral CURRENT IN
Other interfaces available within the series: M-Bus, LON, Modbus TCP / BACnet, Modbus RTU, pulse output

Technical specifications

Product type: Electricity meter (3-phase)

Current load: 80 A

Calibration: Regenerated/calibrated

Special feature: Certified meter reading range (PTB-A 50.7), integrated radio interface based on the LoRaWAN®

Factory colour: Black

Dim: (L x W x H) 90 x 72 x 70 mm

Weight: 200 g

Starting current: 20 mA

Display: Digital

Recording time (max.) (details): 48 Monate

Operating voltage: 400 V

Recess width: 72 mm

Recess length: 90 mm

Frequency: 50 Hz

Accuracy class: B

MID-approved: Yes

Reading type: Energy consumption

Nominal voltage range: 320 up to 460 V AC

Mains voltage (max.): 460 V AC

Mains voltage (min.): 320 V AC

Width: 72 mm

Height: 70 mm

Length: 90 mm

Current (max.): 80 A

Current (min.): 0.1 A

Current range: 0.1 up to 80 A

Type: EM2289

Effective current range: 80 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3385476 Gossen Metrawatt EM2289 U2289-V039 Electricity meter (3-phase) 80 A MID-approved: Yes 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3385476 Gossen Metrawatt EM2289 U2289-V039 Electricity meter (3-phase) 80 A MID-approved: Yes 1 pc(s)

Description

The innovative energy counters ENERGYMID EM LPWAN with support of the LoRaWAN® protocol enable simple and secure energy data collection on a new level thanks to the wireless communication technology. Thanks to the radio interface and MID certification, the counters offer the perfect solution for decentralized and legally reliable energy data collection from energy monitoring to consumption accounting – all without any wiring and with ease of installation. Take it easy!
